LT12
Razor sharp;
Ultra bright
Precision. Power. Perfection.
LT12 is an IP66 moving profile. Thanks to its self-developed high efficient optical system, it’s able to integrate full feature set and unmatched output in a compact package – 1200W engine to produce an output of over 51000 lumen, weight only 45kg. Wide zoom range, sharp focus, accurate control, perfect consistency – it has everything you want.
1200W LED
LIGHT SOURCE
51,000Lm
LUMEN
6,000 – 6,200K
COLOR TEMPERATURE
3.7° – 52°
BEAM ANGLE
45KG
WEIGHT
479 x 300 x 792 mm
DIMENSION
Get razor sharp precision & expression
- Razor sharp shutter framing and elegant gobo shaping
- Extremely even spot with flawless field consistency
- CMY+color wheel for wider choice of color
- Rotating gobo wheel+animation+frost offer full range dynamic effects
- Equipped with dual indexable 4-facet prism(round and linear) with variable speed
- Weather-resistant IP66 tour-grade construction
- DMX512 / RDM / sACN / Artnet / Bluetooth / APP / NFC
TECHNICAL SPECS
PHOTOMETRICS
- Light Source
1200W LED engine
- Output
51,000Lm
- Beam Angle
3.7~52°
- CRI
≥70
- Color Temperature
6000K – 6200K
- LED Life
30,000 hours
KEY FEATURES
- Pan
540°
- Tilt
270°
- Color System
CMY+CTO+Color Wheel(6+open)
- Strobe
1 – 30Hz
- Dimming
Linear/Square/In-verse square/S-curve+4 dimming modes(22bit)
- Animation
Animation wheel with variable speed
- Gobo System
2 Rotating gobo wheel(7gobos+open)
- Framing System
Single blade ±35°, rotatable ±90°
- Iris
16 leaves, 15%- 100% motorized linear iris
- Frost
1°+5° 0% – 100% linear frost
- Prism
Indexable 4 facet prism+linear prism with variable speed
- Iris
NA
- Frost
Frost glass
- Prism
Bi-directional, combinable, 8-facet + 4-facet prism
CONTROL
- Protocol
DMX512 / RDM / sACN / Artnet / Bluetooth / APP / NFC
- DMX Channels
38CH
- Onboard Menu
40RGB*320，2.8 inch
- Built-in Programs
Yes
- Slogan Template
Slogan Template
- Slogan Template
Slogan Template
- Slogan Template
Slogan Template
POWER
- Mains
100 – 240 VAC, 50/60 Hz
- Power Connections
Seetronic IP Power In
- Data Connections
Seetronic 3pin (or 5pin) XLR In/Out,linking up to 32pcs
- Consumption
230V/1560W，100V/1640W
- Power Factor
0.98/230V
- Ambient
-10°C – 45°C
- Slogan Template
Slogan Template
- Slogan Template
-20°C – 45°C
PHYSICAL
- Dimension
479*300*792mm
- Weight
45kg
- Cooling
Heat pipe cooling system with low noise fan
- IP Rating
IP66
- Slogan Template
Slogan Template

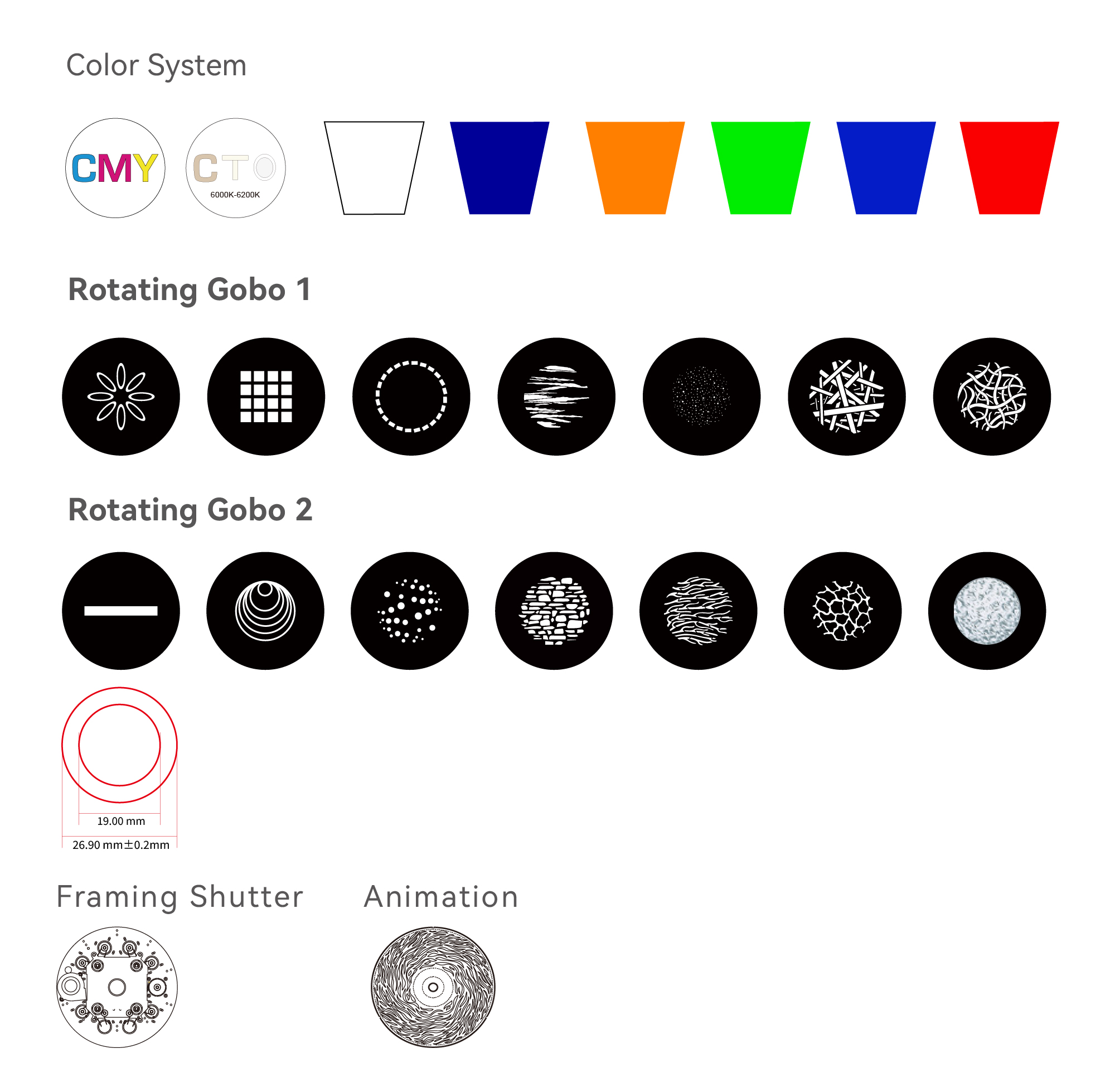

PRODUCT EFFECTS
ACCESSORIES
- Standard
Power cable, Omega bracket
