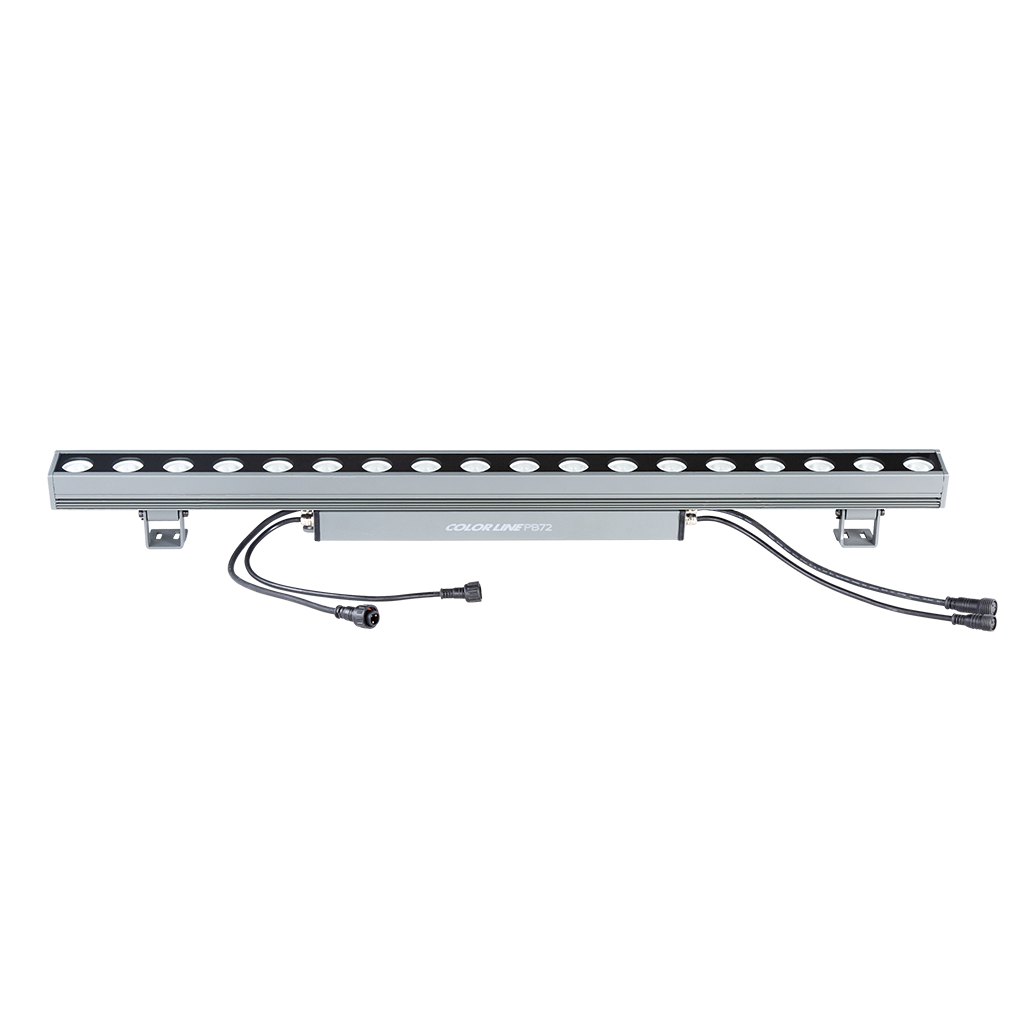

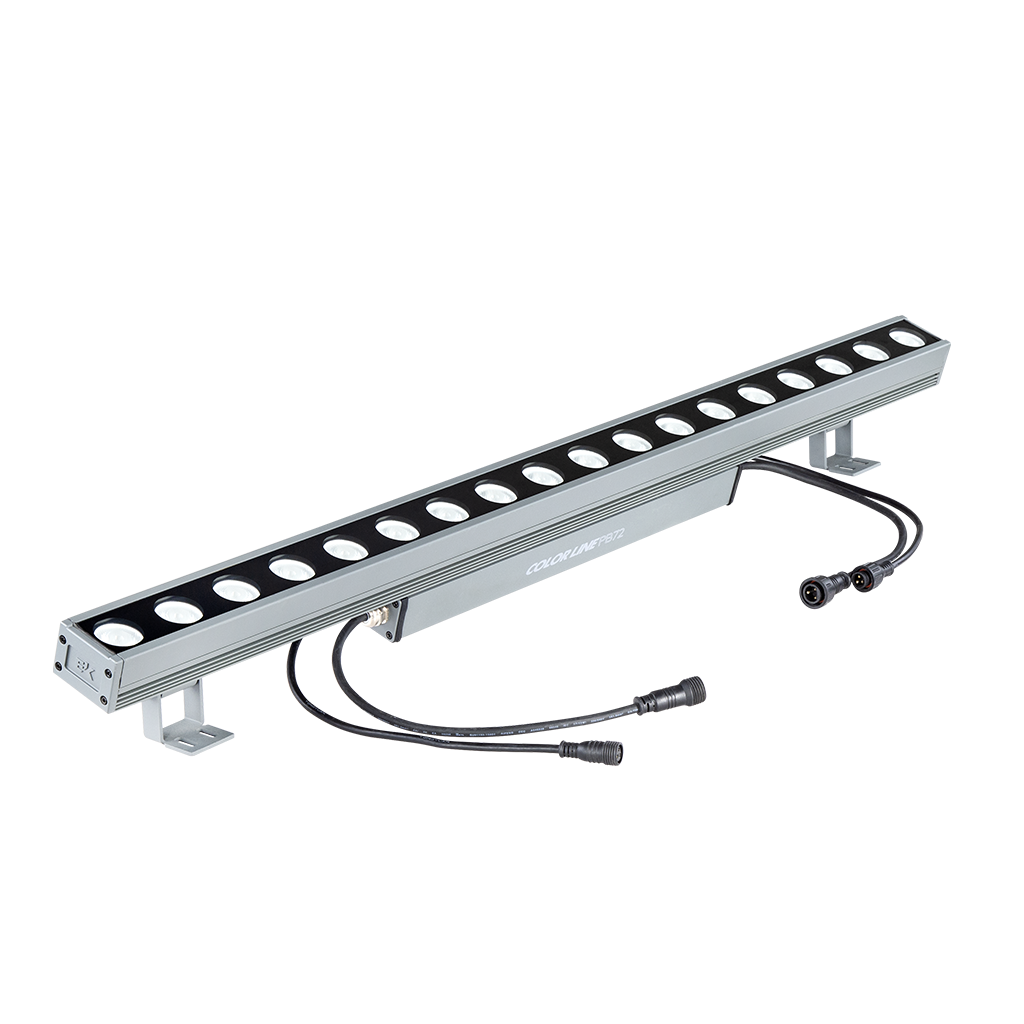

COLOR LINE PB72
Outdoor LED Wall Light
- LED wall wash with asymmetrical light distribution.
- Ultra-effecient optical system, low glare, high output, and precise wash area.
- Wash distance over 10m.
- White temperature preset: 1800K~8000k.
- 4-in-1 RGBW color mixing for advanced control over color tones, saturation and temperature.
- 0~100% linear dimming technology with 4 selectable dimming curves.
- Ra≥90
- DMX and RDM control.
63W RGBW LED
LIGHT SOURCE
2890Lm
LUMENS
1800K～8000K
COLOR TEMPERATURE
8° / 15° / 25° / 40° / 60° / D15 x 30°
BEAM ANGLE
4.86KG
WEIGHT
1000x60x104mm
DIMENSION
TECHNICAL SPECS

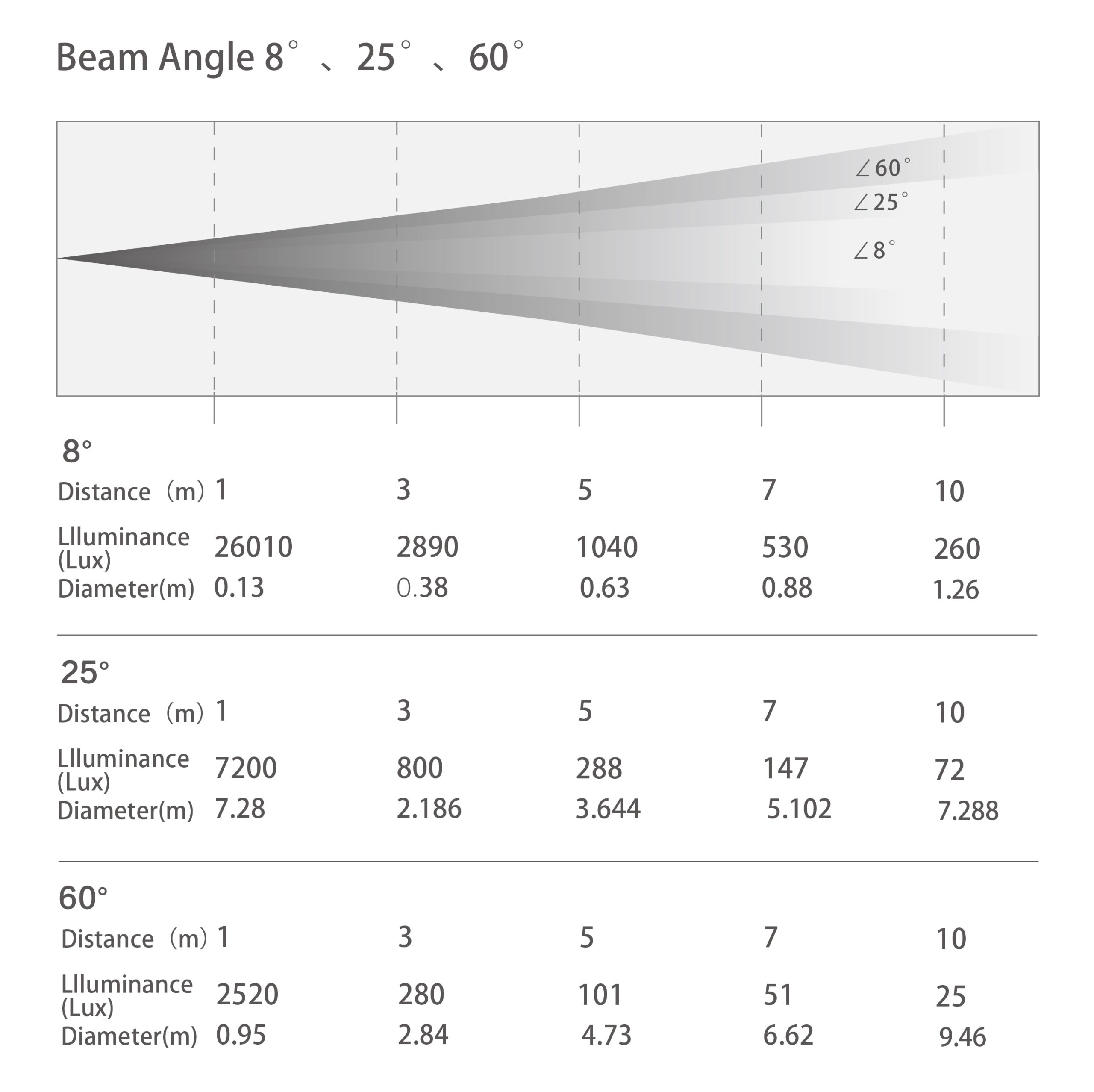

PHOTOMETRICS
- Light Source
63W RGBW LED
- Output
2890Lm
- Color Temperature
1800K～8000K
- Lifespan
20000hrs
- Beam Angle
8° / 15° / 25° / 40° / 60° / D15 x 30°
- Field Angle
21° / 31° / 52° / 73° / 96° / 17 x 53°
KEY FEATURES
- Tilt
180°(manual)
- Color System
RGBW Color mixing
- Strobe
0~30Hz
- Dimming
0~100% with 4 dimming modes
- Slogan Template
Slogan Template
- Framing System
Single blade ±35°, rotatable 180°
- Iris
NA
- Frost
Frost glass
- Prism
Bi-directional, combinable, 8-facet + 4-facet prism
CONTROL
- Protocol
DMX512/RDM
- DMX Channels
4CH / 6CH / 10CH
- Slogan Template
Slogan Template
- Slogan Template
Slogan Template
- Slogan Template
Slogan Template
- Slogan Template
Slogan Template
POWER
- Mains
100 – 240 VAC， 50/60 Hz
- Power Connections
IP66 Power IN/OUT
- Data Connections
IP 3Pin DMX IN/OUT
- Consumption
75W/230V，77W/120V
- Ambient
-10℃~45℃
- Slogan Template
Slogan Template
- Slogan Template
-20°C – 45°C
PHYSICAL

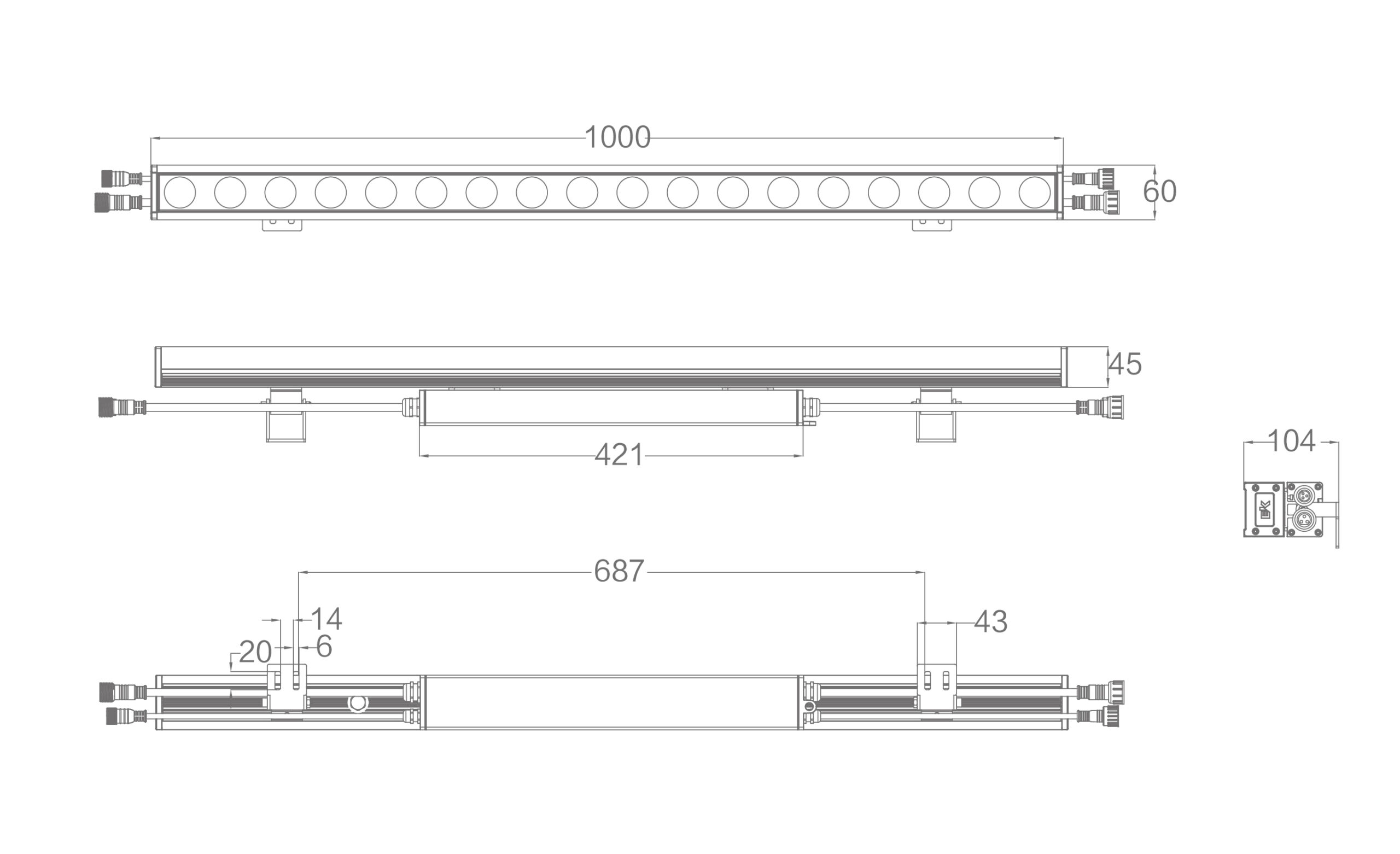

- Dimension
1000x60x104mm
- Weight
4.86kg
- Cooling
Passive
- Housing
Stretched aluminum, black/grey
- IP Rated
IP66
PRODUCT EFFECTS
ACCESSORIES
- Standard
power cable
