R3 Beam Wash
Creativity at your fingertips
Fast, light, perfectly-calibrated
The R3 beam wash combines compact design with powerful performance, featuring 7 RGBWW LEDs with 90+ CRI. Its RGB Gamma adjustment enables precise color calibration, while 16-bit dimming delivers ultra-smooth light control. The onboard preset library with color and strobe macros also allows for a myriad of creative effects, making it an artistic arsenals for professionals everywhere.
280W RGBW LED
LIGHT SOURCE
4600 Lm
LUMENS
2500K – 8000K
COLOR TEMPERATURE
4°- 57°
Beam Angle
6.6kg
WEIGHT

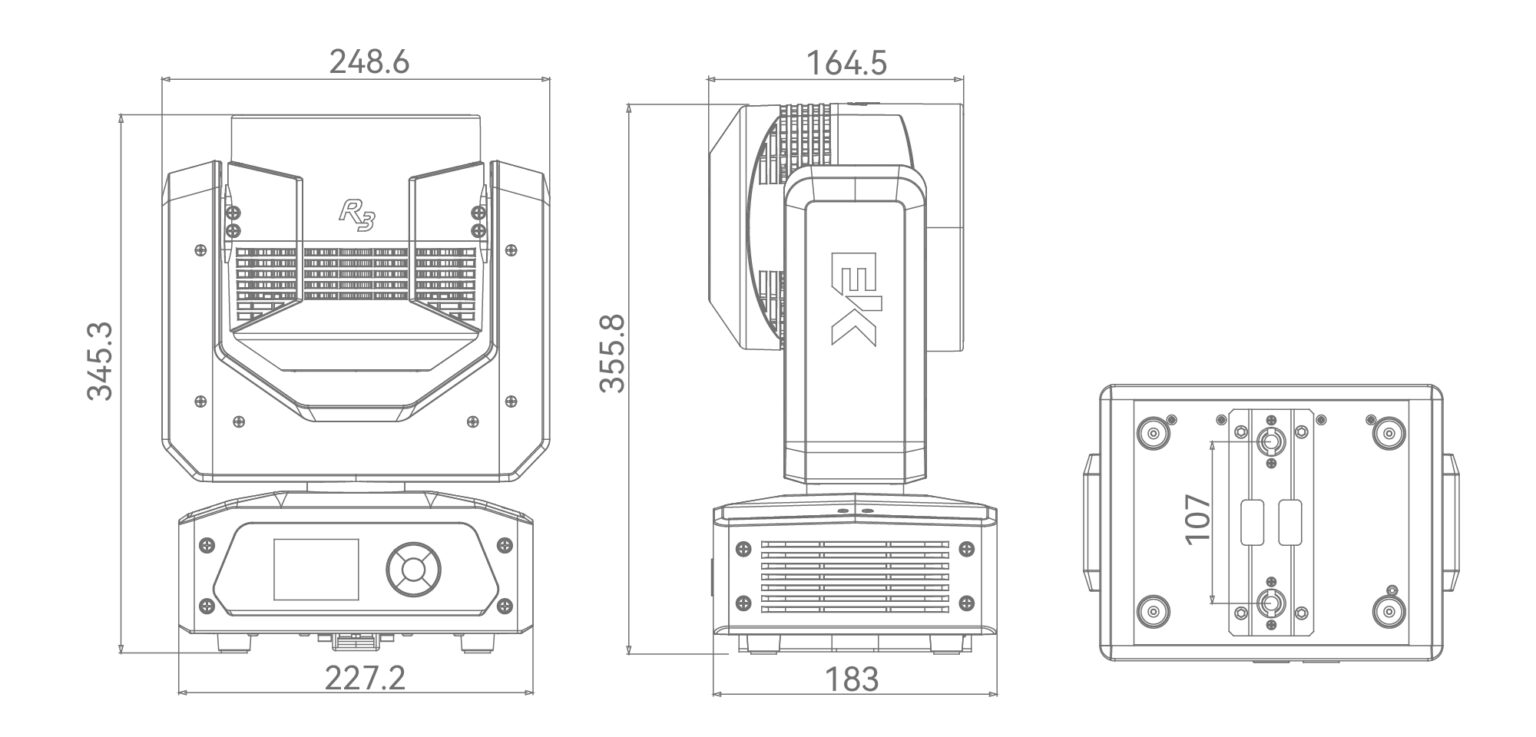

249 x 183 x 345mm
产品尺寸
Outstanding color rendition
- 280W RGBW LEDs
- Up to 4600 lumen fixture output
- White color temperature presets from 2500K – 8000K
- Outstanding color rendition, CRI≥90

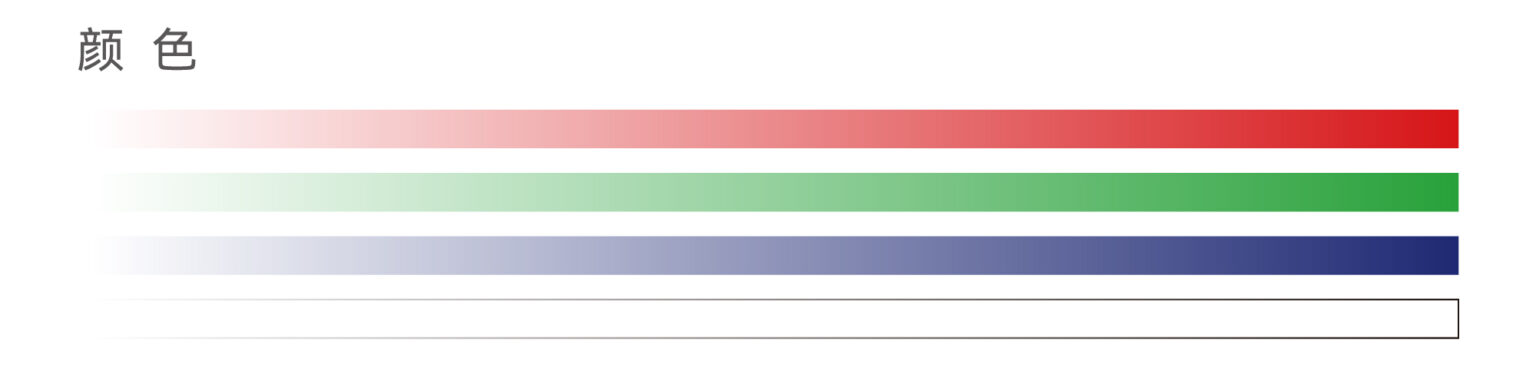

- RGBW colour mixing with RGB Gamma adjustment
- Flawless 16-bit dimming
Features
Master every angle
4° – 57° linear zoom
Quiet operation suitable for studio use
Engineering brilliance
- Independent channel for CT correction
- Two pan/tilt speed modes (normal and turbo)
- Selectable PWM frequency for flicker-free video with any camera
- DMX and RDM control
Technical specs
Photometrics
- Light Source
280W RGBW LED
- Output
4600 Lm
- Color Temperature
2500K – 8000K
- CRI
≥90
- LED Life
20,000 hours
KEY FEATURES
- TILT
270° (16 bit resolution)
- Color System
RGBW
- Zoom
Beam Angle 4°- 57°
- Strobe
0 – 30Hz
- Dimming
0 – 100%
CONTROL
- Protocol
DMX 512 /RDM
- Data Connections
3pin(or 5pin) XLR In/Out for DMX linking up to 25 connections
- DMX Channel
16CH/20CH
- Display
2.83 inch TFT display
POWER
- Mains
100 – 240V, 50/60 Hz
- Power Connections
PowerCon In / Out
- Maximum Power Connections
linking up to 8 units @230V
- Data Connections
3pin(or 5pin) XLR In/Out for DMX
- Maximum Data Connections
Linking up to 25pcs
- Consumption
308W@230V, 311W@120V
- Power Factor
0.98@230V, 0.99@120V
- Ambient
-10°C – 45°C
PHYSICAL
- 产品尺寸
249 x 183 x 345mm
- Weight
6.6kg
- IP Rating
IP20
- Cooling
Heat pipe cooling system with low noise fan
- Housing
Aluminium, matte black finish
- Installation
Sit-flat floor mounting and fly mounting
