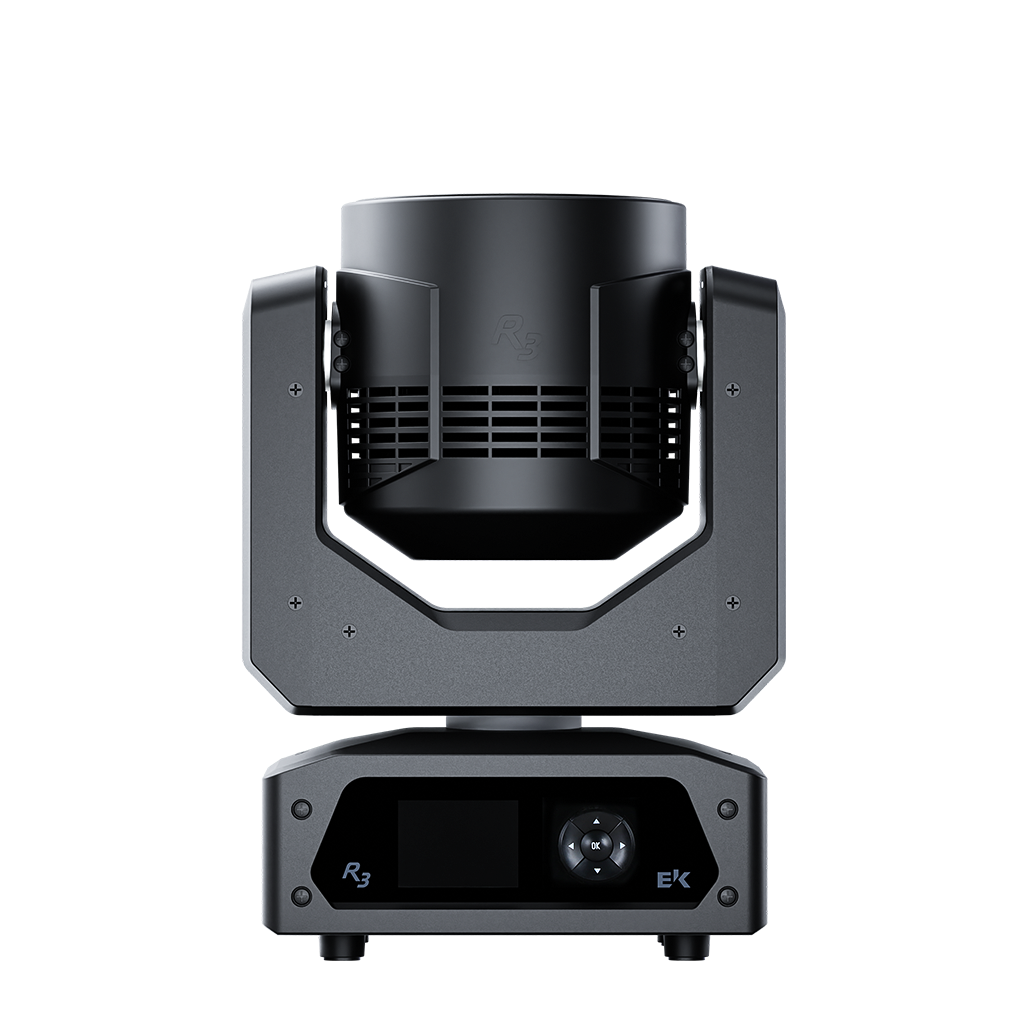

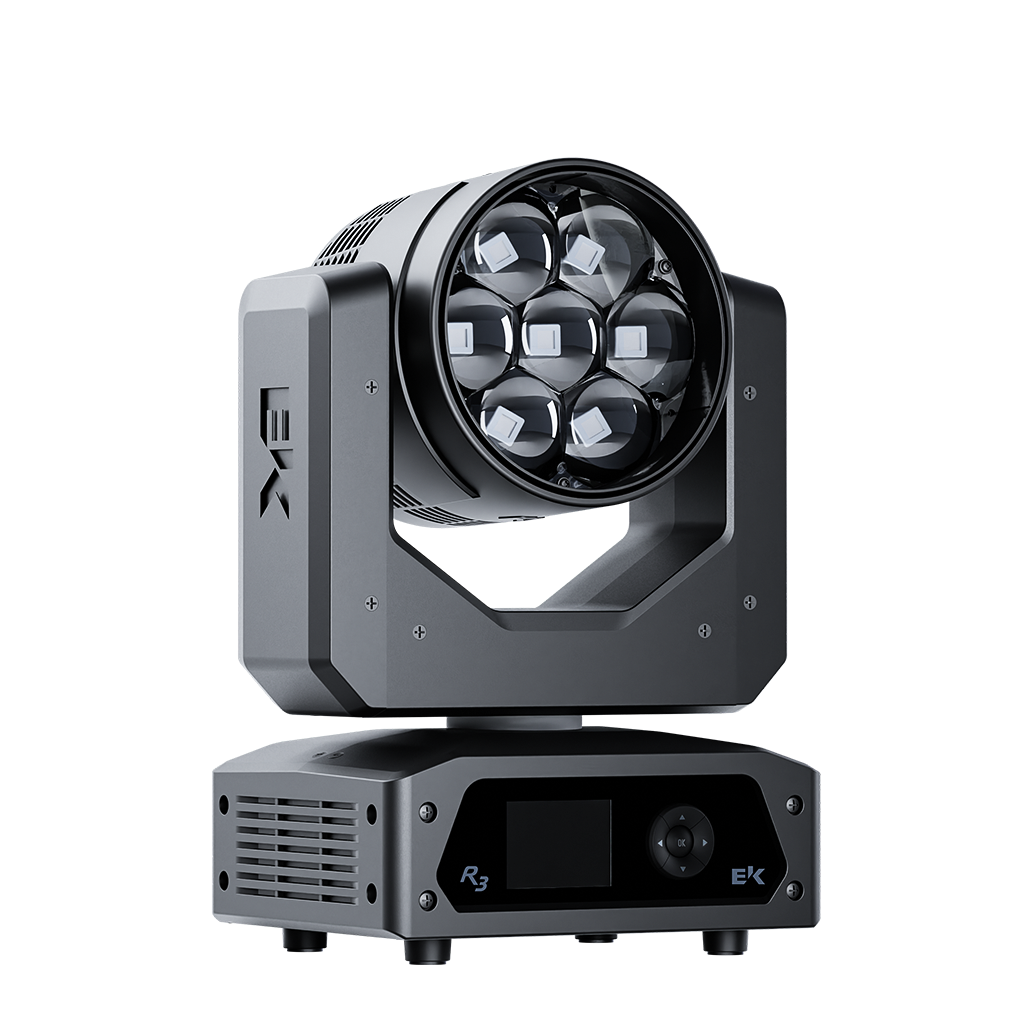

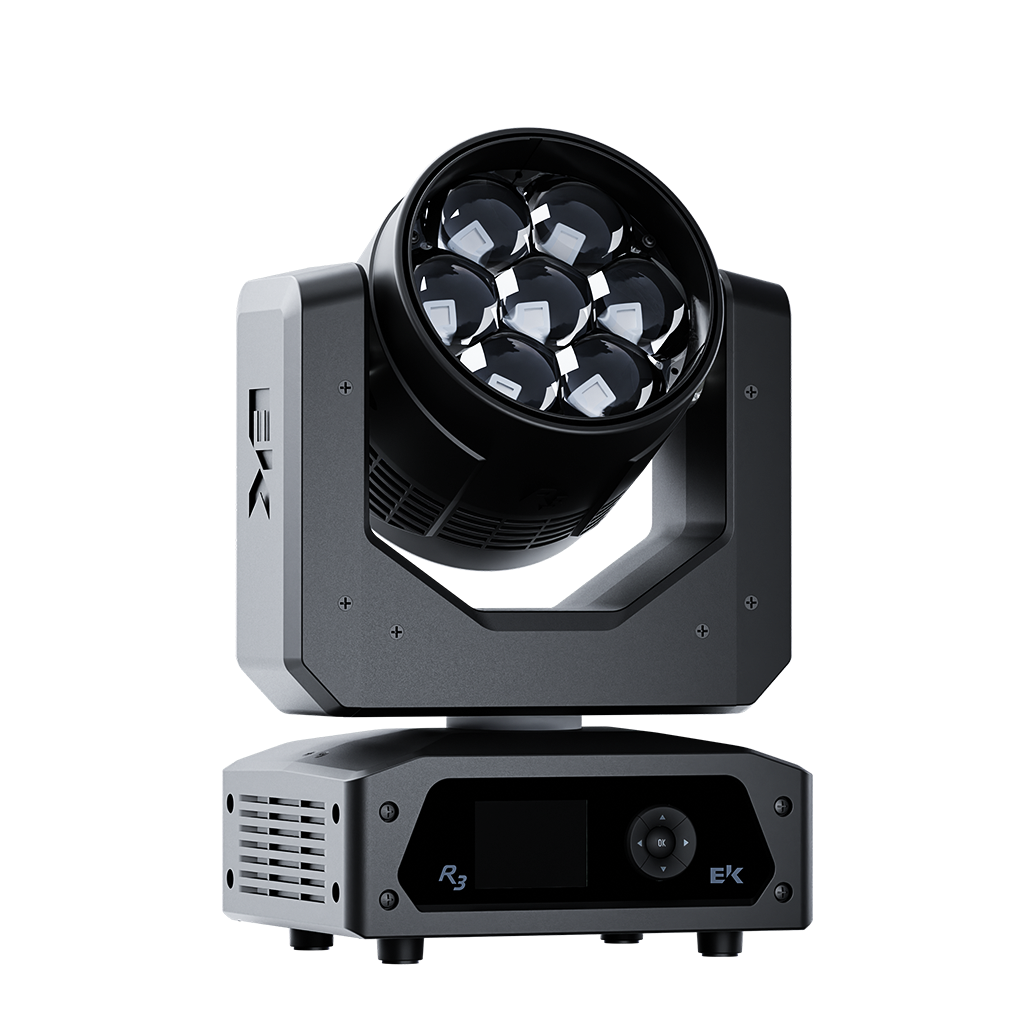

R3 Beam Wash
Creativity at your fingertips
Fast, light, perfectly-calibrated
The R3 beam wash combines compact design with powerful performance, featuring 7 RGBWW LEDs with 90+ CRI. Its RGB Gamma adjustment enables precise color calibration, while 16-bit dimming delivers ultra-smooth light control. The onboard preset library with color and strobe macros also allows for a myriad of creative effects, making it an artistic arsenals for professionals everywhere.
280W RGBW LED
LIGHT SOURCE
4600 Lm
LUMEN
2500K – 8000K
COLOR TEMPERATURE

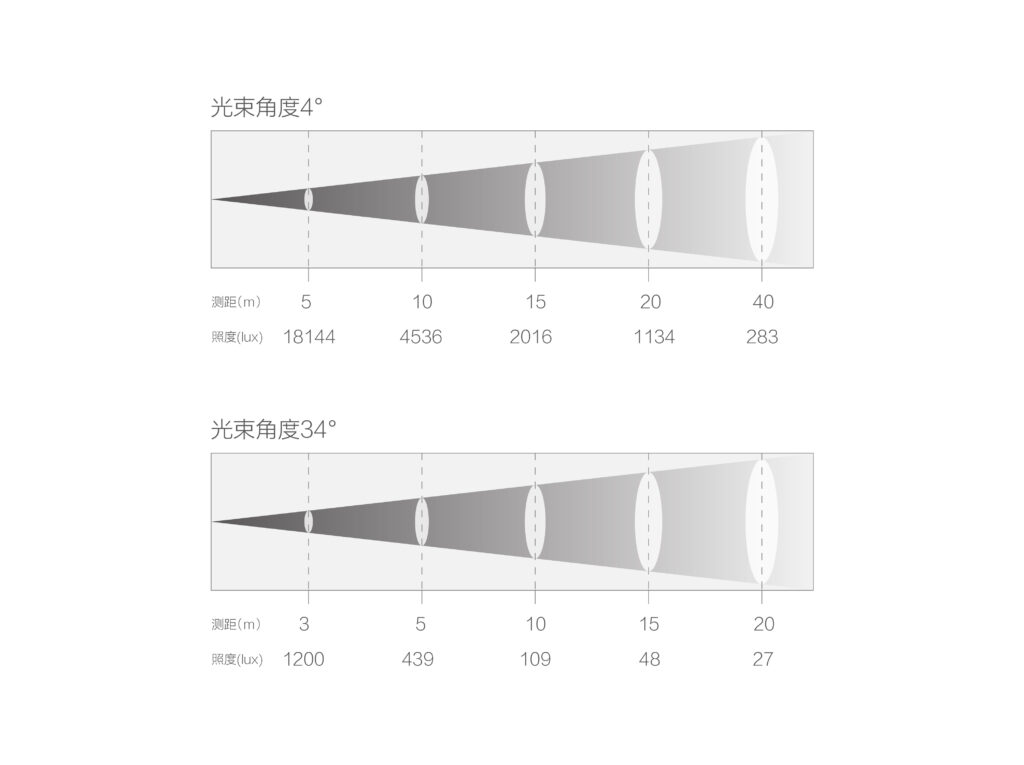

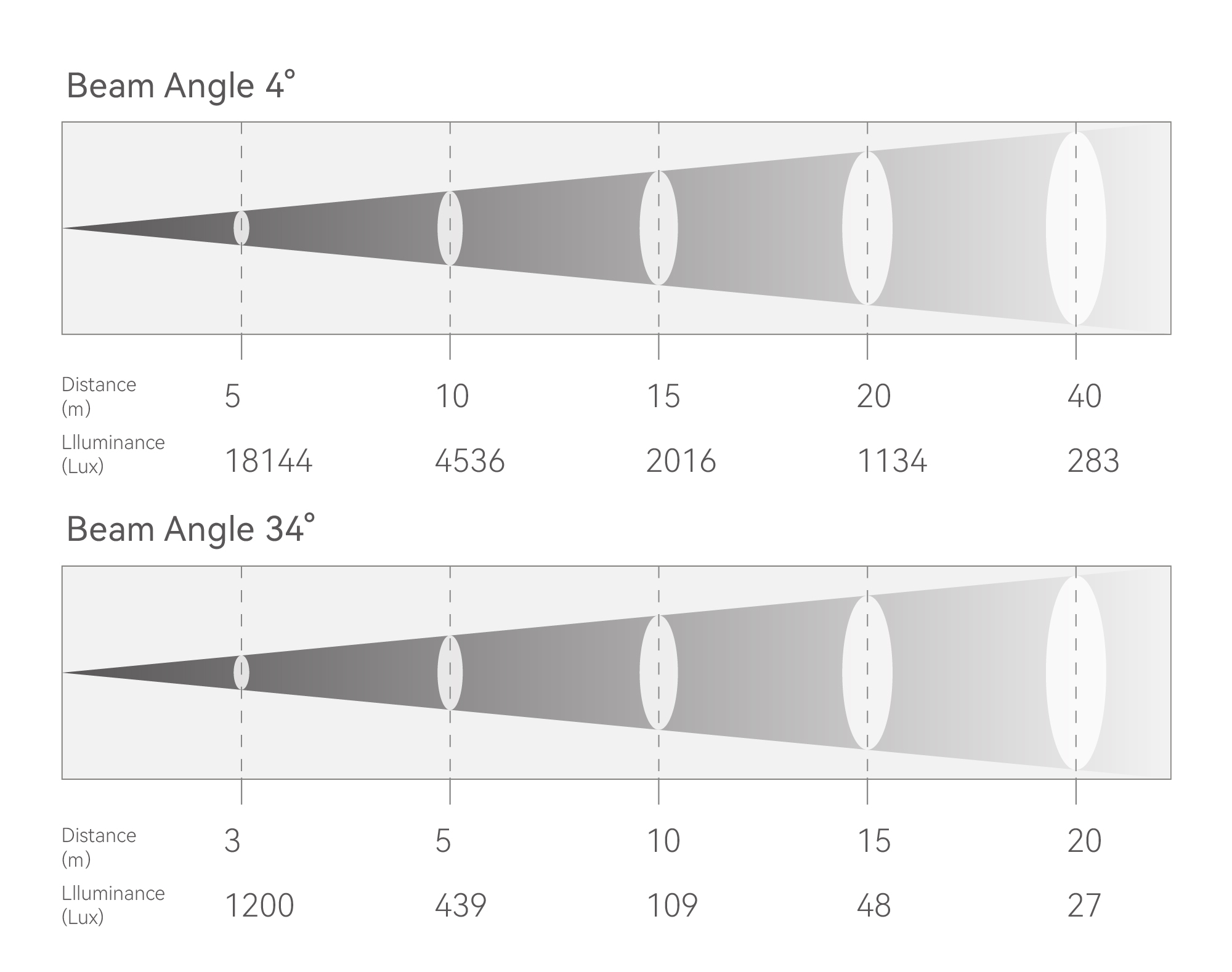

4°- 57°
BEAM ANGLE
6.6KG
WEIGHT
249 x 183 x 355 mm
DIMENSION
Outstanding color rendition
- Outstanding color rendition, CRI≥90
- RGBW colour mixing with RGB
- Gamma adjustment
- Flawless 16-bit dimming
- 4° – 57° linear zoom
- Quiet operation suitable for studio use
- Independent channel for CT correction
- Two pan/tilt speed modes (normal and turbo)
- Selectable PWM frequency for flicker-free video with any camera
- DMX and RDM control
TECHNICAL SPECS
PHOTOMETRICS
- Light Source
280W RGBW LED
- Output
4600 Lm
- CRI
≥90
- Color Temperature
2500K – 8000K
- Lifespan
20000hrs
- Beam Angle
4°- 57°
KEY FEATURES
- Pan
540° (16 bit resolution)
- Tilt
270° (16 bit resolution)
- Color System
RGBW
- Focus
Motorzed linear focus
- Strobe
0~30Hz
- Dimming
0 – 100%
- Slogan Template
Slogan Template
- Framing System
Single blade ±35°, rotatable 180°
- Iris
NA
- Frost
Frost glass
- Prism
Bi-directional, combinable, 8-facet + 4-facet prism
CONTROL
- Protocol
DMX 512 /RDM
- Data Connections
3pin(or 5pin) XLR In/Out for DMX linking up to 25 connections
- DMX Channels
16CH/20CH
- Display
2.83 inch TFT display
- Slogan Template
Slogan Template
- Slogan Template
Slogan Template
- Slogan Template
Slogan Template
- Slogan Template
Slogan Template
POWER
- Mains
100 – 240V, 50/60 Hz
- Power Connections
PowerCon In / Out
- Maximum Power Connections
linking up to 8 units @230V
- Data Connections
3pin(or 5pin) XLR In/Out for DMX
- Maximum Data Connections
Linking up to 25pcs
- Consumption
308W/230V, 311W/120V
- Power Factor
0.98/230V, 0.99/120V
- Ambient
-10°C – 45°C
PHYSICAL
- Dimension
249 x 183 x 355mm
- Weight
6.6kg
- IP Rating
IP20
- Cooling
Heat pipe cooling system with low noise fan
- Slogan Template
Slogan Template
- Slogan Template
Slogan Template
PRODUCT EFFECTS
ACCESSORIES
- Standard

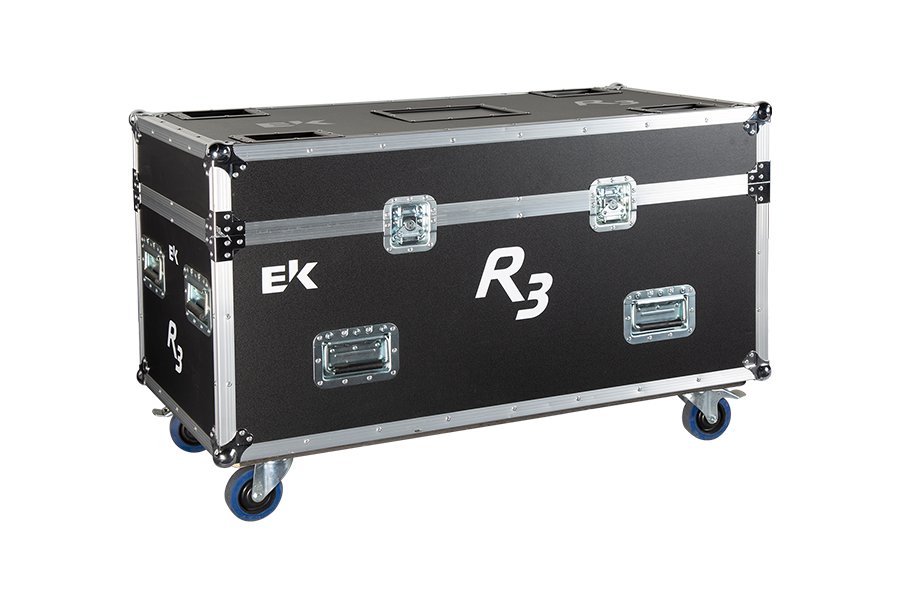

Road Case, power cable
电源线
航空箱
