H1 IP
480W IP66
Moving Hybrid With CMY
The EK H1 IP is a precision-engineered hybrid luminaire that embodies EK’s philosophy of structural logic and reliable performance.
Its optical and mechanical systems are designed around stability, control, and luminous efficiency — delivering consistent, high-intensity output under any condition during it’s whole 4000hour lamp life.
With a 27.8 KG, fully sealed IP66-rated compact structure, an advanced CMY + CTO + 15-filter colour system, a fatter and more parallel beam, and an extended service time, the H1 IP stands as a statement of industrial reliability and optical excellence.
480W discharge lamp
LIGHT SOURCE
16200 Lm
LUMENS
7000K±400 @ Spot Mode
6800±400 @ Beam Mode
COLOR TEMPERATURE
1.8°- 27.5°
BEAM MODE
2°- 41°
SPOT MODE
27.8kg
WEIGHT
429*270*648.5 mm
DIMENSION
DATA SHEET
| PHOTOMETRICS | |
| ·Light Source | 480W discharge lamp |
| ·Ouput | 16200 lumens |
| ·Color Temperature | 7000K±400 @ Spot Mode 6800±400 @ Beam Mode |
| ·CRI | Ra≥75 |
| ·Lamp Life | 4000 hours |
| ·Zoom Range | Beam Mode: 1.8°-27.5° Spot Mode: 2°-41° |
| KEY FEATURES | |
| ·Pan | 540° |
| ·Tilt | 270° |
| ·Color System | CMY+CTO (3200-7000K)+15 filters+open |
| ·Gobo System | 8 rotateble+open 19 fixed+open |
| ·Animation | Animation wheel with variable speed |
| ·Focus | Electronic focus |
| ·Frost | Glass frost |
| ·Strobe | 0～12Hz |
| ·Dimming | 0～100% linear |
| ·Prism | Indexable, 4-f and 8-f prisms |
| CONTROL | |
| ·Protocol | DMX512/RDM |
| ·DMX Channel | 32CH |
| ·Data Connections | 3pin(or 5pin) XLR In/Out, linking up to 32pcs |
| ·Display | 2.8-inch TFT display |
| POWER | |
| ·Mains | 100～240V,50～60Hz |
| ·Consumption | Dynamic: 646W@230V Static: 620W@230V |
| ·Power Connections | TrueCon In/Out, linking up to 3pcs@230V, linking up to 1pcs@100V |
| ·Power Factor | 0.96@230V |
| ·Working Ambient | -20℃～45℃ |
| PHYSICAL | |
| ·Dimension | 429*270*648.5mm |
| ·Weight | 27.8Kg |
| ·IP Rating | IP66 |
| ·Cooing System | Low noise IP fan |
| ·Housing | Diecast magnesium with matte black finish |

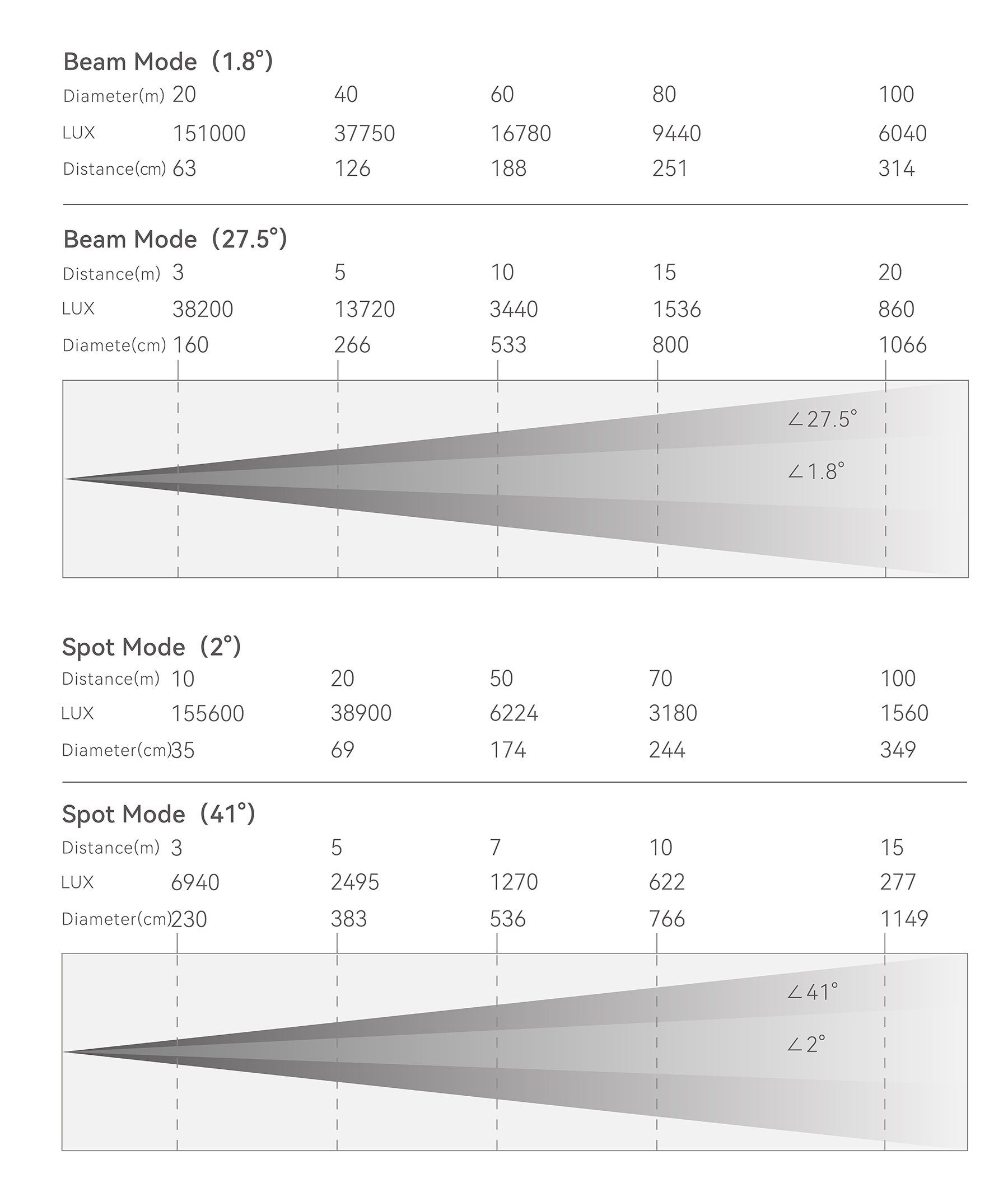

ILLUMINATION DIAGRAM

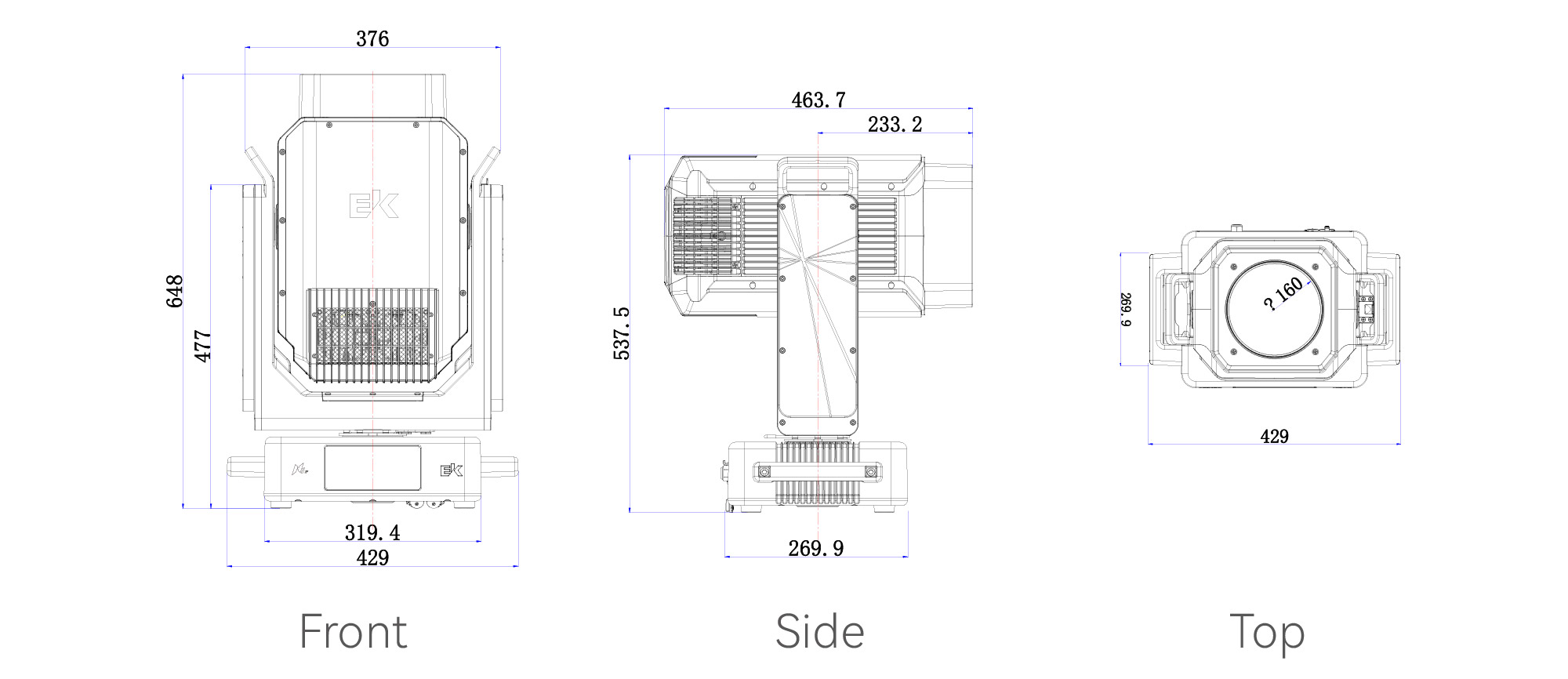

DIMENSIONS

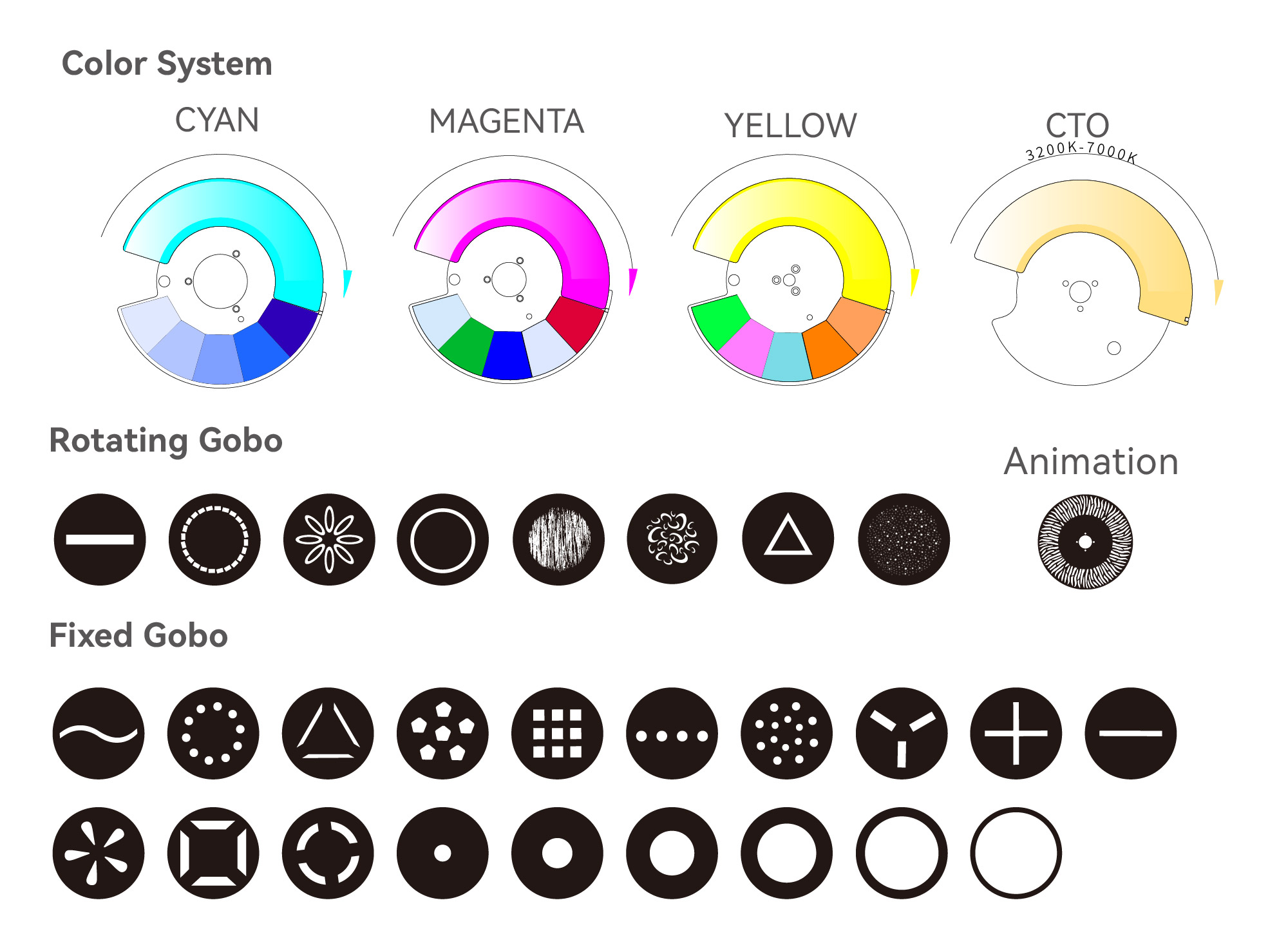

PRODUCT EFFECTS
IMAGE GALLERY
