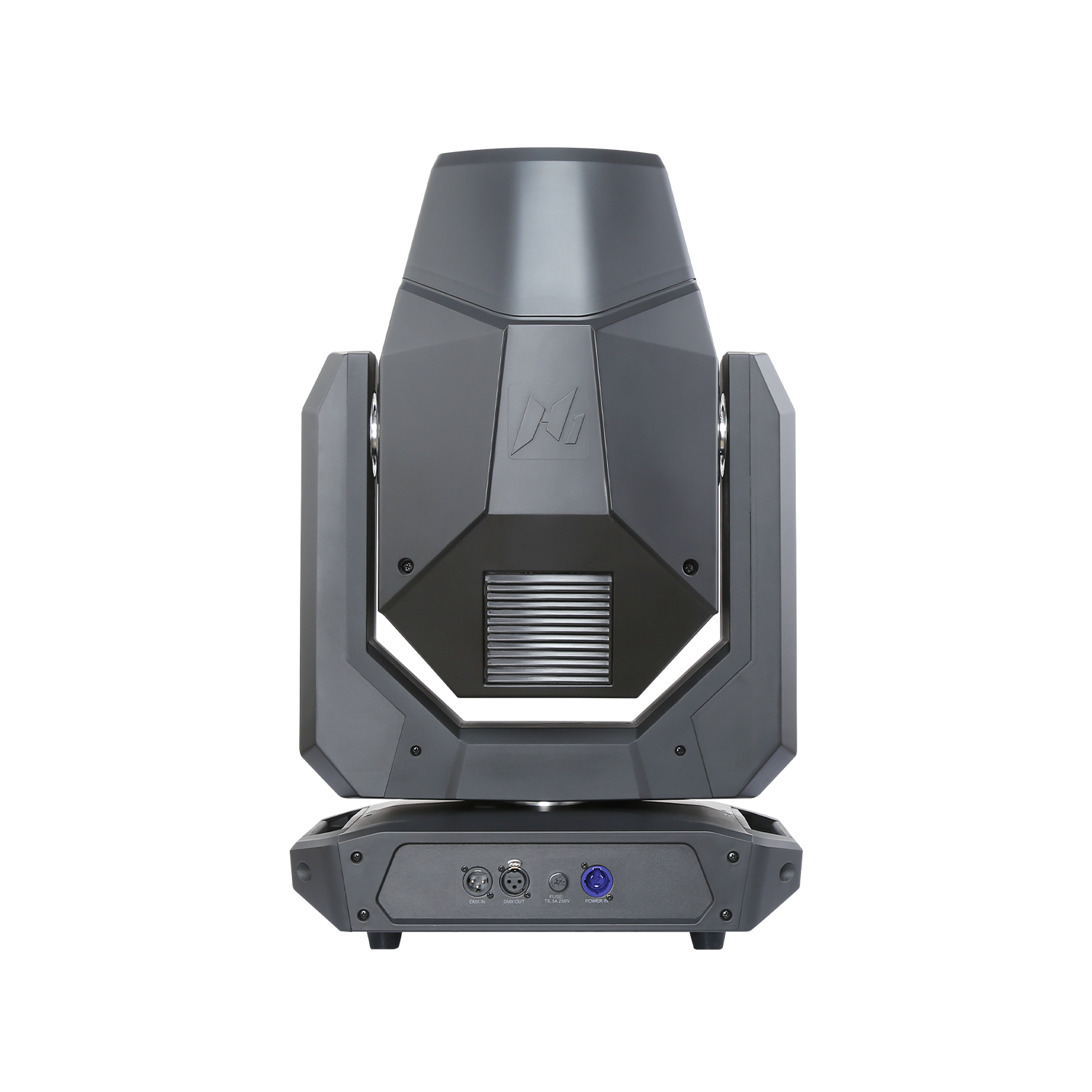

H1

Meet our zero compromise hybrid

A combination of the very best
The H1 delivers uncompromising BSW hybrid performance with impressive output of 20,000 lux at 20 meters. Its versatile 2.1-42° zoom range provides an extremely even spot with perfect brightness and color consistency from center to edge. Lastly, the sophisticated three-wheel CMY color mixing system with 15 additional filters offers exceptional color control for rich effects.

Philips 480W 6500K HID lamp

LIGHT SOURCE

20,000 Lu @50m

LUMEN

NA

COLOR TEMPERATURE

2.1°- 29°

Beam Mode

2.2°- 42°(Spot)

Spot Mode

25kg

WEIGHT

400 x 277 x 651mm

DIMENSION

Endless color combinations

  • True beam, spot, and wash hybrid
  • 20000 lux @ 50 meters
  • Three-wheel CMY color mixing system (CMY + 15 filters)
  • Dual gobo wheel (19 fixed gobo + 8 interchangeable rotating gobo)
  • Dual 4- and 8-facet prisms for endless combinations
  • Flawless brightness and color consistency from spot centre to edge
  • Equipped with PHILIPS 480W 6500K HID lamp
  • Rich features in a compact, lightweight package
  • DMX 512 and RDM control

TECHNICAL SPECS

PHOTOMETRICS
  • Light Source

Philips 480W 6500K HID lamp

  • Output

20,000 Lu @50m

  • Lifespan

3000 hours

  • Beam Angle

Beam Mode:2.1°~29°,Spot Mode:2.2°~42°

  • Pan

540° (16bit resolution)

  • Tilt

270° (16bit resolution)

  • Color System

Three wheel CMY (CMY + 15 filters + open

  • Gobo System

Rotating gobo wheel (8 interchangeable +open)
Fixed gobo (19 interchangeable +open)

  • Frost

10°

  • Strobe

0 – 12Hz

  • Dimming

0~100%

  • Prism

Bi-directional 4- and 8-facet prism with variable speed

  • Slogan Template

Slogan Template

  • Framing System

Single blade ±35°, rotatable 180°

  • Iris

NA

  • Frost

Frost glass

  • Prism

Bi-directional, combinable, 8-facet + 4-facet prism

  • Protocol

DMX 512 / RDM

  • DMX Channels

31CH

  • Display

TFT display with display-flip function

  • Slogan Template

Slogan Template

  • Slogan Template

Slogan Template

  • Slogan Template

Slogan Template

  • Slogan Template

Slogan Template

  • Mains

100 – 240V, 50/60 Hz

  • Power Connections

PowerCon True One In

  • Data Connections

Amphenol 3pin(or 5pin) XLR In/Out for DMX

  • Maximum Data Connections

linking up to 32 pcs

  • Consumption

650W / 230V

  • Power Factor

0.96/230V

  • Ambient

-10℃~45℃

  • Slogan Template

Slogan Template

  • Slogan Template

-20°C – 45°C

  • Dimension

400 x 277 x 651mm

  • Weight

25kg

  • Cooling

Low noise fan for forced air



  • Slogan Template

Slogan Template

  • Slogan Template

Slogan Template

  • Standard

Power Cable
