MC6
Full Spectrum,
Truer-to-life output
Perfect color meets perfect silence
MC6’s revolutionary 6-color engine achieves near-perfect color reproduction with unprecedented CRI≥97 ratings. Its meticulously selected primaries deliver both saturated hues and true-to-life tones, while whisper-quiet operation and efficient power consumption make it the ultimate choice for demanding theatrical applications.
650W 6-color LED engine
LIGHT SOURCE
14000Lm
LUMEN
1800–10000k
COLOR TEMPERATURE
6°-51°
ZOOM RANGE
27KG
WEIGHT
418 x 656 x 288 mm
DIMENSION
Experience the hexaverse
- RGBCAM 6-color engine deliveres an ultra wide color gamut with rich, vivid colors.
- Nature-to-life color rendering: CRI≥97，R9≥97，TM-30-15rg/rf: 102/95，TLCI: >96.
- New ultra-linear 22-bit dimming guarantees smooth fades and flick-free output.
- Compact, powerful and silent—perfect for small to mid-size venues.
TECHNICAL SPECS

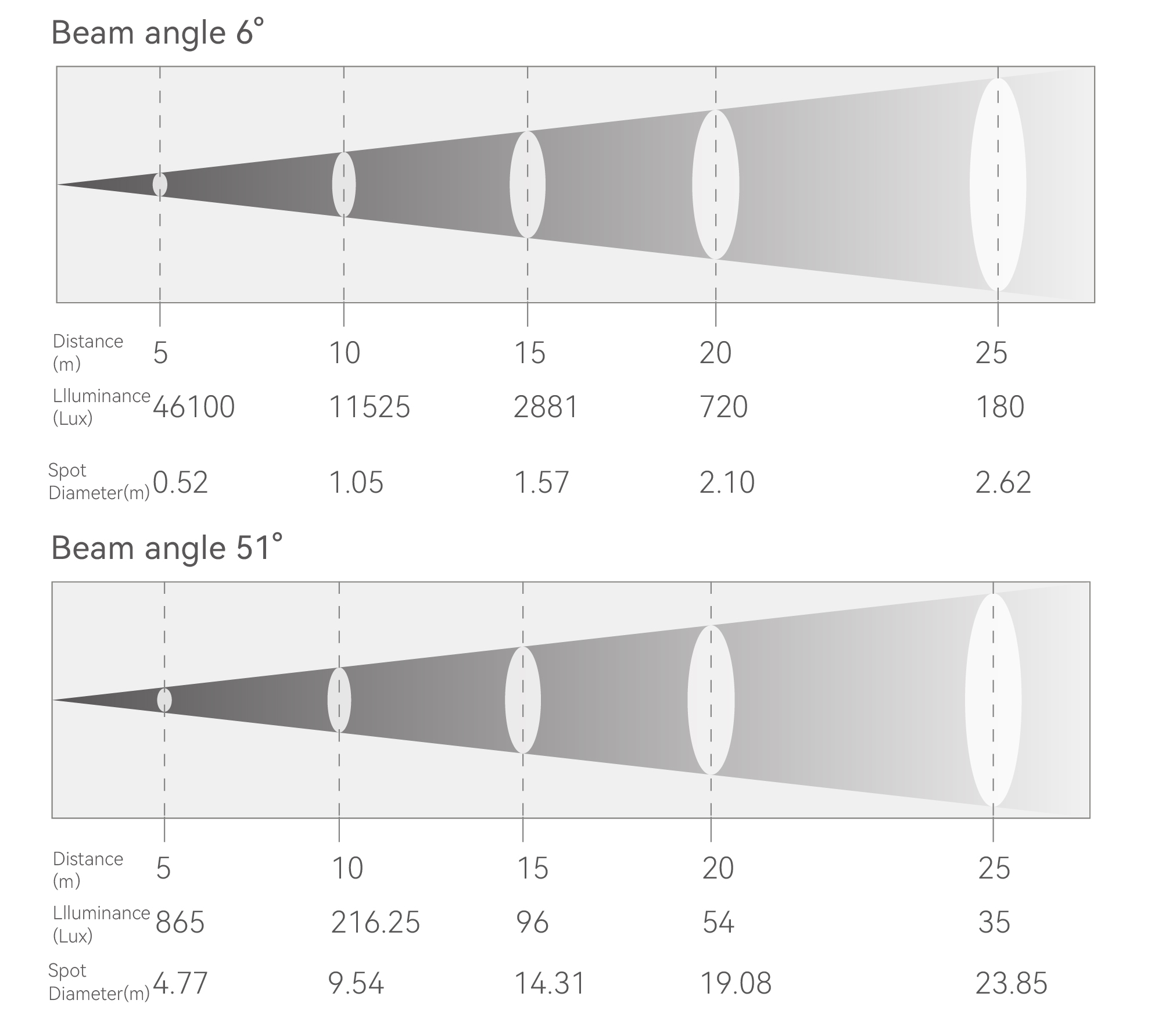

PHOTOMETRICS
- Light Source
650W Full Spectrum LED module
- Output
14,000 Lm
- CRI
CRI≥97;R9≥97
- Color Temperature
1800K – 10000K
- LED Life
30000hrs
KEY FEATURES
- Pan
540°(absolute positioning)
- Tilt
270°(absolute positioning)
- Color System
RGBCAM+CMY+CTO+Tint

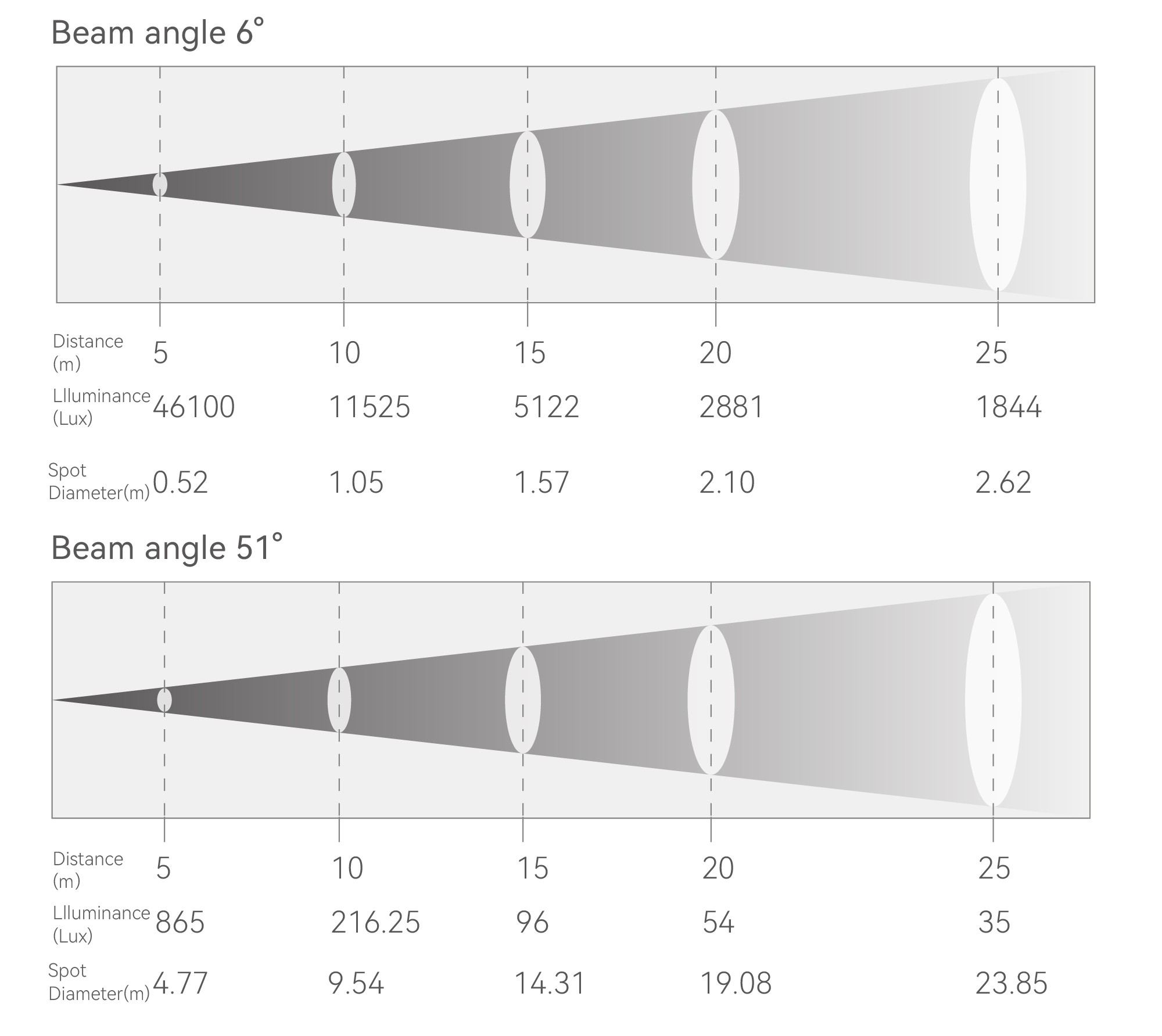

- Beam Angle
6°-51°
- Strobe
1~30Hz
- Dimming
Linear/Square/In-verse square/S-curve+4 dimming mode(22bit)
- Gobo System
1*rotating gobo wheel (7+open)
1* fixed gobo wheel (7+open)
- Animation
Animation wheel with variable speed
- Framing System
single blade±35°, complete framing system rotatable ±60°
- Frost
1°+5° linear 0% – 100% frost
- Prism
Indexable 4 facet prism+4 linear prism with variable speed
- Framing System
Single blade ±35°, rotatable 180°
- Iris
NA
- Frost
Frost glass
- Prism
Bi-directional, combinable, 8-facet + 4-facet prism
CONTROL
- Protocol
DMX512 / RDM / sACN / Artnet / Bluetooth / APP / NFC
- DMX Channels
49CH / 43CH / 41CH
- Data Connections
3pin (or 5pin) XLR In/Out, linking up to 32pcs;
RJ45 In/Out for ArtNet/sACN
- Display
240RGB*320 2.8 inch TFT display
- Slogan Template
Slogan Template
- Slogan Template
Slogan Template
- Slogan Template
Slogan Template
POWER
- Mains
100 – 240 VAC, 50/60 Hz
- Power Connections
Seetronic power in/out, linking up 2pcs
- Consumption
800W / 230V
- Power Factor
0.95 / 230V
- Ambient
-10°C – 45°C
- Slogan Template
Slogan Template
- Slogan Template
-20°C – 45°C

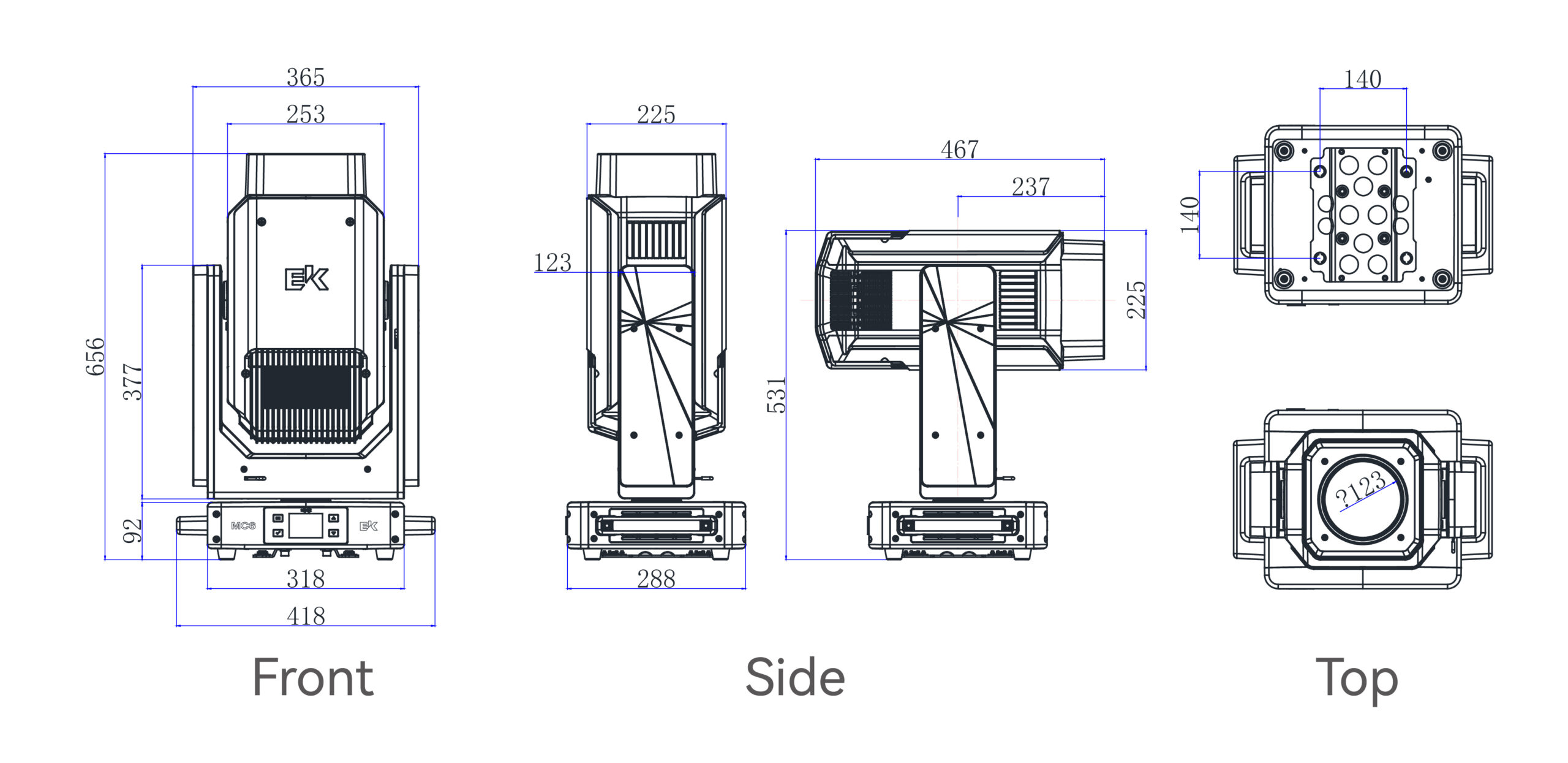

PHYSICAL
- Dimension
418*656*288mm
- Weight
27kg
- IP Rating
IP20
- Cooling
Heat pipe cooling system with low noise fan
- Installation
Sit-flat floor mounting, side hanging and flown mounting
- Slogan Template
Slogan Template

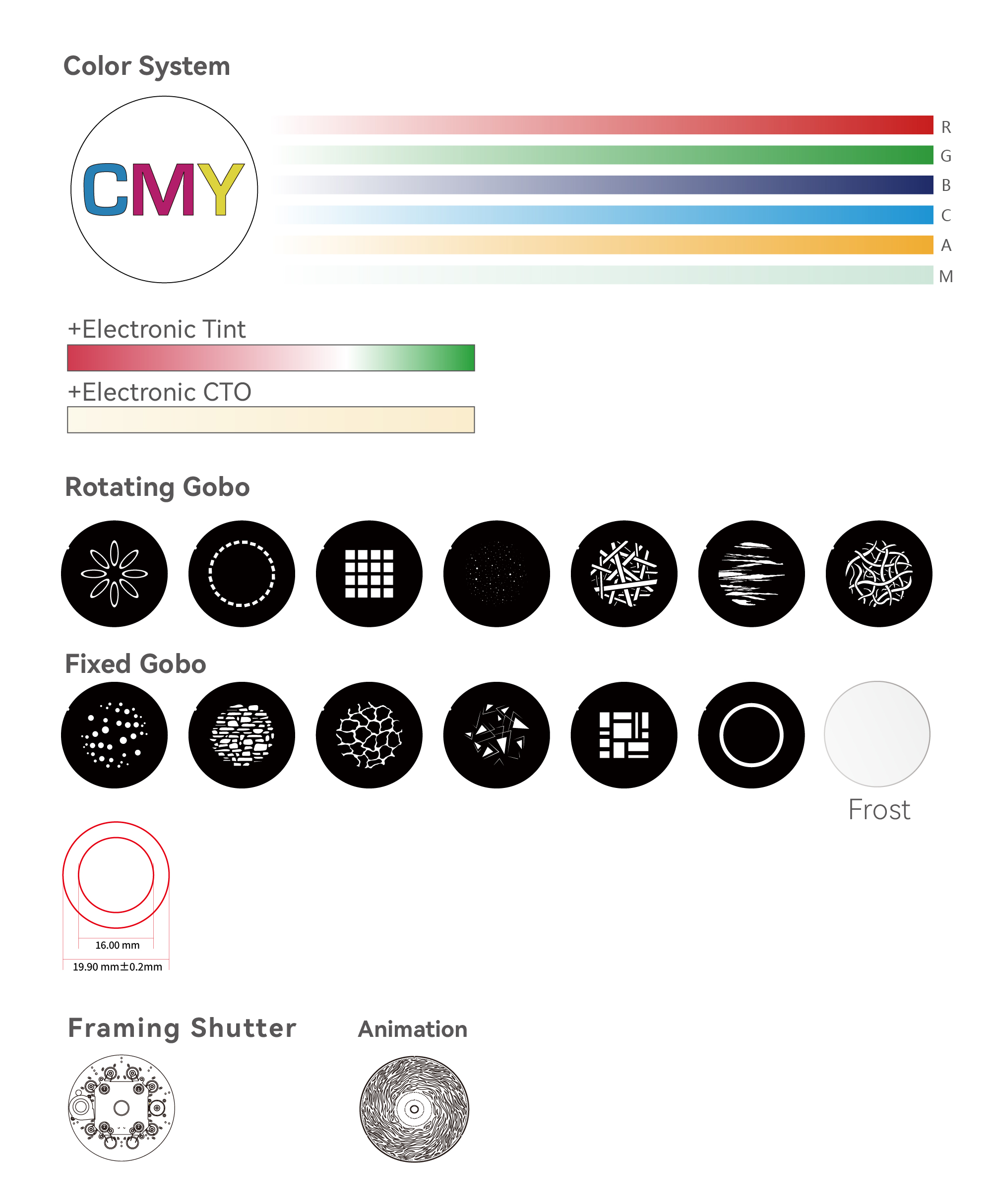

PRODUCT EFFECTS
ACCESSORIES
- Standard
Omega bracket, power cable

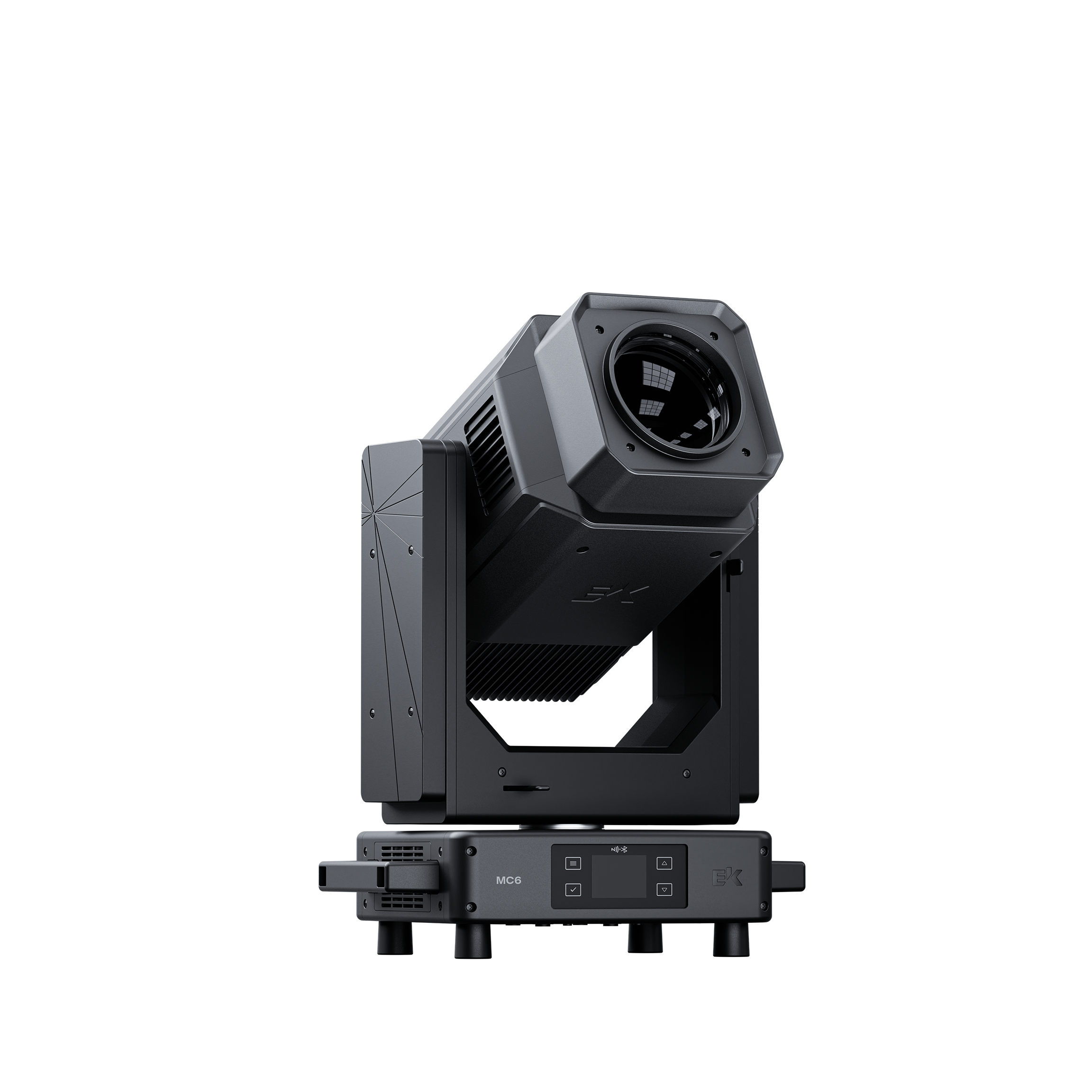

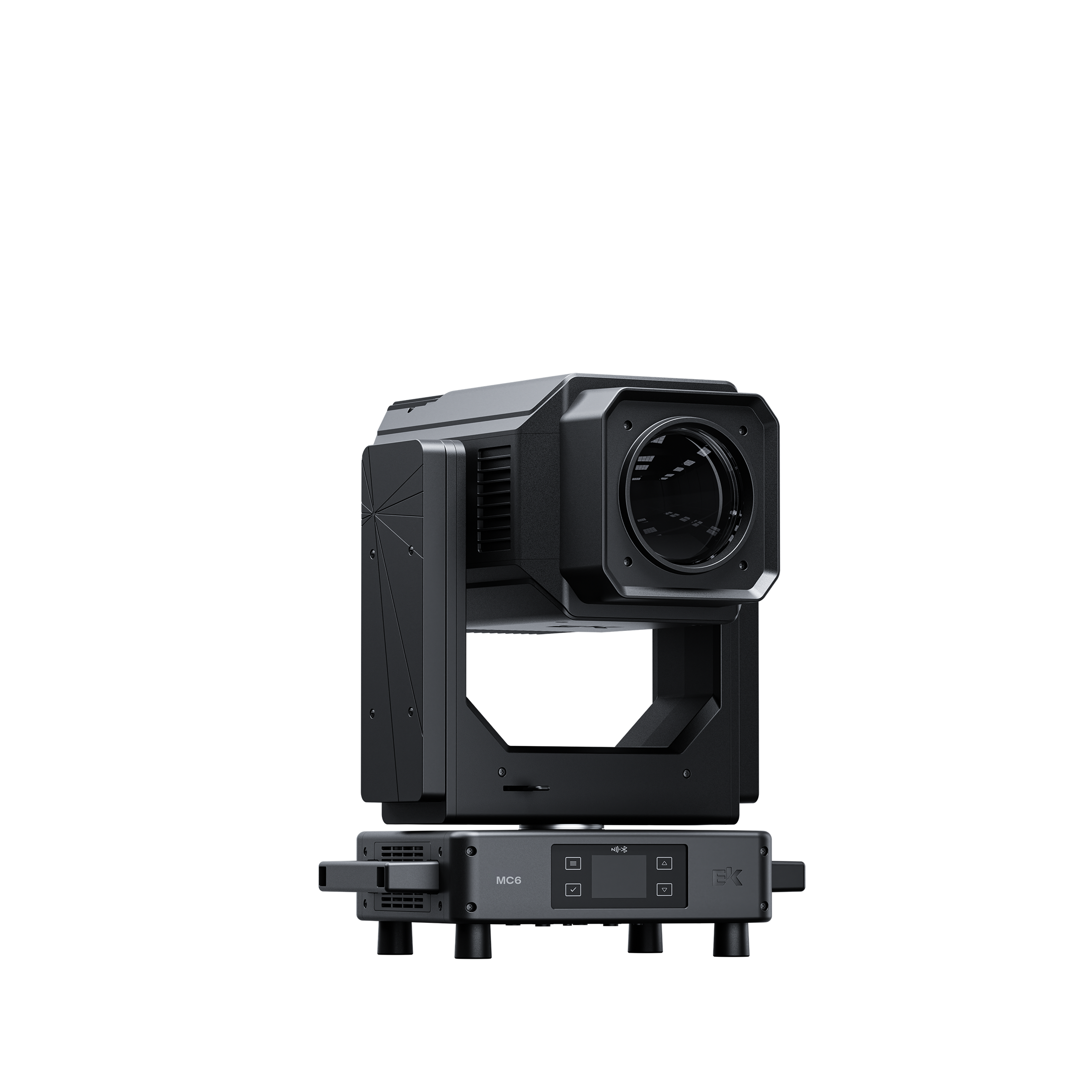

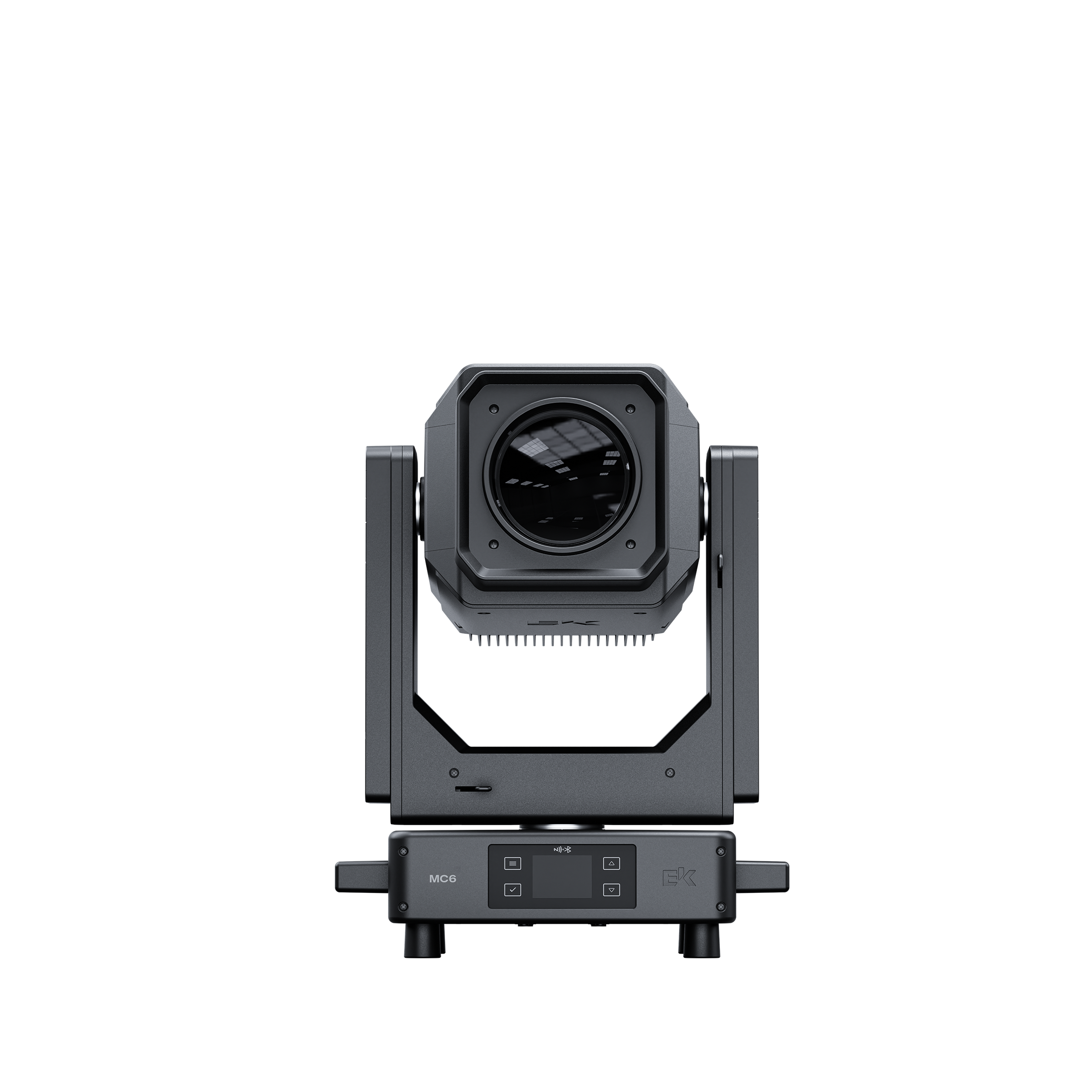

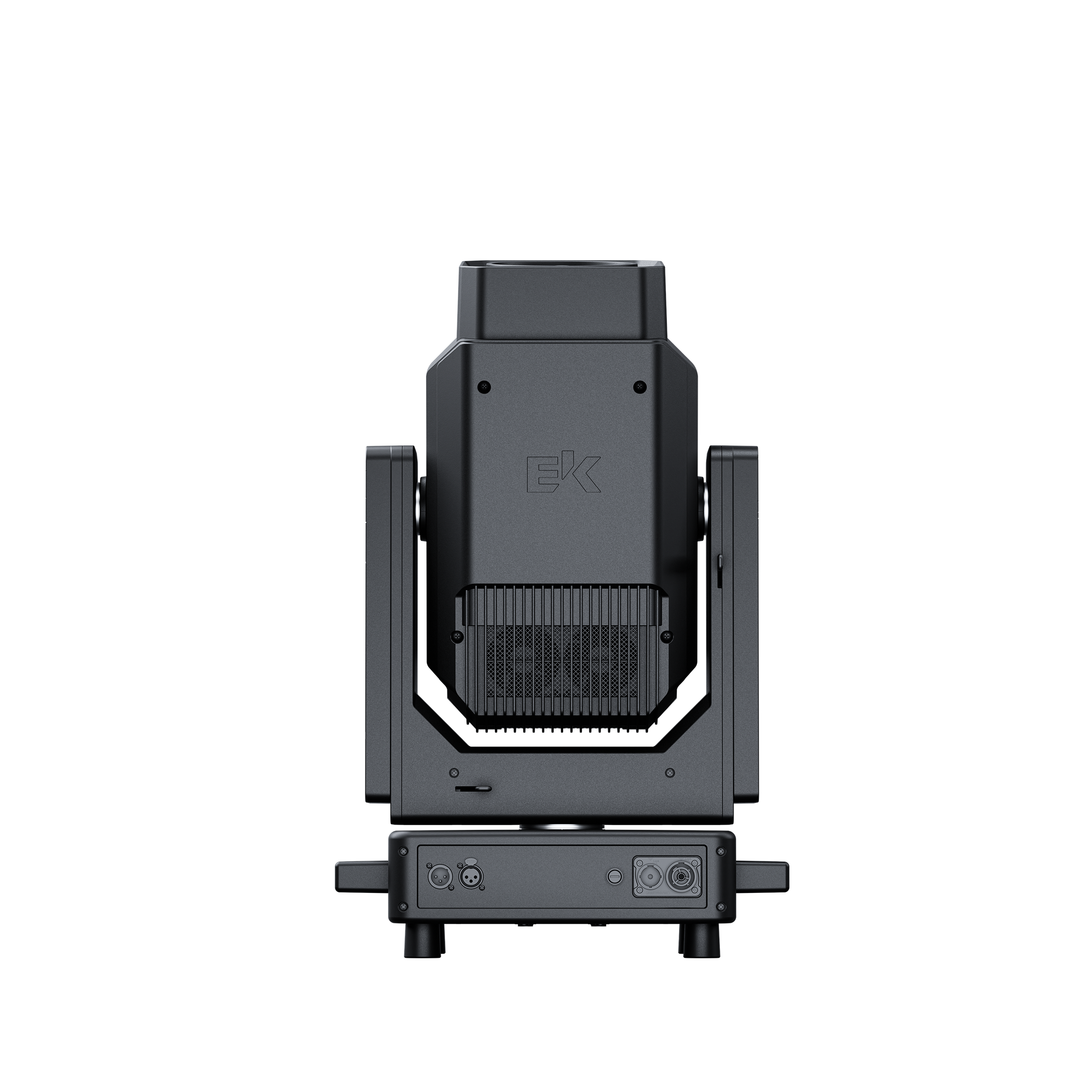

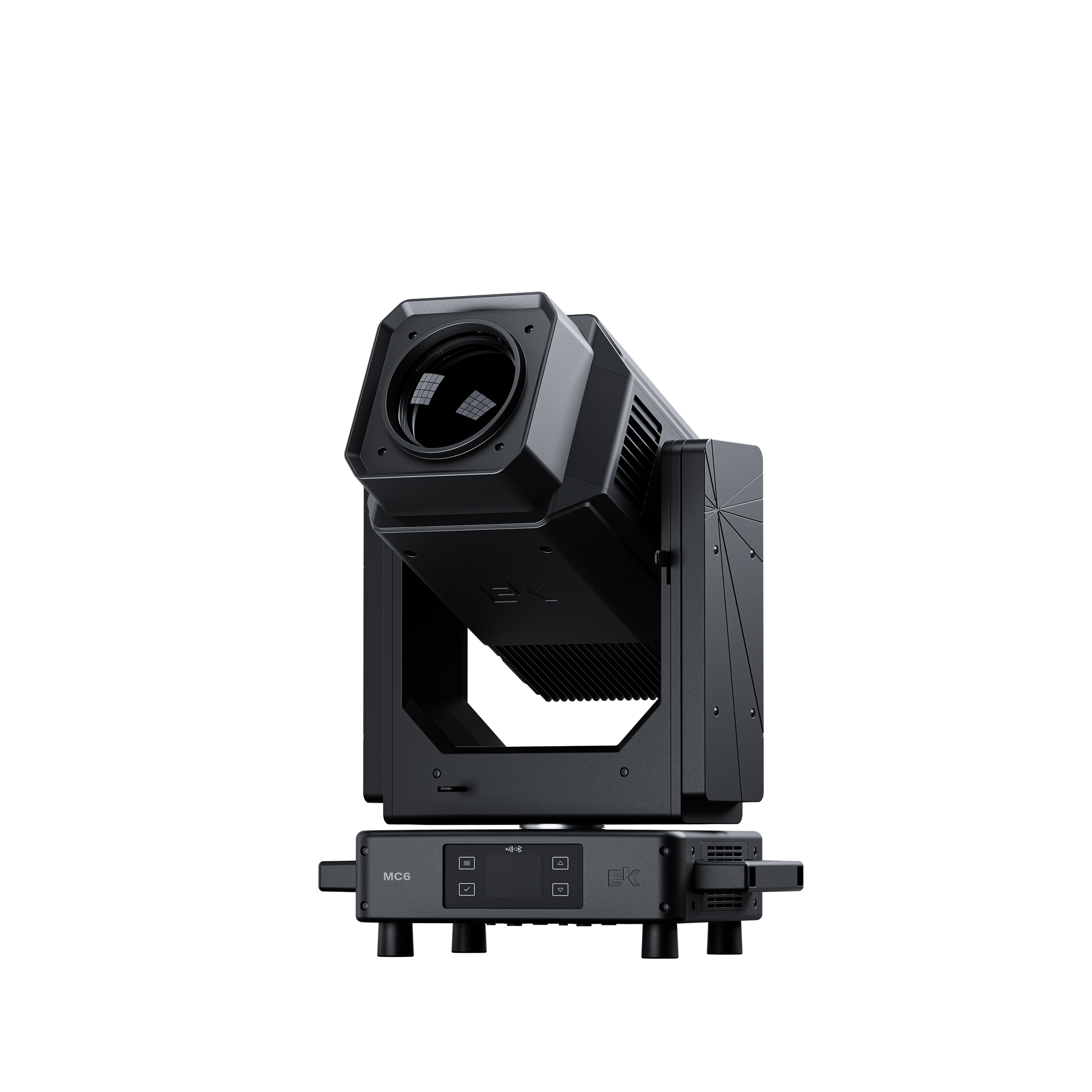

IMAGE GALLERY
