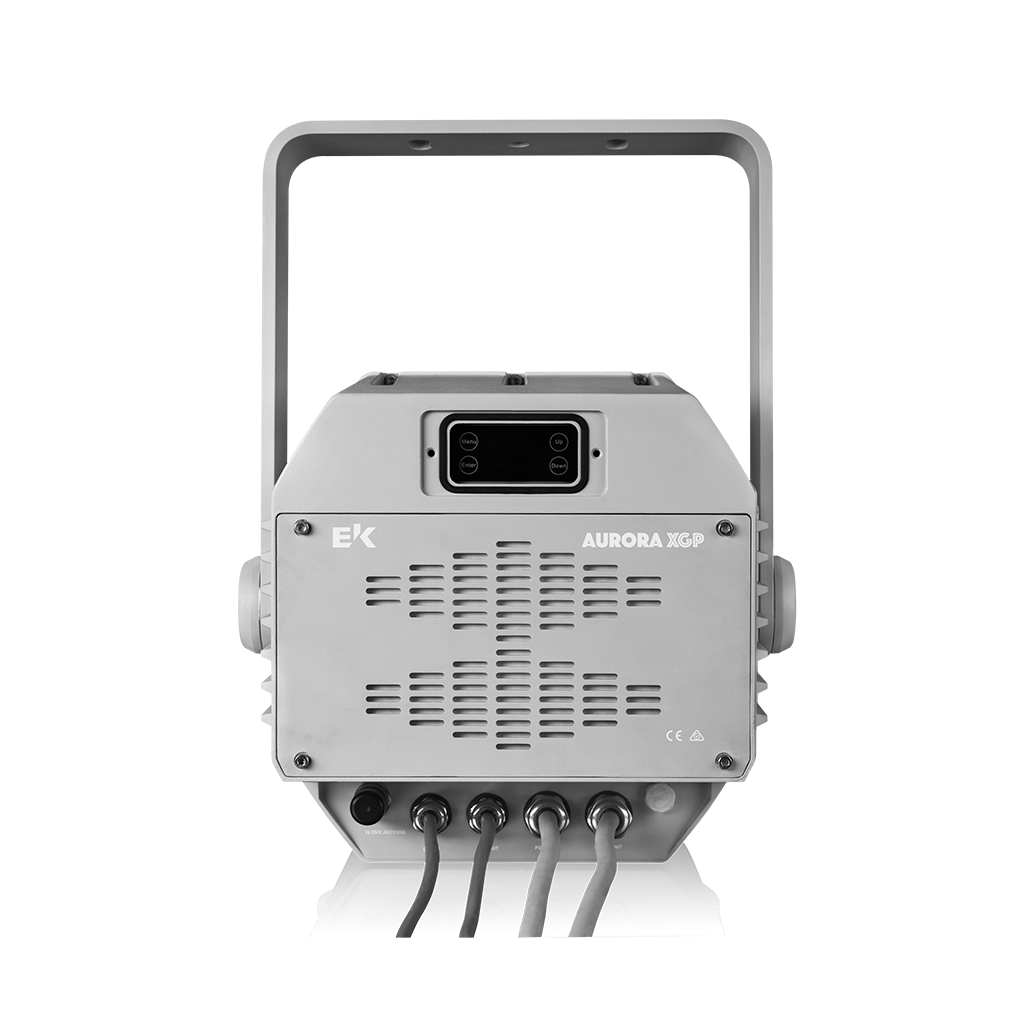

AURORA XGP 200
Outdoor Profile Projector Light
EXTERIOR LED GOBO PROJECTOR with ZOOM / IP66
• 10°- 40°motorized zoom.
• Ultra-efficient proprietary optical system.
• Indestructible weather-proof IP66 construction.
• Extremely even spot with flawless field consistency.
• Slowest, smoothest gobo rotation in its class.
• Featuring dual color wheels,rotating gobos,
• animation wheel, motorized focus, frost, prism.
250W White LED
LIGHT SOURCE
14900 lm
LUMENS
NA
COLOR TEMPERATURE
10°- 40°
BEAM ANGLE
15KG
WEIGHT
450 x 334 x 272 mm
DIMENSION
DATA SHEET
| Photometrics | |
| ·Source | 250W White LED |
| ·Output | 14900lm |
| Key Features | |
| ·Color wheel 1 | 7 + Open |
| ·Color wheel 2 | 7 + Open |
| ·Rotating gobos | 7 + Open |
| ·Animation wheel | Yes |
| ·Focus | Motorized |
| ·Frost | 0%-100% |
| ·Strobe | 1 - 30Hz |
| ·Dimming | 4 dimming curve modes,0~100% |
| ·Prism | 3-facet, bi-directional,variable-speed rotation |
| Control | |
| ·Protocol | DMX/W-DMX |
| ·Channel | 12CH/14CH |
| ·Onboard Menu | TFT display |
| Power | |
| ·Mains | 100 - 240 VAC, 50/60 Hz |
| ·Power Connections | IP Power IN/OUT, linking up to 5 units |
| ·Data Connections | 3-pin DMX IN/OUT, up to 25 units |
| ·Consumption | 350W/230V，375W/120V |
| ·Power Factor | 0.95/230V，0.99/120V |
| ·Ambient | -20°~45°C |
| Physical | |
| ·Dimensions | 450 x 334 x 272 mm |
| ·Weight | 20kg |
| ·Cooling | Noiseless fan for forced air |
| ·Finish | diecast Aluminium |
| ·IP Rating | IP 66 |
ILLUMINATION DIAGRAM
DIMENSIONS
PRODUCT EFFECTS
IMAGE GALLERY
