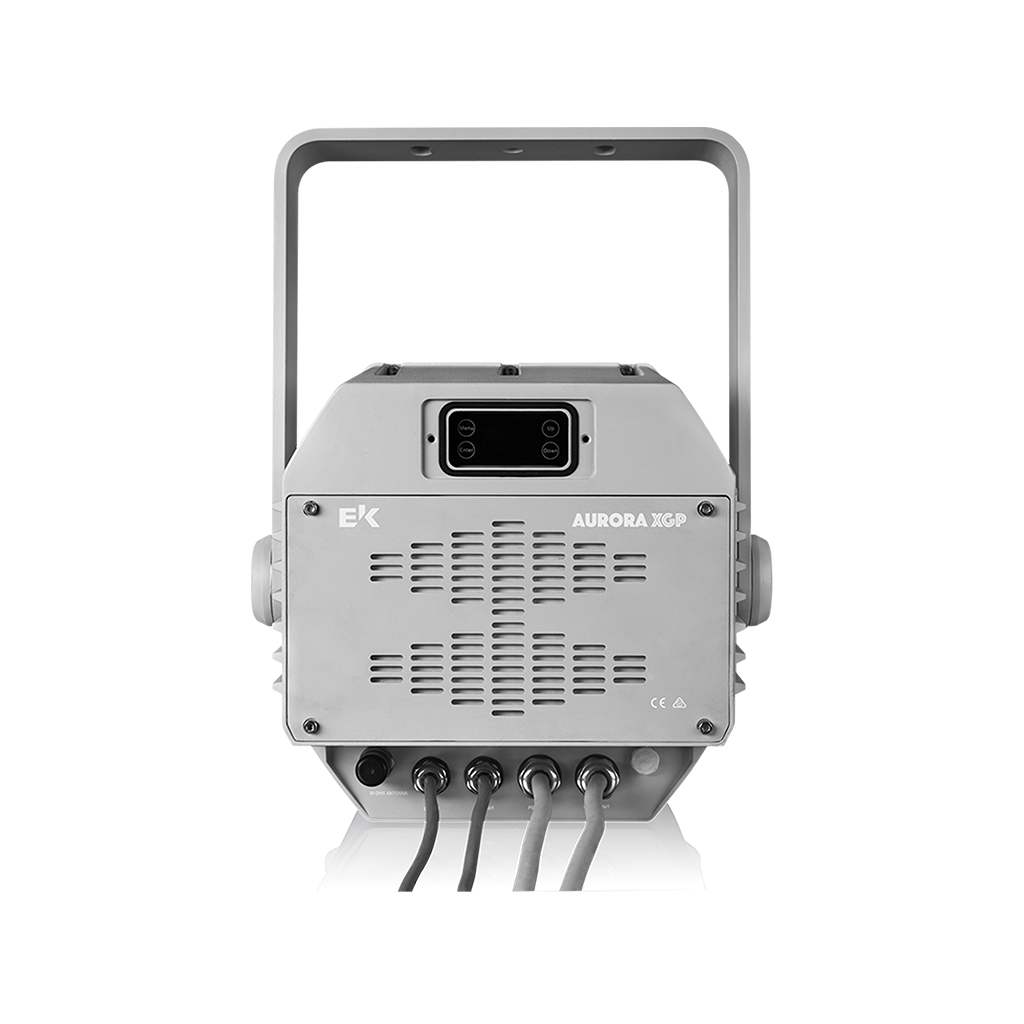

AURORA XGP 70
Outdoor Profile
Projector Light
• 15°~ 44°motorized zoom.
• Ultra-efficient proprietary optical system.
• Indestructible weather-proof IP65 construction.
• Extremely even spot with flawless field consistency.
• Slowest, smoothest gobo rotation in its class.
• Featuring color wheel and rotating gobo wheel.
• W-DMX(optional)、DMX、RDM control.
70W LED
LIGHT SOURCE
2860 Lm
LUMENS
7750K
COLOR TEMPERATURE
15°~ 44°
BEAM ANGLE
9.45 KG
WEIGHT
245x 250.3 x257.5 mm
DIMENSION
DATA SHEET
| PHOTOMETRICS | |
| ·Light Source | 70W LED |
| ·Output | 2860Lm |
| ·Color Temperature | 7750K |
| ·Beam Angle | 15°~44° |
| KEY FEATURES | |
| ·Pan Movement | 300° |
| ·Color Mixing | Color wheel(7+open) |
| ·GOBOs | 7 rotating gobos + open |
| ·Focus | Motorized focus |
| ·Strobe | 0~30Hz |
| ·Dimming | 0~100% |
| CONTROL | |
| ·Protocol | DMX512/RDM/W-DMX |
| ·DMX Channels | 8CH/14CH |
| ·Onboard Menu | OLED display |
| POWER | |
| ·Mains | 100 - 240 VAC, 50/60 Hz |
| ·Power Connections | IP Power IN/OUT |
| ·Data Connections | IP XLR DMX IN/OUT |
| ·Consumption | 91W/230V |
| ·Power Factor | 0.92/230V，0.99/120V |
| ·Ambient | -20°~45°C |
| PHYSICAL | |
| ·Dimension | 245x250.3x257.5 mm |
| ·Weight | 9.45kg |
| ·Thermal Cooling | Forced air |
| ·Materials | Die-cast aluminum |
| ·IP Rated | IP66 |
ILLUMINATION DIAGRAM
DIMENSIONS
