Blinder II C
Classic meets creativity
Faithful to tradition; reimagined for tomorrow
The first in the series to use tungsten emulation, the Blinder II perfectly replicates traditional blinder dimming curves and color shifts. Its single channel mode enables onboard color selection with multiple control options for creative flexibility. Housed in a compact, lightweight design, this versatile fixture combines classic blinder performance with modern convenience.
380W RGBA + 80W WW LED
LIGHT SOURCE
6020 Lu
590 Lu @ 3m
LUMENS
2800 – 10,000K
COLOR TEMPERATURE

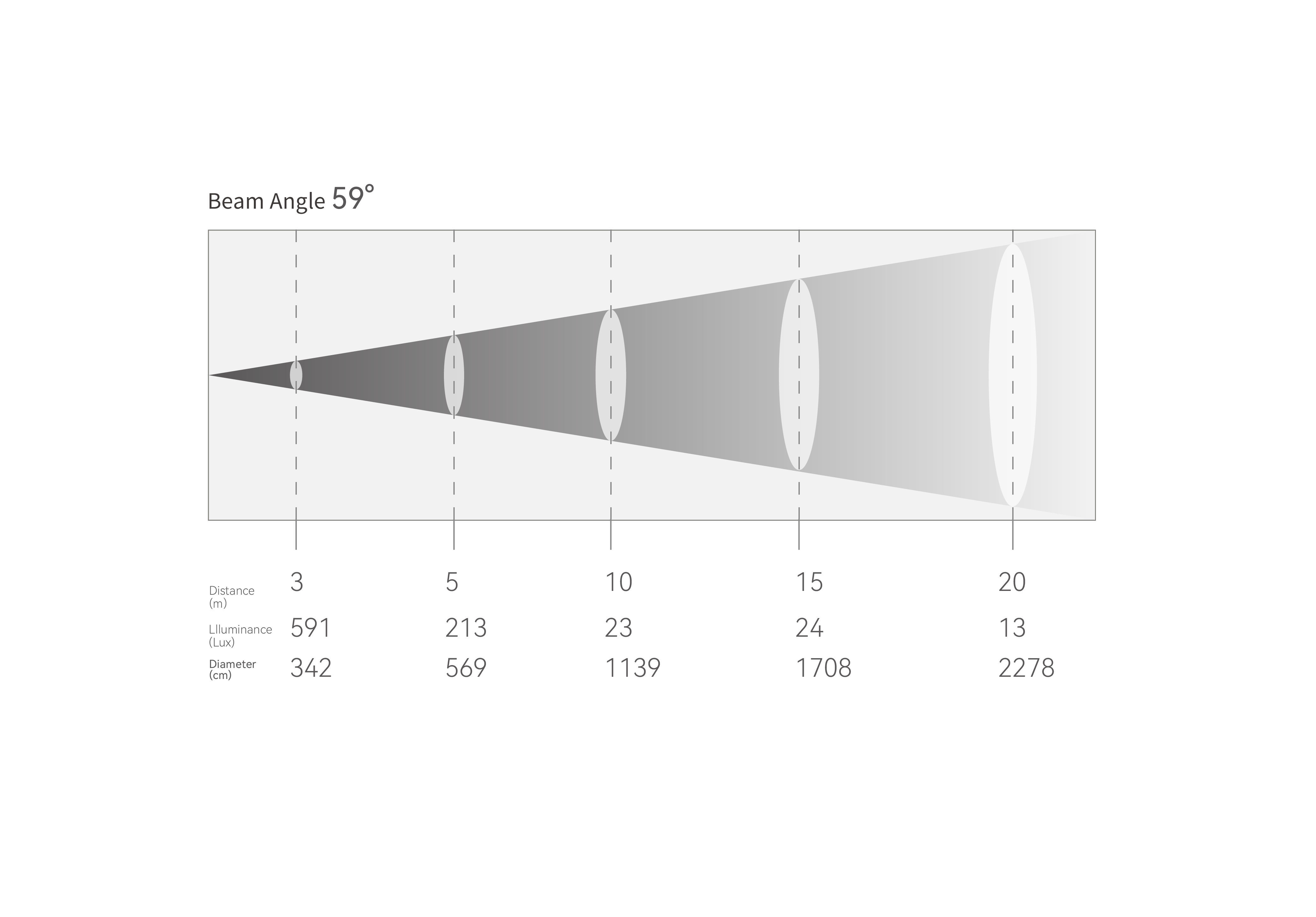

Beam Angle 59°
Field Angle 100°
ZOOM
3.6kg
WEIGHT
415 x 94 x 232mm
DIMENSION
Experience incandescence
- RGBA + WW LED color mixing system to deliver full range color
- 2800 – 10000K variable color temperature
- Emulated “red shift”; reproduces the classic incandescent effect



Features

Proven tough in any environment
Rugged touring grade design

Flicker-free output
- Onboard macros make for easy programming of stunning effects
- Selectable PWM frequency for flicker-free video with any camera
- DMX 512 and RDM control
Technical specs
Photometrics
- Light Source
380W RGBA + 80W WW LED
- Output
6020 Lu 590 Lu @ 3m
- Color Temperature
2800 – 10,000K
- CRI
Ra≥90,
R9≥90
- LED Life
20,000 hours
KEY FEATURES
- TITL
360° (manual)
- Color System
RGBA
- Strobe
0 – 30Hz
- Dimming
0-100%, 4 dimming curve modes

CONTROL
- Protocol
DMX 512 / RDM
- Data Connections
3pin(or 5pin) DMX In/Out
- DMX Channel
1CH/5CH/7CH/10CH1/10CH2/12CH/13CH/15CH/28CH
- Display
LCD with display flip function
- Frequency
600Hz/1200Hz/2000Hz/4000Hz/6000Hz/25KHz
POWER
- Mains
100 – 240V, 50/60 Hz
- Power Connections
Seetronic PowerCon In / Out
- Data Connections
3pin(or 5pin) XLR for DMX
- Consumption
122W @230V
- Power Factor
0.94@230V
- Ambient
0°C – 40°C
PHYSICAL
- Dimension
415 x 94 x 232mm
- Weight
3.6kg
- IP Rating
IP28
- Cooling
Passive
- Housing
Die-cast aluminium with matte black finishing
- Installation
Sit-flat floor mounting and fly mounting
