Collider Bar IP
The ultimate lighting chameleon
Powerful illumination at your control
With 960W RGBWW LEDs providing 90+ CRI and versatile color temperature (2800K-8000K), the Collider Bar IP is one of a kind. The possibilities are infinite with 15 individually controllable segments offering pre-programmed macros and effects. Optional diffusors and attachments transforms the product into an LED panel light and provides precise 60° beam control for enhanced versatility.
960W RGBW LED
LIGHT SOURCE
55000Lm
LUMEN
2800K – 8000K
COLOR TEMPERATURE
110°
ZOOM RANGE
6.93KG
WEIGHT
1000 x 83 x 232 mm
DIMENSION
Outstanding color rendition
- White color temperature presets from 2800K – 8000K
- High CRI, RA≥90, R9≥90
Continuous operation possible due to advanced thermal design
Doubles as an LED blinder in continuous mode
Side lock pins on both sides for fast alignment of multiple units
Optional egg crate kit to provide 60° cutoff on beam angle
IP65 weather-proof construction- Stunning selection of pre-programmed macros and special effects
- Two-layer foreground and background colors and effects
- 15 individually controllable segments for dynamic effects and visual
- DMX, RDM and Art-Net control
TECHNICAL SPECS
PHOTOMETRICS
- Light Source
960W RGBW LED
- Output
55000 Lm
- CRI
Ra≥90，R9≥90
- Color Temperature
2800K~8000K

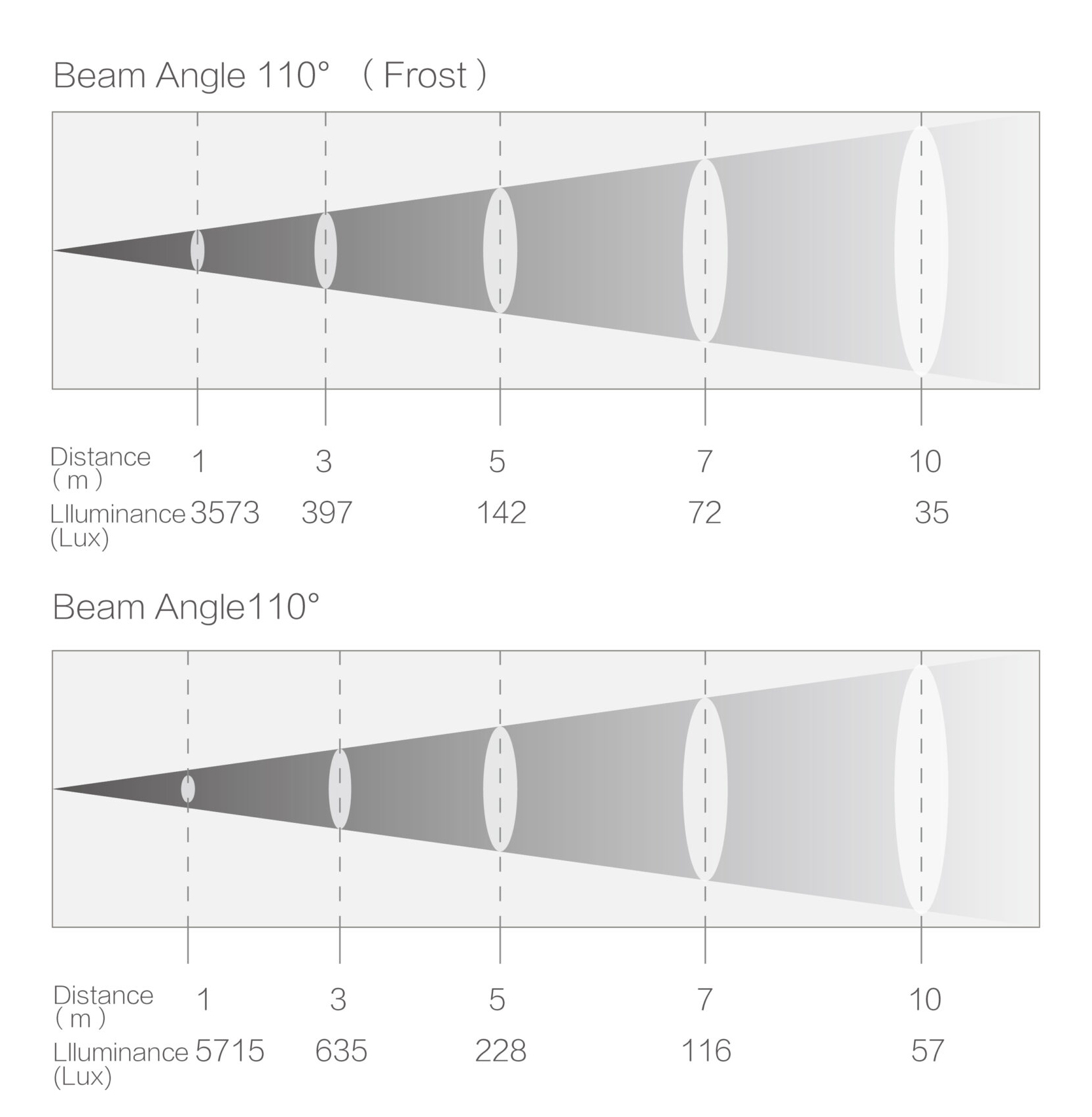

- Beam Angle
110°
KEY FEATURES
- Color System
RGBW
- Strobe
0~30Hz
- Dimming
0 – 100% variable, 4 dimming curves
- Frost
Diffusion lens kit (optional)
- Slogan Template
Slogan Template
- Framing System
Single blade ±35°, rotatable 180°
- Iris
NA
- Frost
Frost glass
- Prism
Bi-directional, combinable, 8-facet + 4-facet prism
CONTROL
- Protocol
DMX 512 / RDM / ArtNet
- Data Connections
IP65 3pin(or 5pin) XLR In/Out for DMX linking up to 32 pcs, IP65RJ45 In/Out for ArtNet
- DMX Channels
1CH/3CH/4CH/5CH/6CH/8CH/11CH/15CH/60CH/62CH/67CH/120CH/Advanced 1 and 2
- Display
OLED function display
- Slogan Template
Slogan Template
- Slogan Template
Slogan Template
- Slogan Template
Slogan Template
- Slogan Template
Slogan Template
POWER
- Mains
100 – 240V, 50/60 Hz
- Power Connections
PowerCon True One In / Out
- Maximum Power Connections
linking up to 9 units @230V
- Data Connections
IP66 3pin(or 5pin) XLR In/Out for DMX
- Maximum Data Connections
Linking up to 32pcs
- Consumption
240V continuous, 730W instant
- Power Factor
0.99@230V
- Ambient
-20°C – 45°C
- Slogan Template
Slogan Template
- Slogan Template
-20°C – 45°C
PHYSICAL

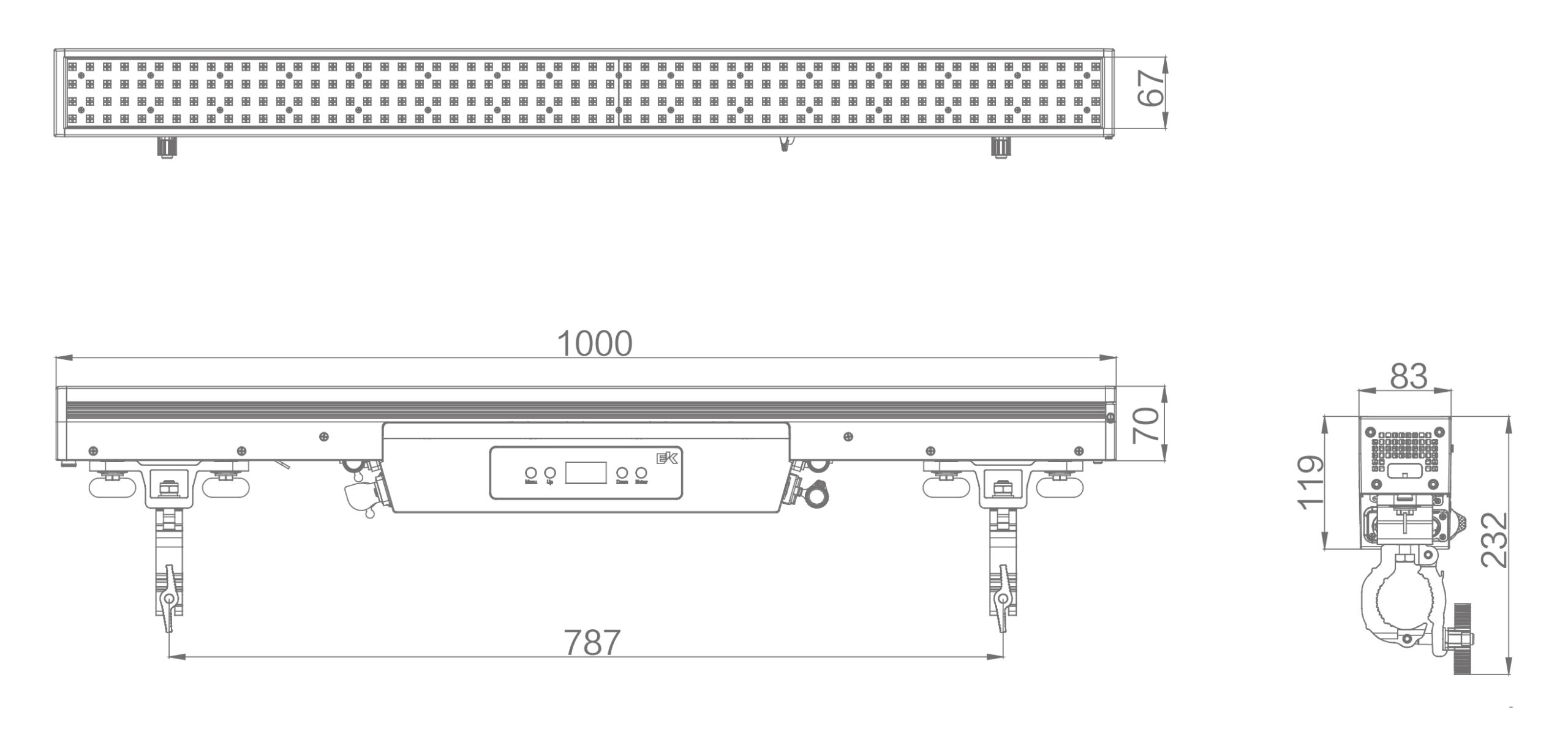

- Dimension
1000 x 83 x 232 mm
- Weight
6.93kg
- Cooling
Noiseless waterproof fan with internal forced air
- IP Rating
IP66
- Housing
Diecast magnesium, black
PRODUCT EFFECTS
ACCESSORIES
- Slogan Template

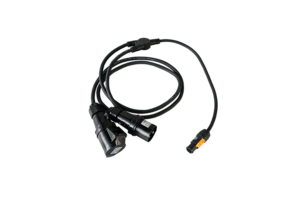

Power Cable
- Optional

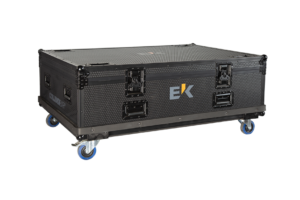

60° egg crate, frost lens kit, barn doors
IMAGE GALLERY
DOWNLOADS
SELECT THE PERFECT LUMINAIRE FOR YOU
