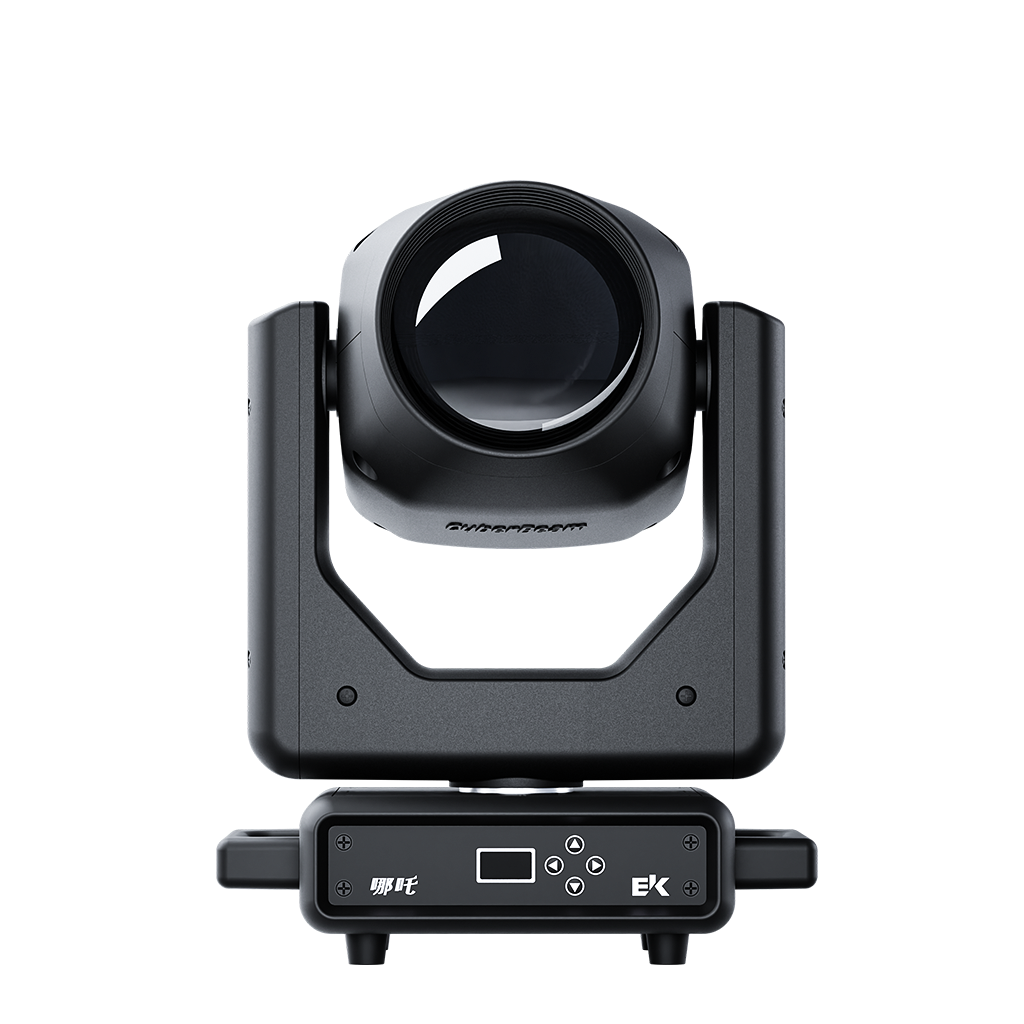

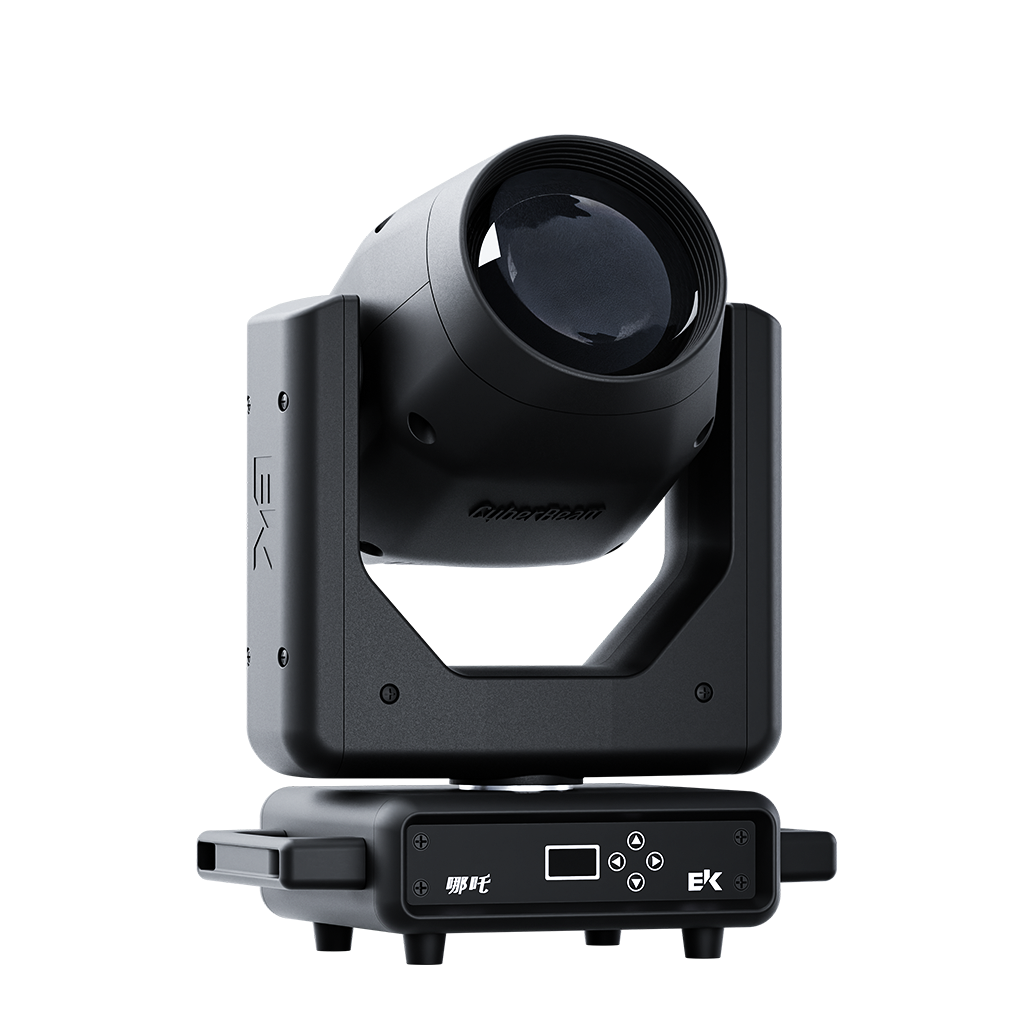

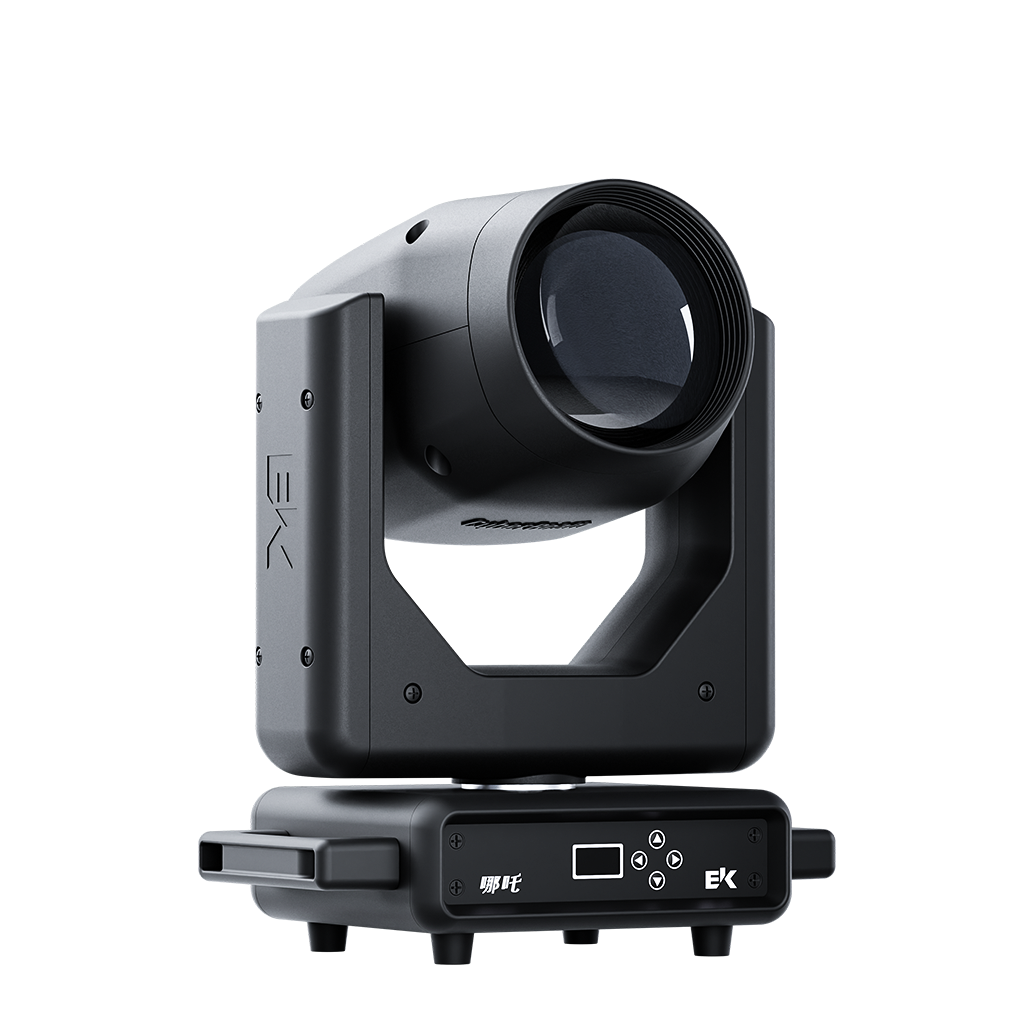

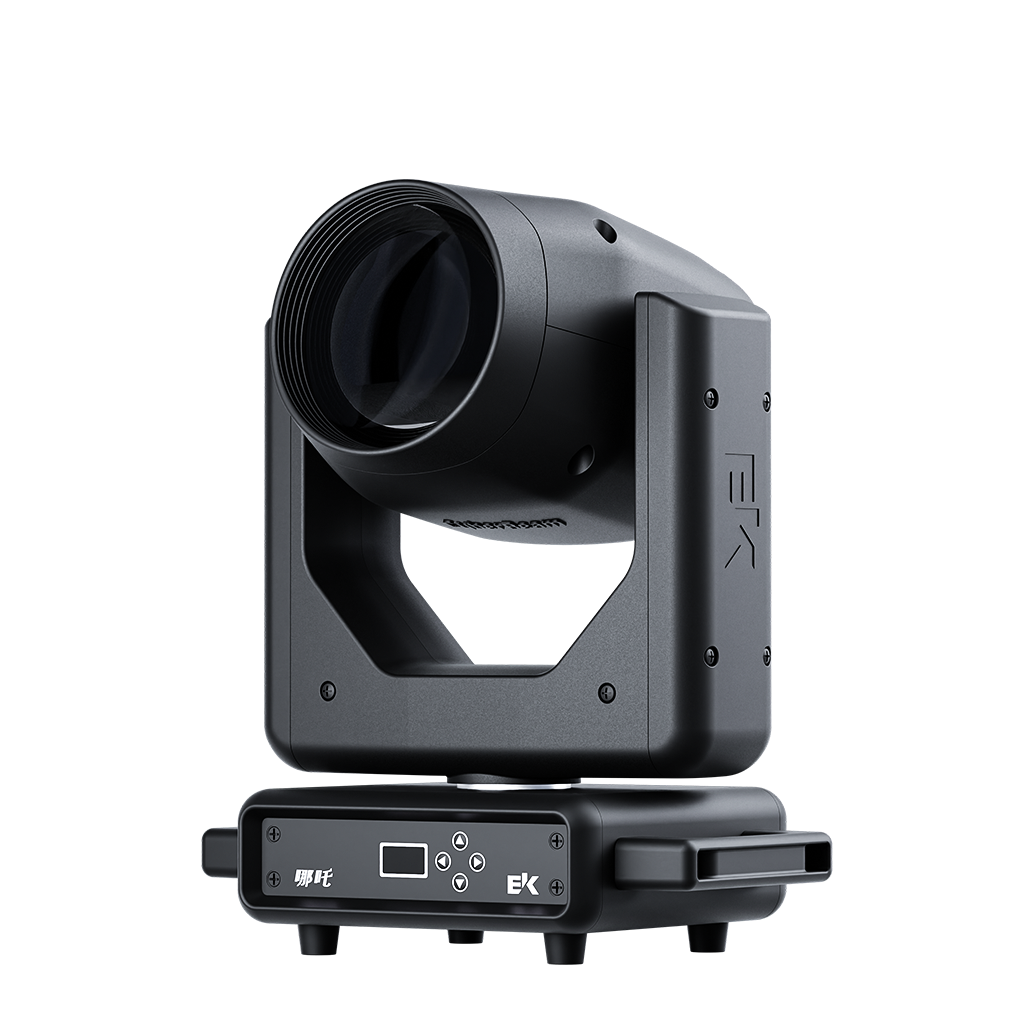

Cyber Beam
COOL BEAM
- Brightest LED moving beam in its class
- Tight, solid, consistent beams
- Infinite Pan/Tilt movement
- Fast, accurate positioning and
- whisper quiet operation
- Featuring color wheel and rotating 8-facet prism
50W 7200K LED
LIGHT SOURCE
32,000 Lux @ 8m
LUMENS
7500K
COLOR TEMPERATURE
2.2°
BEAM ANGLE
7kg
WEIGHT
264 x 176 x 366 mm
DIMENSION
TECHNICAL SPECS
PHOTOMETRICS
- Light Source
50W 7200K LED
- Output
21,000 Lux @ 10m
- Color Temperature
7500K
- Lifespan
20000hrs

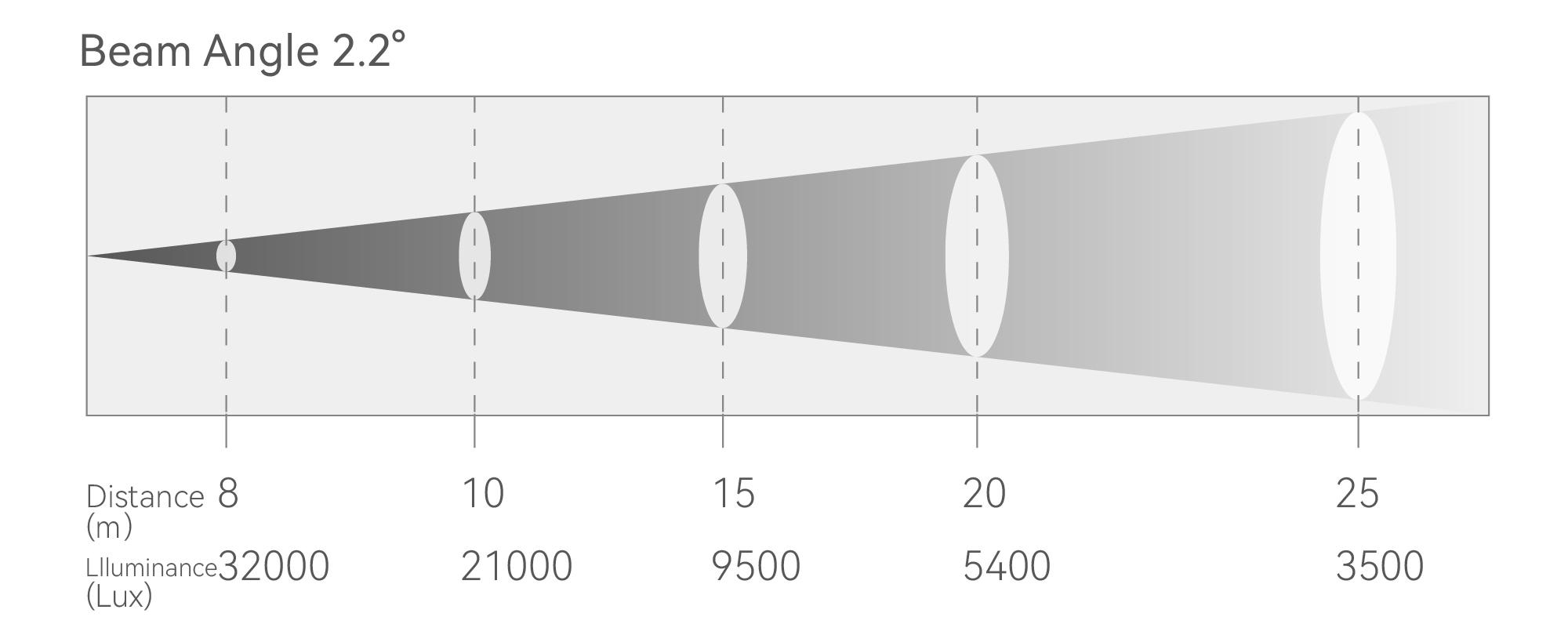

- Beam Angle
2.2°
KEY FEATURES
- Pan
540°
- Tilt
270°
- Color System
14 + open
- Frost
standard 60° frost and optional 20° frost
- Strobe
0 – 30Hz
- Dimming
0 – 100% linear dimming
- Slogan Template
Slogan Template
- Framing System
Single blade ±35°, rotatable 180°
- Iris
NA
- Frost
Frost glass
- Prism
Bi-directional, combinable, 8-facet + 4-facet prism
CONTROL
- Protocol
DMX512
- DMX Channels
14CH
- Onboard Menu
0.96-inch LCD screen with manual reverse mode
- Slogan Template
Slogan Template
- Slogan Template
Slogan Template
- Slogan Template
Slogan Template
- Slogan Template
Slogan Template
POWER
- Mains
100 – 240 VAC， 50/60 Hz

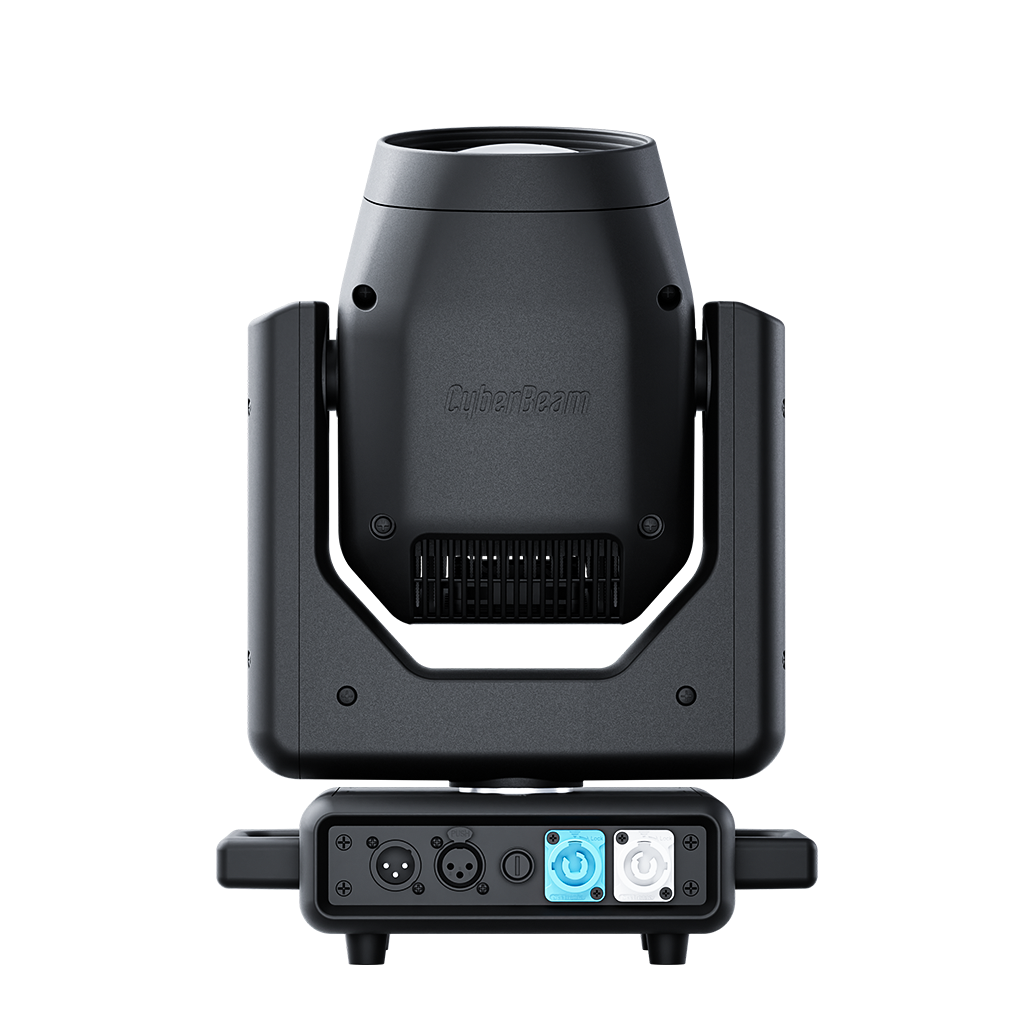

- Power Connections
POWERCON In / Out
- Data Connections
3pin or 5pin XLR In/Out for DMX
- Consumption
Static power:78W/230V
Dynamic power:106W/230V
- Power Factor
0.99/230V
- Ambient
-10℃~45℃
- Slogan Template
Slogan Template
- Slogan Template
-20°C – 45°C
PHYSICAL

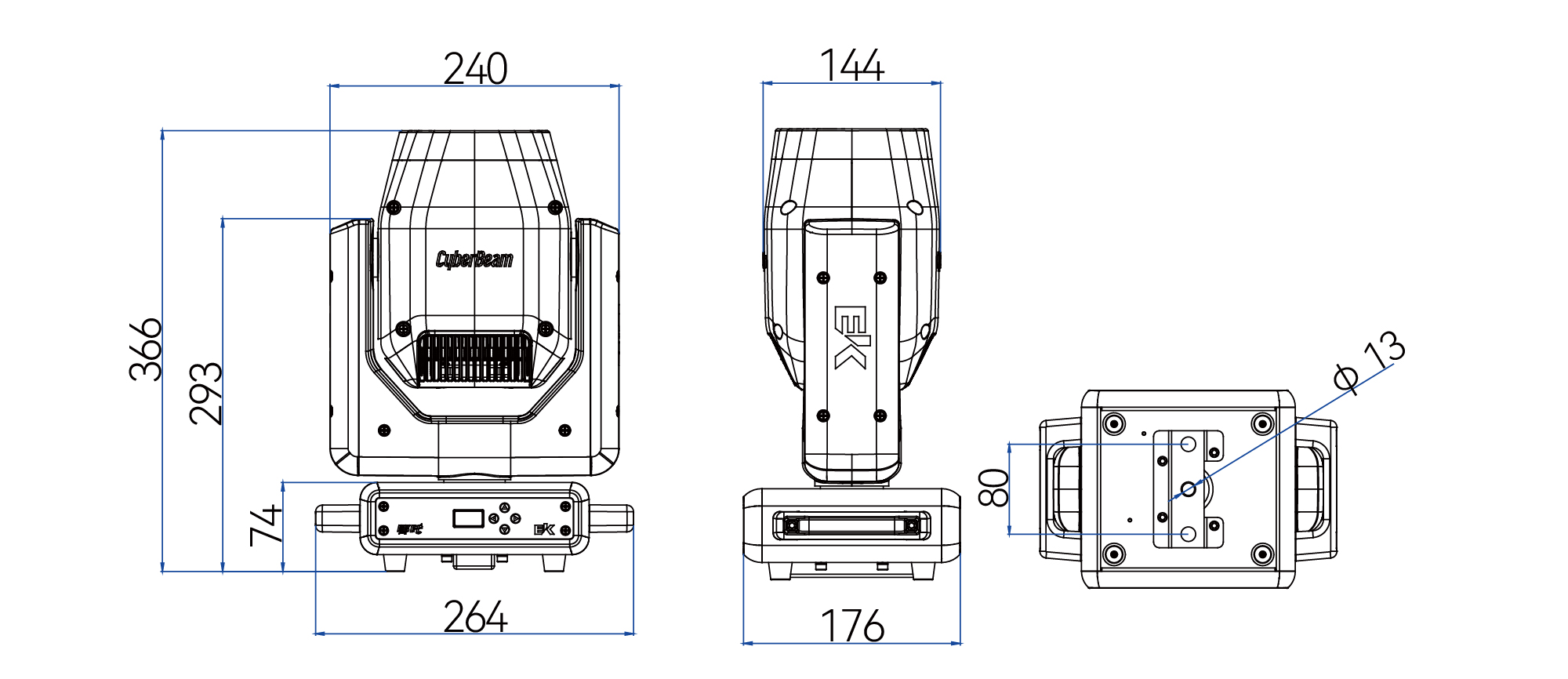

- Dimension
264 X 176 X 366 mm
- Weight
7kg
- Cooling
heat sink with low noise fan
- Housing
Flame-retardant nylon with matte black finish
- Slogan Template
Slogan Template
PRODUCT EFFECTS
ACCESSORIES
- Standard

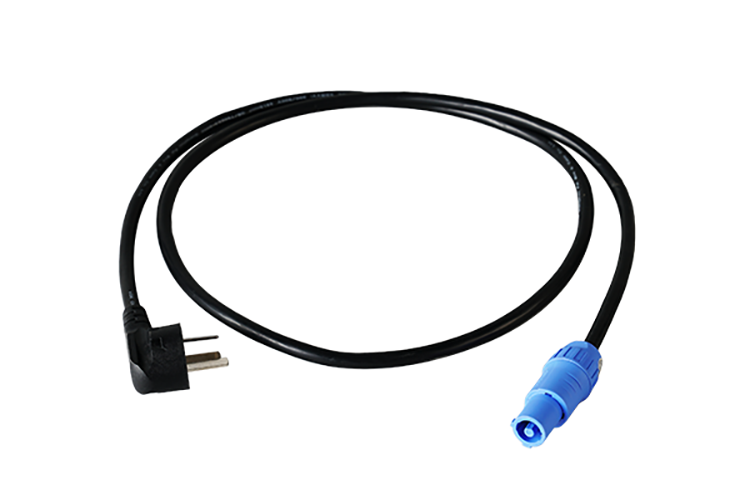

Power Cable
Cable
