eProfile HP

Edge-to-edge perfection

Crystal-clear profile mastery
The eProfile HP WW/CW delivers exceptional performance with crisp, detailed projection even at close proximity. Its extremely flat field projection ensures uniform illumination across the entire beam. With flawless dimming capabilities that maintain consistent color temperature throughout the range, it provides uncompromising quality for all applications.

200W LED

LIGHT SOURCE

7550 Lux @5m (warm white)
8340 Lux @5m (cool white)

LUMENS

3200K(WW)
5700K (CW)

COLOR TEMPERATURE

19°/ 26°/ 36°/ 50°

ZOOM RANGE

7.1 KG

WEIGHT

625 x 285 x 487mm

DIMENSION

Spotlight with flawless color

  • 200W LED engine available in WW (3200K) and CW (5700K)
  • Higher output than traditional 750W ellipsoidal reflector spotlight
  • High CRI of over 95 for exquisite color rendering
  • 4 dimming curves, ultra-efficient proprietary optical system
  • Extremely flat field projection and flawless color consistency throughout whole dimming curves
  • Flicker-free output
  • Quiet operation, perfect for studio use
  • Available fixed lens tubes: 14°, 19°, 26°, 36°, 50° (not included)
  • Available zoom lens tubes: 15° – 30°, 25° – 30° (not included)
  • Rugged die-cast body and low maintenance design
  • DMX control

TECHNICAL SPECS

PHOTOMETRICS
  • Light Source

200W LED

  • Illuminance

7550 Lux @5m (warm white)
8340 Lux @5m (cool white)

  • Color Temperature

3200K(WW)
5700K (CW)

  • CRI

CRI≥95 (WW)
CRI≥92 (CW)

  • Beam Angle

19°/ 26°/ 36°/ 50°

  • Strobe

0~30Hz

  • Dimming

0-100%, 4 dimming curve modes

  • Slogan Template

Slogan Template

  • Framing System

Single blade ±35°, rotatable 180°

  • Iris

NA

  • Frost

Frost glass

  • Prism

Bi-directional, combinable, 8-facet + 4-facet prism

  • Protocol

DMX

  • Data Connections

3pin(or 5pin) XLR In/Out for DMX

  • DMX Channel

1CH / 2CH / 5CH

  • Display

OLED function menu with 4 touch buttons

  • Slogan Template

Slogan Template

  • Slogan Template

Slogan Template

  • Slogan Template

Slogan Template

  • Mains

100 – 240V, 50/60 Hz

  • Power Connections

PowerCon In/Out

  • Data Connections

3pin(or 5pin) XLR In/Out for DMX

  • Consumption

205W

  • Ambient

0°C – 40°C

  • Slogan Template

Slogan Template

  • Slogan Template

-20°C – 45°C

  • Dimension

625 x 285 x 487mm

  • Weight

7.1kg

  • Cooling

Active (Variable speed fan)

  • IP Rating

IP20

  • Slogan Template

Slogan Template

  • Optional

Fixed lens tubes : 14°, 19°, 26°, 36°, 50°
Zoom lens tubes: 15°-30°, 25°-50°

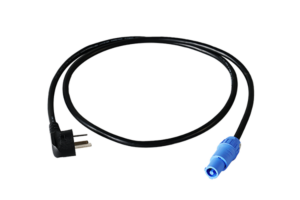

Cable

19°Lens Tubes

26°Lens Tubes

36°Lens Tubes

50°Lens Tubes

15-30°Zoom Lens Tubes

25-50°Zoom Lens Tubes

DOWNLOADS

FIXTURE LIBRARIES
