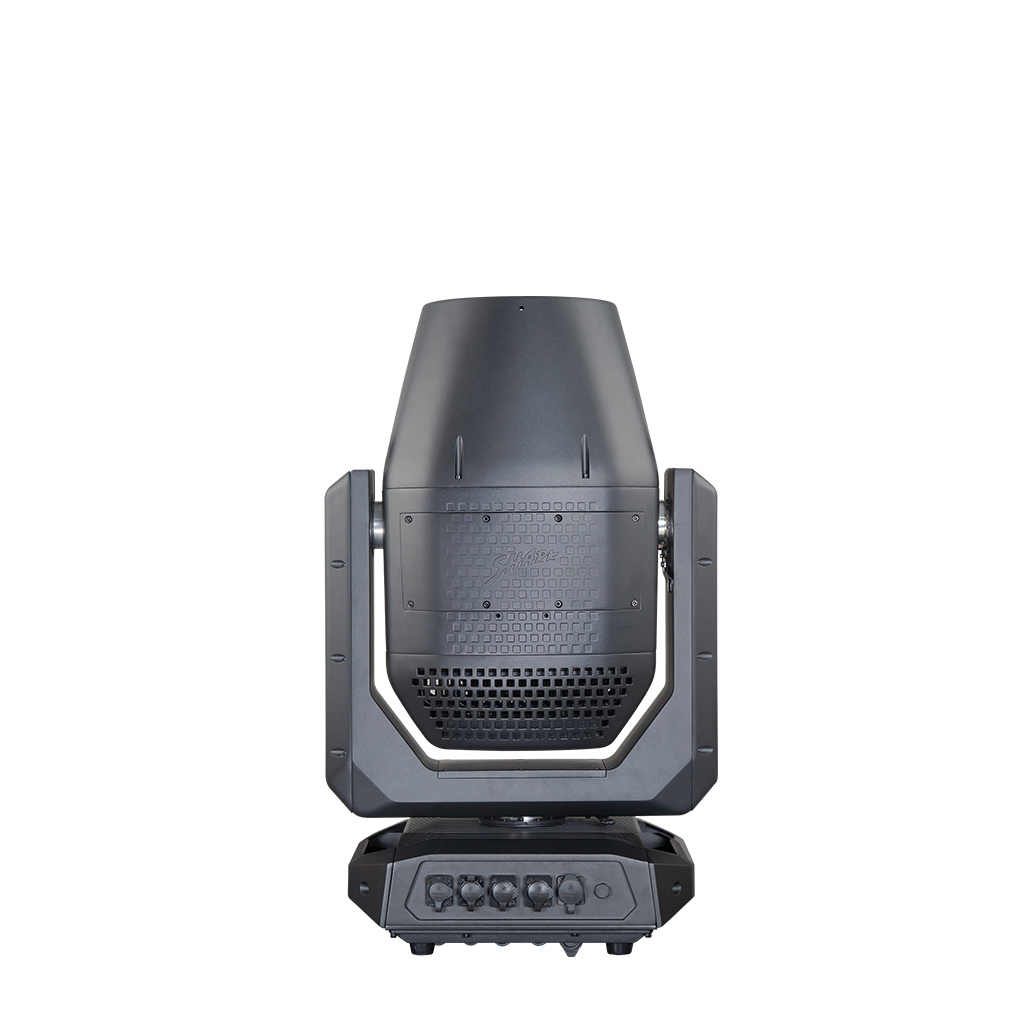

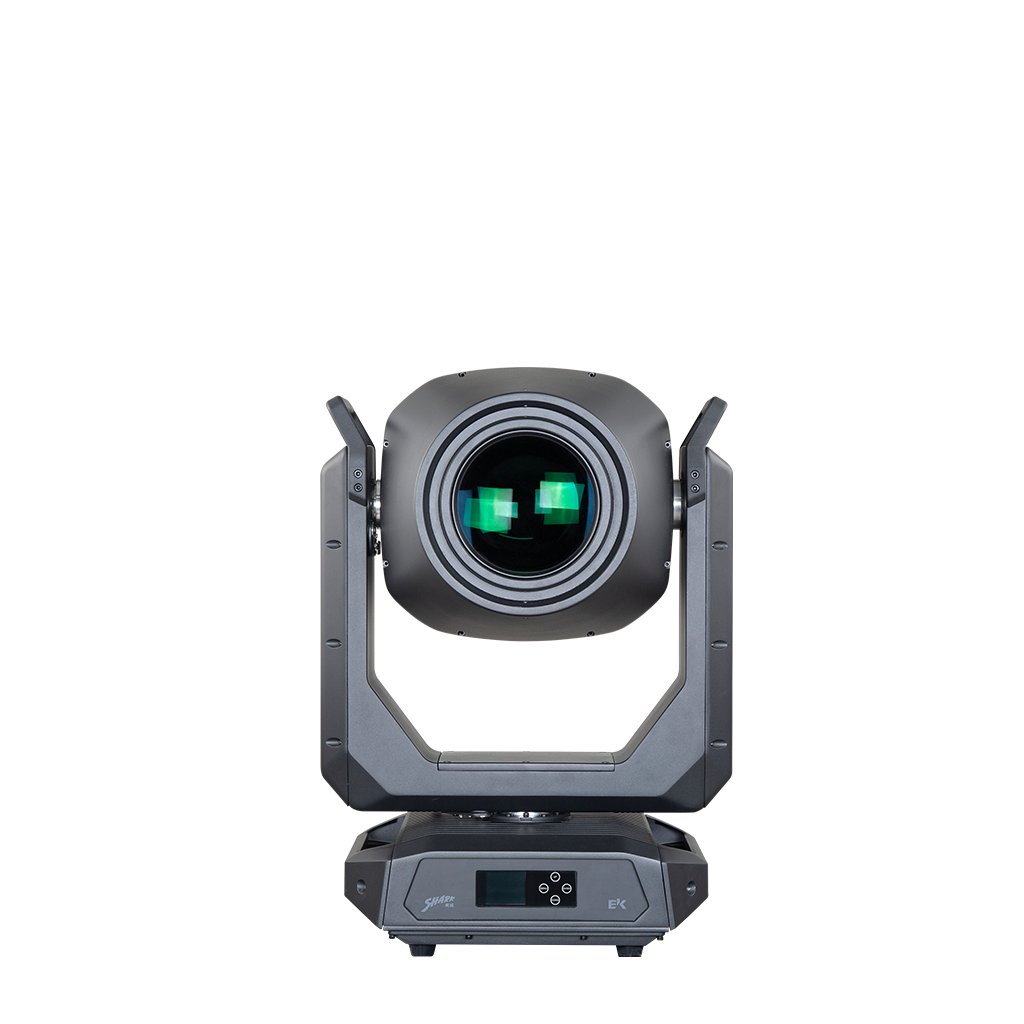

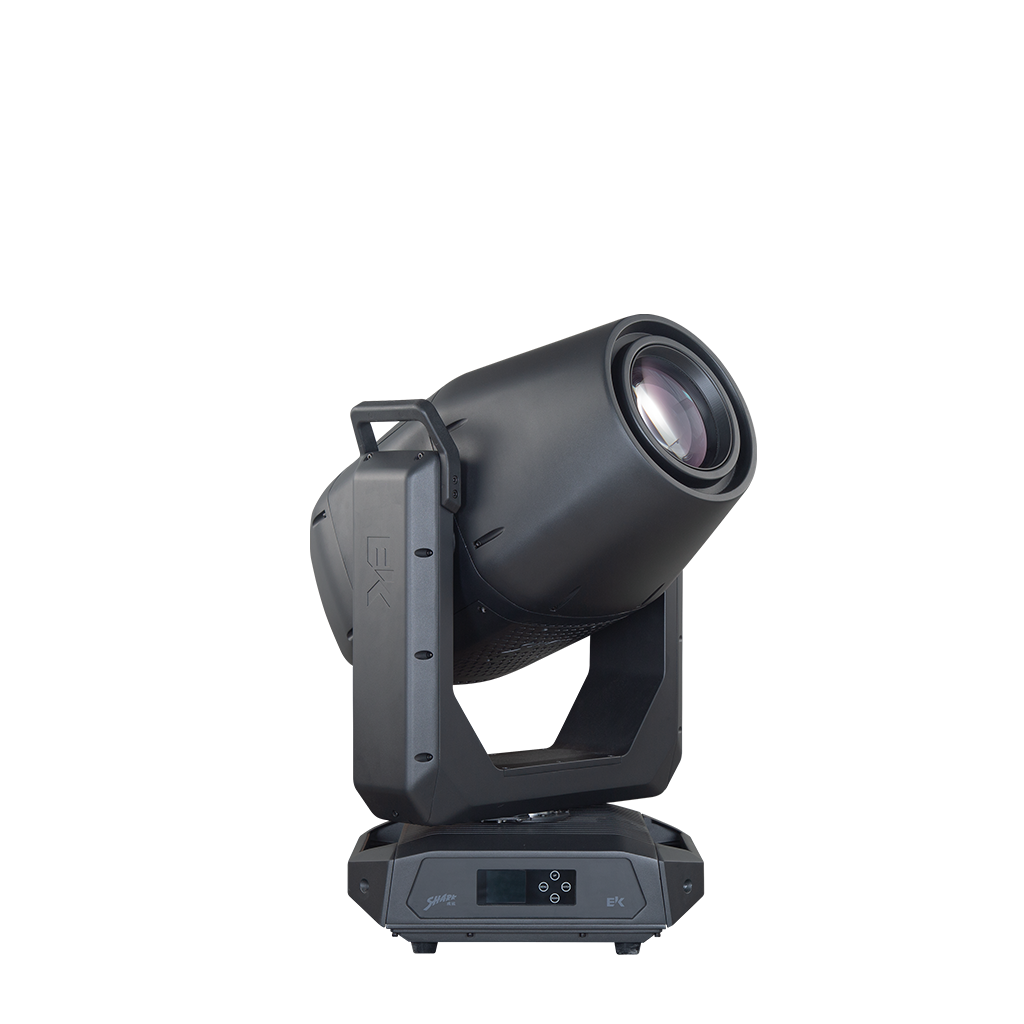

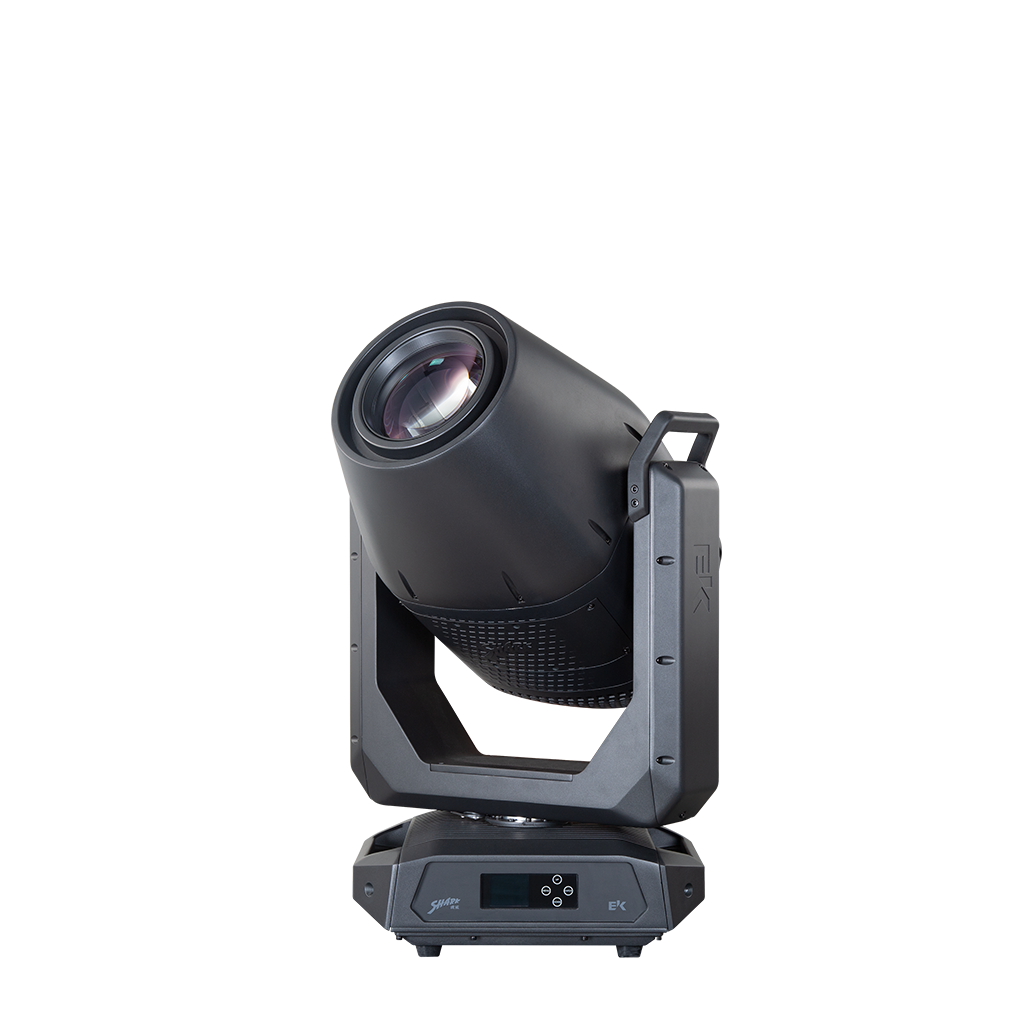

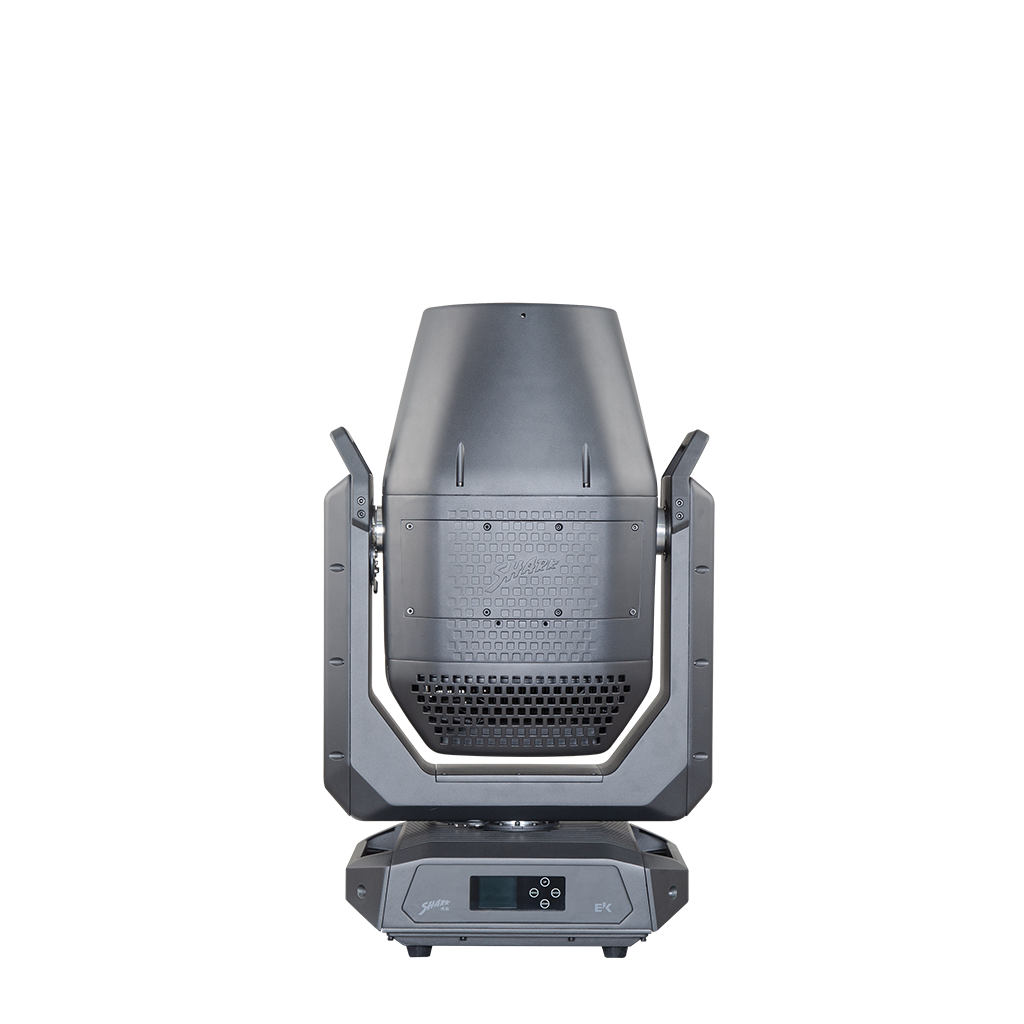

SHARK

IP66 3 In 1 BSW Moving Head

  • Extremely high output of 20000 lux @ 50 meters
  • Perfect combination of beam, spot, wash in an outdoor compact package
  • Three-wheel CMY color mixing system ( CMY + 15 filters)
  • Dual gobo wheel (19 fixed gobo + 8 interchangeable rotating gobo)
  • Flawless brightness and color consistency from spot center to edge
  • Dual 4- and 8-facet prism can be layered to create interesting looks of gobo
  • DMX control

360W CW LED

LIGHT SOURCE

13500Lm

LUMENS

7200K±300K

COLOR TEMPERATURE

3.4°- 37.7°

BEAM ANGLE

22KG

WEIGHT

355 x 257x 643 mm

DIMENSION

TECHNICAL SPECS

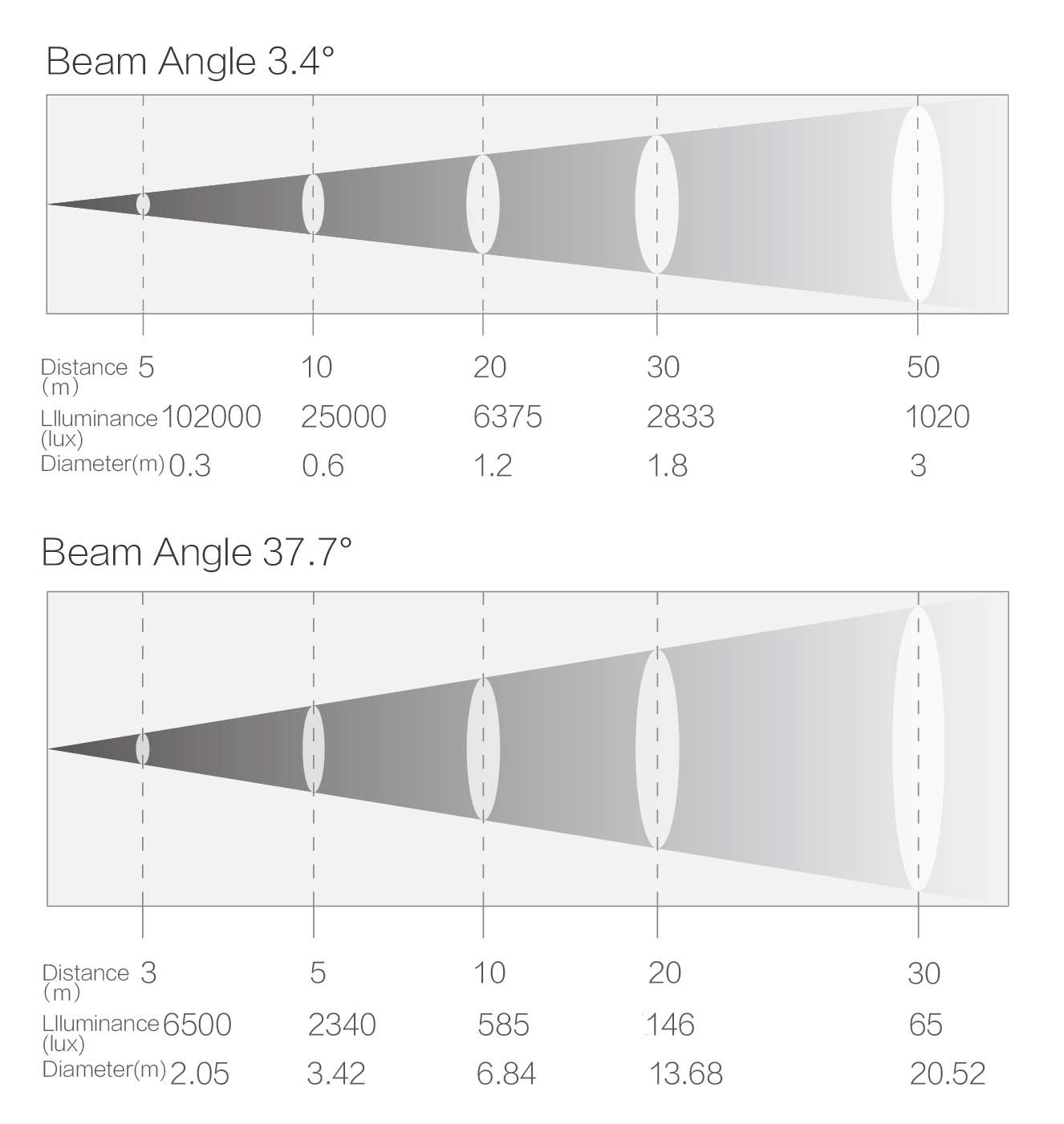

PHOTOMETRICS
  • Light Source

360W CW LED

  • Output narrow angle

narrow angle：5050Lm，wide angle：13500Lm

  • LUX

102000Lux@5m；6500Lux@3m

  • Color Temperature

7200K±300K

  • Lifespan

20000hrs

  • Beam Angle

3.4°~37.7°

  • Pan

540°(16 bit)

  • Tilt

270°(16 bit)

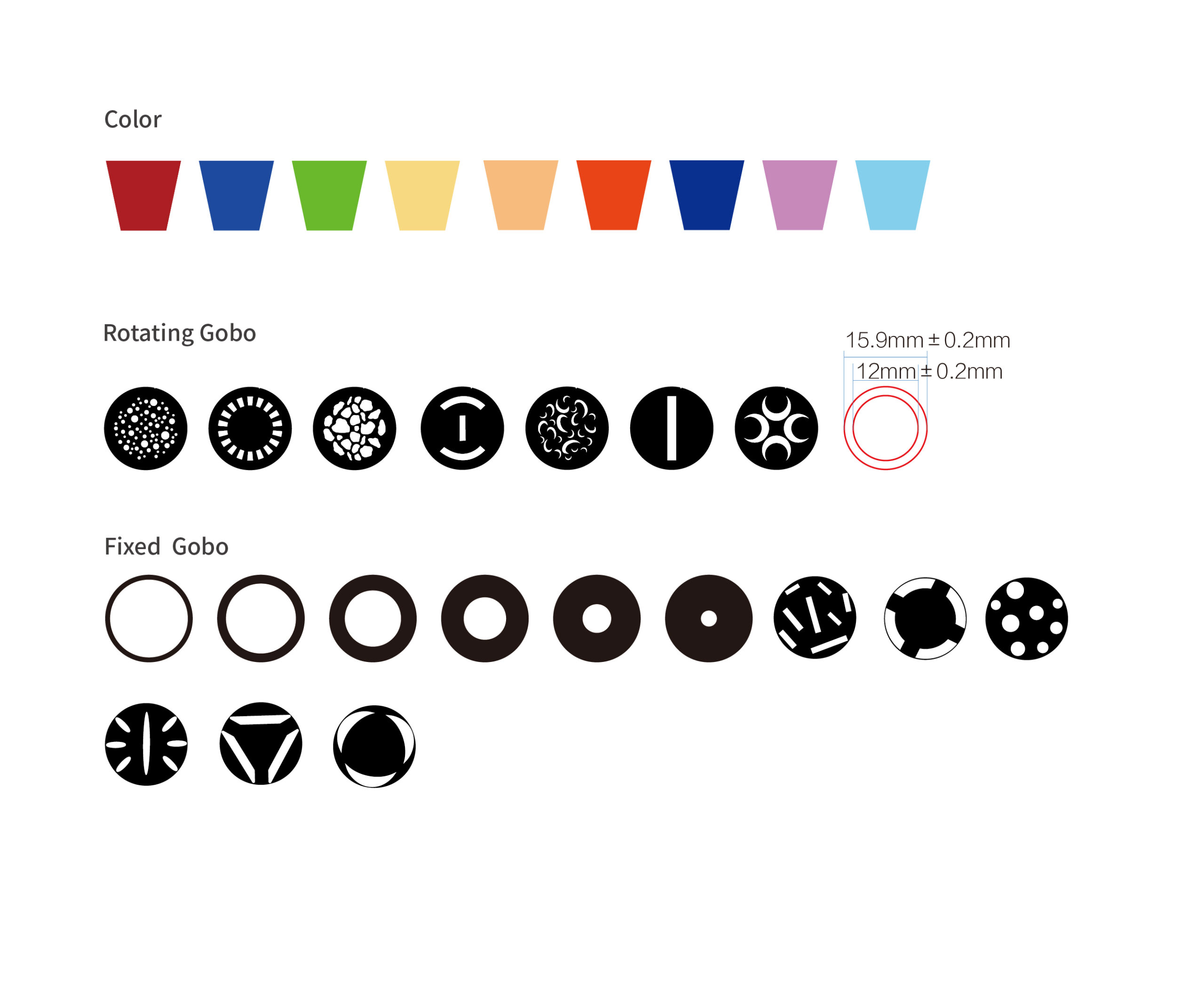

  • Color System

CW + 9 filters + open

  • Gobo System

7 rotating gobos+open , 12 fixed gobos+open

  • Focus

Motorzed linear focus

  • Frost

5° forst

  • Strobe

0~30Hz

  • Dimming

4 dimming curves，0～100% dimming

  • Prism

Bi-directional 8/24-facet prism with variable speed

  • Slogan Template

Slogan Template

  • Framing System

Single blade ±35°, rotatable 180°

  • Iris

NA

  • Frost

Frost glass

  • Prism

Bi-directional, combinable, 8-facet + 4-facet prism

  • Protocol

DMX512/RDM

  • DMX Channels

21CH

  • Onboard Menu

2.0 inchesTFT display

  • Slogan Template

Slogan Template

  • Slogan Template

Slogan Template

  • Slogan Template

Slogan Template

  • Slogan Template

Slogan Template

  • Mains

200～240VAC,50～60Hz

  • Power Connections

PowerCon In/Out

  • Data Connections

3pin DMX In/Out, Maximum with 32pcs

  • Consumption

420W@230V；400W@230V

  • Power Factor

0.98/230V

  • Ambient

0℃~45℃

  • Slogan Template

Slogan Template

  • Slogan Template

-20°C – 45°C

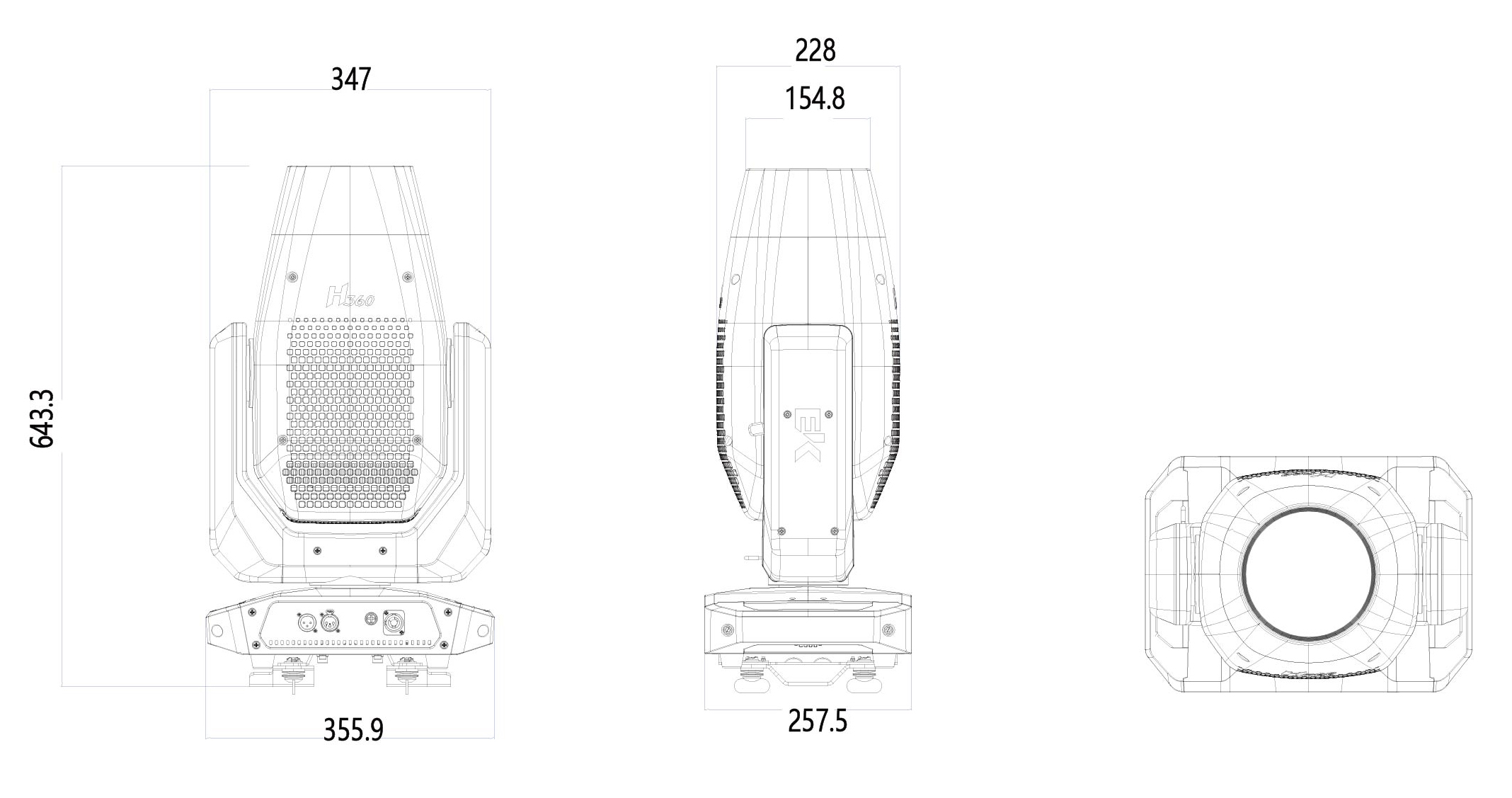

  • Dimension

355 x 257x 643 mm

  • Weight

22kg

  • Cooling

Heat pipe and low noise fan

  • Slogan Template

Slogan Template

  • Slogan Template

Slogan Template

  • Slogan Template

Omega bracket, power cable

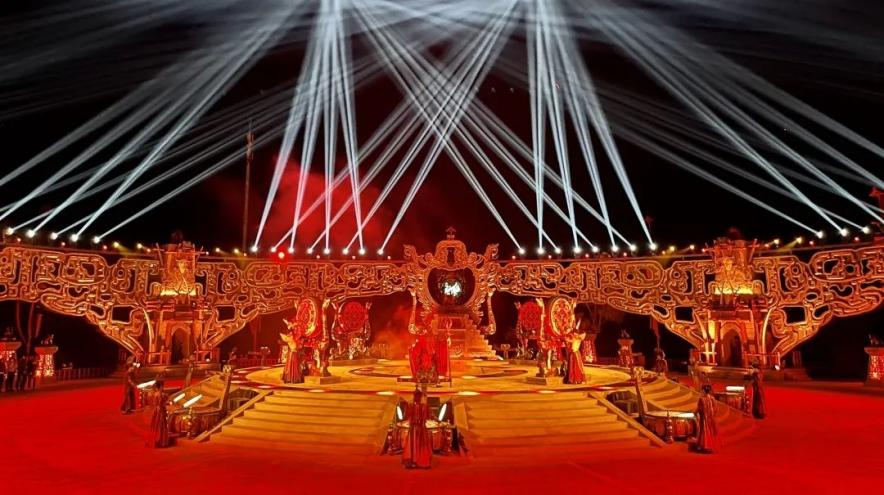

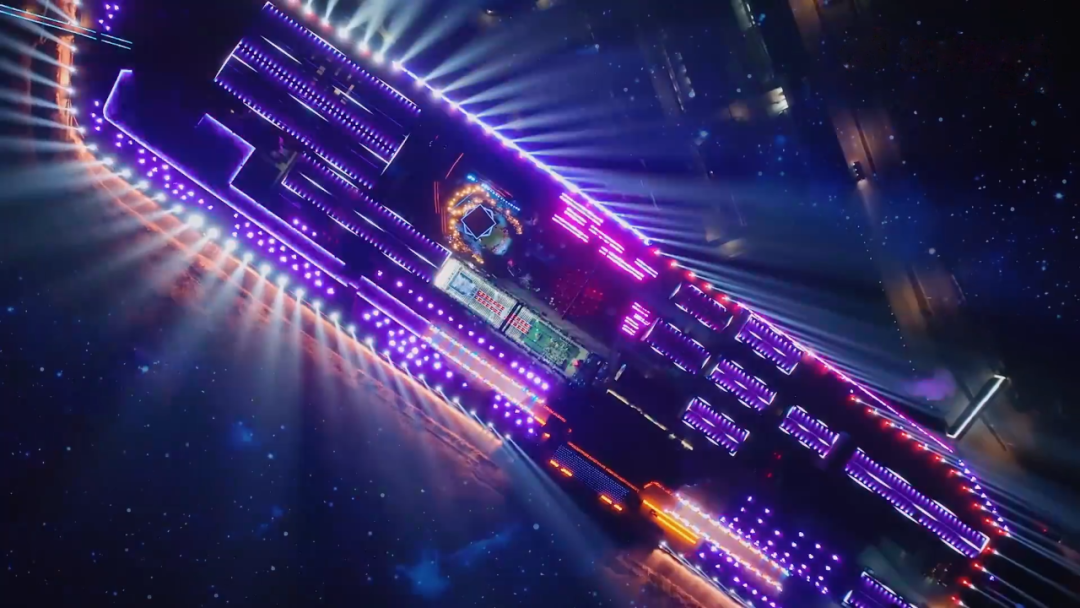

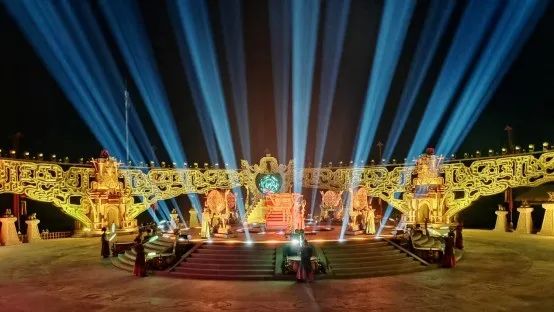

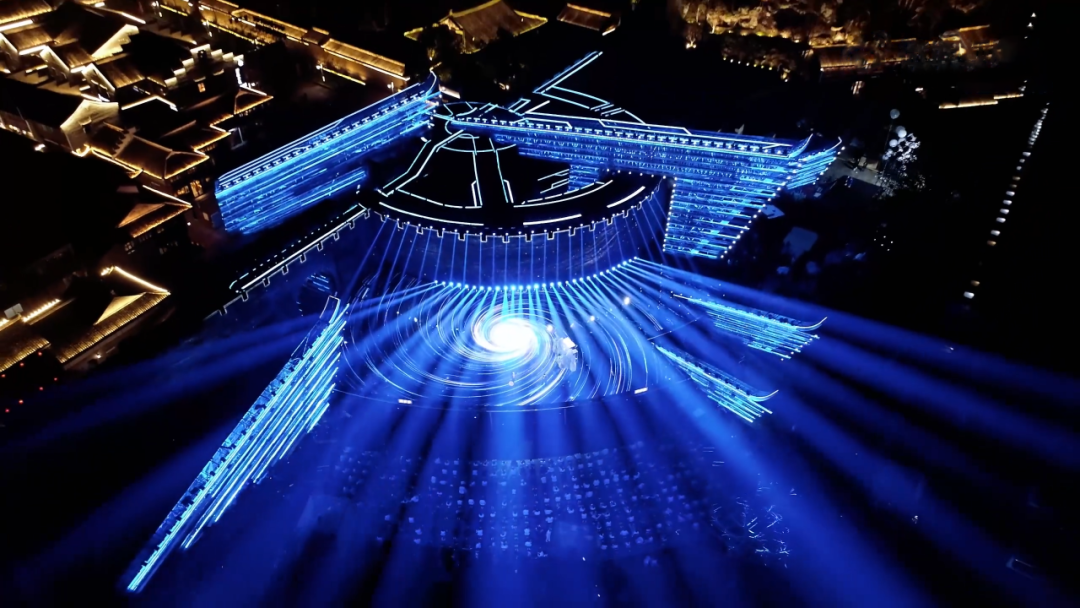

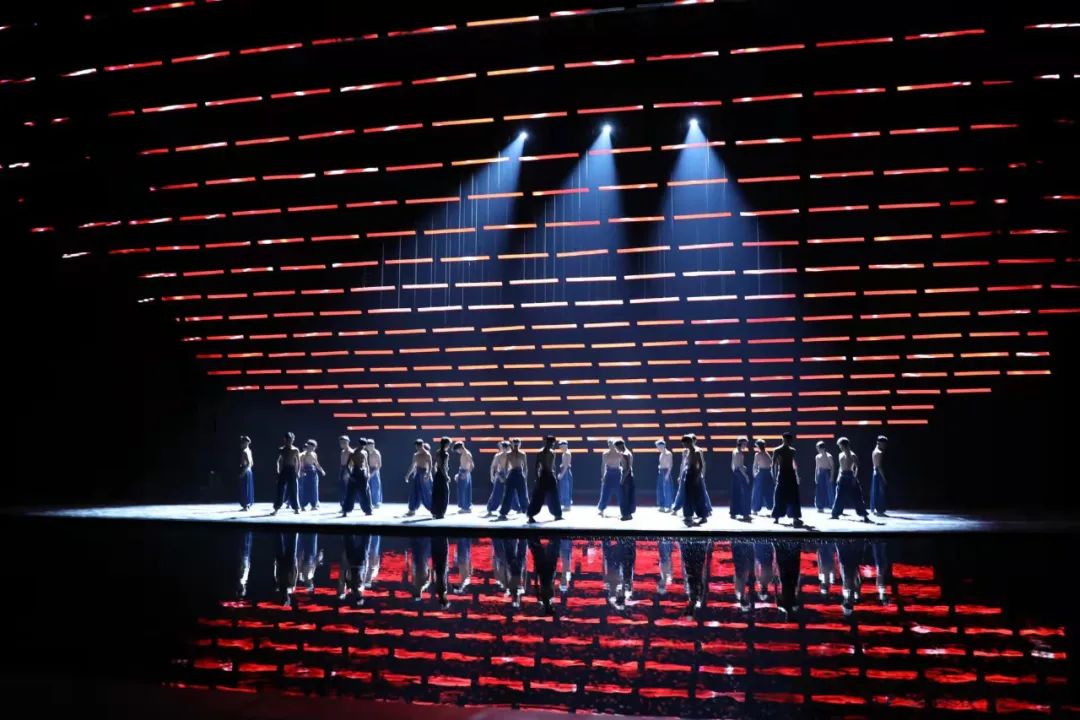

IMAGE GALLERY
