EPROFILE VW 500

Colors as nature intended

Redefining lighting fidelity
With its exceptional Ra>95 and R9>92 color rendering, the EProfile VW 500 ensures every nuance of color appears exactly as nature intended. Its versatile 2800K-8000K temperature range authentically recreates warm tungsten ambiance while offering daylight precision. Combined with buttery-smooth dimming across multiple customizable curves, this fixture delivers unparalleled control without color compromise.

380W RGBAL LED

LIGHT SOURCE

15,000 Lux @ 3m

OUTPUT

2800K – 8000K

COLOR TEMPERATURE

14° / 19° / 26° / 36° / 50° / 15° – 30° / 25° – 50°

BEAM ANGLE

8KG

WEIGHT

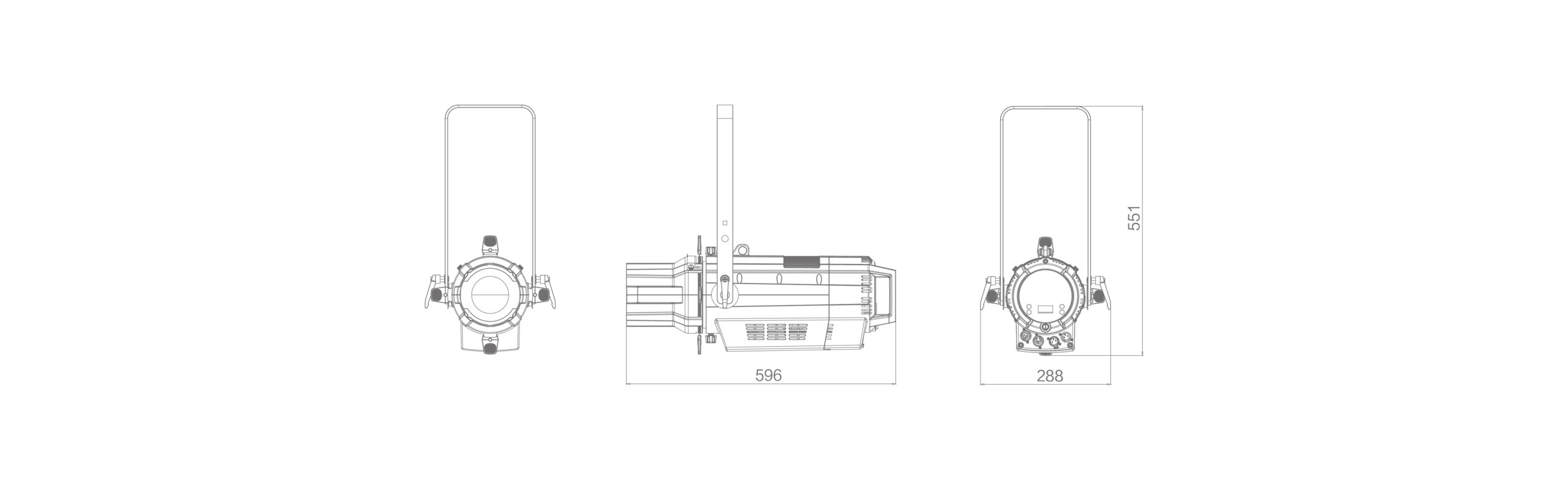

596 x 288 x 551 mm

DIMENSION

Impeccable color fidelity

  • 380W RGBAL LEDs
  • Variable white color temperature presets from 2800K – 8000K
  • Exquisite color rendition, CRI≥95, R9≥92
  • 4 dimming curves, 4 dimming modes, 0 – 100% linear adjustment
  • Ultra-smooth 16-bit dimming with consistent color temperature throughout the dimming curve
  • Flicker-free output
  • Quiet operation suitable for studio use
  • Rugged die-cast body and low-maintenance design
  • RGBA+L engine with independent color control for vibrant color mixing and accurate white
  • DMX control

TECHNICAL SPECS

PHOTOMETRICS
  • Light Source

380W RGBAL LED

  • Output

15000 Lux @ 3m

  • CRI

CRI≥95
R9≥92

  • Color Temperature

2800K – 8000K

  • Beam Angle

14° / 19° / 26° / 36° / 50° / 15° – 30° / 25° – 50°

  • Strobe

0~30Hz

  • Dimming

4 dimming curves, 4 dimming modes 0 – 100% linear dimming

  • Slogan Template

Slogan Template

  • Framing System

Single blade ±35°, rotatable 180°

  • Iris

NA

  • Frost

Frost glass

  • Prism

Bi-directional, combinable, 8-facet + 4-facet prism

  • Protocol

DMX/RDM

  • DMX Channels

1CH/4CH/5CH/7CH/11CH/13CH/113CH/217CH/HSV

  • Display

LCD display

  • Slogan Template

Slogan Template

  • Slogan Template

Slogan Template

  • Slogan Template

Slogan Template

  • Slogan Template

Slogan Template

  • Mains

100 – 240V, 50/60 Hz

  • Power Connections

POWERCON In / Out

  • Maximum Power

Linking up to

  • Consumption

6pcs @ 230V, 3pcs @ 120V

  • Data Connections

3pin(or 5pin) XLR In/Out for DMX

  • Maximum Data Connections

Linking up to 32pcs

  • Consumption

330W@230V, 335W@120V

  • Power Factor

0.94@240V
0.94@200V

  • Ambient

-10°C – 45°C

  • Slogan Template

Slogan Template

  • Slogan Template

-20°C – 45°C

  • Dimension

596 x 288 x 551 mm

  • Weight

8kg

  • Cooling

Heat pipe cooling system with low noise fan

  • Housing

ADC12 with matte black finish

  • Slogan Template

Slogan Template

  • Standard

Diffusion holder, power cable

  • Optional

14°/29°/26°/36°/50° fixed lens, 15°-30°
or 25°-50° zoom lens, media holder, gobo holder

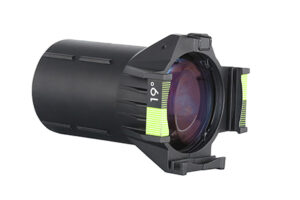

19°Lens Tubes

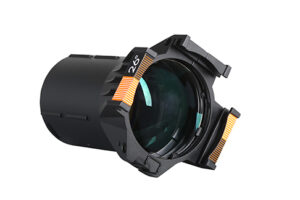

26°Lens Tubes

36°Lens Tubes

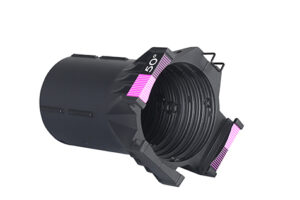

50°Lens Tubes

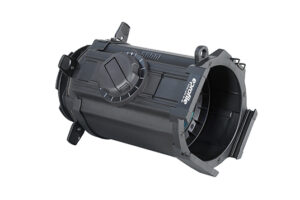

15-30°Zoom Lens Tubes

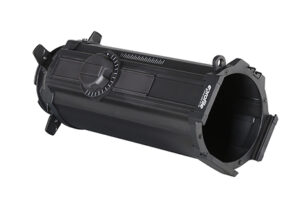

25°-50°Zoom Lens Tubes

Cable
