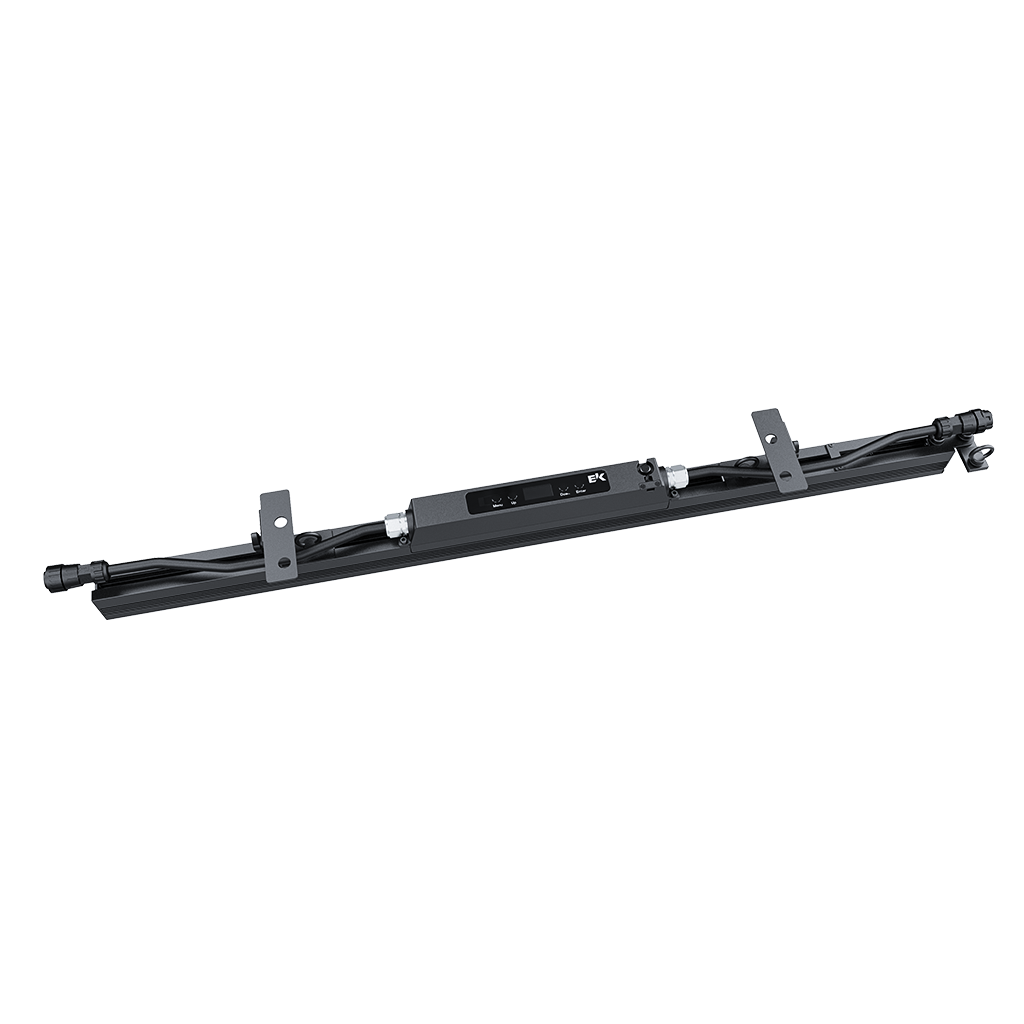

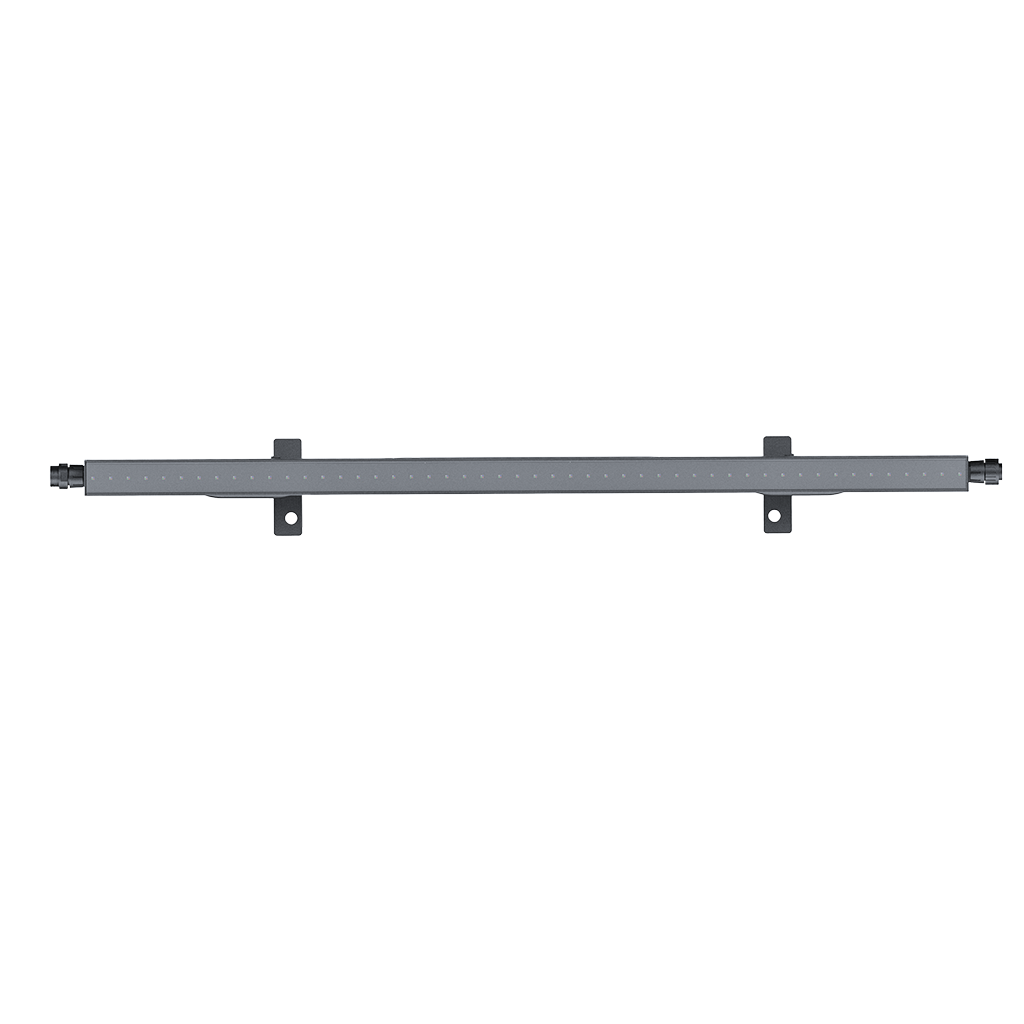

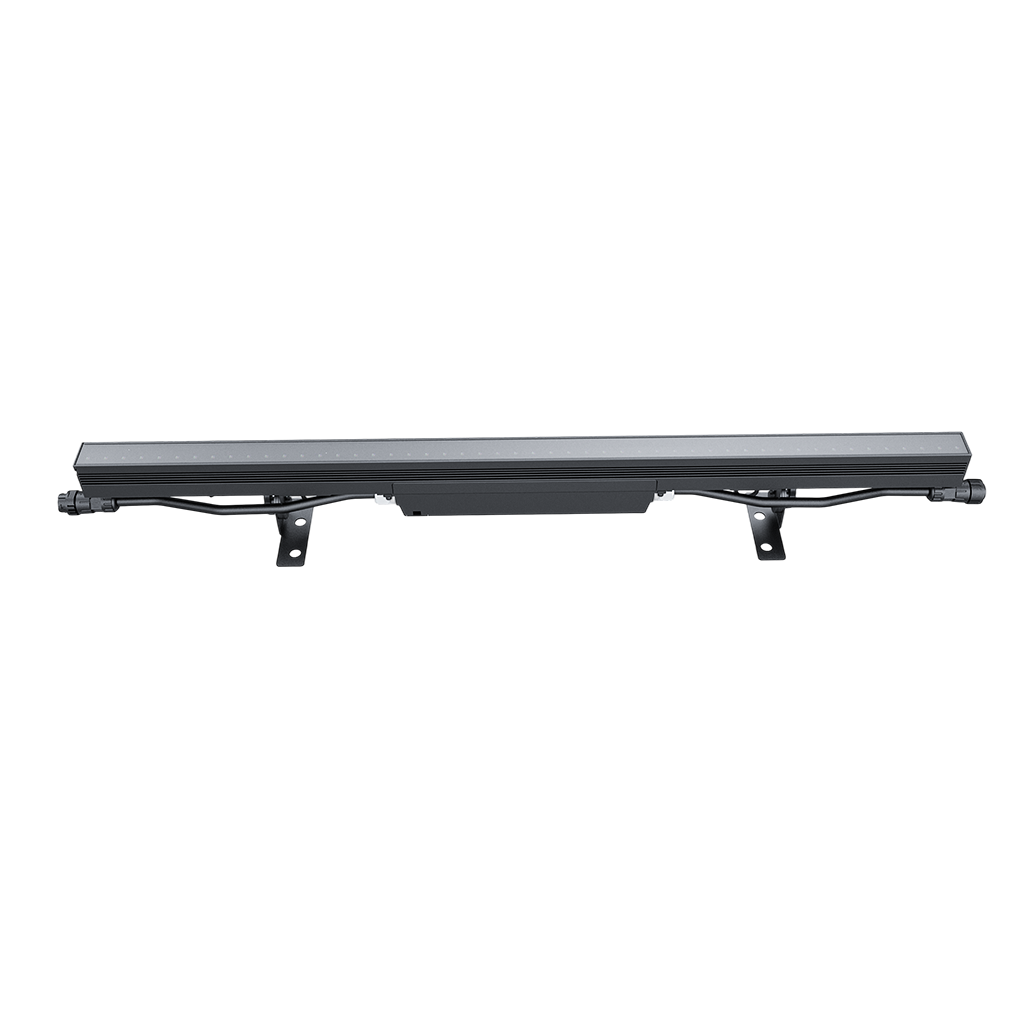

Power Pixel Q50

Brighter. Cooler. So much better.

Power up your pixels
With a remarkable 9-fold increase in brightness compared to its predecessor, the Power Pixel Q50 boasts a highly efficient optical and cooling system. The versatile design incorporates four distinct lens types, offering a wide array of pixel effects to suit diverse creative needs. User-friendly features are at the forefront, including innovative hybrid cables that enhance waterproofing while ensuring easy connectivity.

120W RGBW LED

LIGHT SOURCE

6200lm

LUMENS

1800K~8000K

COLOR TEMPERATURE

134°

BEAM ANGLE

3.4KG

WEIGHT

1000 x 90 x 103.8 mm

DIMENSION

50 pixels, infinite possibilities

  • Four lens options
  • Optimized for pixel map and video effects
  • 50×1 matrix

TECHNICAL SPECS

PHOTOMETRICS
  • Light Source

120W RGBW LED

  • Output narrow angle

2954 lm;with black diffuser:500lm;Peak value: 6200lm

  • LUX

120Lux@3M

  • Color Temperature

1800K~8000K

  • CRI

≥90

  • Lifespan

20000hrs

  • Beam Angle

134°

  • Field Angle

146°

  • Available Lens

Black flat diffusor, rectangular,lens, rounded dome lens

  • Pan

540°(16 bit)

  • Tilt

270°(16 bit)

  • Color System

RGBW

  • Gobo System

7 rotating gobos+open , 12 fixed gobos+open

  • Focus

Motorzed linear focus

  • Frost

5° forst

  • Strobe

0~30Hz

  • Dimming

4 dimming curves,0~100% dimming

  • Prism

Bi-directional 8/24-facet prism with variable speed

  • Slogan Template

Slogan Template

  • Framing System

Single blade ±35°, rotatable 180°

  • Iris

NA

  • Frost

Frost glass

  • Prism

Bi-directional, combinable, 8-facet + 4-facet prism

  • Protocol

RDM, DMX and Art Net

  • DMX Channels

4CH/6CH/8CH/8_2CH/10CH/11CH/13CH/14CH/20CH/26CH/40CH/46CH/100CH/106CH/200CH/206CH

  • Onboard Menu

2.0 inchesTFT display

  • Slogan Template

Slogan Template

  • Slogan Template

Slogan Template

  • Slogan Template

Slogan Template

  • Slogan Template

Slogan Template

  • Mains

100 – 240 VAC, 50/60 Hz

  • Power Connections

IP Power+DMX In/Ou linking up to 20pcs

  • Data Connections

3pin DMX In/Out, Maximum with 32pcs

  • Consumption

120W@200V 120W@240V

  • Power Factor

0.94@240V 0.94@200V

  • Ambient

-15~45℃

  • Slogan Template

Slogan Template

  • Slogan Template

-20°C – 45°C

  • Dimension

1000 x 90 x 103.8 mm

  • Weight

3.4 KG

  • Cooling

Passive

  • IP rating

IP66

  • Mounting

Floor, flown

  • Housing

Aluminium, matte black finish

  • Slogan Template

   Road Case, Cable
