Radiant 3000
Experience blinding brilliance
Light without limits
Unleashing a staggering 210,000 lumens, Radiant 3000 elevates performance with 40% more output than its predecessor. Its revolutionary 60-segment control enables both retro strobe effects and innovative pixel mapping, allowing total creative control.
3600W RGBW 4-in-1 LED
LIGHT SOURCE
210,000Lm
LUMEN
2800 – 10000K
COLOR TEMPERATURE
112°
BEAM ANGLE
9.4KG
WEIGHT
440 x 180.2 x 218.5mm
DIMENSION
Max saturation; smooth dimming
- 720*5W RGBW 4-in-1 LED module
- Up to a staggering 210,000 lumen output
- Two-layer foreground and background colors and effects
- Weather-resistant IP66 tour-grade construction
- Advanced thermal design: heat sink with noiseless fan
- Pixel perfect control
- 60 individually controllable segments for dynamic effects
- Built-in Macro for fast programming
- Easy switch between long bright and strobe
- DMX, RDM, SACN and Art-Net control
- TECHNICAL SPECS
TECHNICAL SPECS
PHOTOMETRICS
- Light Source
3600W RGBW 4-in-1 LED
- Output
narrow angle：5050Lm，wide angle：13500Lm
- CRI
CRI > 90
- Color Temperature
2800 – 10000K
- Lifespan
30,000 hours

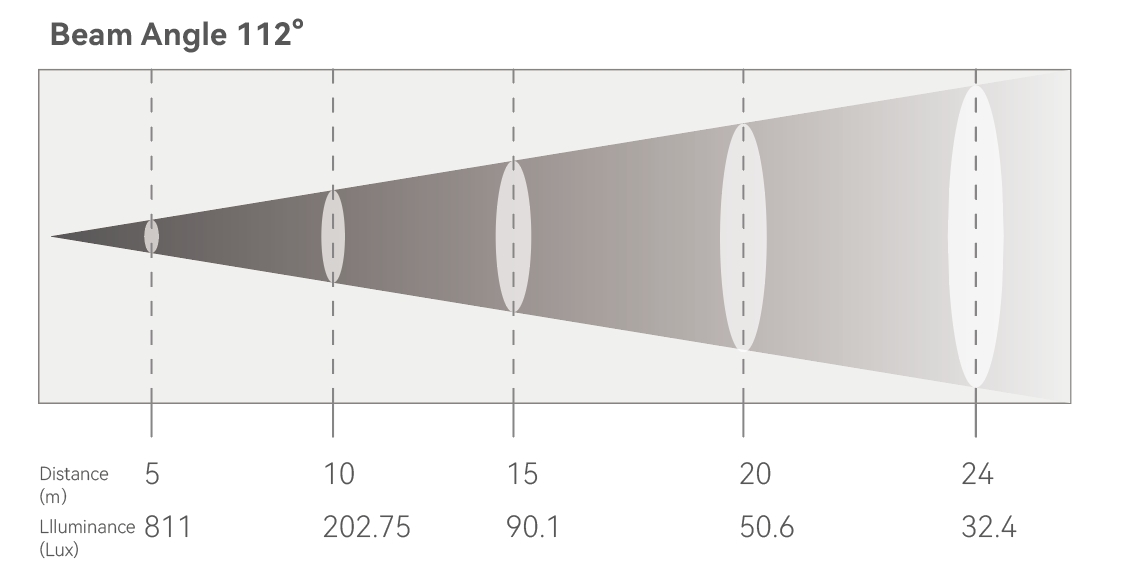

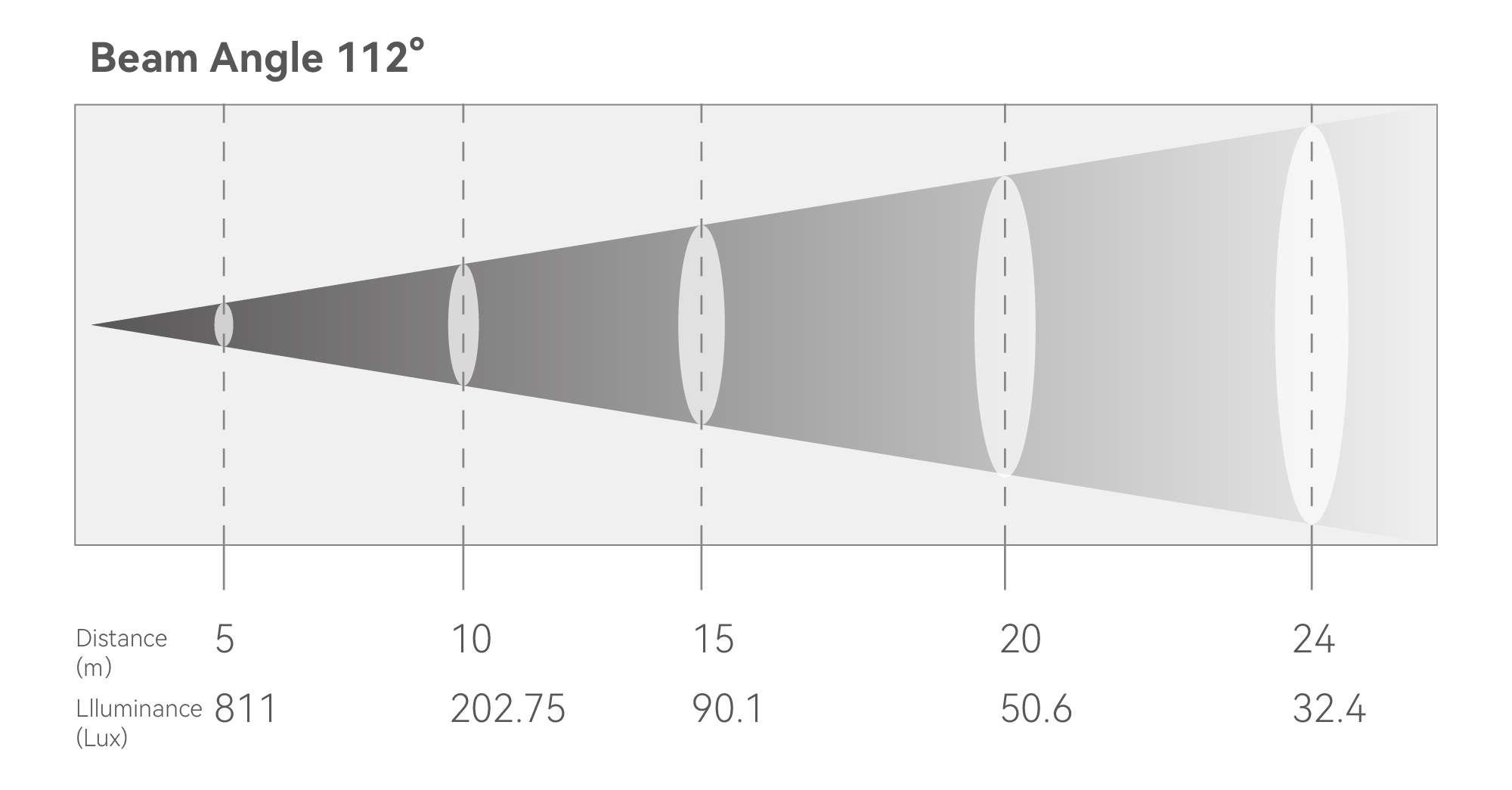

- Beam Angle
112°
- Field angle
158°
KEY FEATURES

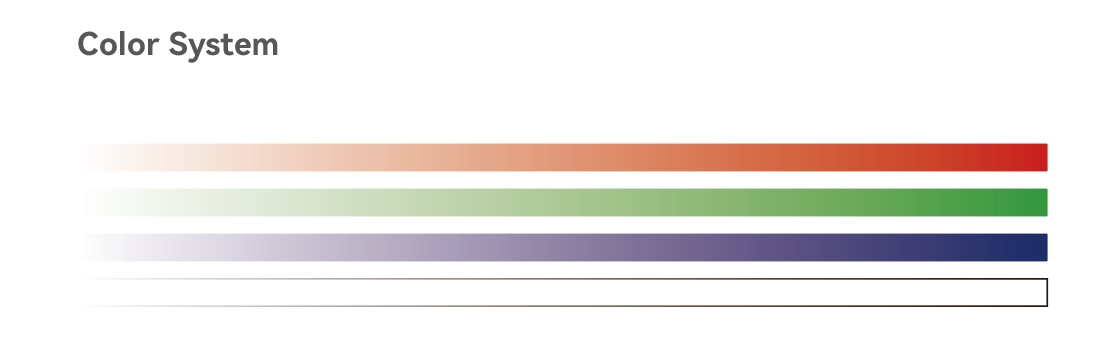

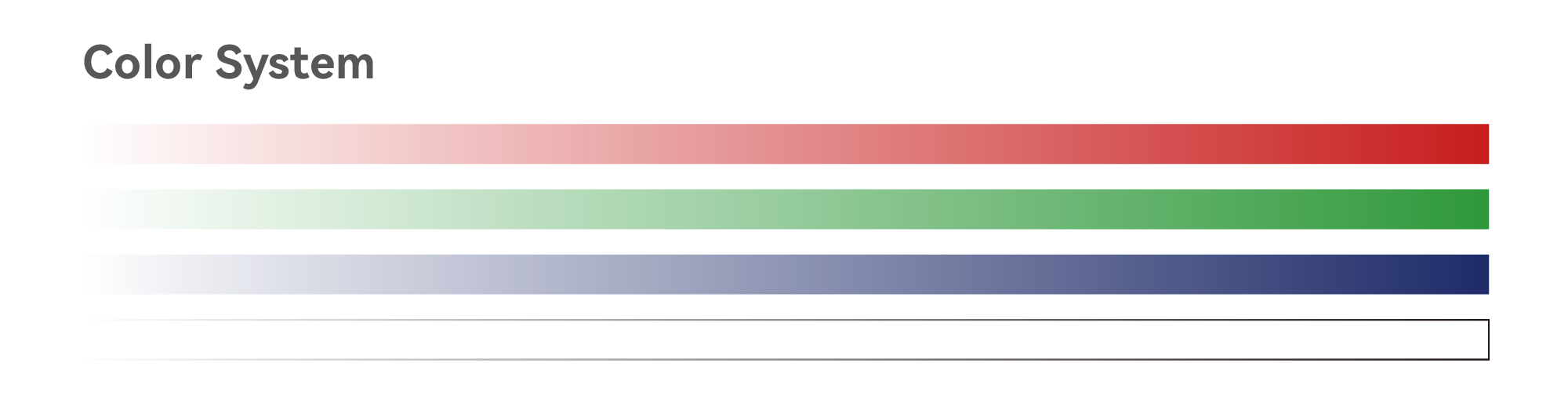

- Color System
RGBW
- Pixel Matrix
5X12
- Strobe
1 – 30Hz
- Dimming
0 – 100% linear dimming
- Slogan Template
Slogan Template
- Framing System
Single blade ±35°, rotatable 180°
- Iris
NA
- Frost
Frost glass
- Prism
Bi-directional, combinable, 8-facet + 4-facet prism
CONTROL
- Protocol
DMX512 / RDM / sACN / Artnet
- DMX Channels
4 Basic CH+12 pixels CH+4 Advanced CH
- Display
2.8 inch TFT display
- Frequency
1KHz / 2KHz / 4KHz / 6KHz / 25KHz
- Built-in Programs
Yes
- Slogan Template
Slogan Template
- Slogan Template
Slogan Template
POWER
- Mains
100 – 240 VAC, 50 Hz
- Power Connections
Power In/Out
- Maximum Power Connections
Linking up to 2pcs
- Data Connections
RJ45; DMX In/Out
- Maximum Data Connections
Linking up to 32pcs
- Consumption
Static: 230V/985W; Strobe Peak: 230V/ 3400W
- Power Factor
0.96/230V
- Ambient
-10℃~45℃
- Slogan Template
Slogan Template
- Slogan Template
-20°C – 45°C
PHYSICAL
- Dimension
440 x 180.2 x 218.5mm
- Weight
9.4Kg
- IP Rating
IP66
- Cooling
Heat sink with noiseless fan
- Housing
Magnesium Alloy
- Installation
Sit-flat floor mounting, side hanging and flown mounting
- Slogan Template
Slogan Template
PRODUCT EFFECTS
ACCESSORIES
- Standard
power cable
