RATEL

Beam Moving Head

  • 380W 7800K HID lamp

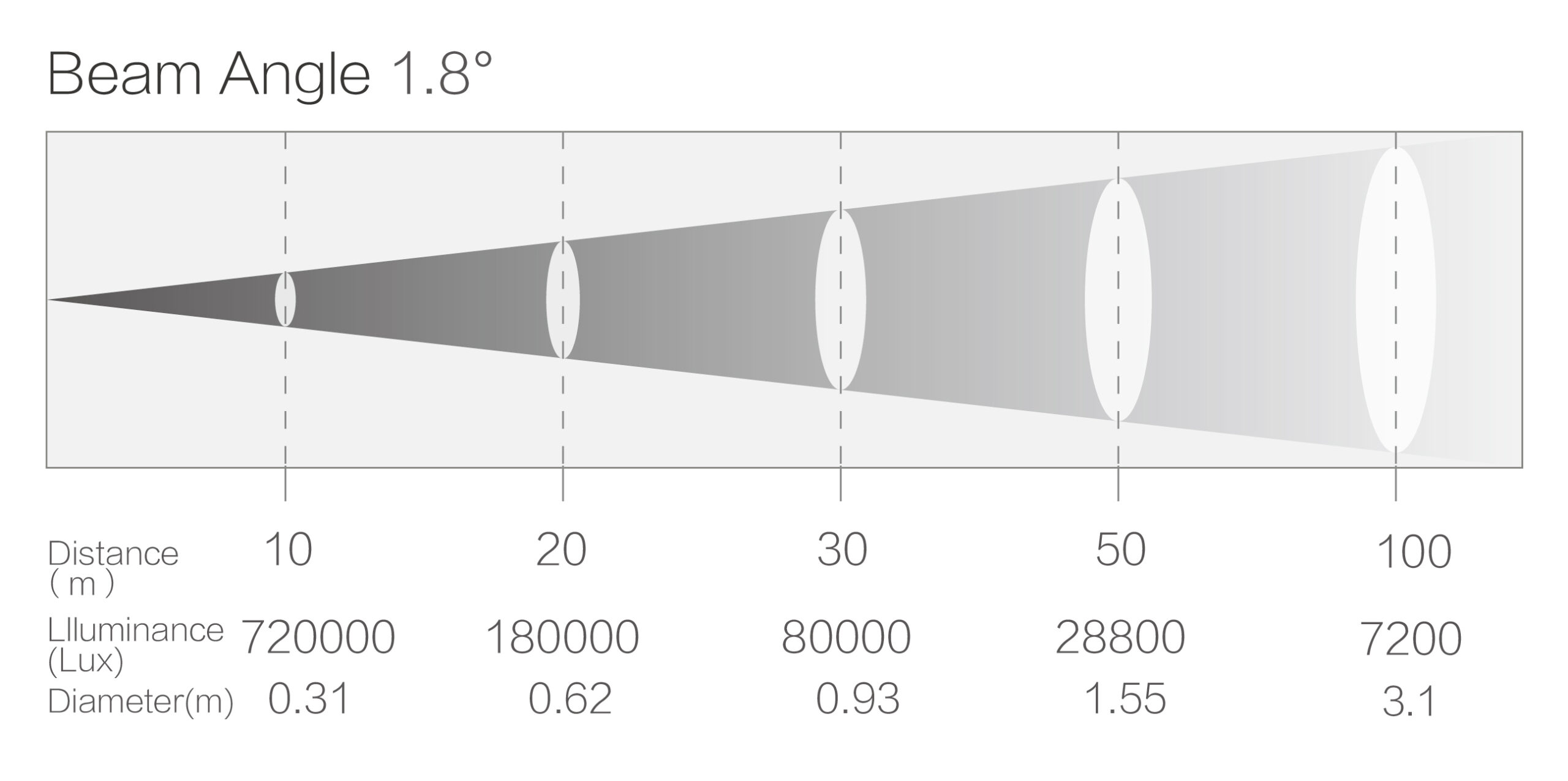

  • 720000 lux output at 10 meters
  • 153mm front lens, 1.8° extremely narrow beam angle
  • Tight, solid, consistent beams
  •  Featuring bi-directional 8-facet and 24-facet prism
  • Rich feature set in a road-ready form factor
  • Ideal for various applications
  • DMX and RDM control

Osram SIRIUS HRI 380W

LIGHT SOURCE

80k Lux@30m

Illuminance (lumens)

7800K

COLOR TEMPERATURE

1.8°

ZOOM RANGE

17.4KG

WEIGHT

324 x 220 x 564 mm

DIMENSION

TECHNICAL SPECS

PHOTOMETRICS
  • Light Source

Osram SIRIUS HRI 380W,7800K

  • Illuminance (lumens)

80k Lux@30m

  • Lifespan

2500hrs

  • Beam Angle

1.8°

  • Lifespan

20000hrs

  • Beam Angle

3.4°~37.7°

  • Pan

540°(16 bit)

  • Tilt

270°(16 bit)

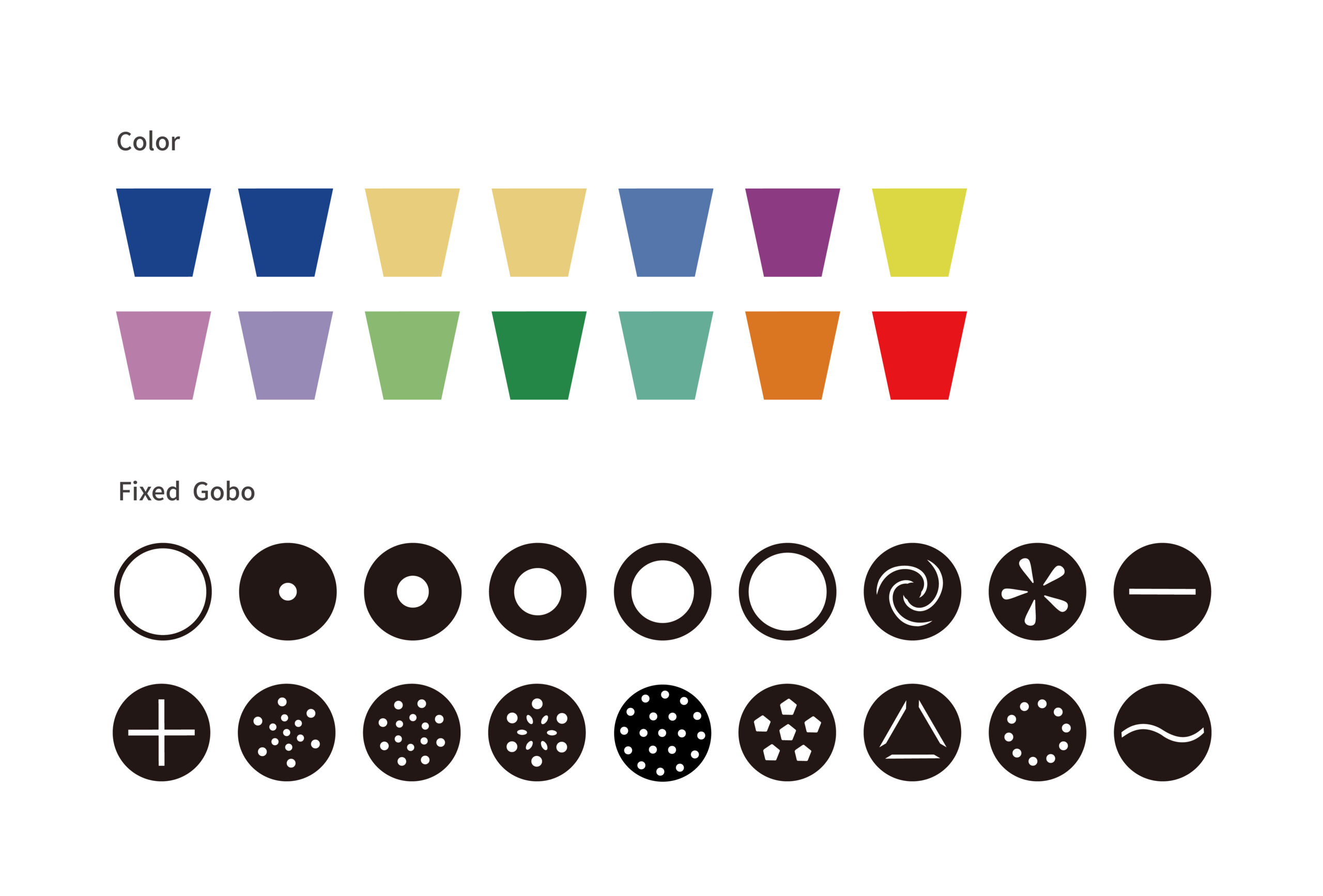

  • Color System

1 Color Wheel(14 + open)

  • Gobo System

1 gobo wheel with 18 fixed metal gobos

  • Focus

Motorized focus

  • Frost

Glass frost

  • Strobe

0~11Hz

  • Dimming

0~100%

  • Prism

8-facet, 24-facet bi-directional and indexable rotating

  • Slogan Template

Slogan Template

  • Framing System

Single blade ±35°, rotatable 180°

  • Iris

NA

  • Frost

Frost glass

  • Prism

Bi-directional, combinable, 8-facet + 4-facet prism

  • Protocol

DMX512/RDM

  • DMX Channels

18CH

  • Onboard Menu

TFT Display

  • Slogan Template

Slogan Template

  • Slogan Template

Slogan Template

  • Slogan Template

Slogan Template

  • Slogan Template

Slogan Template

  • Mains

176 – 264 VAC, 50/60 Hz

  • Power Connections

POWERCON In/Out, linking up to 4 units @ 230V

  • Data Connections

3-pin(or 5pin) XLR In/Out for DMX,link up to 32 units

  • Consumption

520W/230V

  • Power Factor

0.98/230V

  • Ambient

-10℃~45℃

  • Slogan Template

Slogan Template

  • Slogan Template

-20°C – 45°C

  • Dimension

324*220*564mm

  • Weight

17.4kg

  • Cooling

Noiseless fan for internal forced air

  • Finish

Black

  • Slogan Template

Slogan Template

  • Standard

Power Cable
