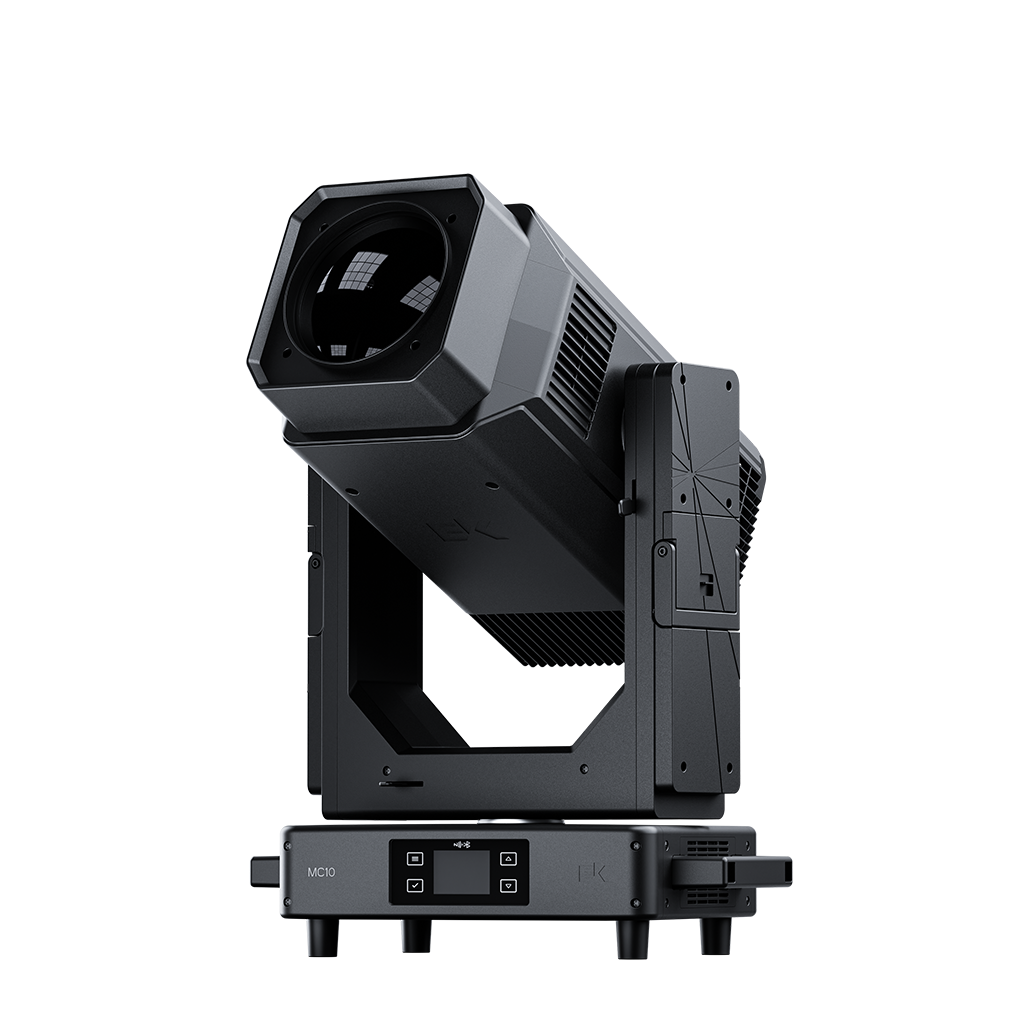

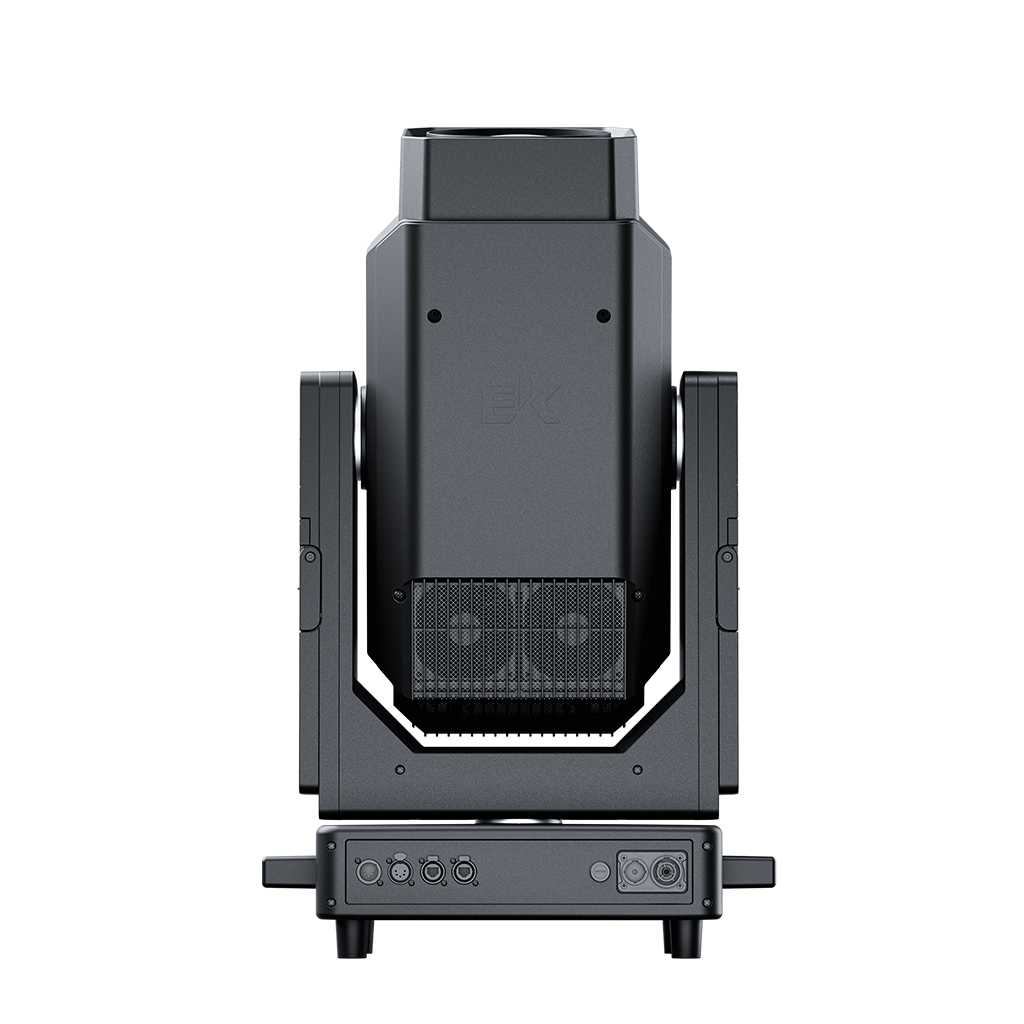

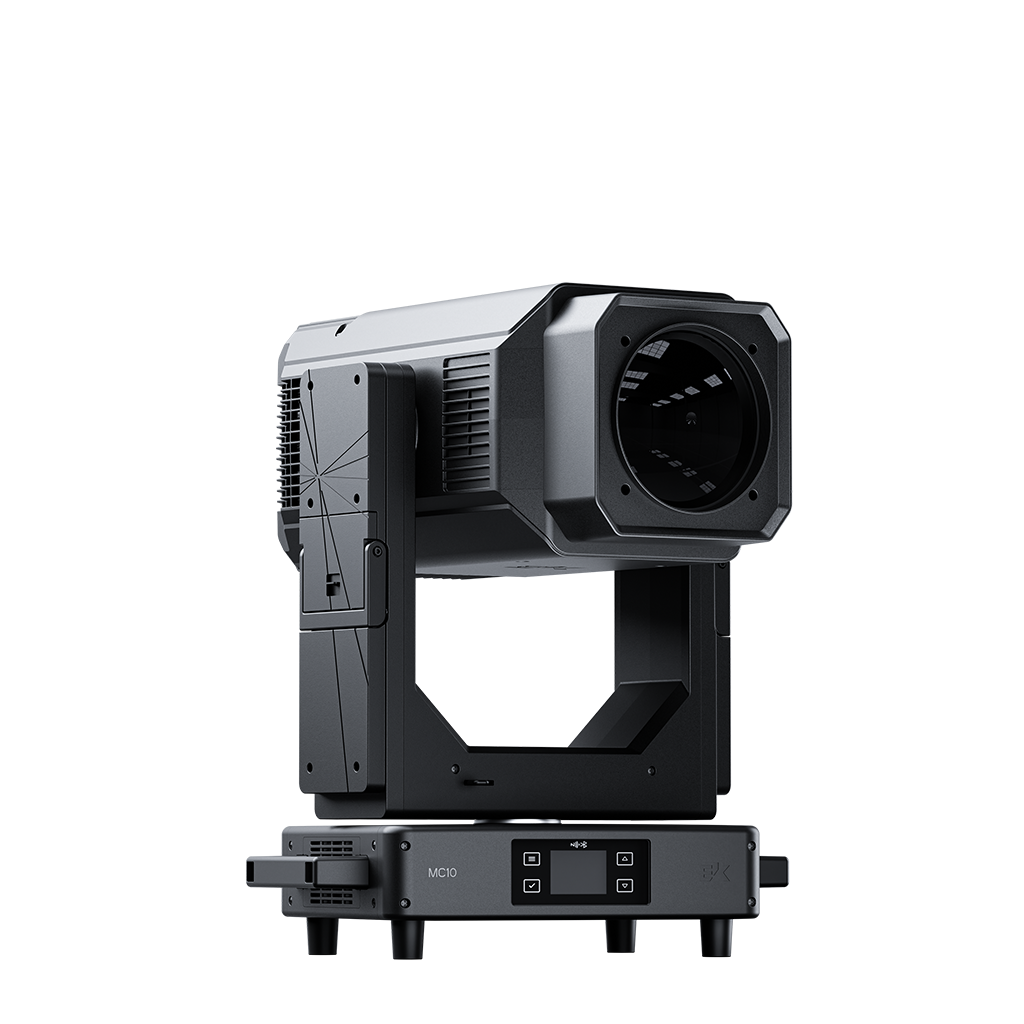

MC10
Full Spectrum,
Truer-to-life output
Perfect color meets perfect silence
MC10’s revolutionary 6-color engine achieves near-perfect color reproduction with unprecedented CRI≥97 ratings. Its meticulously selected primaries deliver both saturated hues and true-to-life tones, while whisper-quiet operation and efficient power consumption make it the ultimate choice for demanding theatrical applications.
1000W 6-color LED engine
LIGHT SOURCE
Up to 21000LM
LUMEN
1800 – 10000k
COLOR TEMPERATURE
5.4° – 54°
BEAM ANGLE
34 KG
WEIGHT
464 x 308 x 764 mm
DIMENSION
Experience the hexaverse
- Wider choice of color and exquisite color rendition
- Motorized linear focus and dual rotating gobo wheel allow for more possibilities dynamic effects
- 0~100% linear frost
- Enjoy whisper quiet operation
- Low power consumption
- Almost imperceptible operating noise, ideal for theatre use
- Built for professionals
- DMX512 / RDM / sACN / Artnet / Bluetooth / APP / NFC
TECHNICAL SPECS
PHOTOMETRICS
- Light Source
1000W Full Spectrum LED module
- Output
Up to 21000LM
- CRI
CRI＞97
R9＞97
- Color Temperature
1800K – 10000K
- Lifespan
30000hrs

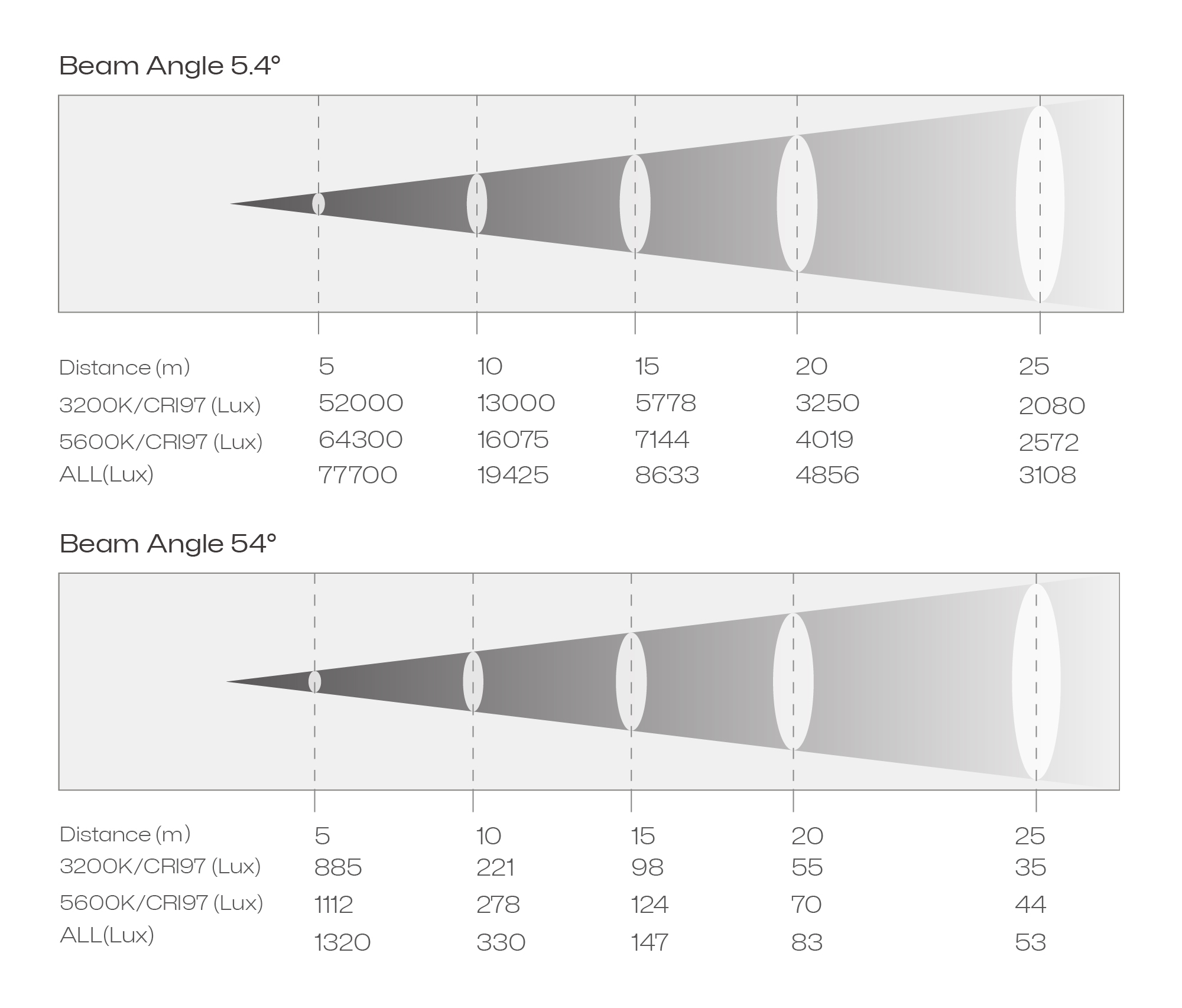

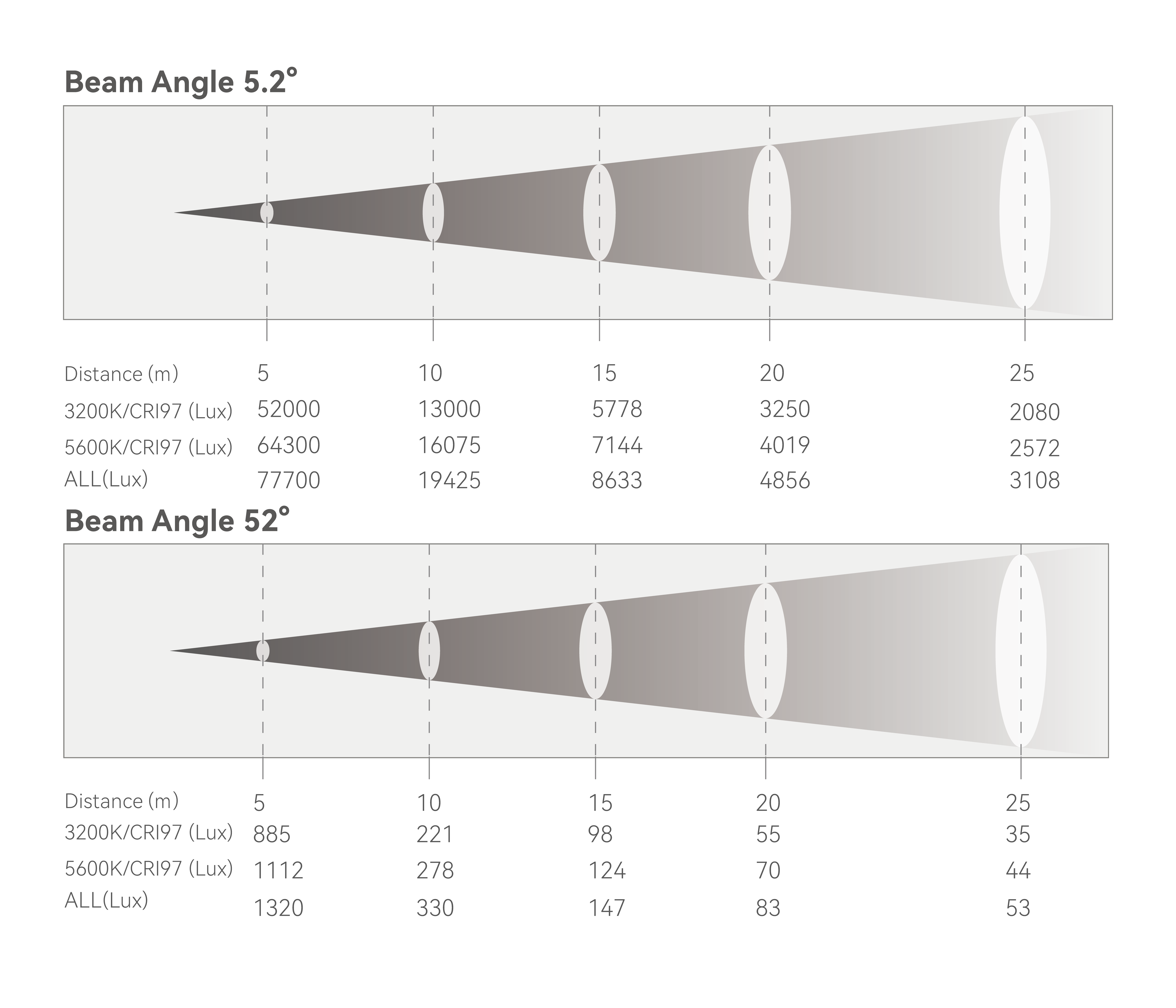

- Beam Angle
5.4°～54°
KEY FEATURES
- Pan
540°
- Tilt
270°

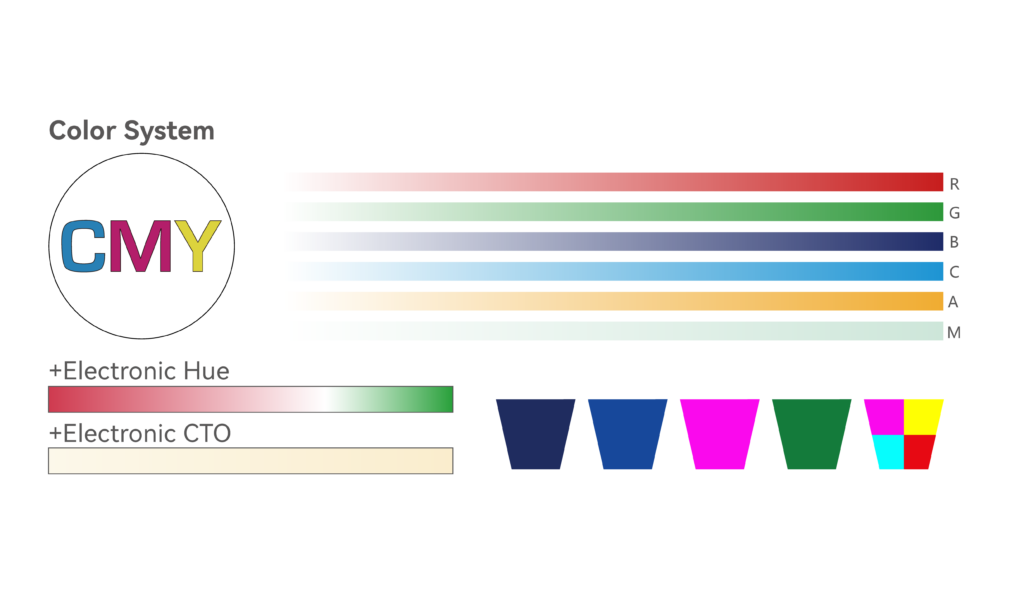

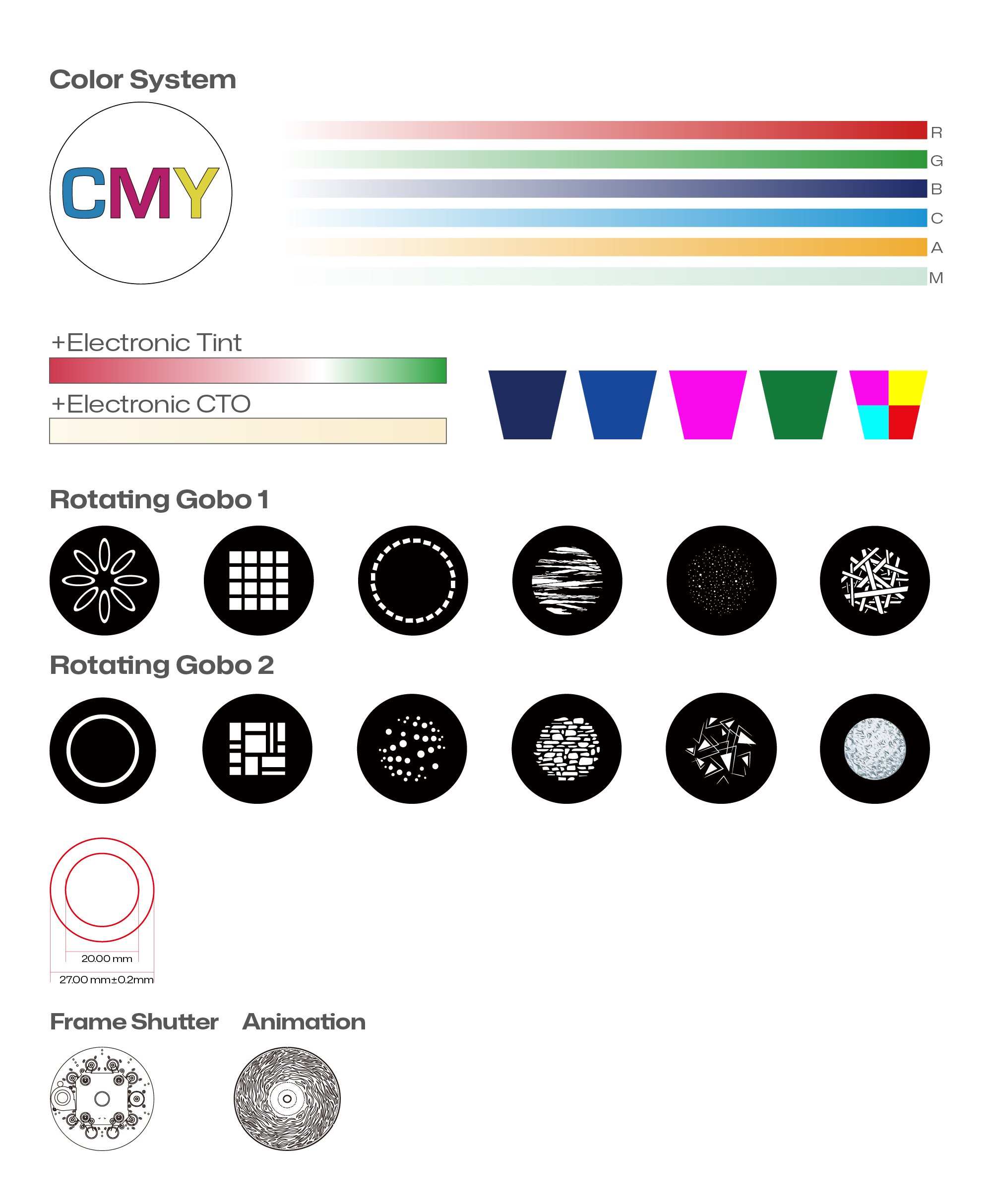

- Color System
R、G、B、C、A、M+color wheel(5+open)
- Gobo System
Rotating gobo wheel 1(6 gobos+open)
Rotating gobo wheel 2(6 gobos+open)
- Animation
Animation wheel with variable speed
- Framing System
Single blade ±35°, rotatable±60°
- Iris
15 leaves, 15 – 100% motorized linear iris
- Frost
1°+5° 0～100% linear frost
- Strobe
1~30Hz
- Dimming
Linear/Square/In-verse square/S-curve+4 dimming modes/22Bit
- Prism
Bi-directional indexable 4-f round and 4-f linear prism
- Slogan Template
Slogan Template
- Framing System
Single blade ±35°, rotatable 180°
- Iris
NA
- Frost
Frost glass
- Prism
Bi-directional, combinable, 8-facet + 4-facet prism
CONTROL
- Protocol
DMX512 / RDM / sACN / Artnet / Bluetooth / APP / NFC
- DMX Channels
50CH/42CH/44CH/60CH
- Data Connection
3pin（or 5pin) XLR in/out, linking up to 32pcs
- Display
2.8 inch TFT display
- Slogan Template
Slogan Template
- Slogan Template
Slogan Template
- Slogan Template
Slogan Template
POWER
- Mains
100-240VAC 50/60Hz
- Power Connections
TrueCon In/Out in/out,linking up to 2pcs@230V
- Consumption
1350W / 230V
- Power Factor
0.95/230V
- Ambient
-10℃~45℃
- Slogan Template
Slogan Template
- Slogan Template
-20°C – 45°C
PHYSICAL

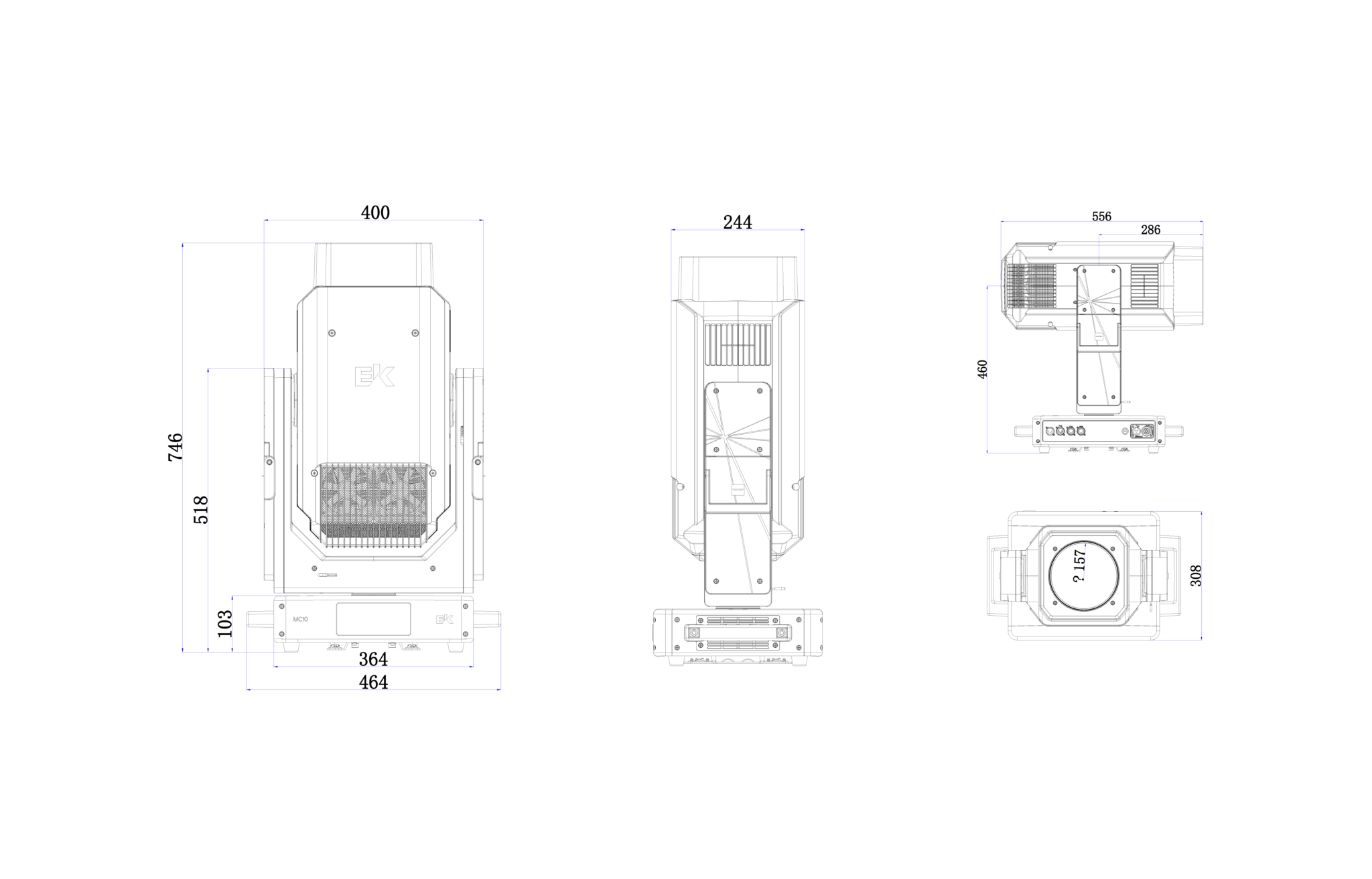

- Dimension
464*308*764 mm (Integrated-Foldable-Clamp)
- Weight
34kg
- Cooling
Heat pipe and low noise IP fan
- Slogan Template
Sit-flat floor mounting, side hanging and flown mounting
- Slogan Template
Slogan Template

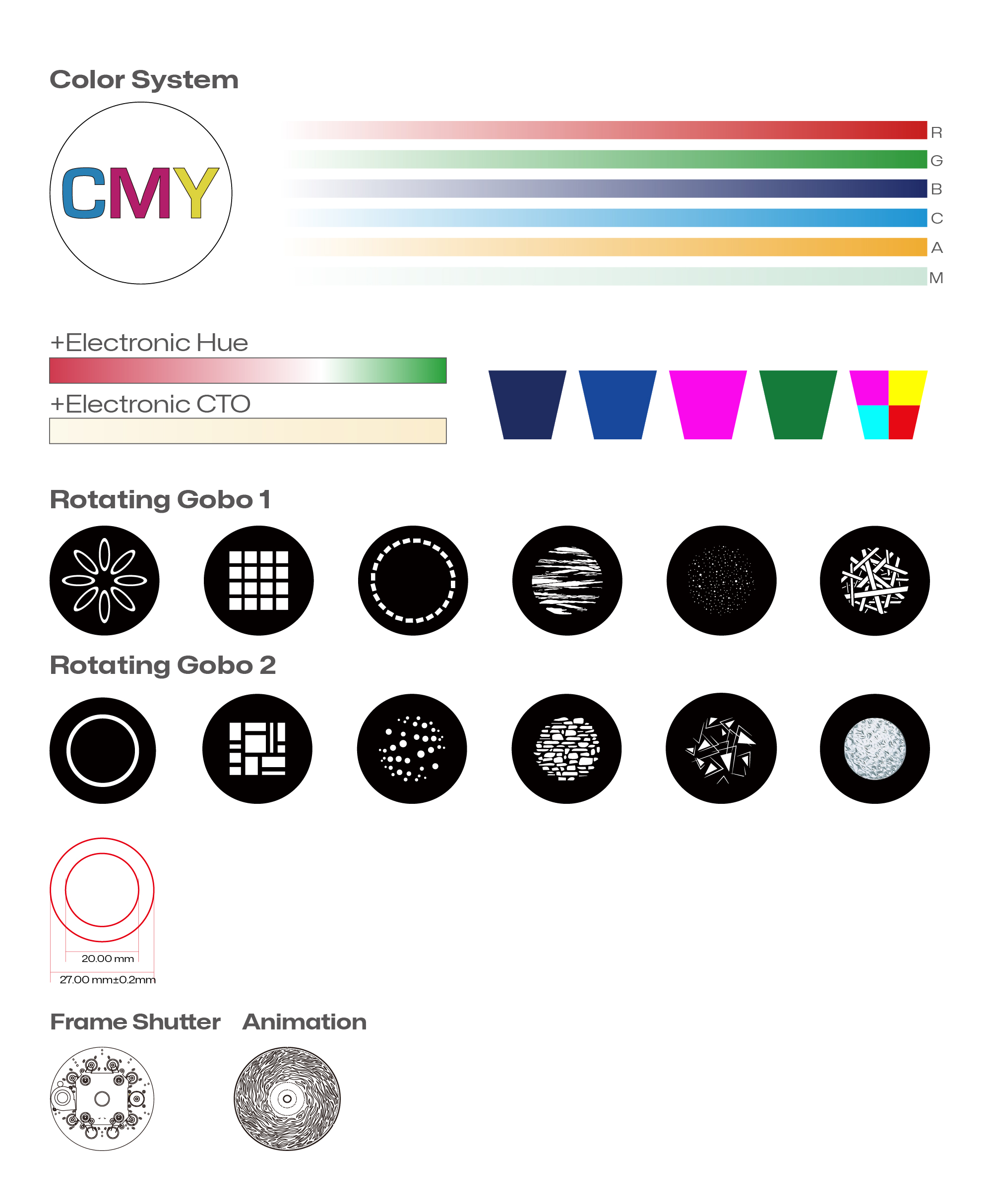

PRODUCT EFFECTS
ACCESSORIES
- Standard
Omega bracket, power cable

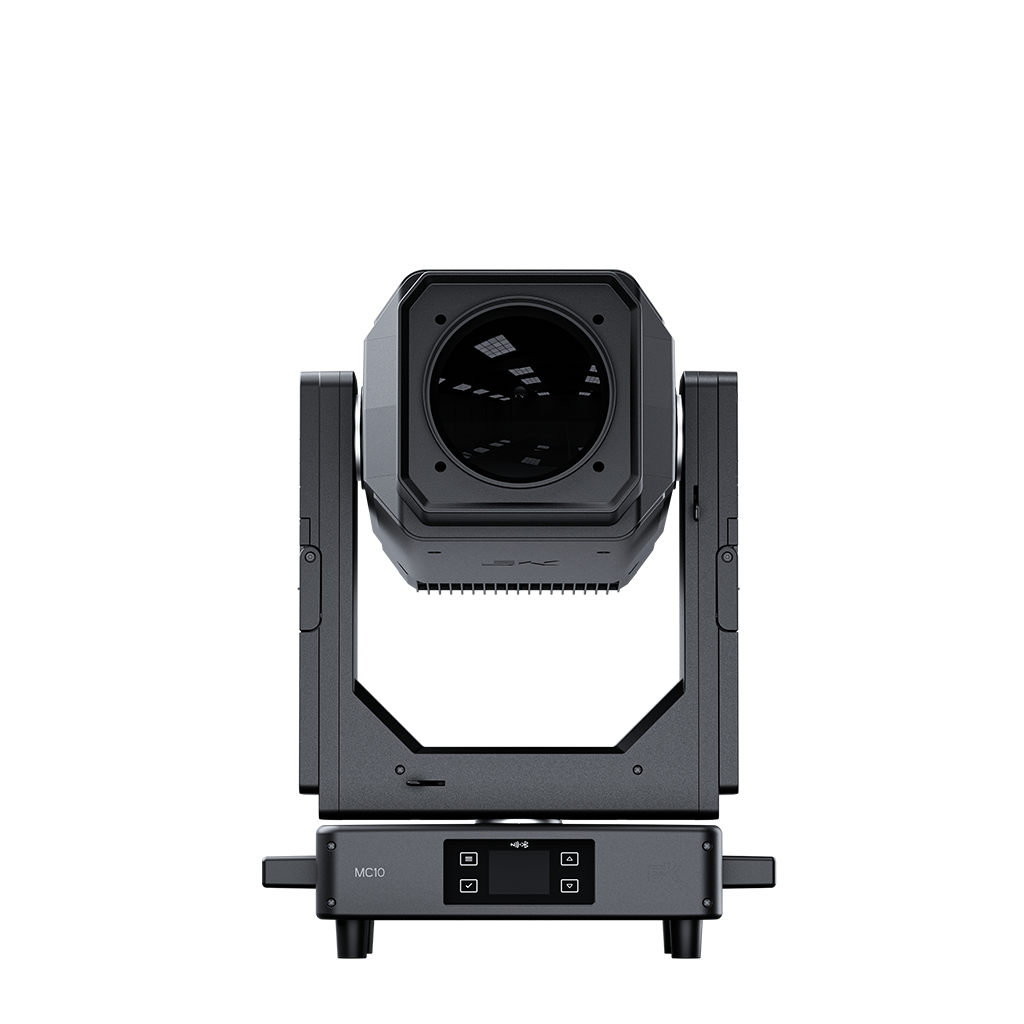

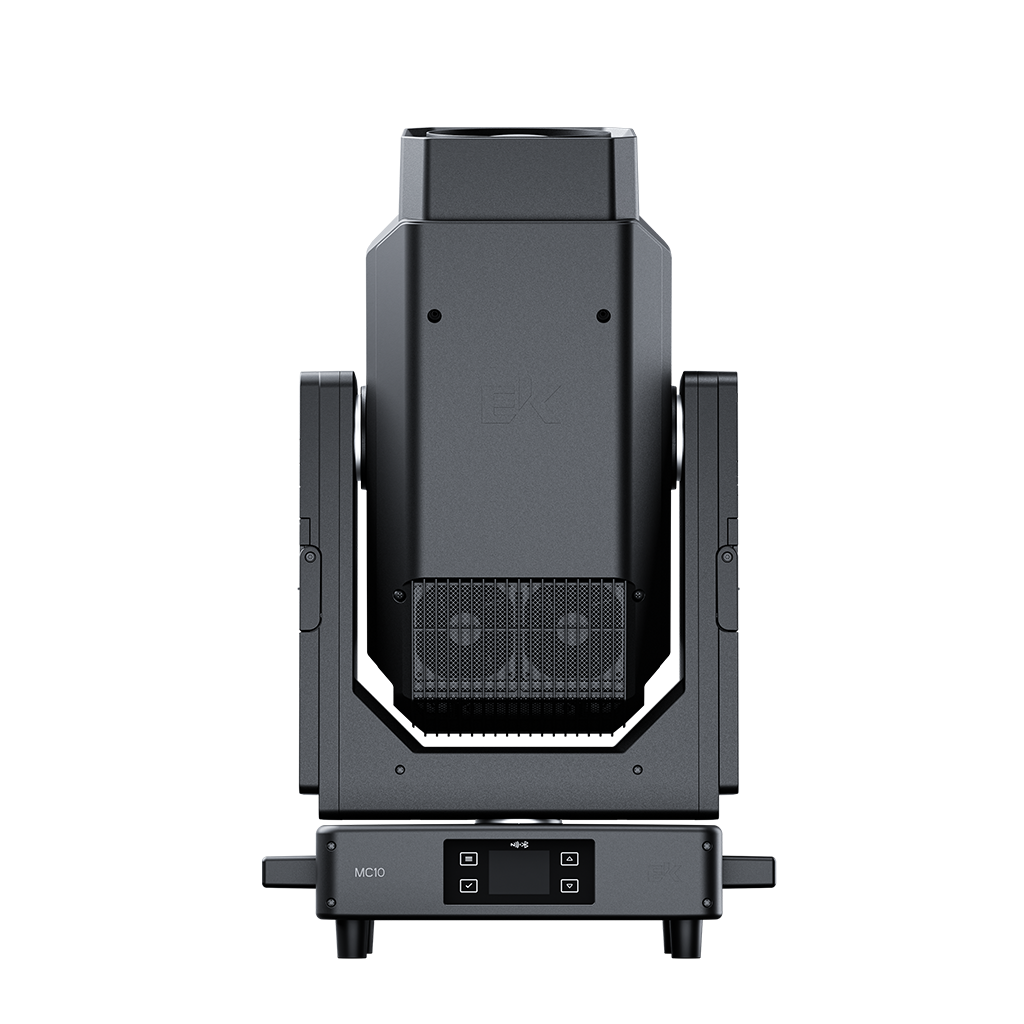

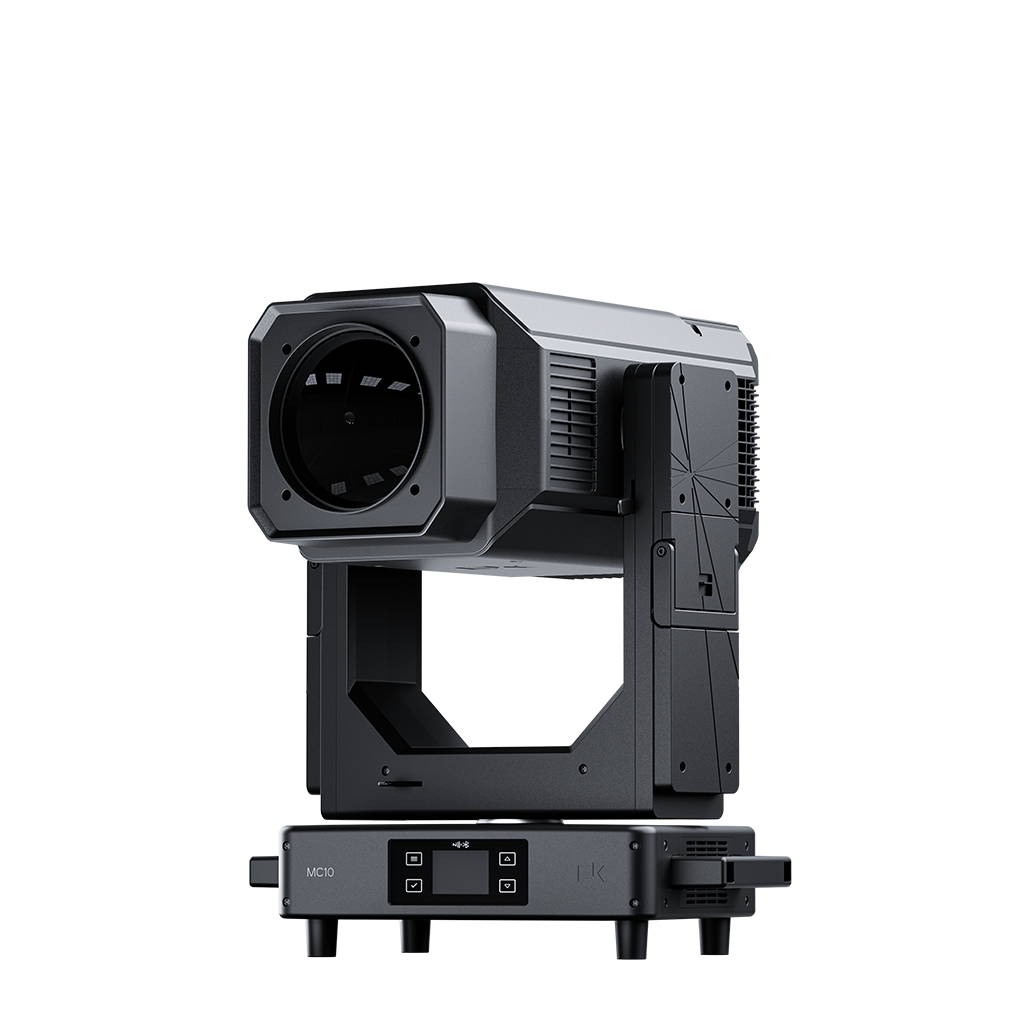

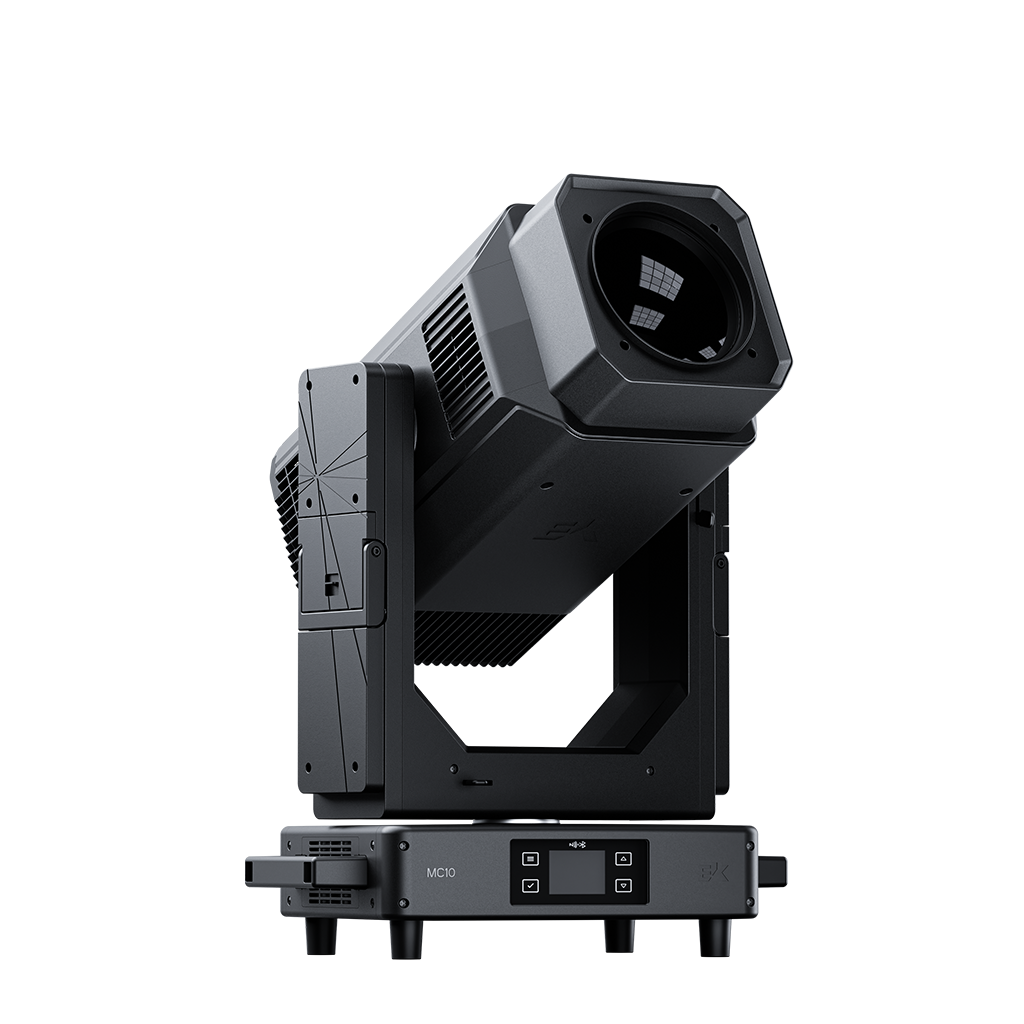

IMAGE GALLERY
