TERMINATOR
Built for dominance
When second best isn’t an option
The Terminator isn’t just a light–it’s a force of nature. With an incredible 30,400 lux output at 50 metres and 20x ultra-wide zoom range, it delivers both raw power and crisp beams. In a class of its own, Terminator’s advanced CMY+CTO system and flat field projection ensure every beam is perfect from center to edge.
660W 6800K
LIGHT SOURCE
22,500Lm
LUMEN
6800K
COLOR TEMPERATURE
1.68°~27°
(Beam mode)
2.68°~50°
(Spot mode)
BEAM ANGLE
34.5KG
WEIGHT
447 x 322 x 820mm
DIMENSION
Proven tough in any environment
- Complete spectrum: CMY+CTO+15 filters for rich and vibrant color mixing
- Excellent color rendering: high CRI >90 (with enhancement filter)
- Razor sharp shutter framing: dual rotating gobo wheels for elegant shaping
- Animation wheel & frost glass
- Extremely even spot with flawless field consistency
- 180mm front lens and 1.68° narrow beam angle
- 20X wide zoom range from 1.68° – 50°
- Bi-directional 8-facet and 4-facet prism
- Weather-resistant IP66 tour-grade construction
TECHNICAL SPECS

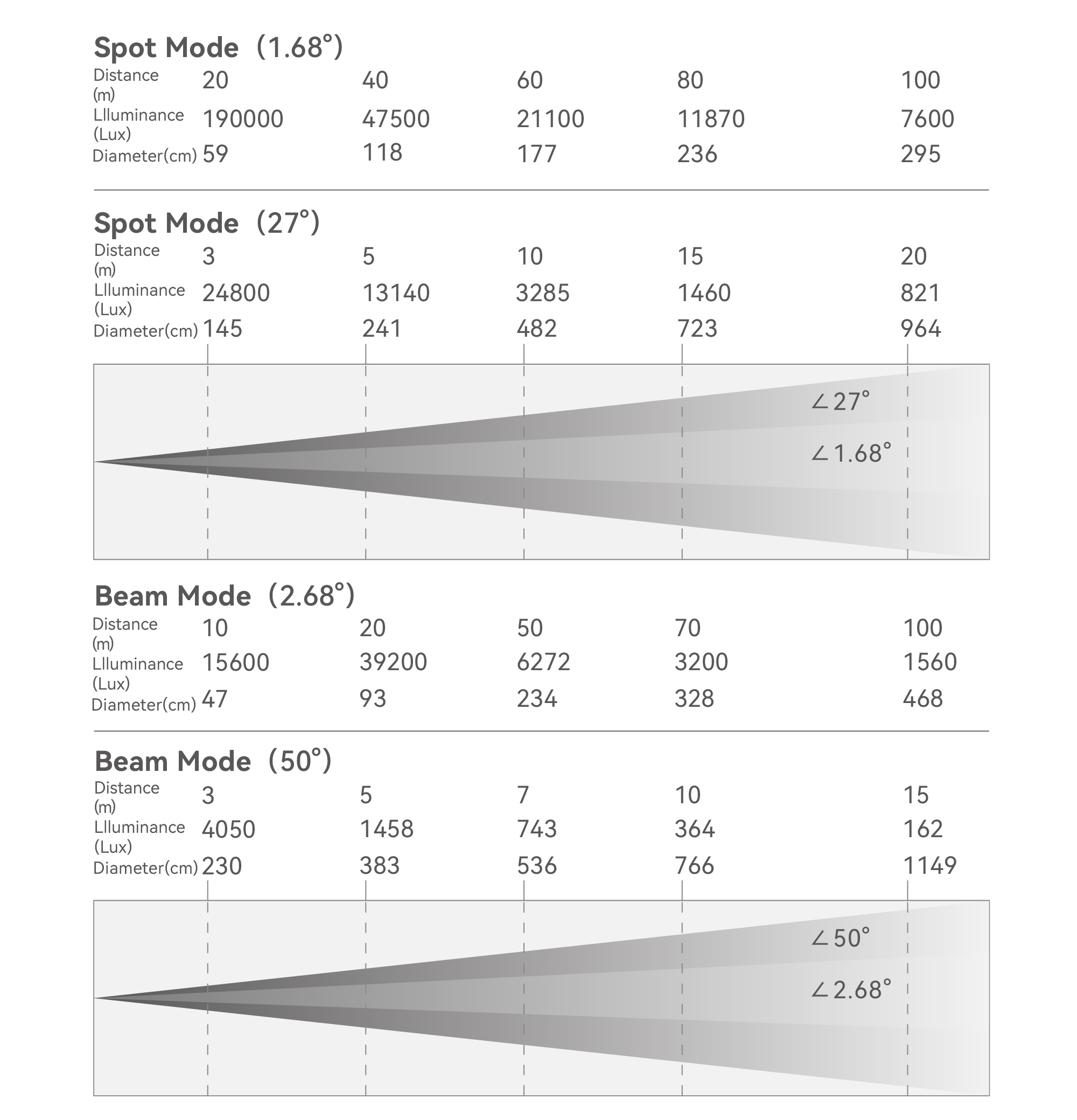

PHOTOMETRICS
- Light Source
660W 6800K arc lamp
- Lumen Output
22500Lm（50°）
- Output
30400 lux @ 50 meters(1.68°）
- CRI
CRI>90
- Color Temperature
6800K±400
- Lifespan
3000hrs
- Beam Angle
1.68°~27°(Beam mode) 2.68°~50°(Spot mode)
KEY FEATURES
- Pan
540°(16 bit)
- Tilt
270°(16 bit)
- Color System
CMY+CTO+color wheel(15+open)
- Gobo System
1 fixed gobo wheel (18 + open)
1 rotating gobo wheel (8 + open)
- Animation
1 animation wheel
- Focus
Electronic focus
- Frost
Frost glass
- Strobe
0~12Hz
- Dimming
0～100% linear
- Prism
Bi-directional 4-facet and 8-facet prism
- Slogan Template
Slogan Template
- Framing System
Single blade ±35°, rotatable 180°
- Iris
NA
- Frost
Frost glass
- Prism
Bi-directional, combinable, 8-facet + 4-facet prism
CONTROL
- Protocol
DMX512 / RDM
- DMX Channels
32CH
- Data Connection
3pin(or 5pin) DMX In/Out，linking up to 32pcs
- Display
2.0-inch TFT display
- Slogan Template
Slogan Template
- Slogan Template
Slogan Template
- Slogan Template
Slogan Template
- Slogan Template
Slogan Template
POWER
- Mains
100 – 240 VAC, 50~60 Hz
- Power Connections
True Con In/Out
- Consumption
840W@230V
- Power Factor
0.96 @230V
- Ambient
-20℃~45℃
- Slogan Template
Slogan Template
- Slogan Template
-20°C – 45°C
PHYSICAL
- Dimension
447 x 322 x 820 mm
- Weight
34.5 kg
- Cooling
Waterproof noiseless fan
- IP Rating
IP66
- Housing
Die-cast magnesium with matte black finish

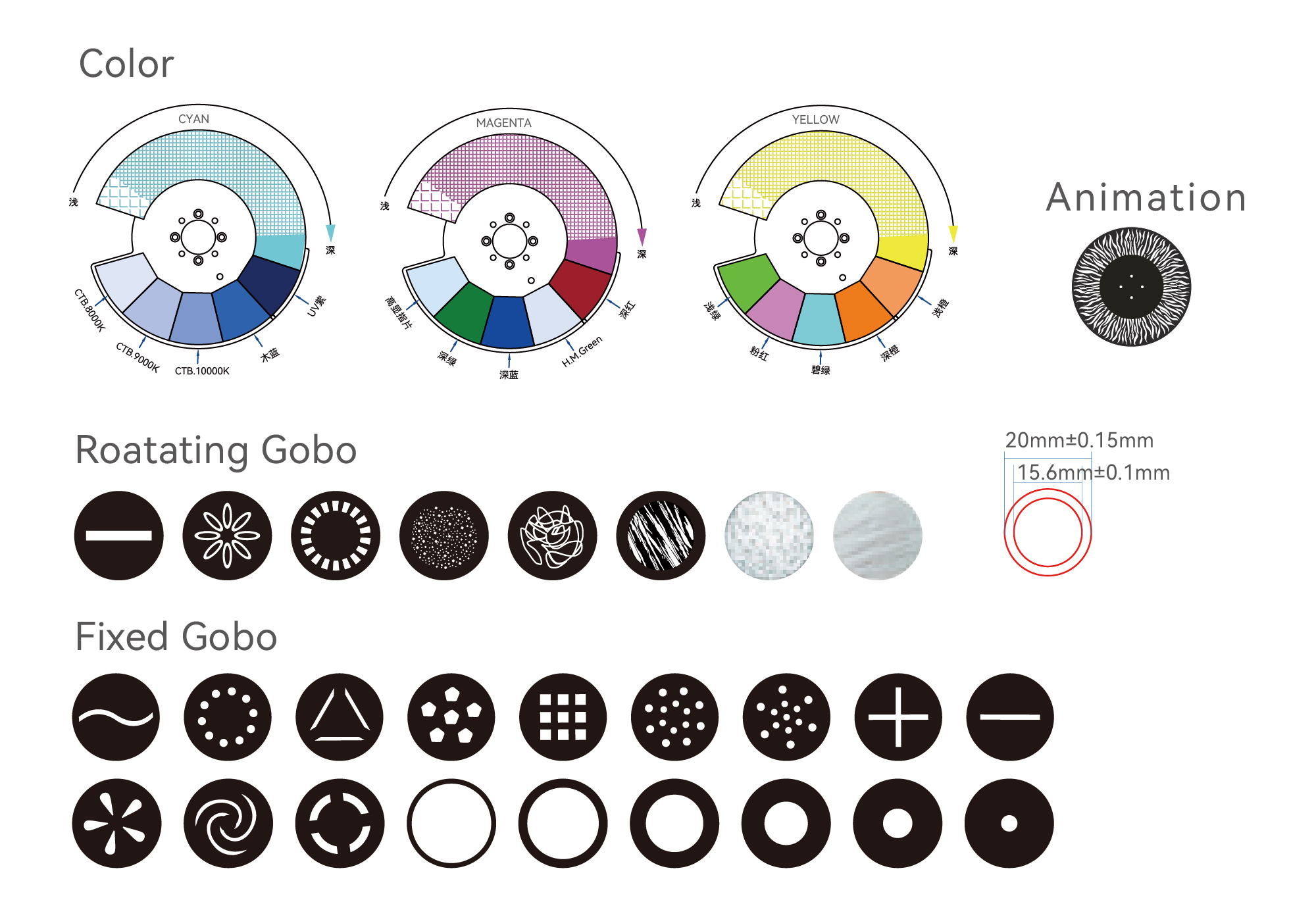

PRODUCT EFFECTS
ACCESSORIES
- Standard
Road Case，Cable

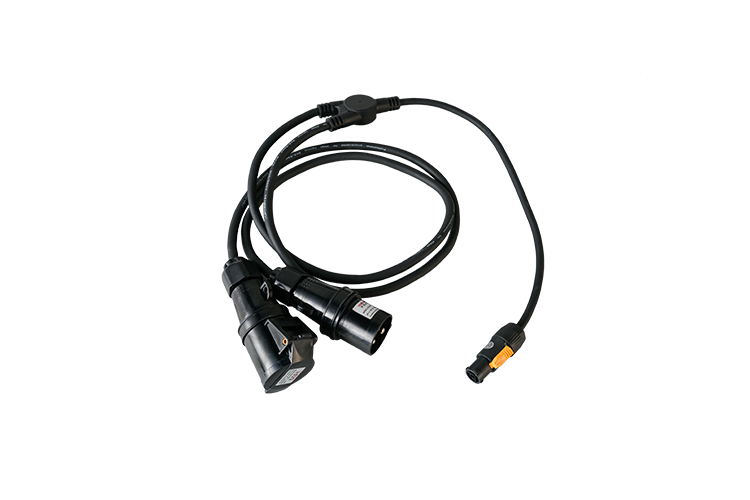

Cable

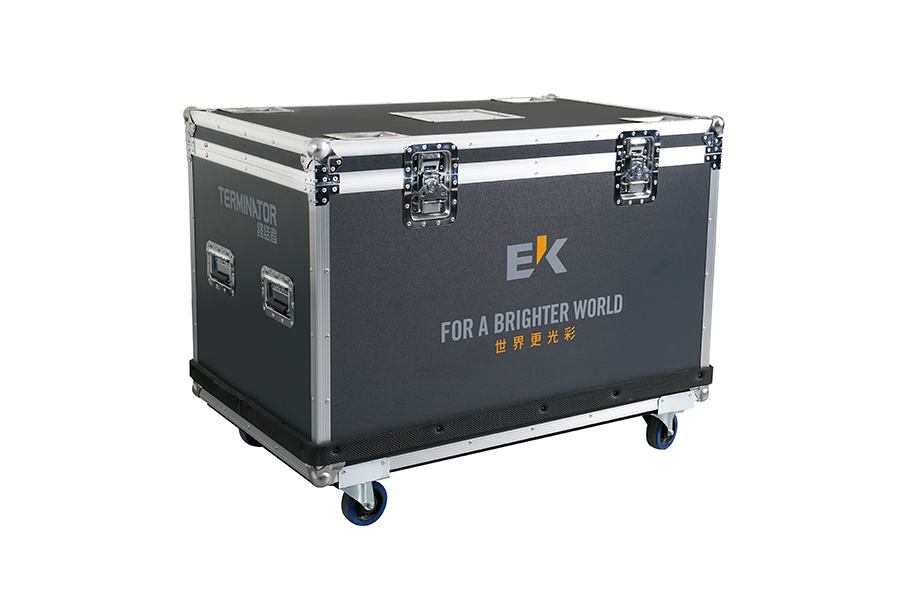

Road Case
IMAGE GALLERY
DOWNLOADS
