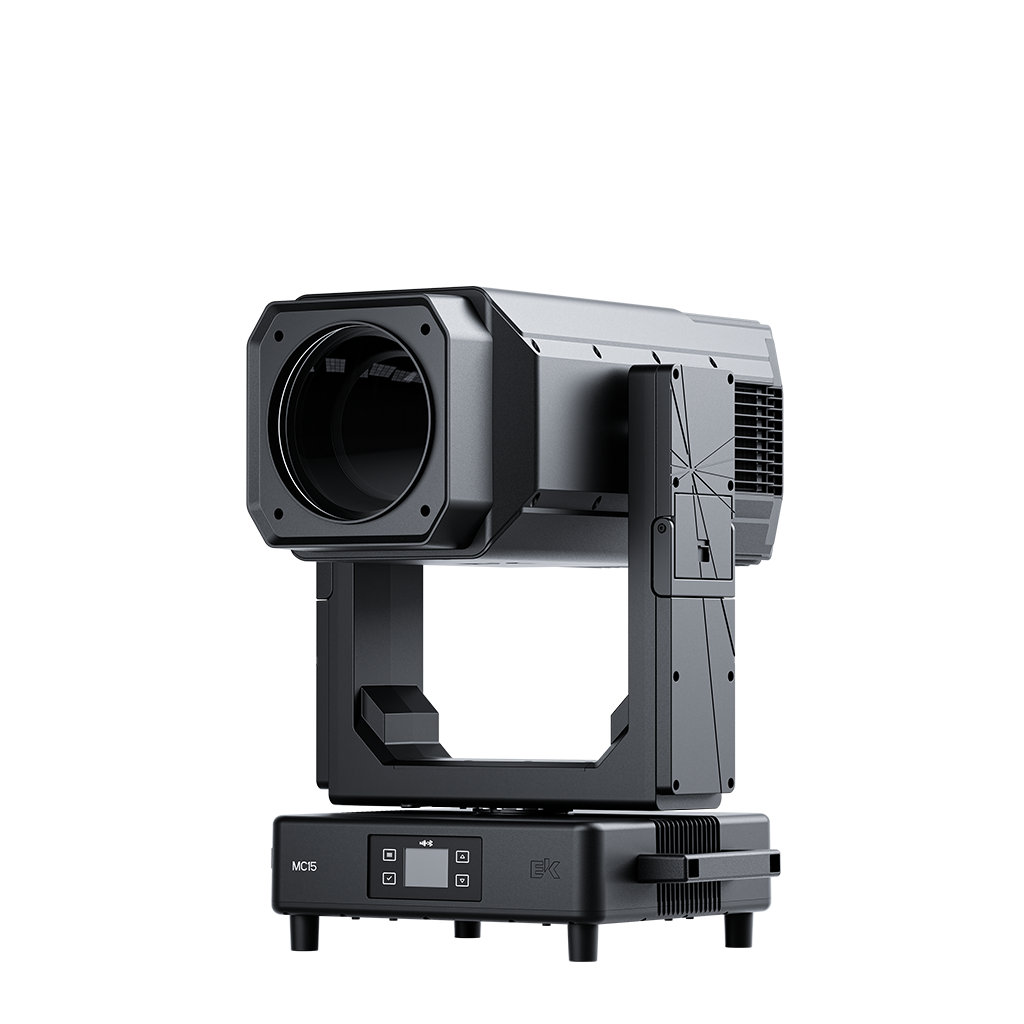

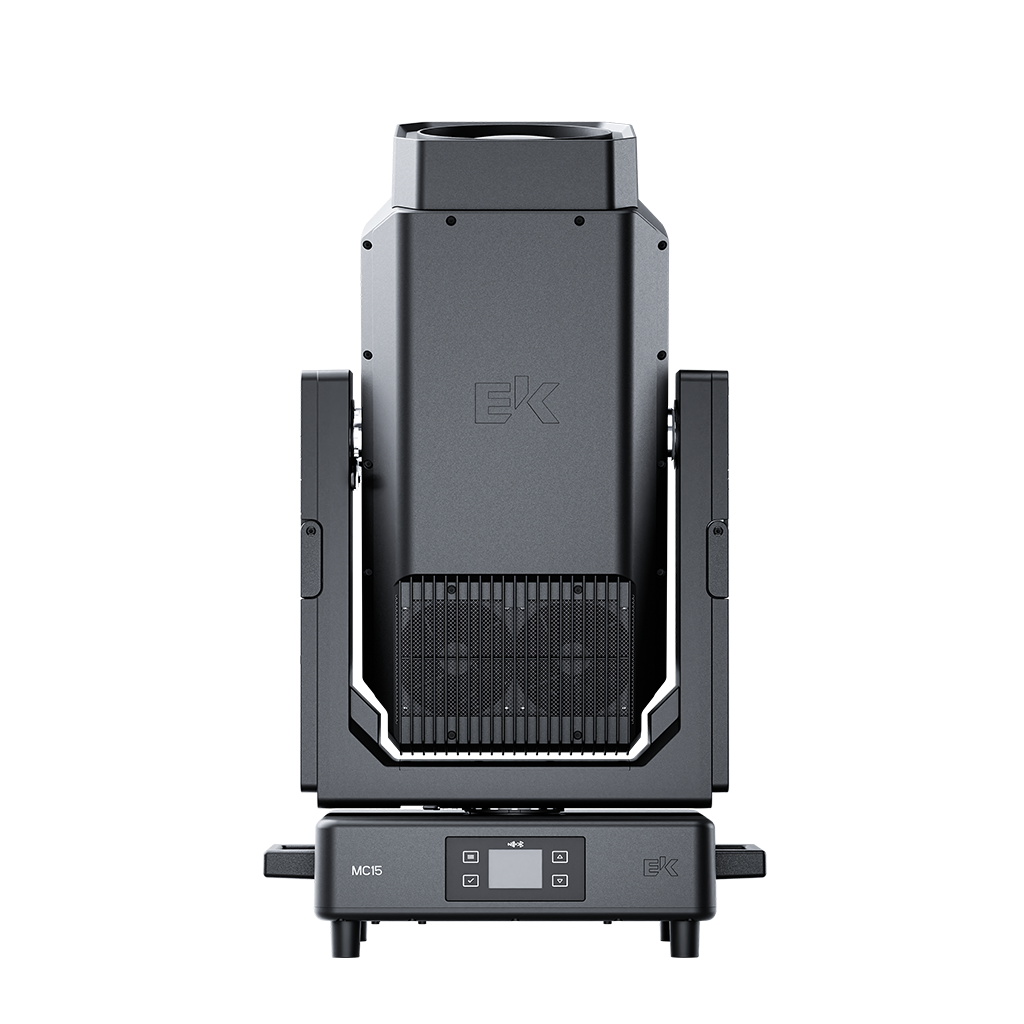

MC15
Welcome to a
universe of color
Perfect color meets perfect silence
MC15’s revolutionary 6-color engine achieves near-perfect color reproduction with unprecedented CRI>98 ratings. Its meticulously selected primaries deliver both saturated hues and true-to-life tones, while whisper-quiet operation and efficient power consumption make it the ultimate choice for demanding theatrical applications.
1500W Full Spectrum LED module
LIGHT SOURCE
Up to 34000 Lm
LUMEN
1800 – 10000k
COLOR TEMPERATURE
4.4° – 52°
BEAM ANGLE
47.8KG
WEIGHT
517 x 365 x 856 mm
DIMENSION
Experience the hexaverse
- Equipped with 200mm large aperture front lens
- Outstanding color rendition: CRI:98, R9:99 TM-30-15rf/rg 95/100, TLCI:99
- Electronic HUE adjustment to meet different needs
- 100%-0 dimming constant CCI value
- Razor sharp shutter framing: dual rotating gobo wheels for elegant shaping
- Weather-resistant IP66 tour-grade construction
- Low power consumption
- Almost imperceptible operating noise, ideal for theatre use
- DMX512 / RDM / sACN / Artnet / Bluetooth / APP / NFC
TECHNICAL SPECS
PHOTOMETRICS
- Light Source
1500W Full Spectrum LED module
- Output
Up to 34,000 Lm
- CRI
CRI:98
R9:99
- Color Temperature
1800K – 10000K
- Lifespan
30,000 hours

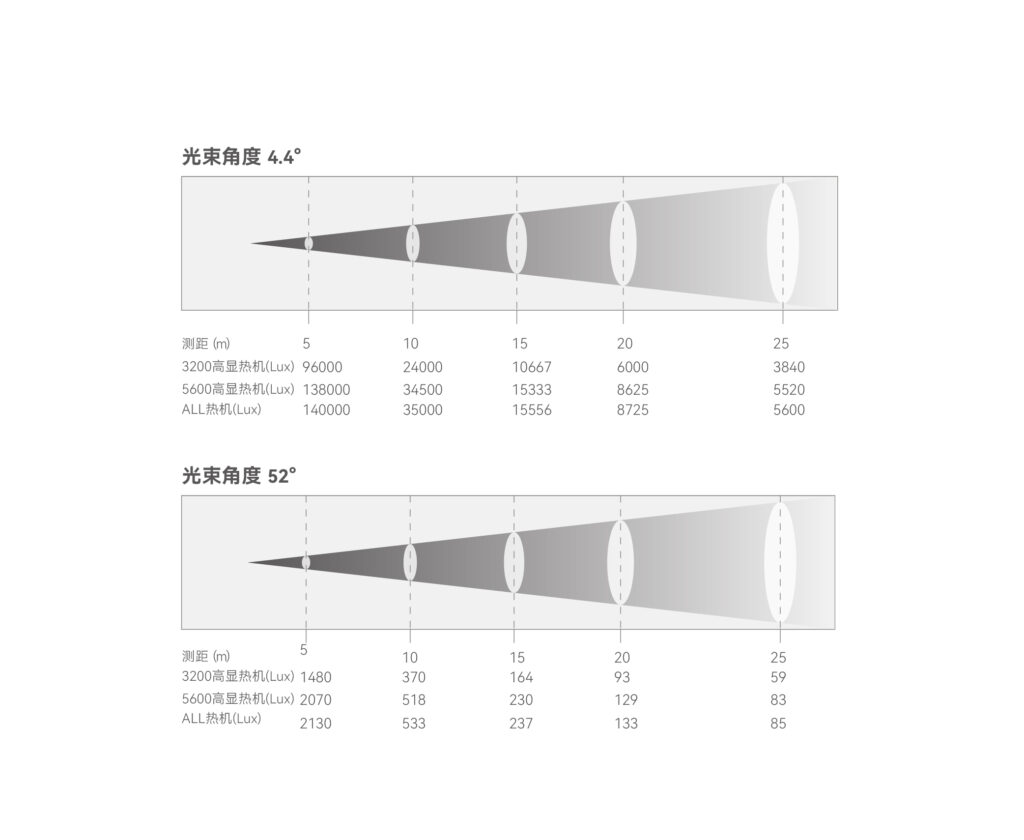

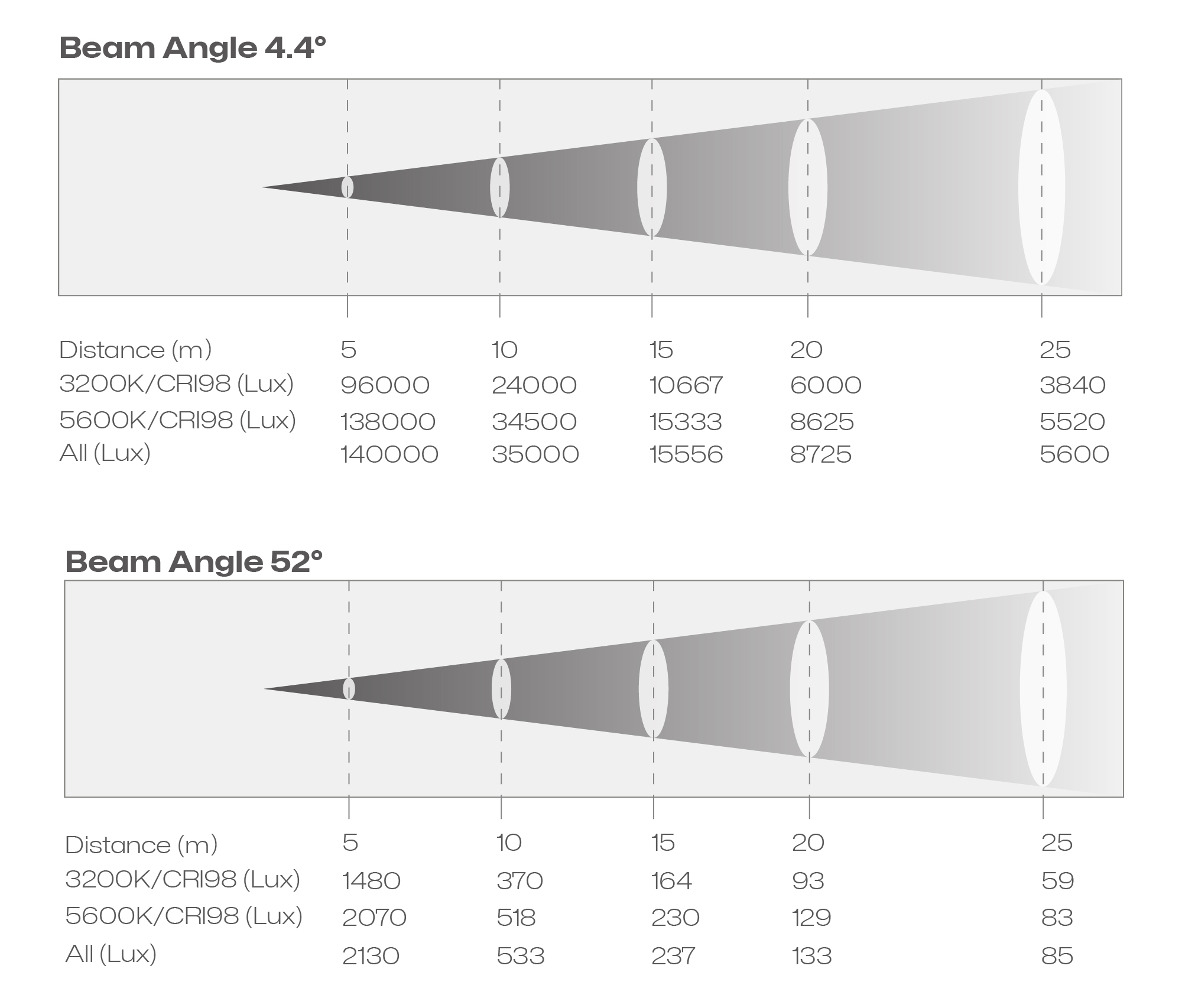

- Beam Angle
4.4° – 52°
KEY FEATURES
- Pan
540°
- Tilt
270°
- Color System
RGBCAM+CMY+CTO+HUE+color wheel(4+open)
- Gobo System
Rotating gobo wheel 1(6 gobos+open)
Rotating gobo wheel 2(6 gobos+open)
- Animation
Animation wheel with variable speed
- Framing System
Single blade ±35°, rotatable 180°
- Frost
1°+5° 0 – 100% frost
- Strobe
1~30Hz
- Dimming
Linear dimming / Square curve / Inverse square curve / S-curve dimming + 4 dimming modes / 22Bit
- Prism
Bi-directional variable-speed 4-facet + linear prism
- Slogan Template
Slogan Template
- Framing System
Single blade ±35°, rotatable 180°
- Iris
NA
- Frost
Frost glass
- Prism
Bi-directional, combinable, 8-facet + 4-facet prism
CONTROL
- Protocol
DMX512 / RDM / sACN / Artnet / Bluetooth / APP / NFC
- DMX Channels
50CH / 42CH / 44CH / 60CH
- Display
2.8 inch TFT display
- Slogan Template
Slogan Template
- Slogan Template
Slogan Template
- Slogan Template
Slogan Template
- Slogan Template
Slogan Template
POWER
- Mains
100 – 240 VAC, 50Hz
- Power Connections
Power In/Out
- Data Connections
DMX In/Out
- Consumption
1850W/230V
- Power Factor
0.98 / 230V
- Ambient
-10°C – 45°C
- Slogan Template
Slogan Template
- Slogan Template
-20°C – 45°C
PHYSICAL

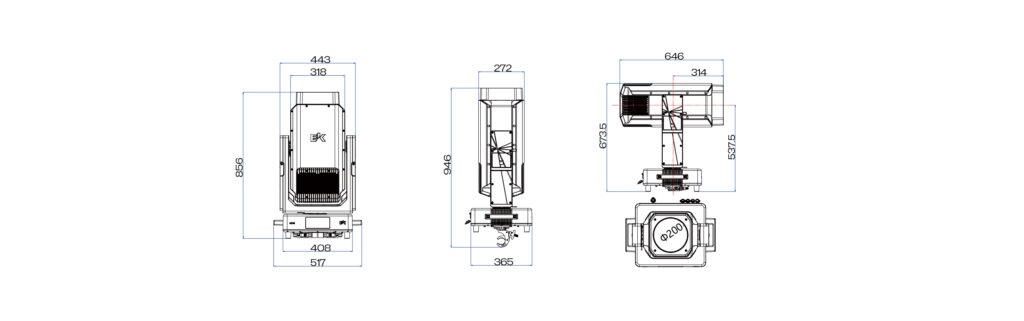

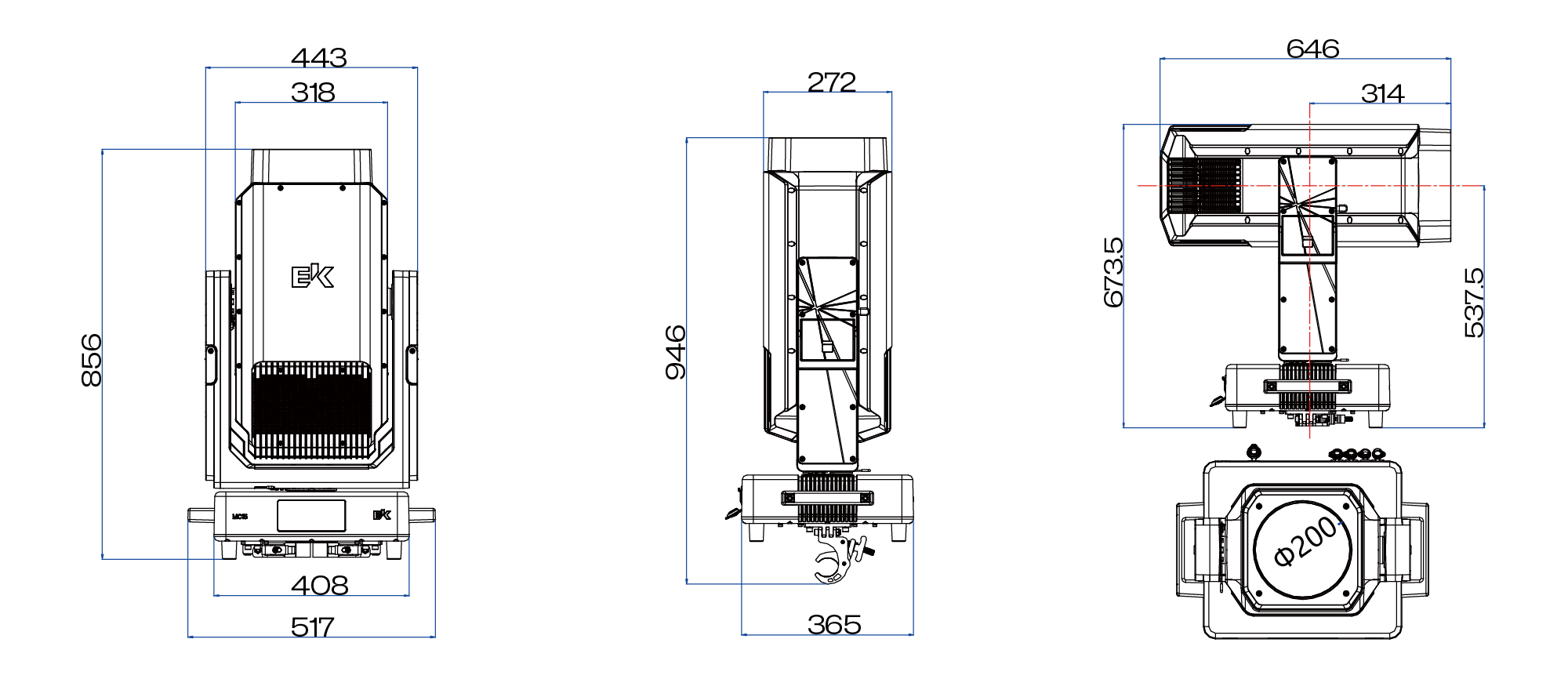

- Dimension
517 x 365 x 856 mm
- Weight
47.8kg
- IP Rating
IP66
- Cooling
Heat pipe and low noise IP fan
- Installation
Sit-flat floor mounting, side hanging and flown mounting
- Slogan Template
Slogan Template

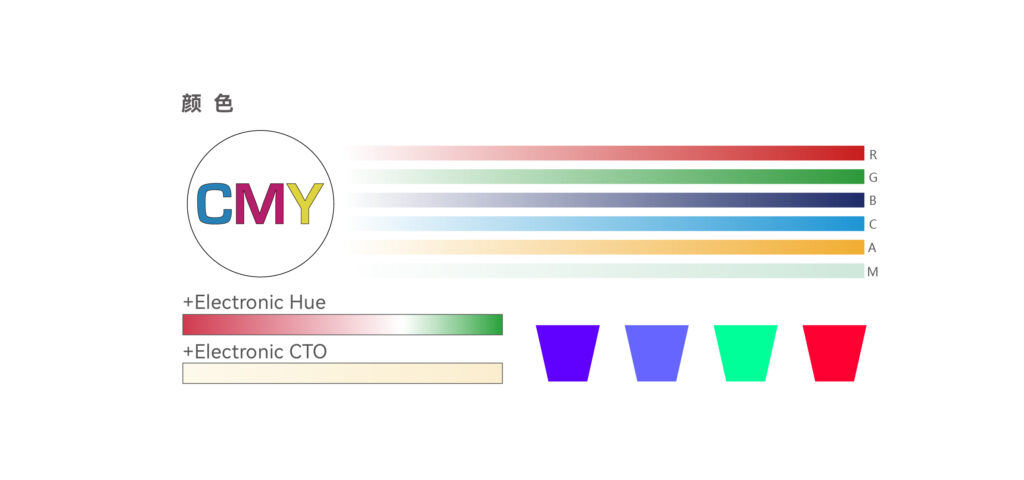

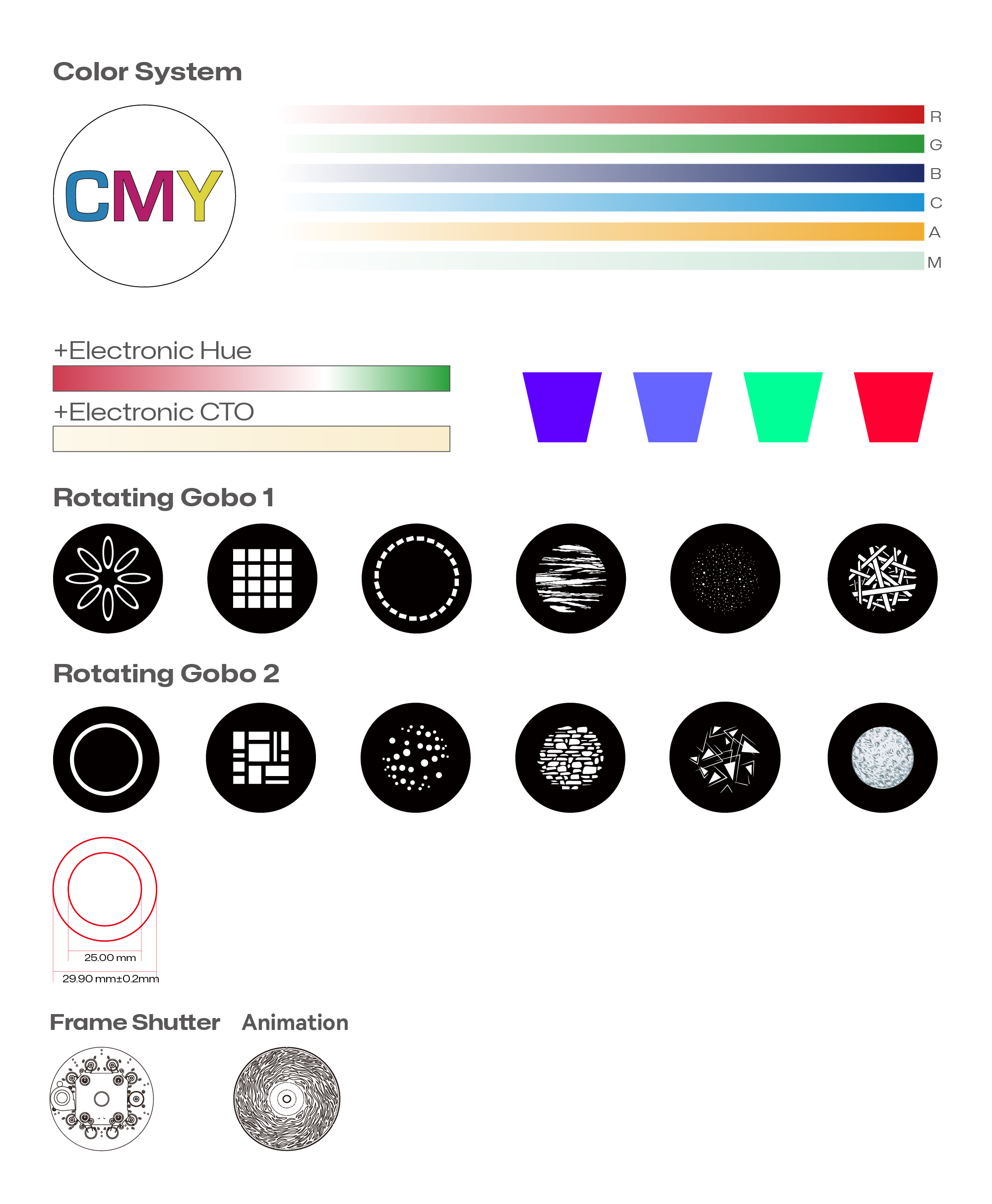

PRODUCT EFFECTS
ACCESSORIES
- Standard
Omega bracket, power cable

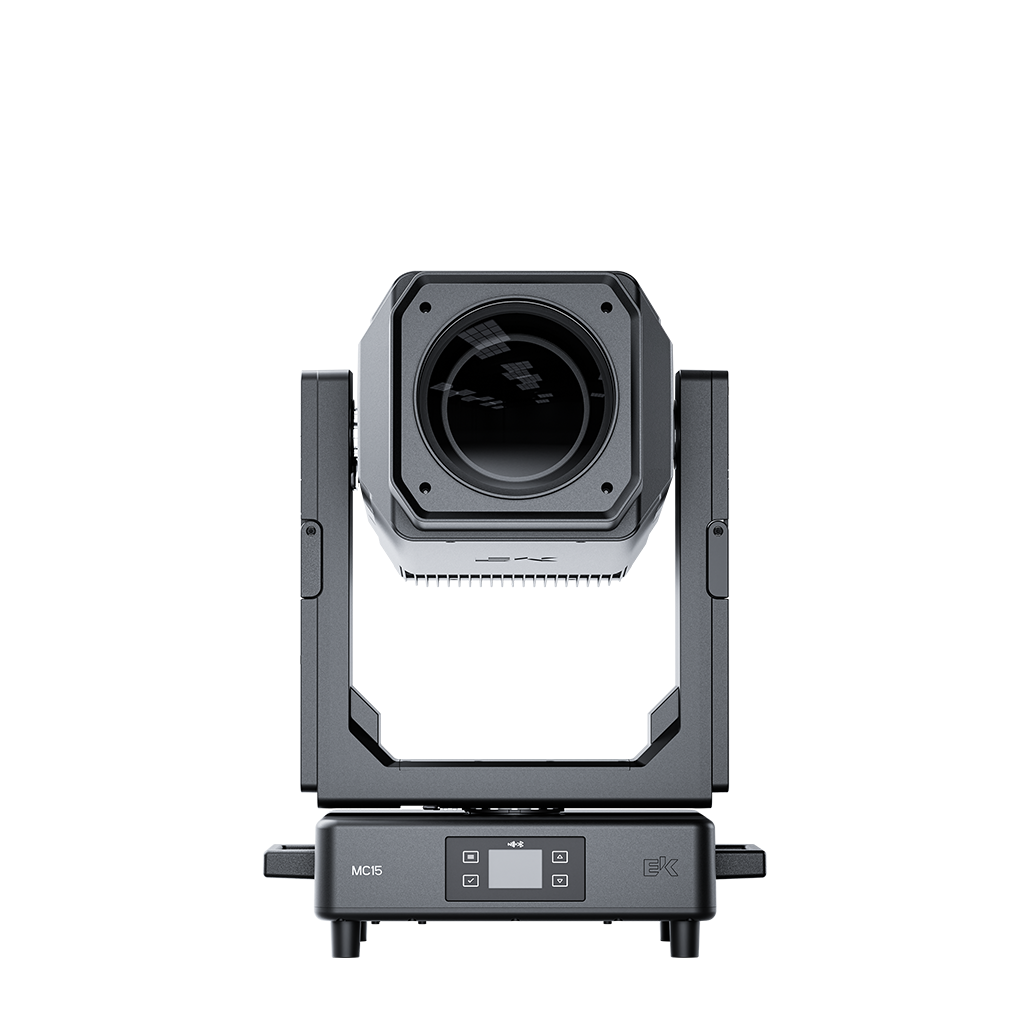

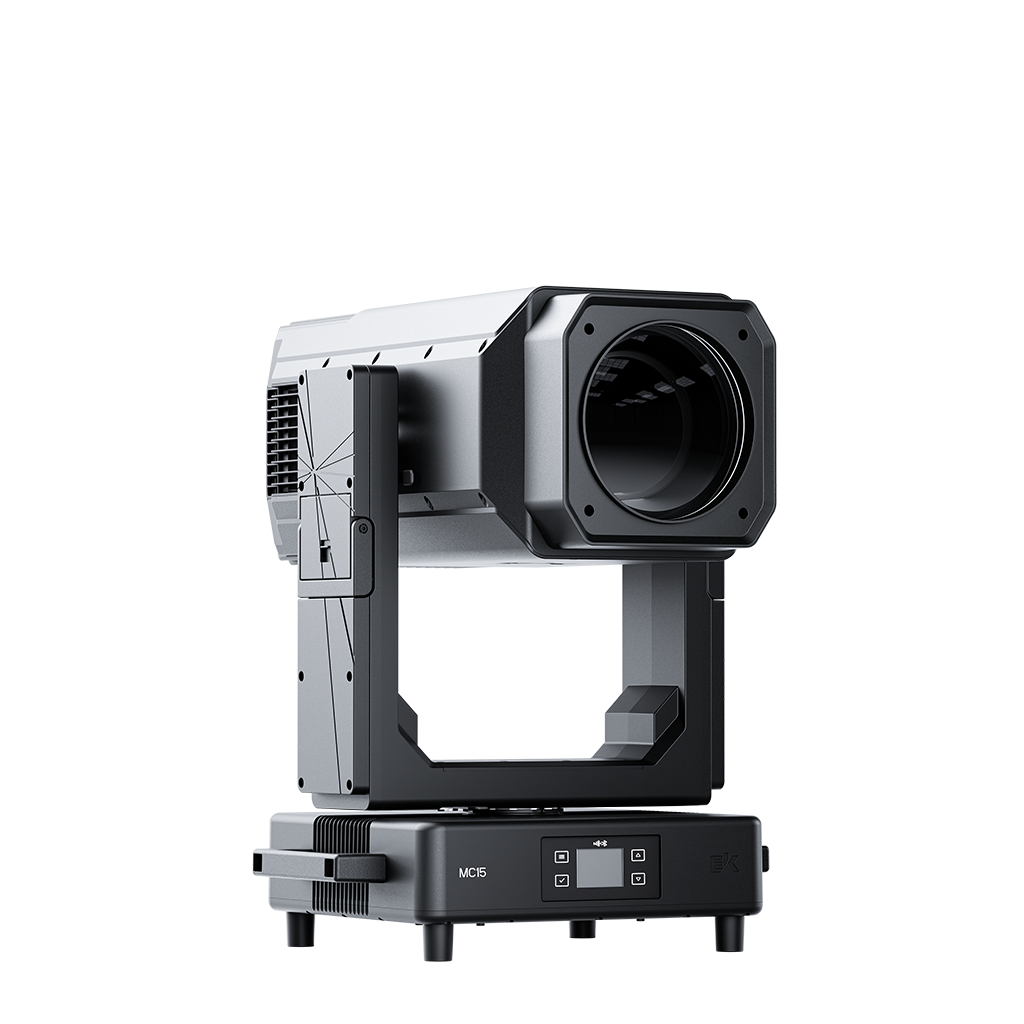

IMAGE GALLERY
