EC7
Compact size;
Colossal power
A luminaire that packs a punch.
Redefining efficiency, the EC7 delivers twice the output of its predecessor while maintaining the same power draw. Its advanced RGB+WW system ensures both vibrant colors and superior CRI, all packed into a compact, lightweight design that outperforms larger fixtures in its class.
7*50W RGBWW LED
LIGHT SOURCE
7,700Lm
LUMEN
2,800 – 10,000K
COLOR TEMPERATURE
3.8° – 51°
BEAM ANGLE
9.7KG
WEIGHT
323 x 207 x 381mm
DIMENSION
Discover true color freedom
- Complete spectrum: Saturated primary colors offer a wider range of color choices
- Ultra compact at 9.7kg; superior weight-to-output ratio satisfies any critical considerations on size and power
- Wide zoom ranging from 3.5° – 51°, ideal for both tight beams for long throws and wide coverage for short throws
- DMX512/RDM/sACN/Artnet/Bluetooth/APP/NFC
TECHNICAL SPECS
PHOTOMETRICS
- Light Source
7*50W RGBWW LED
- Output
Up to 7,700 Lm
- CRI
>93
- Color Temperature
2800K – 10000K
- LED Life
30,000 hours

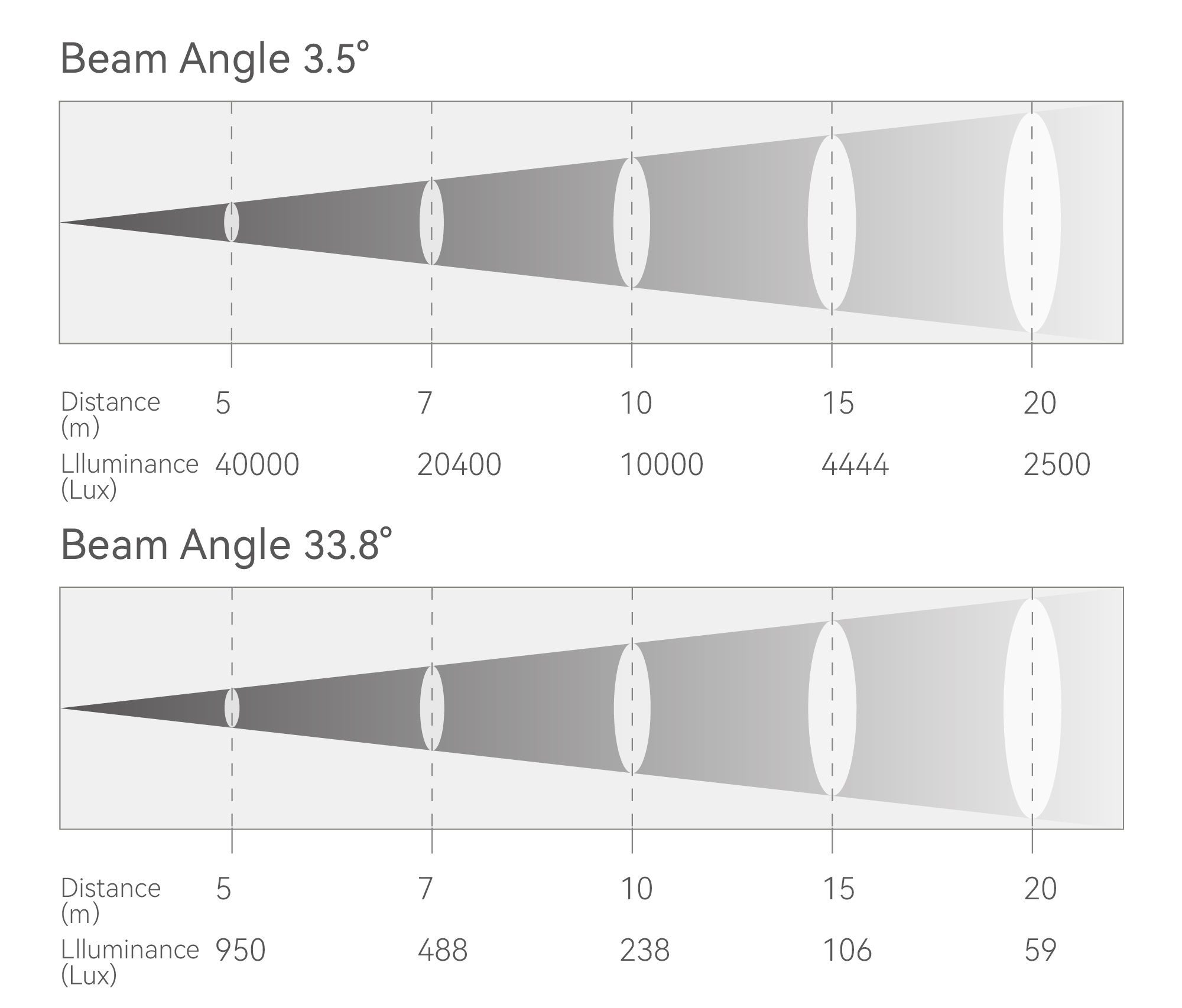

- Beam Angle
3.5° – 51°
KEY FEATURES
- Pan
540°
- Tilt
247°

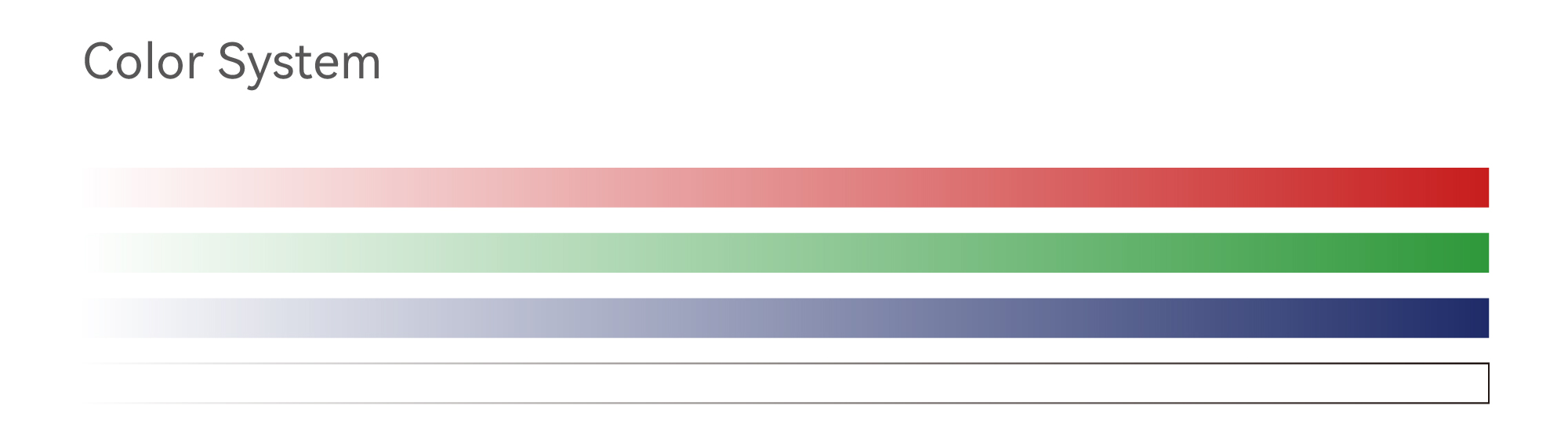

- Color System
RGBWW
- Strobe
1~30Hz
- Dimming
0-100% Linear dimming,4 dimming curves,22 bit
- Slogan Template
Slogan Template
- Framing System
Single blade ±35°, rotatable 180°
- Iris
NA
- Frost
Frost glass
- Prism
Bi-directional, combinable, 8-facet + 4-facet prism
CONTROL
- Protocol
DMX512 / RDM / sACN / Artnet / Bluetooth / APP / NFC
- Data Connections
3pin or 5 pin DMX In/Out Art-net In/Out
- DMX Channels
16CH / 34CH / 31CH / 40CH / 58CH
- Display
2.8 inch TFT display
- Frequency
600Hz / 1.2KHz / 2KHz / 4KHz / 6KHz / 25KHz
- Built-in Programs
Yes
- Pixel Control
Single control
- Slogan Template
Slogan Template
POWER
- Mains
100 – 240V, 50/60Hz
- Power Connections
PowerCon In/Out
- Maximum Power Connections
Linking up to 4pcs in a chain
- Data Connections
DMX In/Out
- Maximum Data Connections
Linking up to 32pcs
- Consumption
400W/230V
- Power Factor
0.97/230V
- Ambient
-10℃~45℃
- Slogan Template
Slogan Template
- Slogan Template
-20°C – 45°C
PHYSICAL

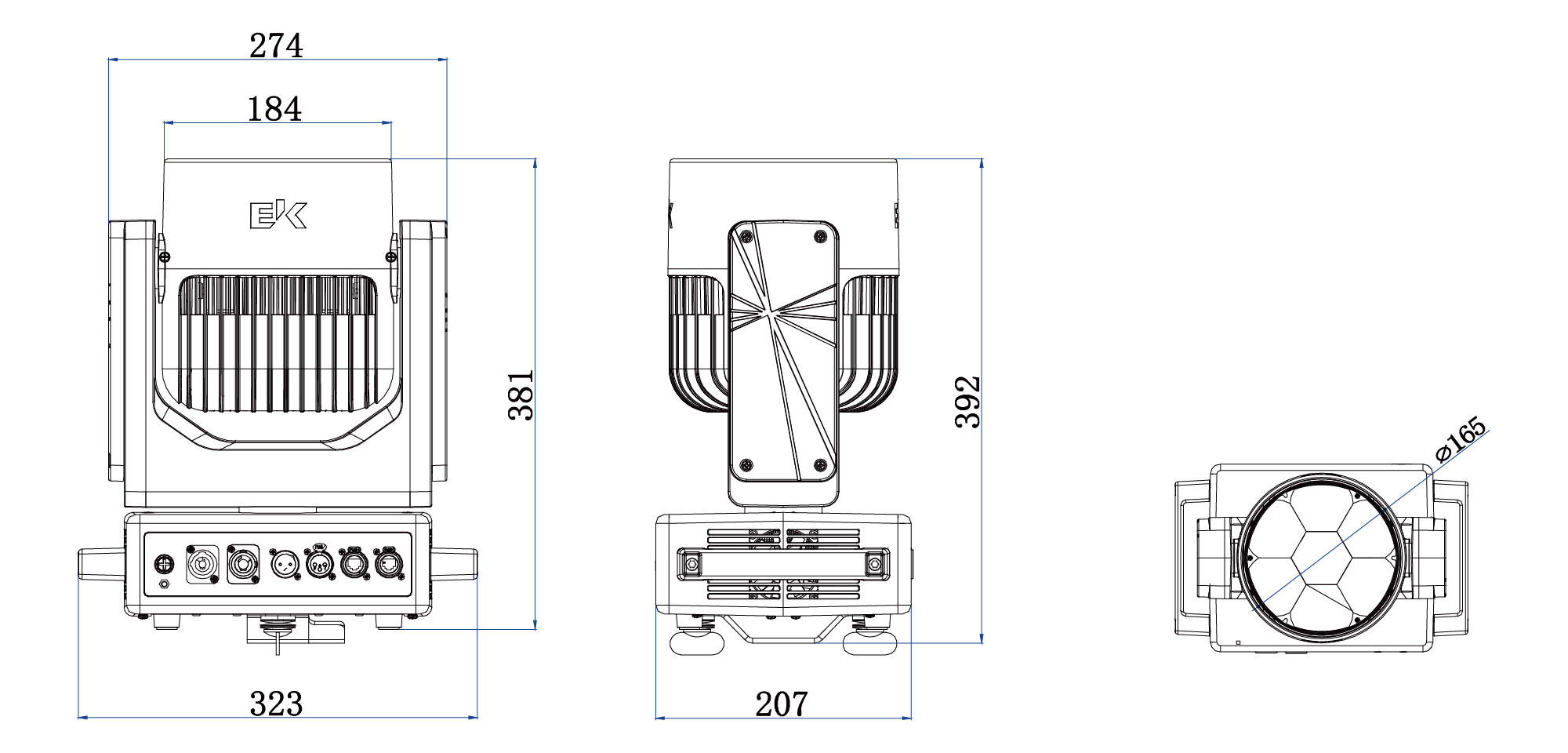

- Dimension
323 x 207 x 381mm
- Weight
9.7kg
- IP Rating
IP20
- Cooling
Heat sink with noiseless fan
- Housing
Flame-retardent nylon+fiber
- Installation
Floor mounting, side hanging and flown mounting
PRODUCT EFFECTS
ACCESSORIES
- standard equipment
Omega Bracket, Power Cable
