ALLIGATOR

Fluid motion;
flawless execution

Always ready to snap into action
A master of movement, the Alligator is a double-sided hybrid moving bar that combines infinite rolling capabilities with lightning-fast rotation. Its arsenal of cool/warm strobe, RGBW cells, and strobe panel means that it is capable of achieving multiple effects to achieve your creative vision.

Front panel: 420W + 280W
Back panel: 700W

LIGHT SOURCE

18,000 Lm

LUMEN

2800K – 8000K

COLOR TEMPERATURE

3° – 37°
ZOOMABLE FRONT PANEL
70°
BACK STROBE PANEL

BEAM ANGLE

27.1KG

WEIGHT

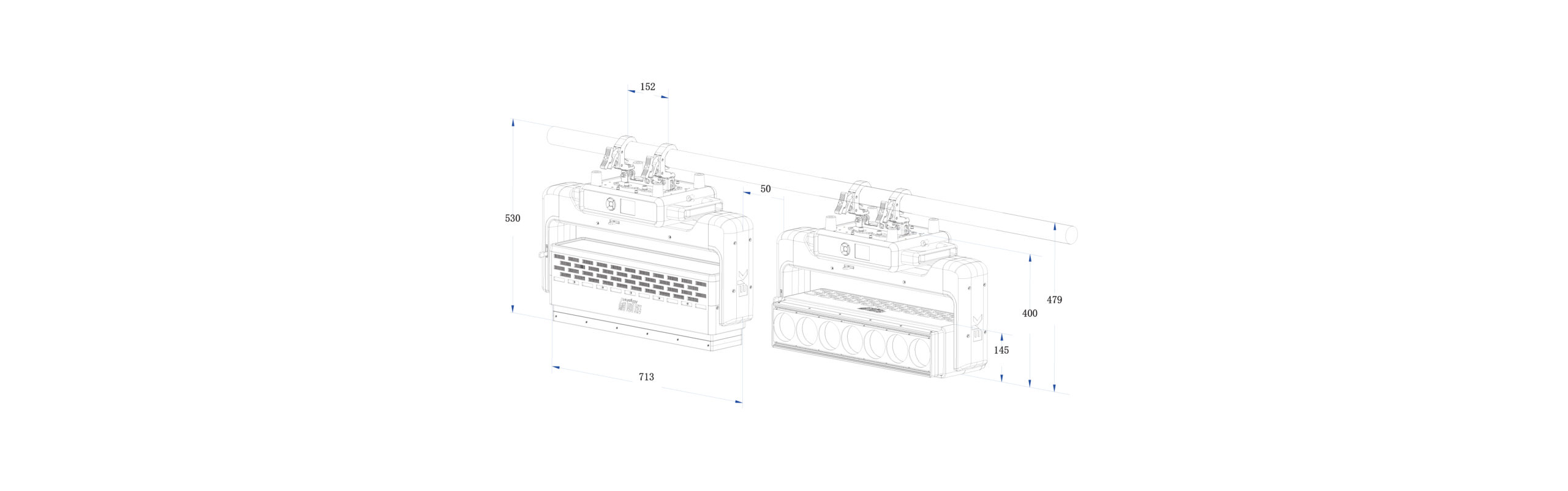

713 x 244 x 451mm

DIMENSION

42 pixels, infinite possibilities

  • 42 individually controllable pixels
  • Infinite pan/tilt movement
  • Double side hybrid moving head bar
  • Two-layer foreground and background colors and effects
  • Built-in effects and onboard macros make for easy programming
  • Endless possibility due to creative pixel arrangement
  • DMX, Art-Net, and RDM control

TECHNICAL SPECS

PHOTOMETRICS
  • Light Source

Front: 420W RGBW LEDs for main beam/wash cells;280W WW+CW LEDs for two strobe strips;Back: 700W RGBW LEDs

  • Output

18000 lm(peak value)

  • LUX

52000Lux@3m(3°)

  • Color Temperature

2800K~8000K

  • Lifespan

20000hrs

  • Beam Angle

Front: 3°~37°; back: 70°

  • Field Angle

Front: 4°~51°; back: 124°

  • Pan

Infinite

  • Tilt

Infinite

  • Color System

RGBW+CW+WW

  • Strobe

0~30Hz + strobe effect macros

  • Dimming

4 dimming curves with 0~100% dimming

  • Slogan Template

Slogan Template

  • Framing System

Single blade ±35°, rotatable 180°

  • Iris

NA

  • Frost

Frost glass

  • Prism

Bi-directional, combinable, 8-facet + 4-facet prism

  • Protocol

DMX512 / RDM / ArtNet

  • DMX Channels

26CH / 50CH / 84CH / 98CH

  • Pixel-mappable Zones

7+28+7

  • Display

2.83 inches TFT with gravity sensor

  • Slogan Template

Slogan Template

  • Slogan Template

Slogan Template

  • Slogan Template

Slogan Template

  • Slogan Template

Slogan Template

  • Mains

200~240VAC,50~60Hz

  • Power Connections

IP PowerCON IN

  • Data Connections

3pin DMX IN/OUT,linking up to 32pcs at a chain

  • Consumption

920W/230V(Dynamic) 1500W/230V(Peak value @ strobe)

  • Power Factor

0.96/230V

  • Ambient

0℃~45℃

  • Slogan Template

Slogan Template

  • Slogan Template

-20°C – 45°C

  • Dimension

713 x 244 x 451mm

  • Weight

27.1kg

  • Cooling

Noiseless fan for forced air

  • Slogan Template

Slogan Template

  • Slogan Template

Slogan Template

  • Standard

Power Cable. Omega Bracket

Cable

Road Case
