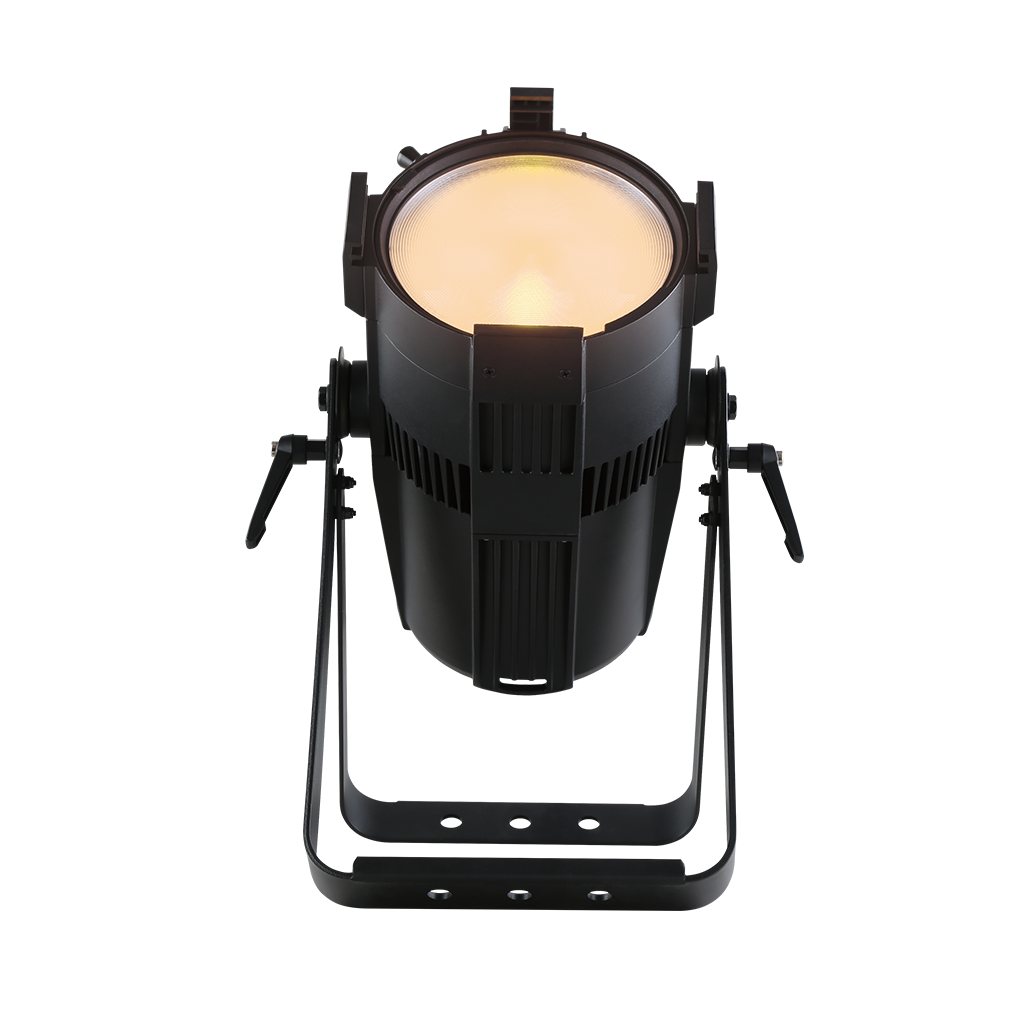

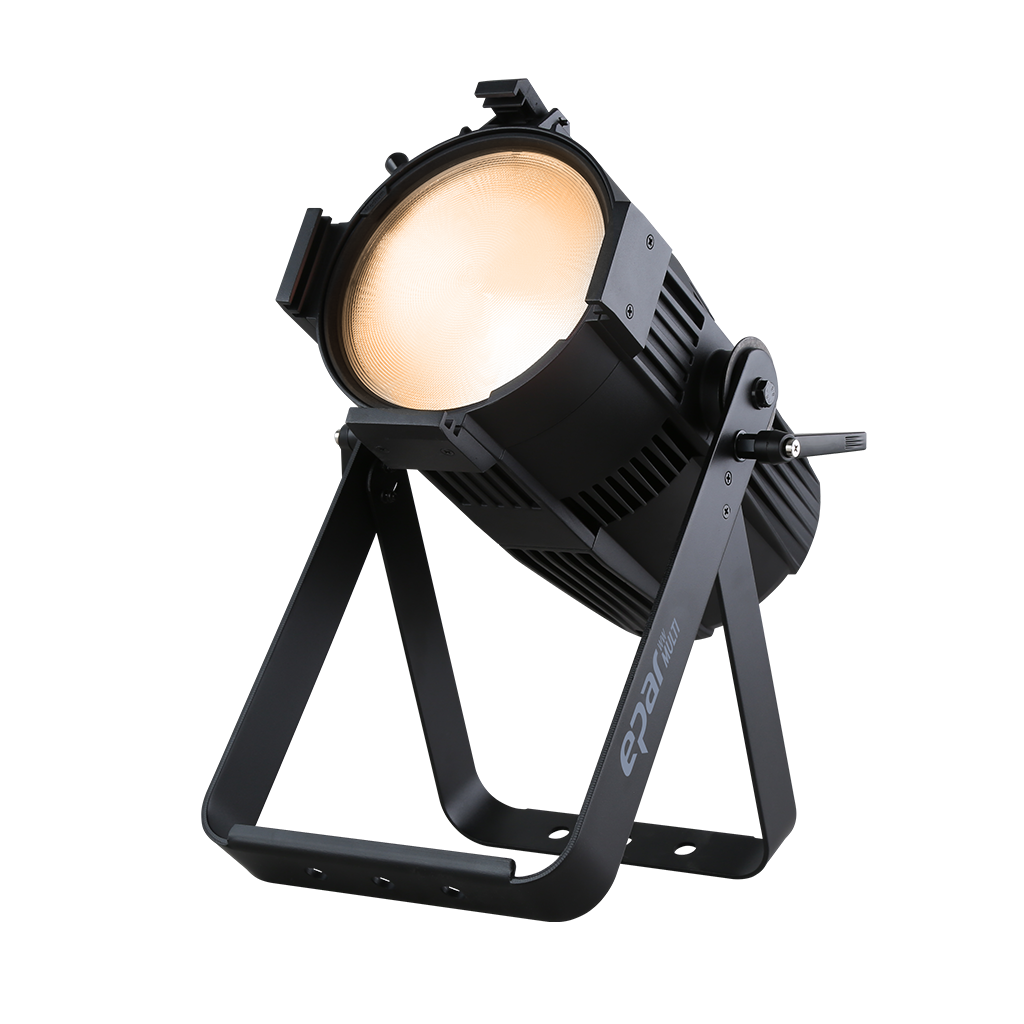

EPAR MULTI WW
LED Wash Light
- Warm White COB LED PAR with multiple lens options and accessories
- 3200K Chip On Board LED
- Detachable lenses for choice of narrow, medium or wide beam angles
- Quiet operation suitable for studio use
- Flicker-free output with selectable
- PWM frequencies for worry-free video
- Ultra-linear dimming technology with 4 selectable dimming curves
- Double mounting bracket allows fixture to be flown or floor-mounted
- Optional barndoors, egg crates and media holders
- DMX and RDM control with optional W-DMX
3200K COB LED
LIGHT SOURCE
12000 lm
LUMEN
3200K
COLOR TEMPERATURE
10° / 24° / 65°
BEAM ANGLE
24° / 40° / 95°
Field Angle
5.4KG
WEIGHT
450 x 316 x 208 mm
DIMENSION
DATA SHEET
| PHOTOMETRICS | |
| ·Light Source | 3200K COB LED |
| ·Output | 12000 lm |
| ·Beam Angle | 10° / 24° / 65° |
| ·Field Angle | 24° / 40° / 95° |
| KEY FEATURES | |
| ·Strobe | 0-30 Hz |
| ·PWM Frequency options | 600 / 1200 / 2000 / 4000 / 6000 Hz or 25 KHz |
| ·Dimming | 4 dimming curve |
| CONTROL | |
| ·Protocol | DMX, RDM (optional W-DMX) |
| ·DMX Channels | 1CH / 2CH / 3CH / 6CH |
| ·Display | OLED function menu with 4 touch buttons |
| POWER | |
| ·Mains | 100V-240V,50/60Hz (auto-ranging) |
| ·Power connections | Truecon In/Out,up to 8 units |

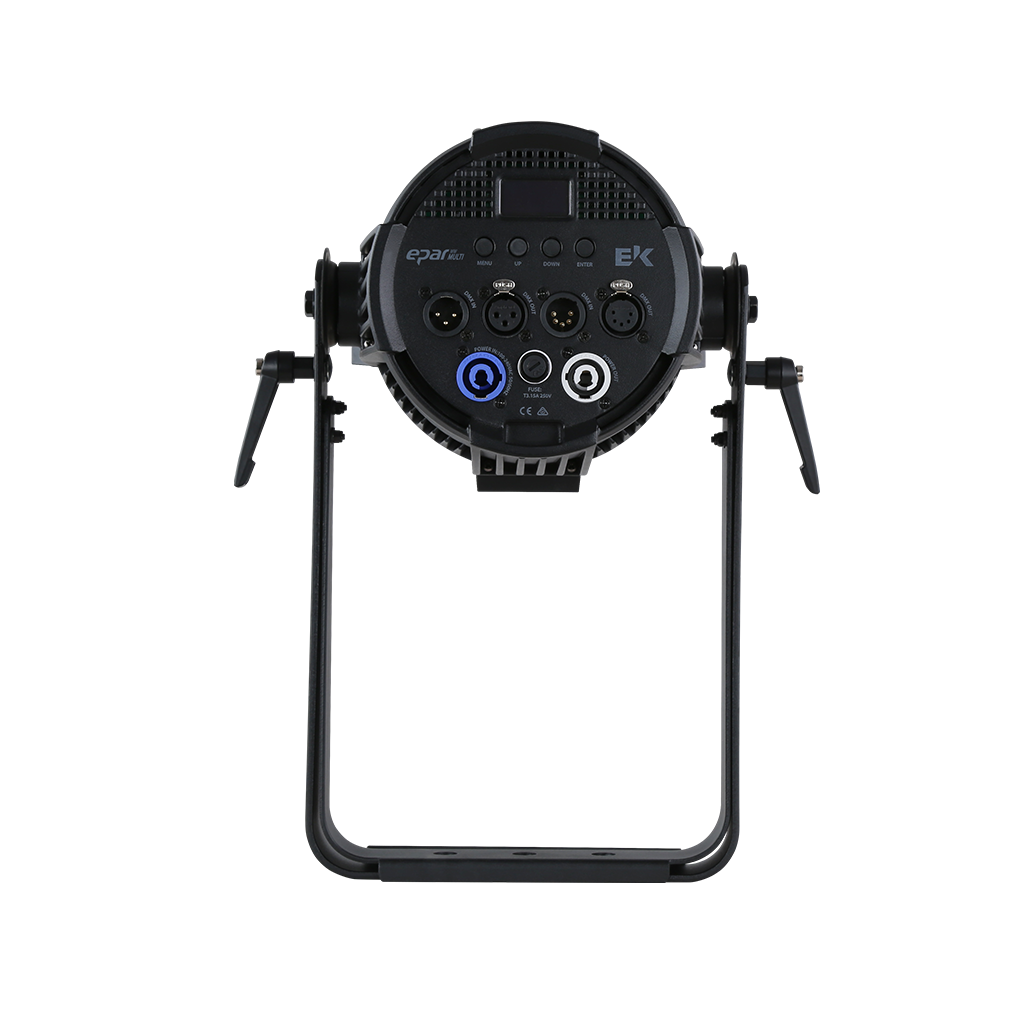

| ·Data connections | 3-pin and 5-pin XLR In/Out for DMX |
| ·Consumption | 200W |
| ·Ambient | -10℃~45℃ |
| PHYSICAL | |
| ·Dimensions | 450 x 316 x 208 mm |
| ·Weight | 5.4 KG |
| ·Cooling | Active (variable speed fan with silent mode) |
| ·Finish | Diecast aluminum,Matte black |
