Gazelle REMOTE FOLLOWSPOT SYSTEM
PRECISION IN MOTION
CONTROL WITHOUT DELAY
Fast. Accurate. Stable.
Built for demanding applications such as live productions, concerts, theatres, and broadcast environments, Gazelle combines intuitive operation, real-time response, and highly accurate target tracking in one professional platform.
With intelligent tracking assistance and multi-fixture, multi-point synchronization, it handles complex cueing and dynamic performances with speed and control. The system is optimized for long operating hours and heavy workloads, with smart expansion interfaces ready for future protocol support and advanced stage integration.
Flexible control.
Master it from the start
· Built around dual capacitive touchscreens, 17″ + 10.1″
· 24 physical command keys
· 6 customizable encoders and 2 physical attribute faders
· Touchscreen and physical control work together for direct operation and fast response
· Flexible customization adapts to the way you work
· Clear logic keeps learning curves short
· Low latency and low network jitter keep commands moving in real time
Accurate tracking.
Light never misses the moment
· Millisecond sync.
· Keeps up with fast performer movement and unscripted interaction.
Stable transmission.
Confidence over distance

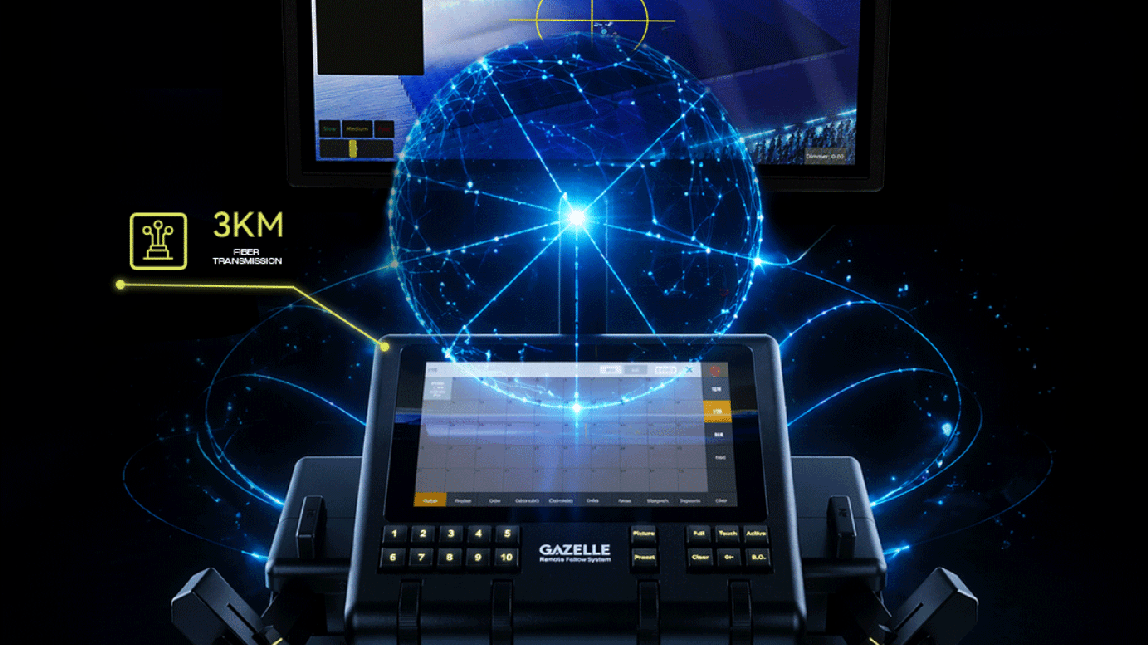

· Supports fiber transmission up to 3 km.
· Dual USB and dual Ethernet redundancy helps keep a port fault from disrupting the show.
HD + night vision Cam.
Clear capture in complex settings
· 1920 × 1080 / 60 Hz HD video capture
· 30x zoom with ICR day/night view switching
· Keeps targets visible even in very low light
Stable and reliable.
Ready around the clock
· Built for long hours of continuous operation.
· Ready for different venues and demanding show conditions
Multi-fixture sync.
Seamless transitions in light
· Offers multi-fixture control.
· Built-in Linear and S-Curve modes, plus custom motion curves.
· Jitter compensation improves transition stability, while pan and tilt remain responsive.
· Delivers full-stage followspot coverage.
Pair with EK MC15.
Command the whole stage
Gazelle keeps the target in focus. EK MC15 delivers high-quality full-spectrum output.
Bringing both precision and visual depth to the stage.
搭配EK MC15 掌控全场
Gazelle 追光系统精准锁定焦点
搭配 EK MC15 六色全光谱极致色彩
精准控场、质感拉满
Color engine upgraded
Six-color full-spectrum output
For a wider command of color
Optical control upgraded
22-bit ultra-fine dimming
Richer and subtler control of light quality
Stable and adaptable
Quiet yet powerful
High output. Lower consumption. Quieter operation
A near-silent experience
IP66 protection, upgraded
Ready for demanding environments
Lighter. Tougher. IP66
Built for every stage.
Redefining the professional followspot experience
From high-energy concerts to nuanced theatre work, from studio fill to broadcast precision, Gazelle adapts with ease
Intelligent tracking assistance supports complex cueing
Smart expansion interfaces keep the system ready for future protocol support and system integration
Engineered for smoother performance
Made to unlock more possibilities in stage lighting
Built for every stage.
Redefining the professional followspot experience
From high-energy concerts to nuanced theatre work, from studio fill to broadcast precision, Gazelle adapts with ease.
Intelligent tracking assistance supports complex cueing.
Smart expansion interfaces keep the system ready for future protocol support and system integration.
Engineered for smoother performance.
Made to unlock more possibilities in stage lighting.
Concerts
Theatre
Studio
TV
Concerts
Theatre
Studio
TV
DATA SHEET
| RANGE OF MOTION | |
| ·Handle Pan Range | -80° ~ +80° |
| ·Handle Tilt Range | -40° ~ +40° |
| CONTROL AND PROGRAMMING | |
| ·Touch Control | Dual capacitive touchscreens, 17" + 10.1", allows touch-based followspot control |
| ·Physical Command Keys | 24 physical command keys |
| ·Customizable Encoders | 6 customizable encoders |
| ·Physical Attribute Faders | 2 attribute faders with 60mm travel |
| ·Protocol | PosiStageNet(PSN)、Art-Net、EK proprietary protocol SSN(Spot Sync Net) |
| ·Fixture Patching | Supports fixture discovery and configuration, including DMX address, channel mode, and network settings. |
| NETWORK & COMMUNICATION | |
| ·Max. PSN Data Throughput | ≥ 60 fps |
| ·Low network latency and jitter | ≤ 25 ms |
| ·Max. Transmission Distance (Fiber) | 3 km |
| VIDEO PERFORMANCE | |
| ·Resolution | 1920×1080 60Hz |
| ·SNR | ≥ 54 dB |
| ·Low-light performance | ≤ 0.001 Lux (F1.6) |
| ·WDR | ≥ 120 dB |
| ·Video latency | < 150 ms |
| ·Camera Zoom Range | 20X |
| ·ICR Day/Night Switching | Yes |
| MOTION CONTROL | |
| ·Motion Curve | Linear |
| ·Minimum detectable handle movement | ≤ 0.1° |
| STABILITY AND RELIABILITY | |
| ·MTBF | ≥ 7 × 24 小时 |
| ·Operating Temperature | -10℃ ~ 40℃ |
| ·IP Rating | IP 20 |
| POWER & INTERFACES | |
| ·Mains | 100-240V,50/60Hz |
| ·Power Consumption | 35W |
| ·Power Factor | ≥0.92 |
| ·Power Connector | PowerCON IN |
| ·Fiber Interface | Single-mode, single-fiber LC connector × 1 |
| ·Ethernet | RJ45 × 2 |
| ·USB Port | × 2 |
| ·DMX In & Out | DMX512 (In/Out) |
DIMENSIONS
