K65 IP
Defy the elements
Compact form; colossal output
The K65 IP delivers extraordinary illumination with its 1000W 6400K LED engine, producing a massive 34,000 lumen output. Its comprehensive effects package includes dual gobo wheels, dual frost filters, 4-facet prism, and ultra-linear dimming for versatile creative applications. All this power and IP66 weather protection is remarkably contained in a compact form factor for ultimate flexibility.
1000W LED engine
LIGHT SOURCE
34,000Lm
LUMEN
3200K- 6400K
COLOR TEMPERATURE
5°- 50°
BEAM ANGLE
38.5KG
WEIGHT
427 x 334 x 757mm
DIMENSION
Best in class optics
- 1000W 6400K LED engine
- Super high 34000 lumen output
- Linear CTO correction of 3200K – 6400K
- Extremely even spot with flawless field consistency
- 40hz high frequency out for flicker-free video
- Razor sharp framing and elegant gobo shaping
- 10x wide zoom range from 5° to 50°
- Compact, lightweight with various fan modes for different applications
- IP66 weather-proof construction
- DMX and RDM control
TECHNICAL SPECS
PHOTOMETRICS
- Light Source
1000W LED engine
- Output narrow angle
34,000 Lm
- Color Temperature
3200K- 6400K
- LED Life
20,000 hours

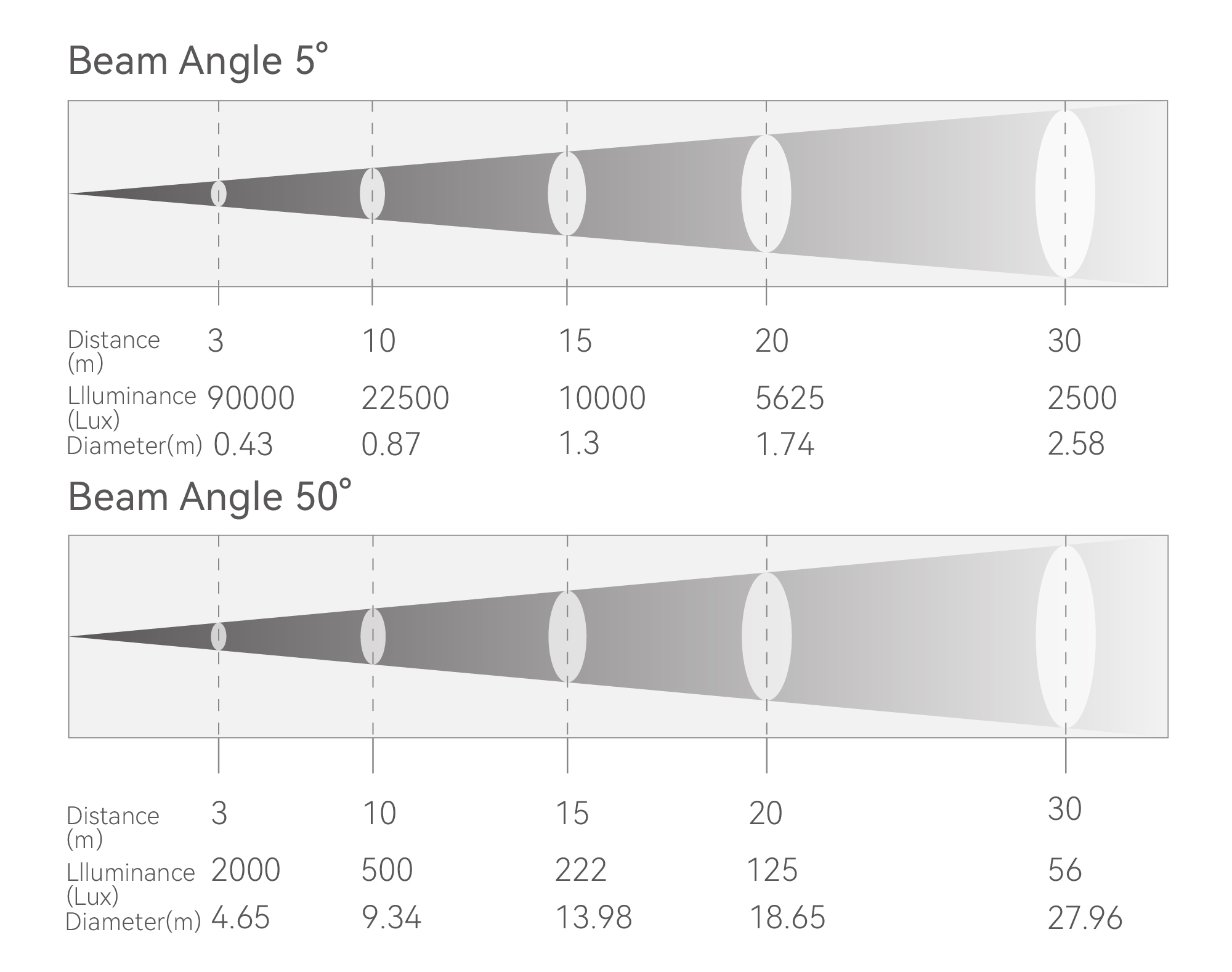

- Beam Angle
5°- 50°
KEY FEATURES
- Pan
540°
- Tilt
270°

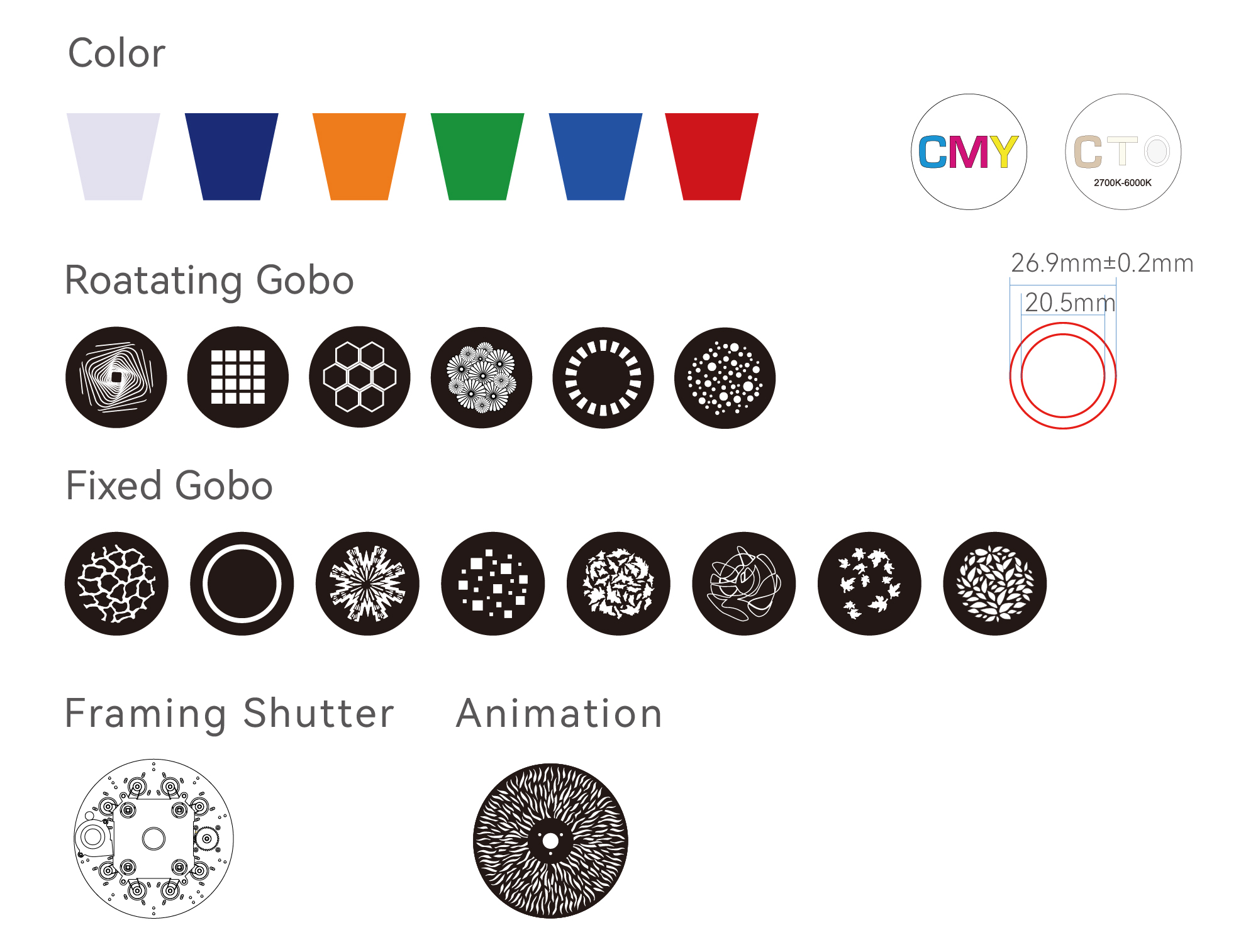

- Color System
CW+CMY+CTO+ (6 Color Filters + Open)
- Gobo System
1 rotating gobo wheel (7 + open)
1 fixed gobo wheel (8 + open)
- Animation
Bi-directional animation wheel with adjustable speed
- Framing System
4 independent blades with ±35° range ±60° system rotation
- Focus
Motorized focus with linear adjustment
- Iris
Motorized linear iris with 15 leaves, 15~100% adjustment
- Frost
1° linear soft edge frost with 0~100% adjustment
- Strobe
1~30Hz
- Dimming
4 dimming modes
- Prism
Bi-directional 4-facet prism with variable speed
- Frost
Frost glass
- Prism
Bi-directional, combinable, 8-facet + 4-facet prism
CONTROL
- Protocol
DMX / RDM
- DMX Channels
39CH/41CH
- Display
2.83 inch TFT display
- Data connections
3pin (or 5pin) XLR In / Out for DMX linking up to 25pcs
- Slogan Template
Slogan Template
- Slogan Template
Slogan Template
POWER
- Mains
100 – 240 VAC, 50/60 Hz
- Power Connections
PowerCON True One In
- Consumption
1295W / 230V (full on)
- Power Factor
0.96 / 230W
- Ambient
-10℃~45℃
- Slogan Template
Slogan Template
- Slogan Template
-20°C – 45°C
PHYSICAL
- Dimension
427 x 334 x 757 mm
- Weight
38.5kg
- Cooling
Heat pipe cooling system with low noise fan
- IP Rating
IP66
- Slogan Template
Slogan Template
- Slogan Template
Slogan Template
PRODUCT EFFECTS
ACCESSORIES
- Slogan Template

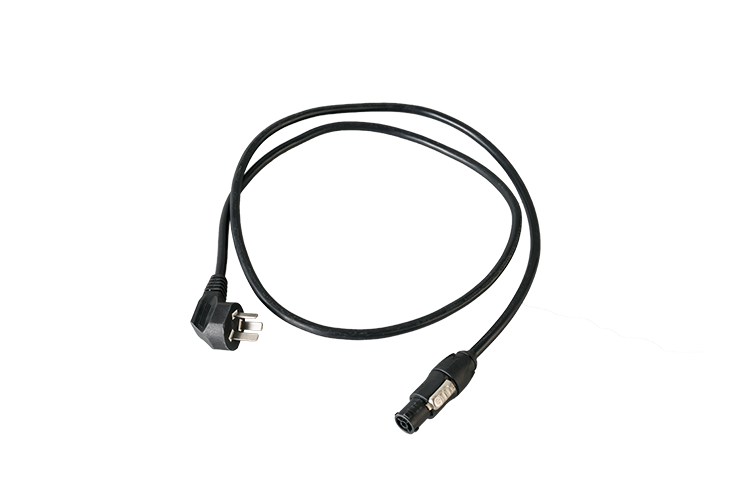

Power cable
Cable
