LT18
Razor sharp;
Ultra bright
Precision. Power. Perfection.
LT18 is an IP66 moving profile. Thanks to its self-developed high efficient optical system, it’s able to integrate full feature set and unmatched output in a compact package – 1500W engine to produce an output of over 60000 lumens, weight only 50kg. Wide zoom range, sharp focus, accurate control, perfect consistency – it has everything you want.
With groundbreaking optics
1500W LED
LIGHT SOURCE
60,000
LUMENS
6,000 – 6,200K
COLOR TEMPERATURE

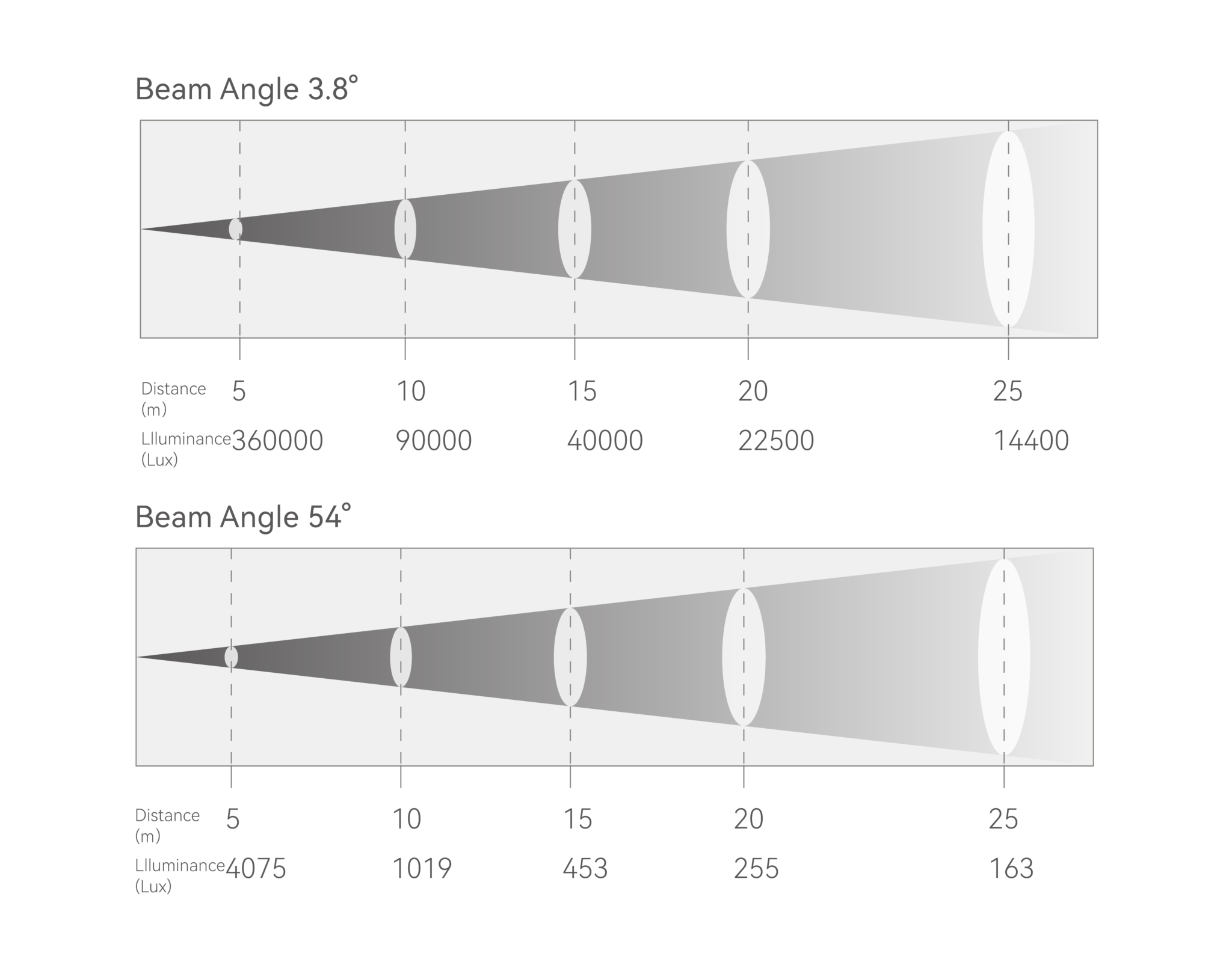

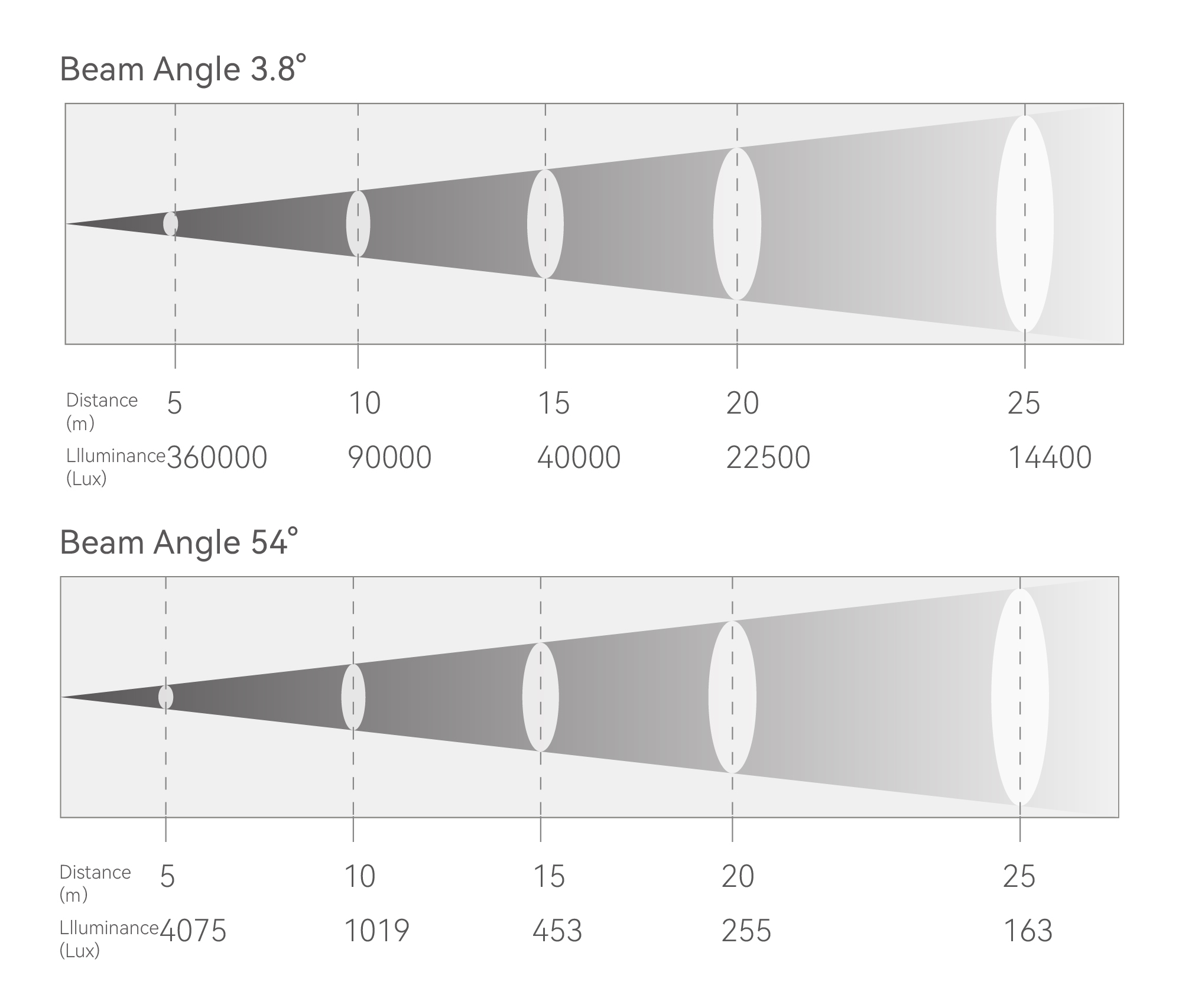

3.8° – 54°
BEAM ANGLE
50KG
WEIGHT
517 x 365 x 846 mm
DIMENSION
Get precision & expression
- 1500W white LED engine
- Unmatched high output of 60000 lumens
- 3.8°-54°wide zoom range
- Razor sharp shutter framing and elegant gobo shaping
- Extremely even spot with flawless field consistency
- CMY+color wheel for wider choice of color
- Rotating gobo wheel+animation+frost offer full range dynamic effects
- Equipped with dual indexable 4-facet prism(round and linear) with variable speed
Features
Proven tough in any environment
- Weather-resistant IP66 tour-grade construction
Built for professionals
- DMX512 / RDM / sACN / Artnet / Bluetooth / APP / NFC
Technical specs
Photometrics
- Light Source
1500W LED engine
- Output
60,000 Lm
- Beam Angle
3.8~54°
- CRI
≥70
- Color Temperature
6000K – 6200K
- LED Life
30,000 hours
KEY FEATURES
- PAN
540°
- TILT
270°

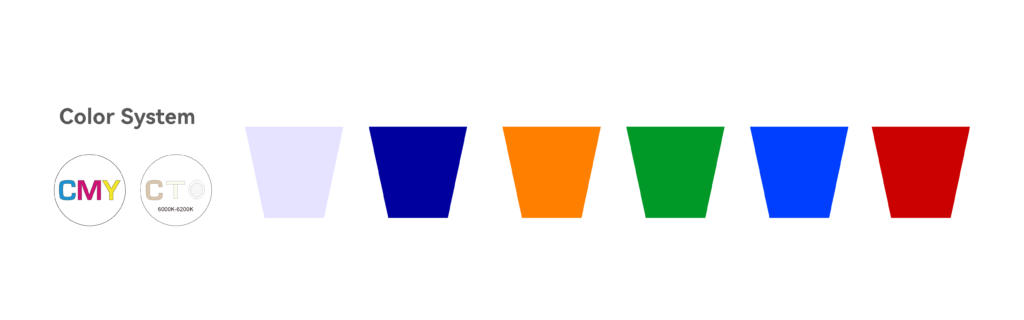

- Color System
CMY+CTO+Color wheel(6+open)
- Pixel Matrix
NA

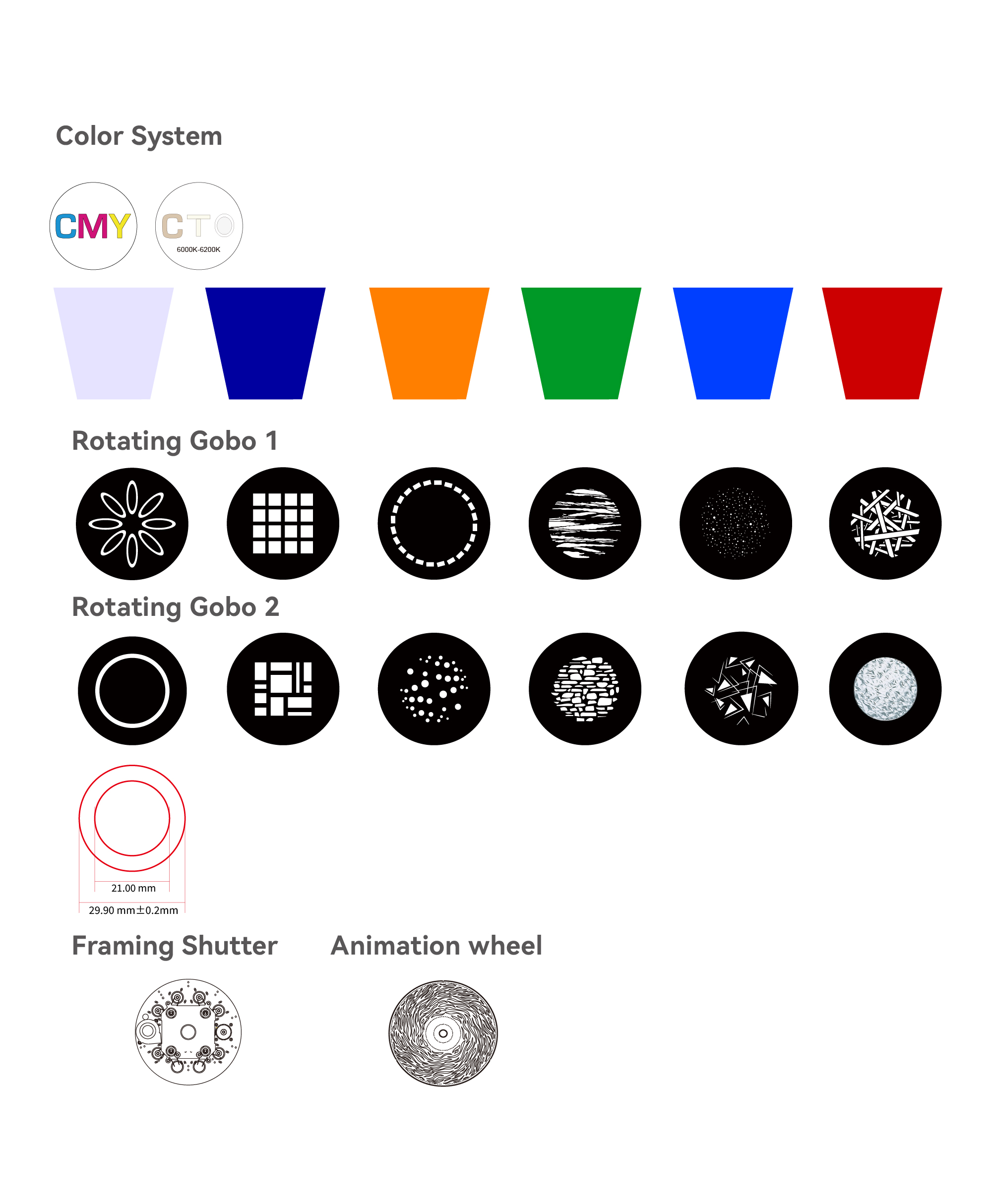

- Gobo System
Rotating gobo wheel (7 gobos+open)
Fixed gobo wheel (9 gobos+open)
- Beam Angle
3.3° – 52°
- Animation
Animation wheel with variable speed
- Framing System
Single blade ±35°, rotatable ±90°
- Iris
15 leaves, 15 – 100% motorized linear iris
- Frost
1°+5° 0% – 100% linear frost
- Strobe
1 – 30Hz
- Dimming
Linear/Square/In-verse square/S-curve+4dimming mode(22bit)
- Prism
Indexable 4 facet prism+linear prism with variable speed
CONTROL
- Protocol
DMX512/RDM/sACN/Artnet/CRMX/Bluetooth/APP/NFC
- Built-in Programs
YES
- Data Connections
IP 3pin (or 5pin) XLR In/Out XLR in/out for DMX, linking up to 32pcs
- Display
40RGB*320，2.8 inch
- DMX Channel
38CH
- Frequency
NA
- Pixel Control
NA
POWER
- Mains
100 – 240 VAC, 50/60 Hz
- Power Connections
TrueCon In
- Maximum Power Connections
Linking up to 2pcs
- Data Connections
DMX In/Out
- Maximum Data Connections
Linking up to 32pcs
- Consumption
1900W / 230V
- Power Factor
0.98 / 230V
- Ambient
-10°C – 45°C
PHYSICAL

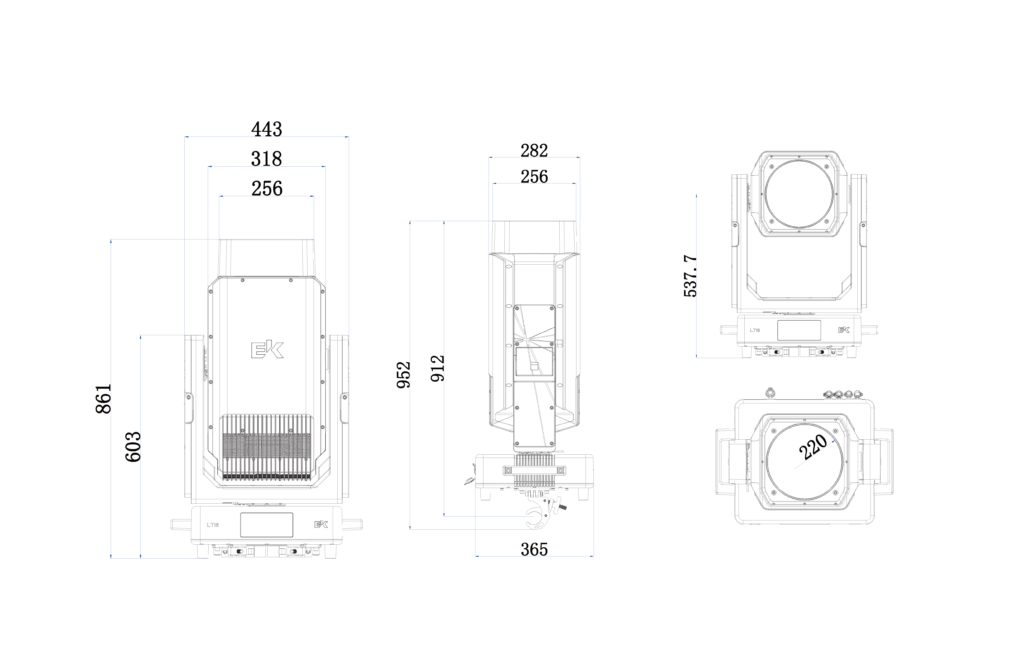

- Dimension
517 x 365 x 846mm
- Weight
51kg
- IP Rating
IP66
- Cooling
Heat pipe cooling system with low noise fan
- Housing
NA
- Installation
NA
PRODUCT EFFECTS
ACCESSORIES
- Standard
Power cable, Omega bracket
