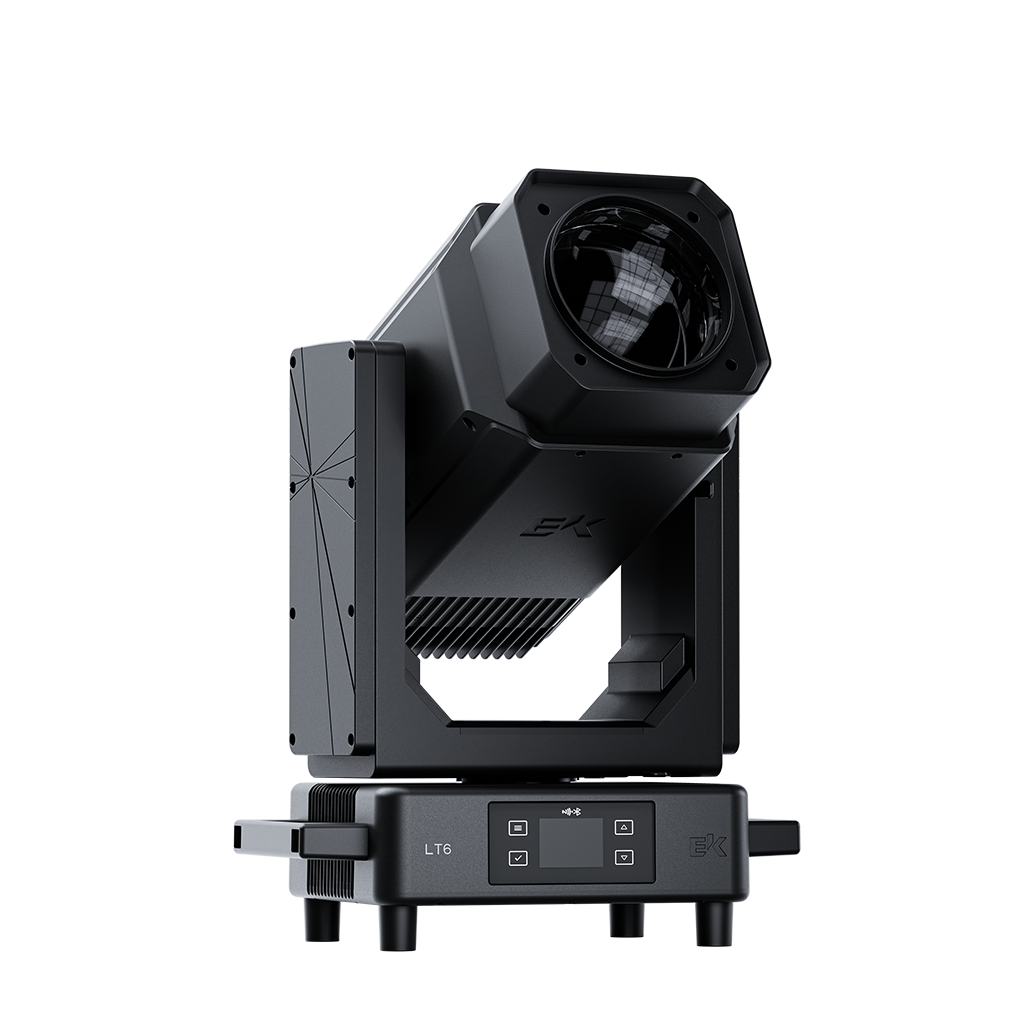

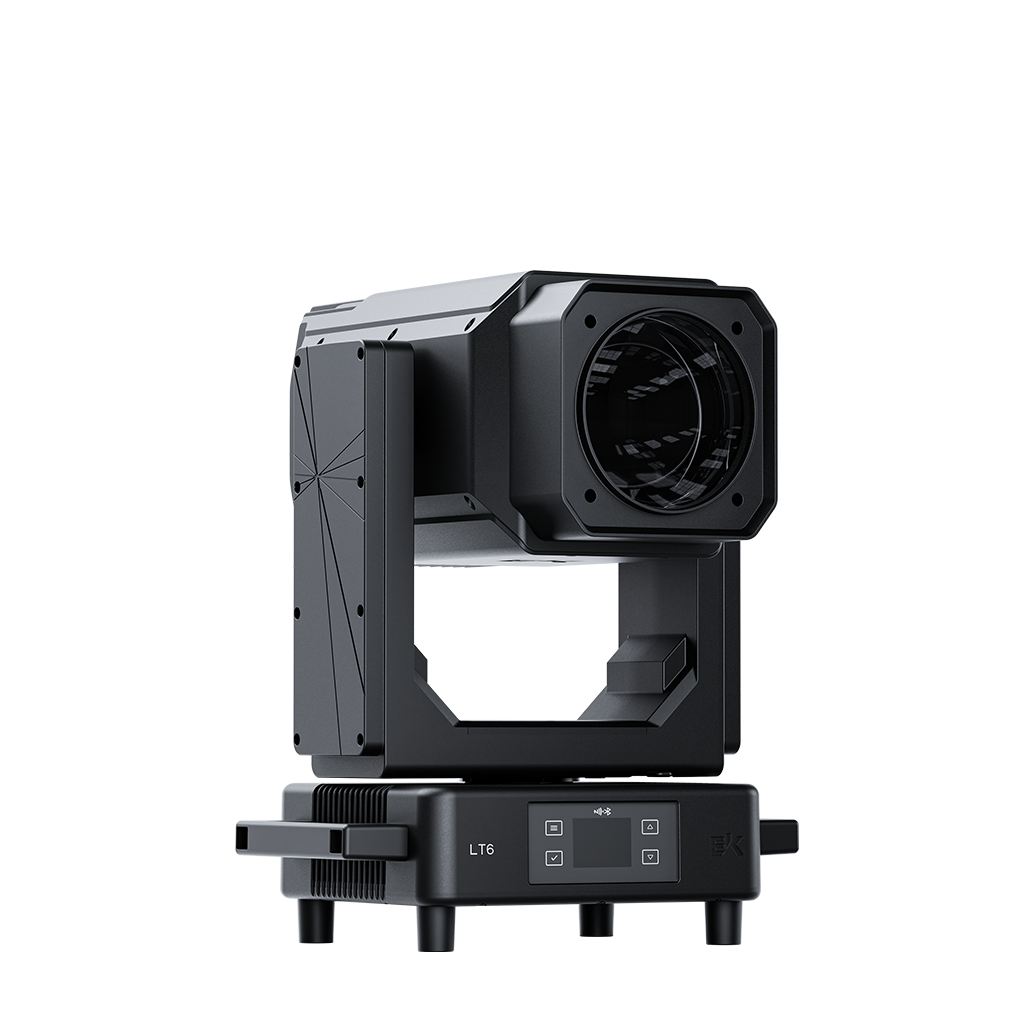

LT6

Razor sharp;

Ultra bright

Precision. Power. Perfection.
LT6 redefines expectations, packing a powerful 600W engine into an ultra-compact frame. Delivering an exceptional 28,000 lumens and a versatile 3.3°-52° zoom range, it outshines its class competitors. The advanced optical system features precise razor framing that maintains razor-sharp focus across its entire range.

600W LED

LIGHT SOURCE

Up to 28000Lm

LUMEN

6,000 – 6,200K

COLOR TEMPERATURE

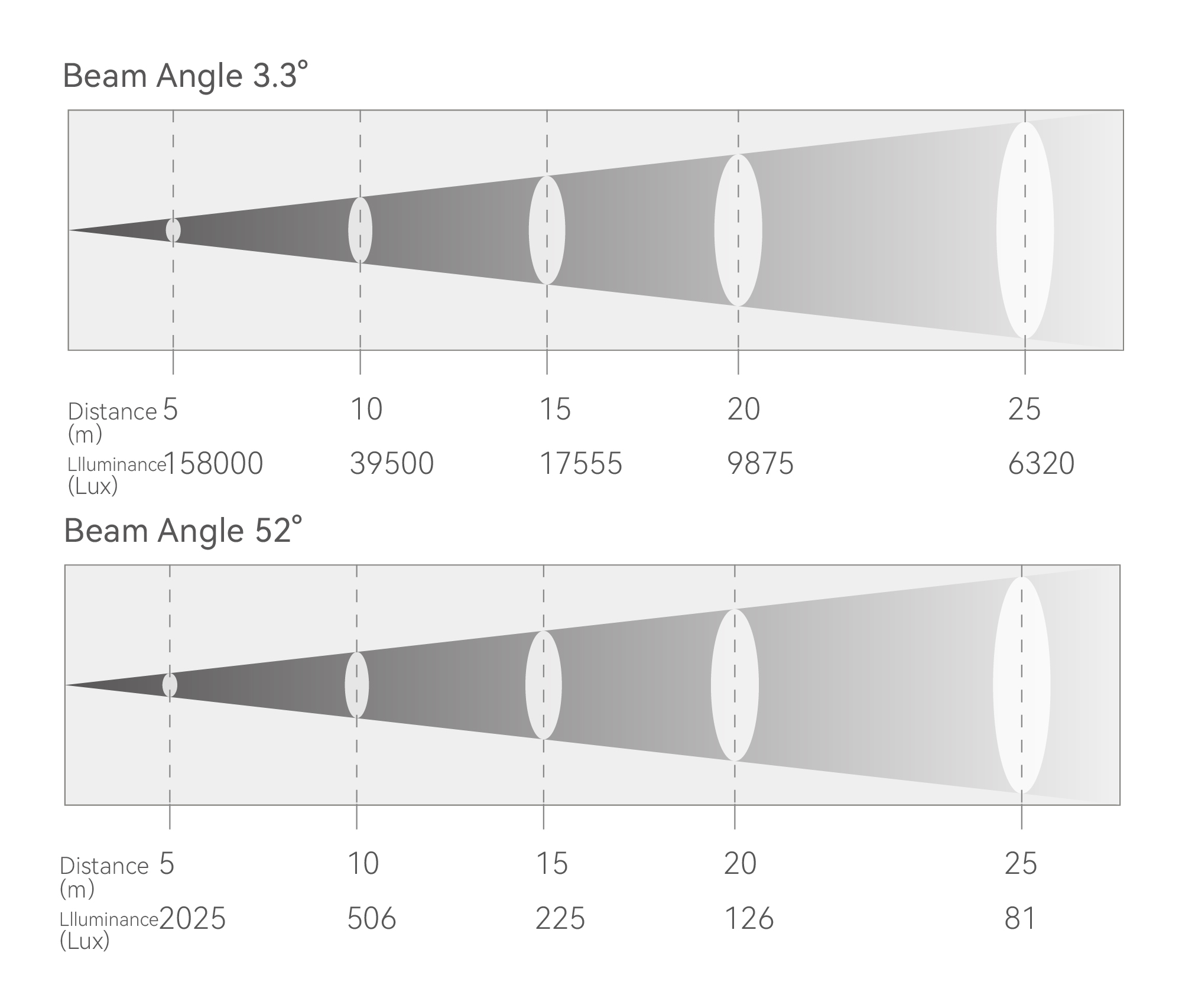

3.3° – 52°

BEAM ANGLE

29.3KG

WEIGHT

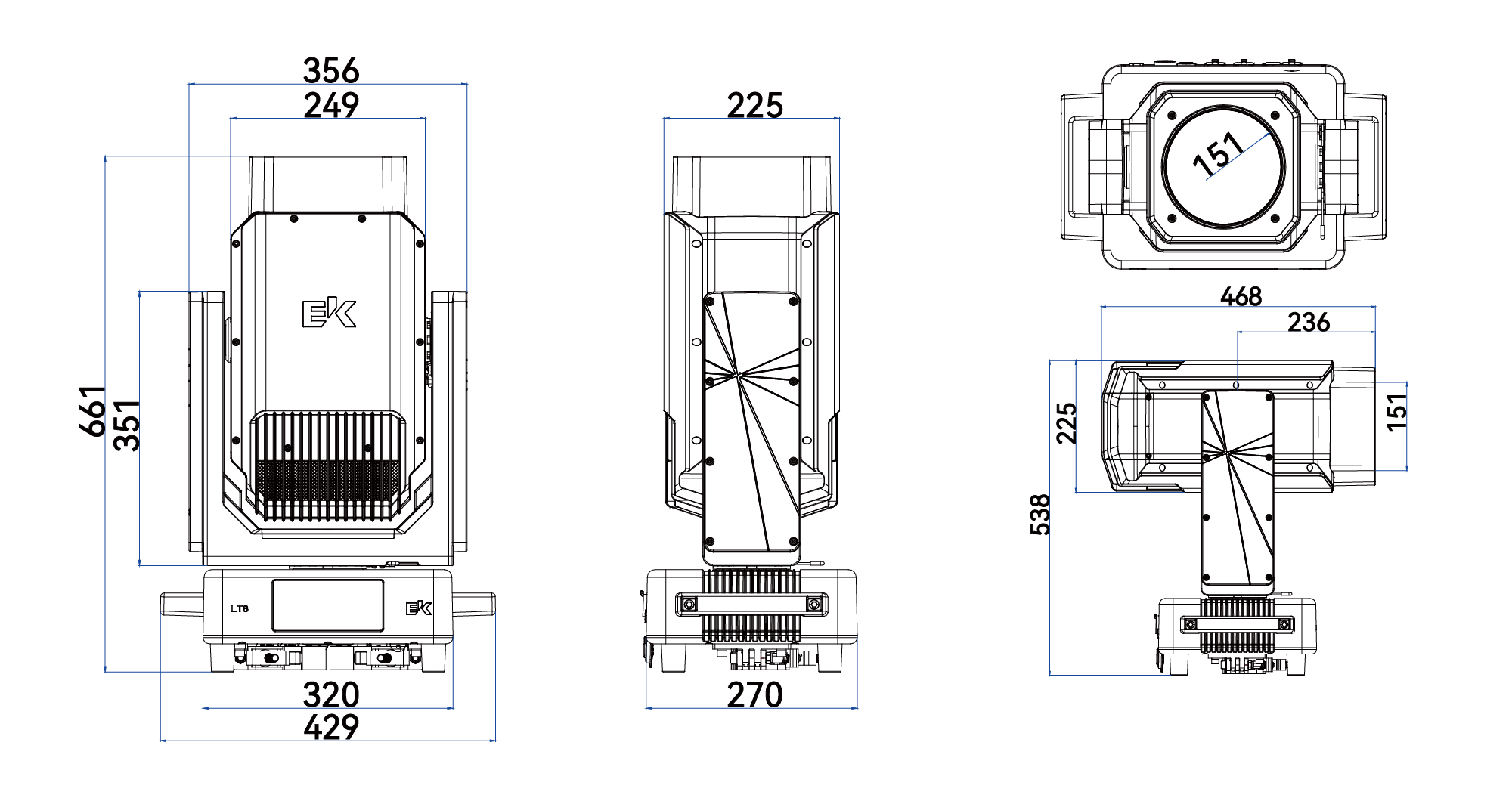

429 x 270 x 661 mm

DIMENSION

Get razor sharp precision & expression

  • Razor sharp shutter framing and clear beam projection
  • Flawless SPWM technology to reach true 22bit dimming
  • Wide zoom ranging from 3.3° – 52°: perfect for both tight beam for long throw or short throw that needs wide coverage
  • Smooth and accurate mechanical movement control
  • Compact at 29.3KG; superior weight-to-output ratio satisfies any critical considerations on size and power
  • Weather-resistant IP66 tour-grade construction
  • DMX512/RDM/sACN/Artnet/Bluetooth/APP/NFC

TECHNICAL SPECS

PHOTOMETRICS
  • Light Source

600W LED

  • Output

28,000 Lm

  • CRI

>70

  • Color Temperature

6000K – 6200K

  • LED Life

30,000hrs

  • Pan

540°

  • Tilt

270°

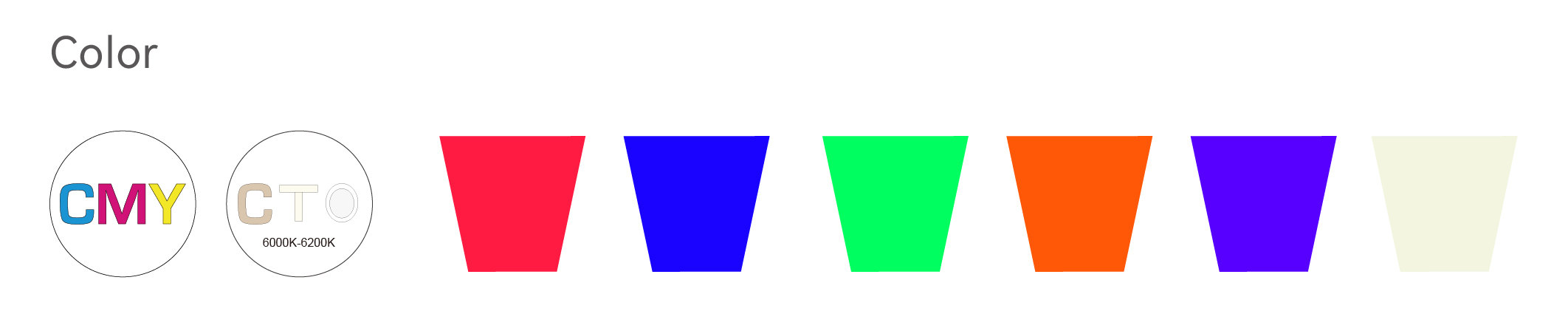

  • Color System

CW + CMY/CTO + Color Wheel (6+open)

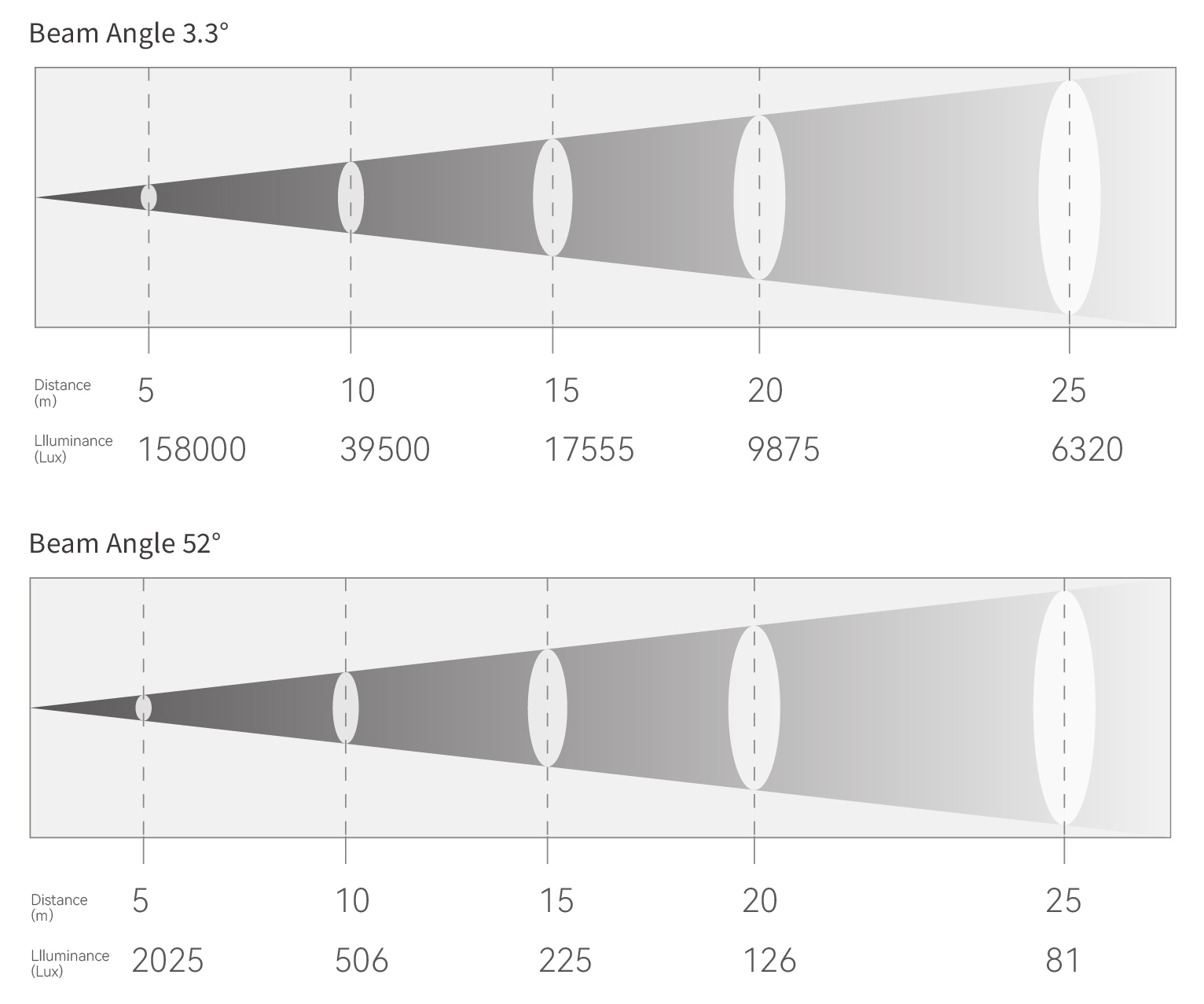

  • Beam Angle

3.3° – 52°

  • Strobe

1~30Hz

  • Dimming

Linear dimming / Square curve / Inverse square curve / S-curve dimming + 4 dimming modes / 22Bi

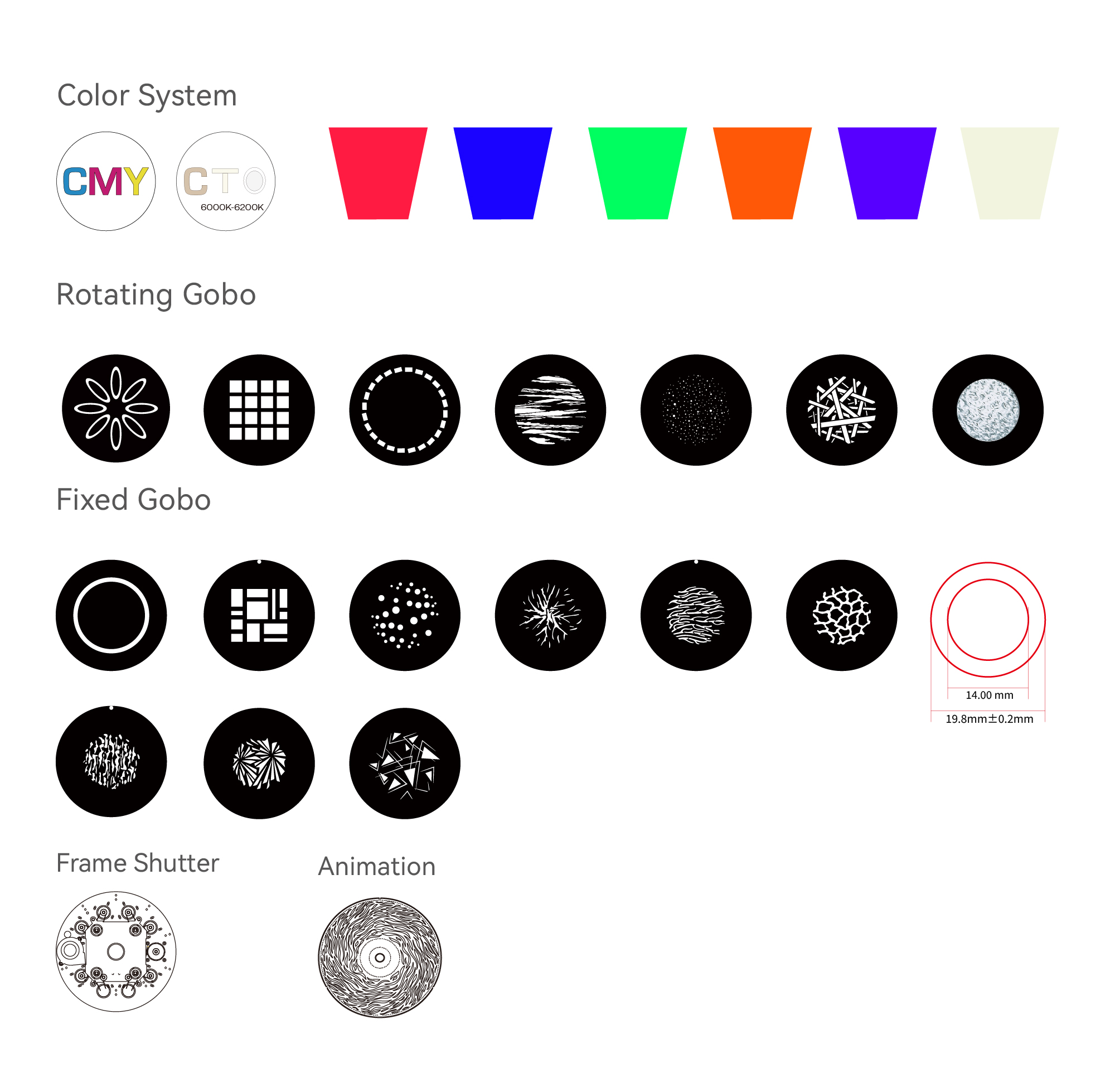

  • Gobo System

Rotating gobo wheel (7 gobos+open)
Fixed gobo wheel (9 gobos+open)

  • Animation

Animation wheel with variable speed

  • Framing System

Single blade ±35°, whole rotatable ±60°

  • Iris

15 leaves, 15 – 100% motorized linear iris

  • Frost

1°+5° 0 – 100% frost

  • Prism

Bi-directional variable-speed 4-facet + linear prism

  • Iris

NA

  • Frost

Frost glass

  • Prism

Bi-directional, combinable, 8-facet + 4-facet prism

  • Protocol

DMX512 / RDM / sACN / Artnet / Bluetooth / APP / NFC

  • DMX Channels

37CH

  • Display

2.8 inch TFT display

  • Slogan Template

Slogan Template

  • Slogan Template

Slogan Template

  • Slogan Template

Slogan Template

  • Slogan Template

Slogan Template

  • Mains

100 – 240 VAC, 50/60 Hz

  • Power Connections

Power In/Out

  • Maximum Power Connections

Linking up to 2pcs

  • Data Connections

DMX In/Out

  • Maximum Data Connections

Linking up to 32pcs

  • Consumption

800W / 230V

  • Power Factor

0.98 / 230V

  • Ambient

-10°C – 45°C

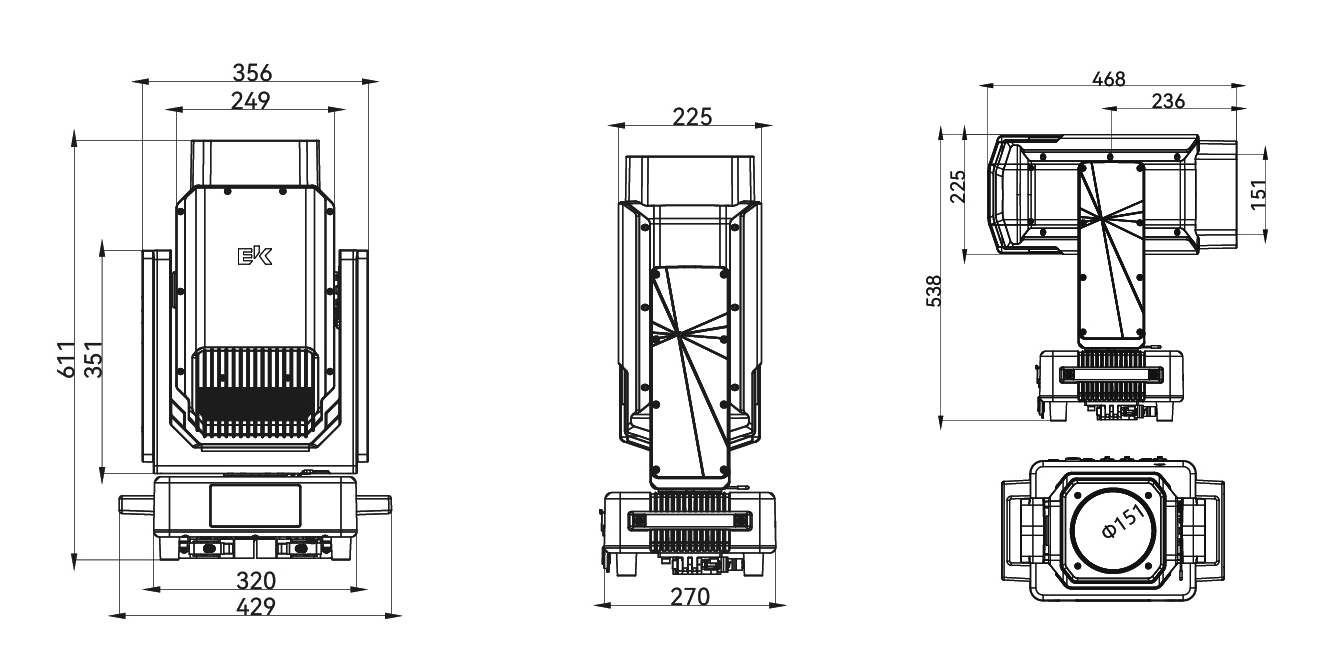

  • Dimension

429 x 270 x 661 mm

  • Weight

29.3kg

  • Cooling

Heat pipe and low noise IP fan

  • IP Rating

IP66

  • Slogan Template

Slogan Template

  • Standard

Omega bracket, power cable
