MC5
Full Spectrum,
Truer-to-life output
Perfect color meets perfect silence
MC5’s revolutionary 6-color engine achieves near-perfect color reproduction with unprecedented CRI≥97 ratings. Its meticulously selected primaries deliver both saturated hues and true-to-life tones, while whisper-quiet operation and efficient power consumption make it the ultimate choice for demanding theatrical applications.
With groundbreaking optics
500W 6-color LED engine
LIGHT SOURCE
12000
LUMENS
1800 – 10000k
COLOR TEMPERATURE
4° – 60°
ZOOM
27KG
WEIGHT
418 x 650 x 288 mm
DIMENSION
Experience the hexaverse
- 500W 6-color LED engine
- Up to 12000 lumen output
- Wider choice of color and exquisite color rendition（CRI≥97, R9≥97 TM-30-
15rg/100/94, TLCI>95） - Motorized linear focus and dual rotating gobo wheel allow for more possibilities dynamic effects
- 0~100% linear frost
Features
Deliver perfect mixed color in an accurate way
- At wide zoom, it’s very washy and works great for color fills.
- At narrow zoom, it becomes a beam effect while still retaining perfectly
consistent color mixing.
Built for professionals
- DMX512 / RDM / sACN / Artnet / Bluetooth / APP / NFC
Technical specs
Photometrics
- Light Source
500W Full Spectrum LED module
- Output
12,000 Lm
- Luminious Flux
NA
- CRI
CRI≥97
R9≥97
- Color Temperature
1800K – 10000K
- LED Life
30,000 hours
KEY FEATURES
- PAN
540°(absolute positioning)
- TILT
270°(absolute positioning)
- Color System
R、G、B、C、A、M mixing+color wheel(5+open)
- Pixel Matrix
NA

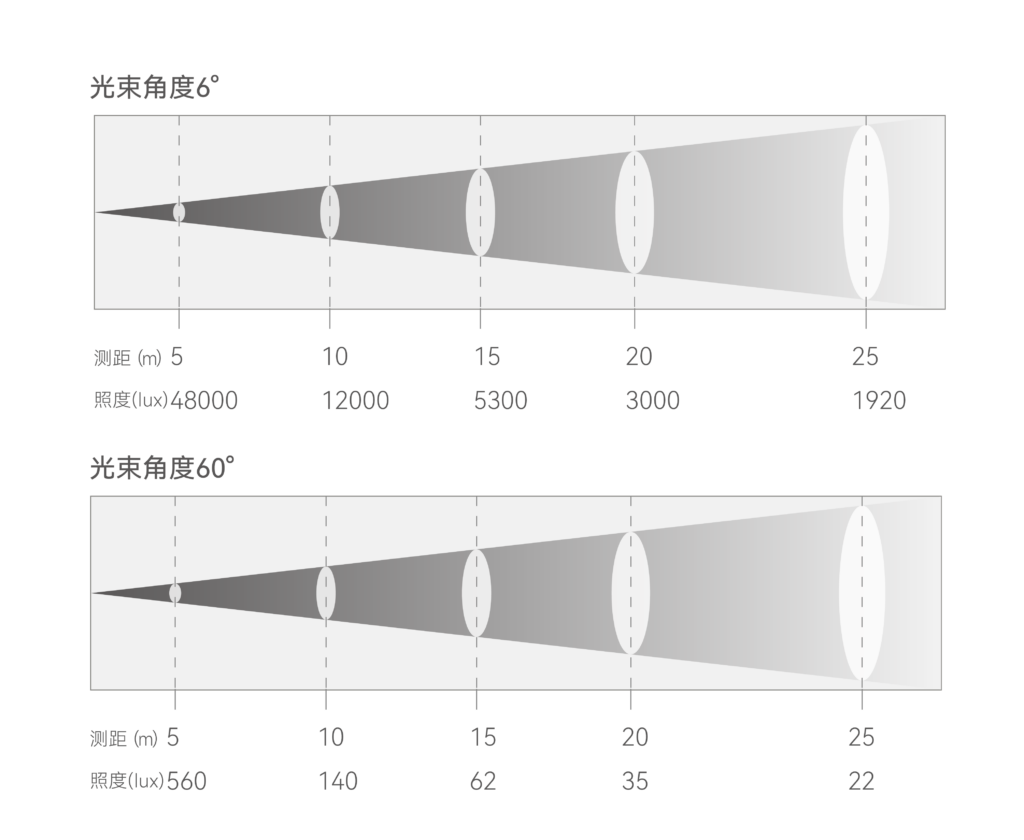

- Zoom
Beam angle 4.4° – 52°
- Strobe
1 – 30Hz
- Dimming
Linear/Square/In-verse square/S-curve+4 dimming mode(22bit)
- Gobo System
2 Rotating gobo wheels(7 gobos+ open)
- Animation
Animation wheel with variable speed
- Framing System
single blade±35°，complete framing system rotatable ±60°
- Iris
NA
- Frost
1°+5° linear 0% – 100% frost
- Prism
Indexable 4 facet prism+4 linear prism with variable speed
CONTROL
- Protocol
DMX512/RDM/sACN/Artnet/Bluetooth/APP/NFC
- DMX Channel
50CH/42CH/44CH/60CH
- Data Connections
3pin (or 5pin) XLR In/Out, linking up to 32pcs
- Display
240RGB*320 2.8 inch TFT display
- Frequency
NA
- Built-in Programs
NA
- Pixel Control
NA
POWER
- Mains
100 – 240 VAC, 50/60 Hz
- Power Connections
TrueCon In/Out in/out,linking up 2pcs
- Maximum Power Connections
NA
- Data Connections
DMX In/Out
- Maximum Data Connections
NA
- Consumption
800W / 230V
- Power Factor
0.95 / 230V
- Ambient
-10°C – 45°C
PHYSICAL

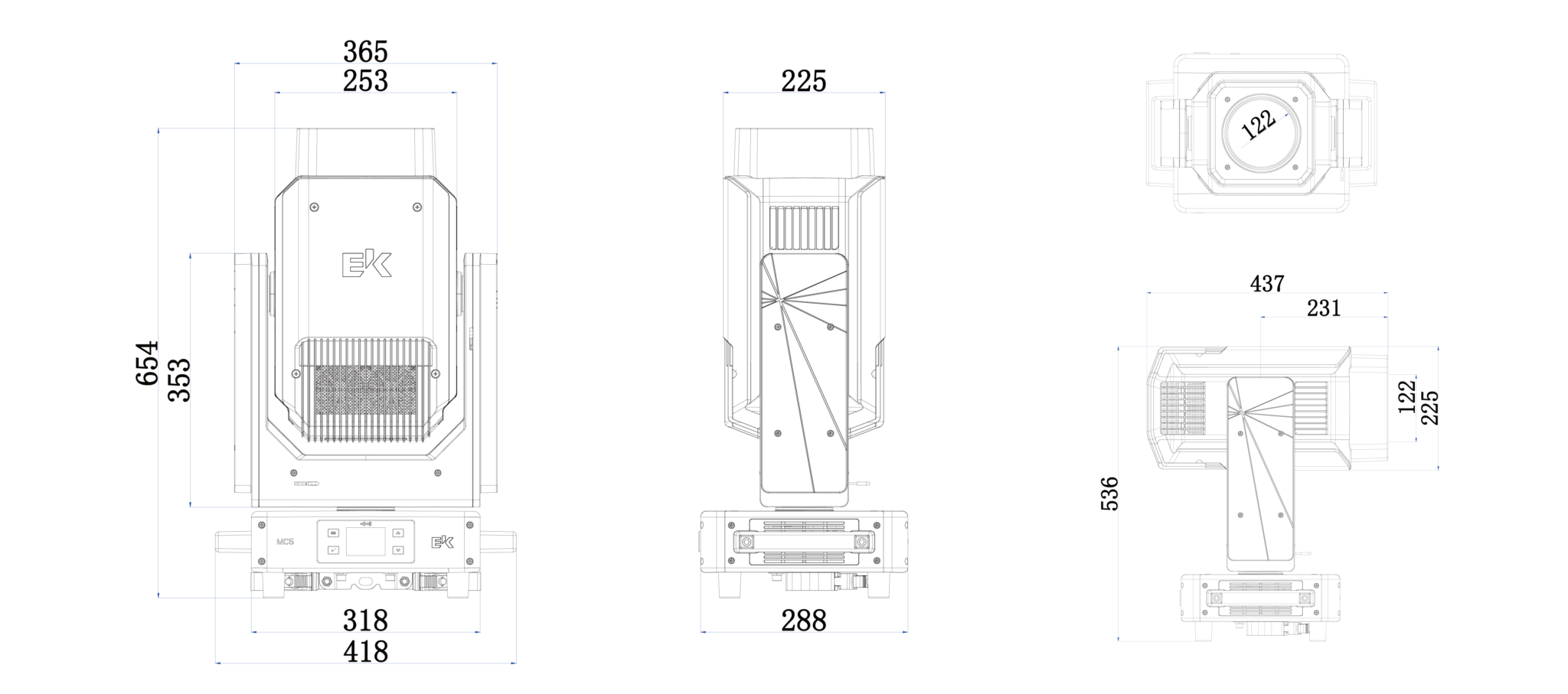

- Dimension
418*650*288mm(Foldable-Clamp)
- Weight
27kg
- IP Rating
IP20
- Cooling
Heat pipe cooling system with low noise fan
- Housing
NA
- Installation
Sit-flat floor mounting, side hanging and flown mounting

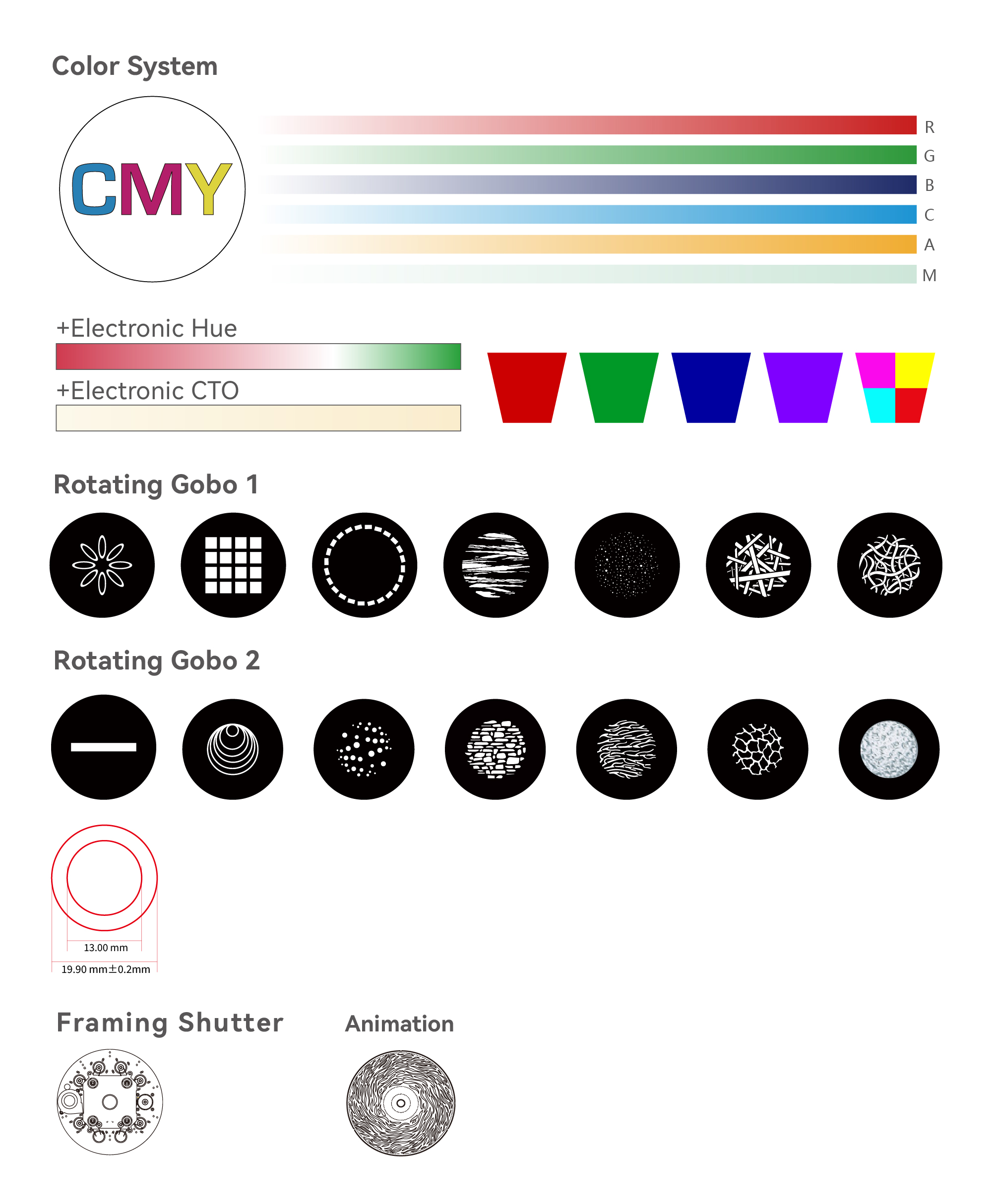

PRODUCT EFFECTS
ACCESSORIES
- Standard
Omega bracket, power cable
