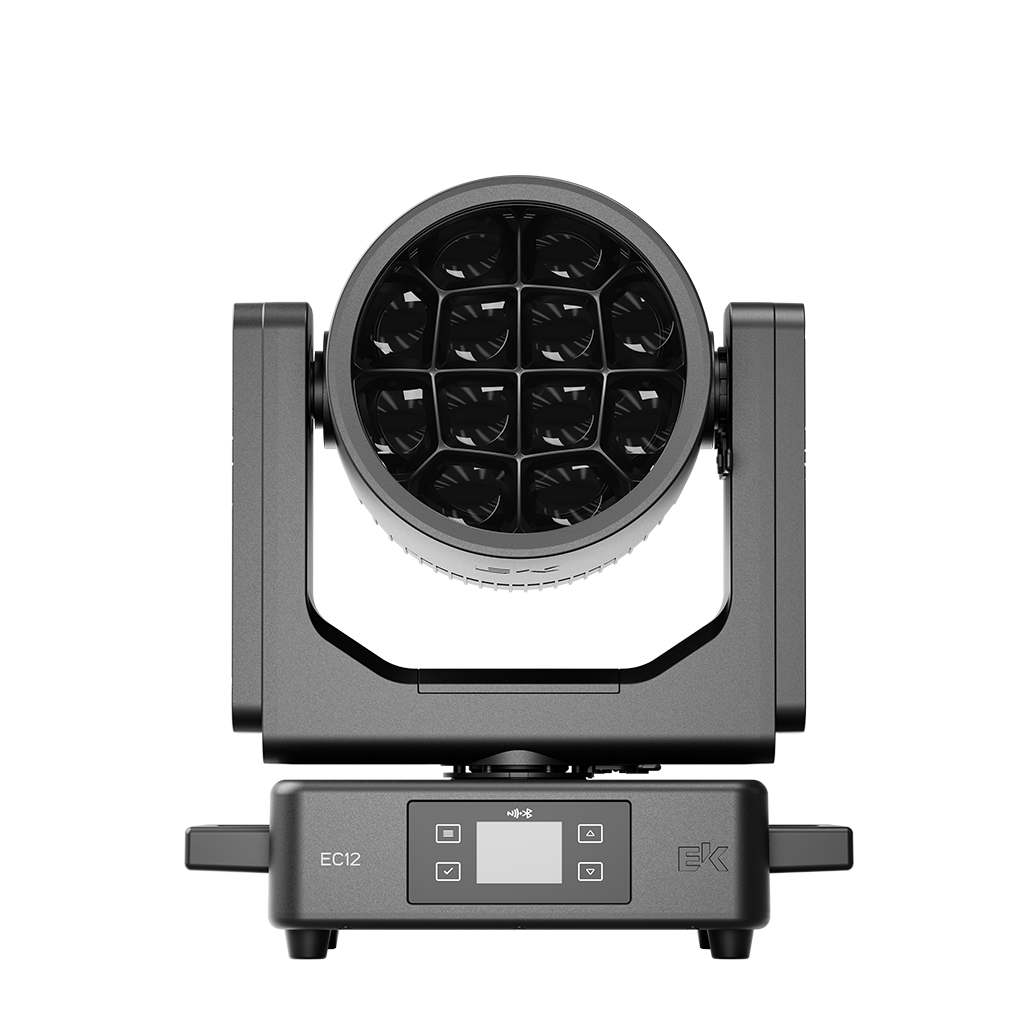

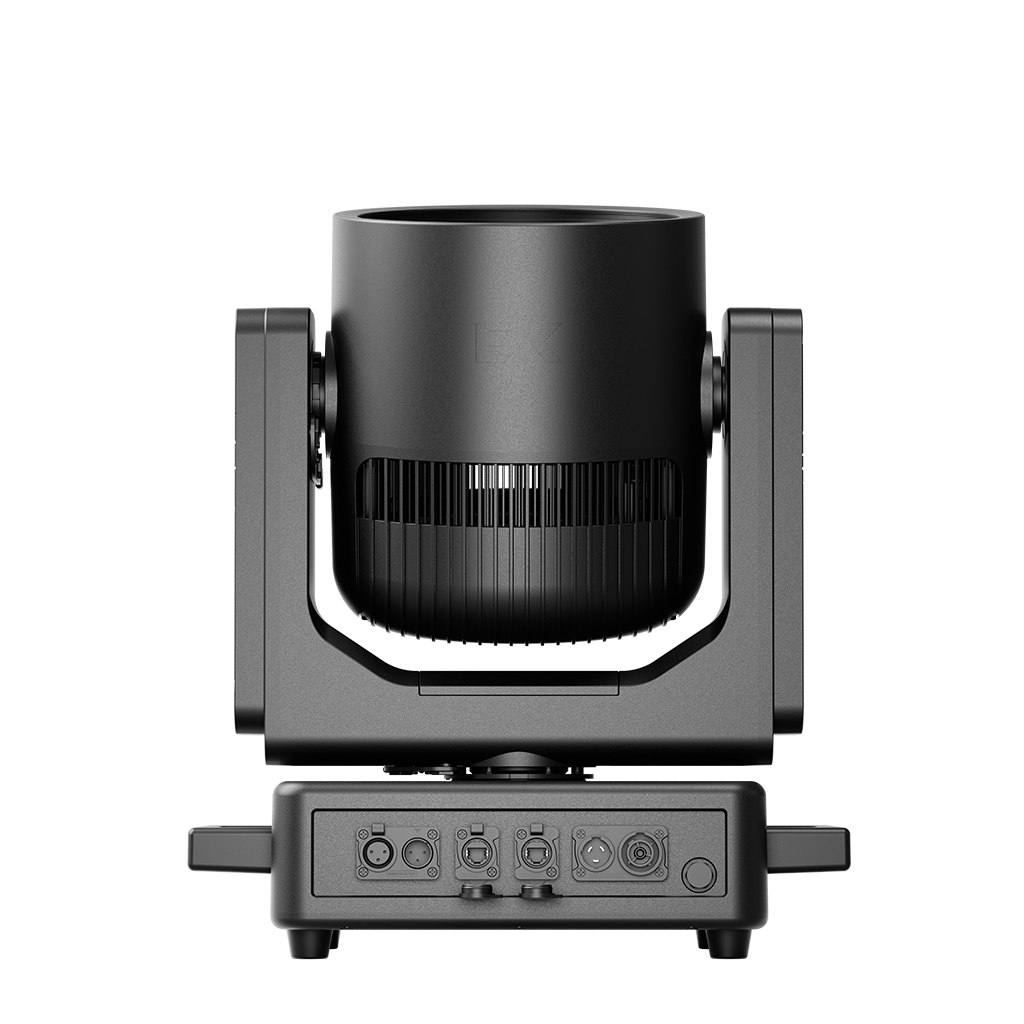

EC12
Built stronger;
Last longer
Engineered for the extreme
Setting new benchmarks in environmental resilience, EC12 thrives where others fail. Its groundbreaking IP-EK technology surpasses industry IP66 standards, conquering extreme conditions from coastal salinity to desert dust. Inside its weatherproof shell, cutting-edge RGB+WW optics deliver class-leading output and pristine color reproduction for any application.
12*50W RGBWW LED
LIGHT SOURCE
Up to 11,100Lm
LUMEN
2,800 – 10,000K
COLOR TEMPERATURE
3.8° – 48°
BEAM ANGLE
20KG
WEIGHT
429 x 277 x 492mm
DIMENSION
Flicker-free,
color-rich optics
- Complete spectrum: Saturated primary colors offer a wider range of color choices
- Excellent color rendering: High CRI >93
- Perfect 22-bit dimming
- Flicker-free output suitable for any camera
- 3.8° – 48° variable zoom range
- Two pan / tilt speed modes: normal or fast
- Weather-resistant IP66 tour-grade construction
- DMX512/RDM/sACN/Artnet/Bluetooth/APP/NFC
TECHNICAL SPECS
PHOTOMETRICS
- Light Source
12*50W RGBWW LED
- Output
>11,000 Lm
- CRI
>93
- Color Temperature
2800K – 10000K
- LED Life
30,000hrs

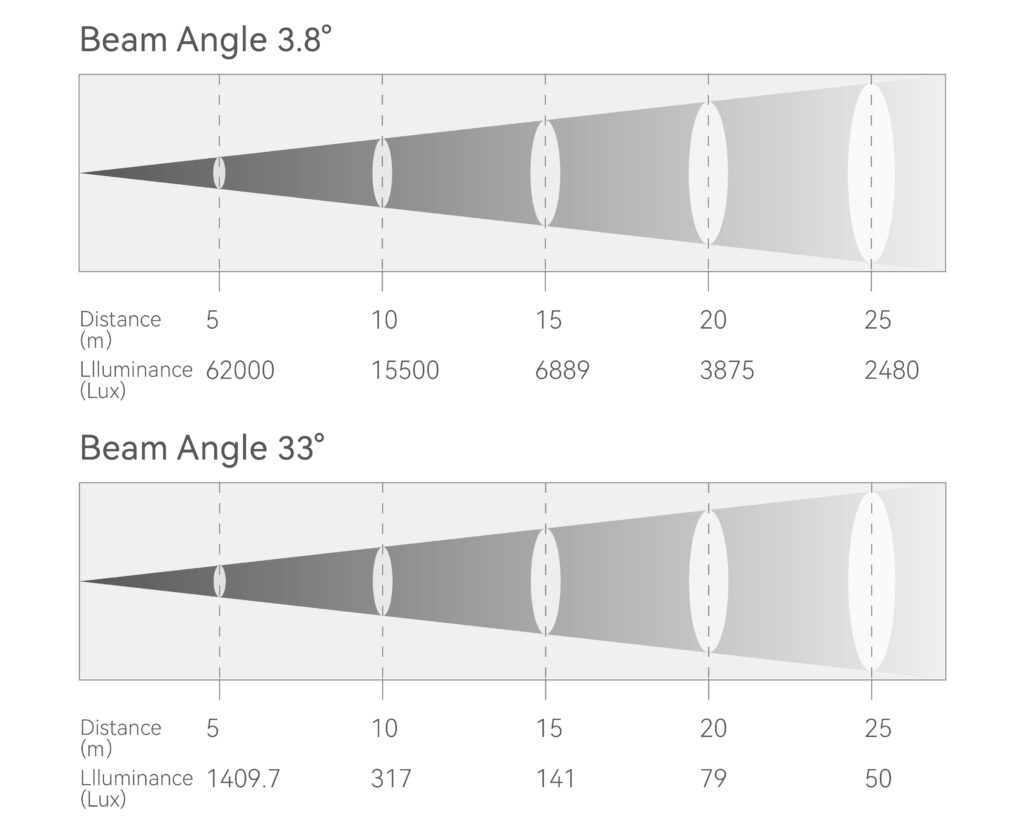

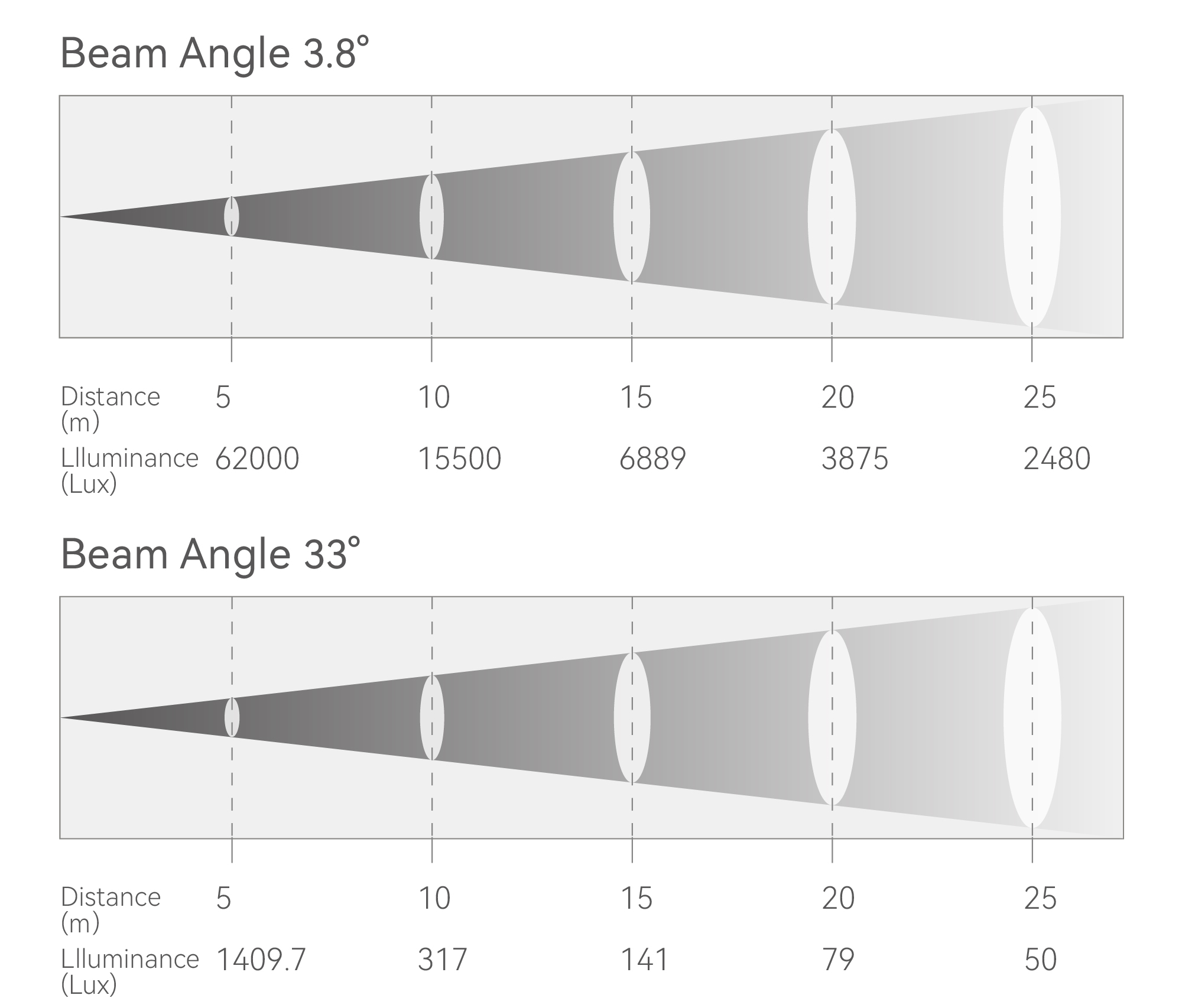

- Beam Angle
3.8°~48°
KEY FEATURES
- Pan
540°
- Tilt
270°

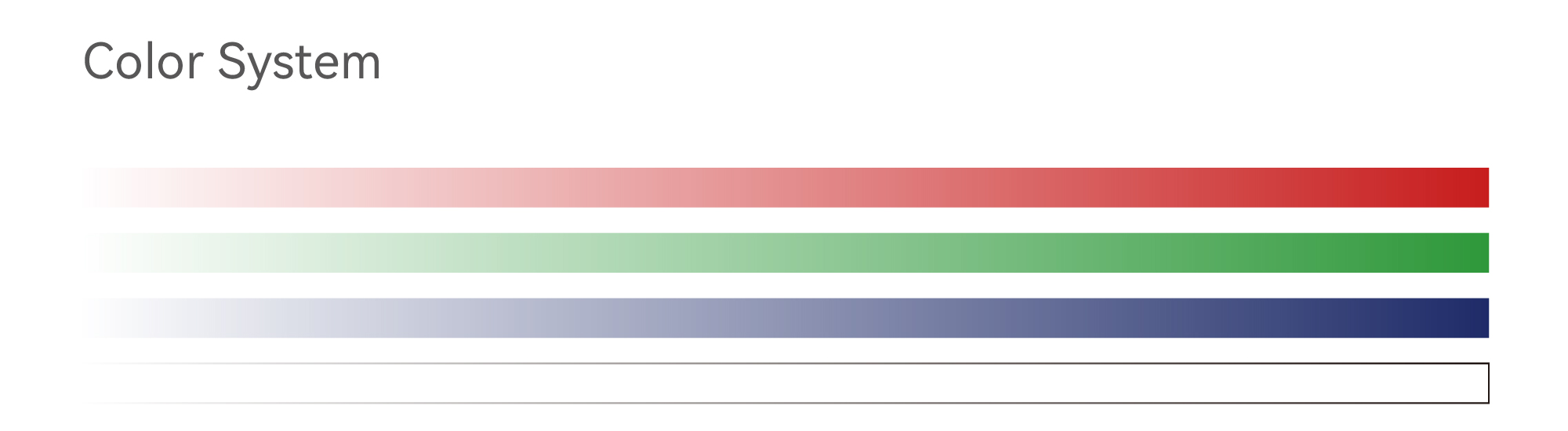

- Color System
RGBWW
- Strobe
1~30Hz
- Dimming
0 – 100% Linear dimming, 4 dimming curves, 22-bit
- Slogan Template
Slogan Template
- Framing System
Single blade ±35°, rotatable 180°
- Iris
NA
- Frost
Frost glass
- Prism
Bi-directional, combinable, 8-facet + 4-facet prism
CONTROL
- Protocol
DMX512 / RDM / sACN / Artnet / Bluetooth / APP / NFC
- Data Connections
3pin or 5 pin DMX In/Out
- DMX Channels
16CH / 34CH / 31CH / 60CH / 82CH
- Display
2.8 inch TFT display
- Frequency
600Hz / 1.2KHz / 2KHz / 4KHz / 6KHz / 25KHz
- Built-in Programs
Yes
- Pixel Control
Single control
- Slogan Template
Slogan Template
POWER
- Mains
100 – 240 VAC, 50/60 Hz
- Power Connections
PowerCon In/Out
- Maximum Power Connections
Linking up to 3pcs
- Data Connections
DMX In/Out
- Maximum Data Connections
Linking up to 32pcs
- Consumption
230V/750W
- Power Factor
0.98/230V
- Ambient
-10°C – 45°C
- Slogan Template
Slogan Template
- Slogan Template
-20°C – 45°C
PHYSICAL

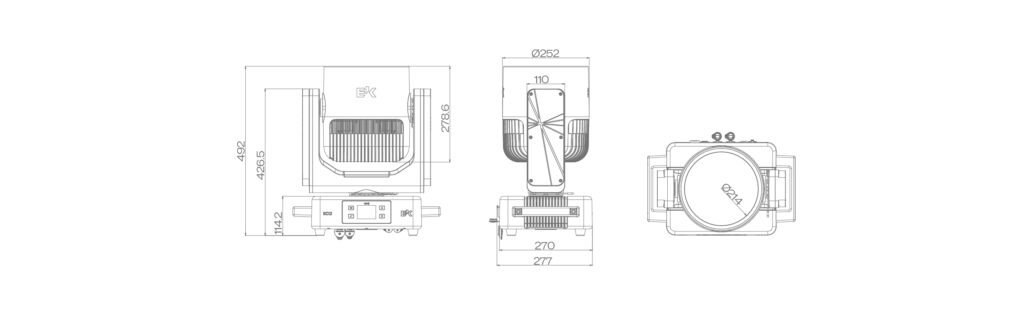

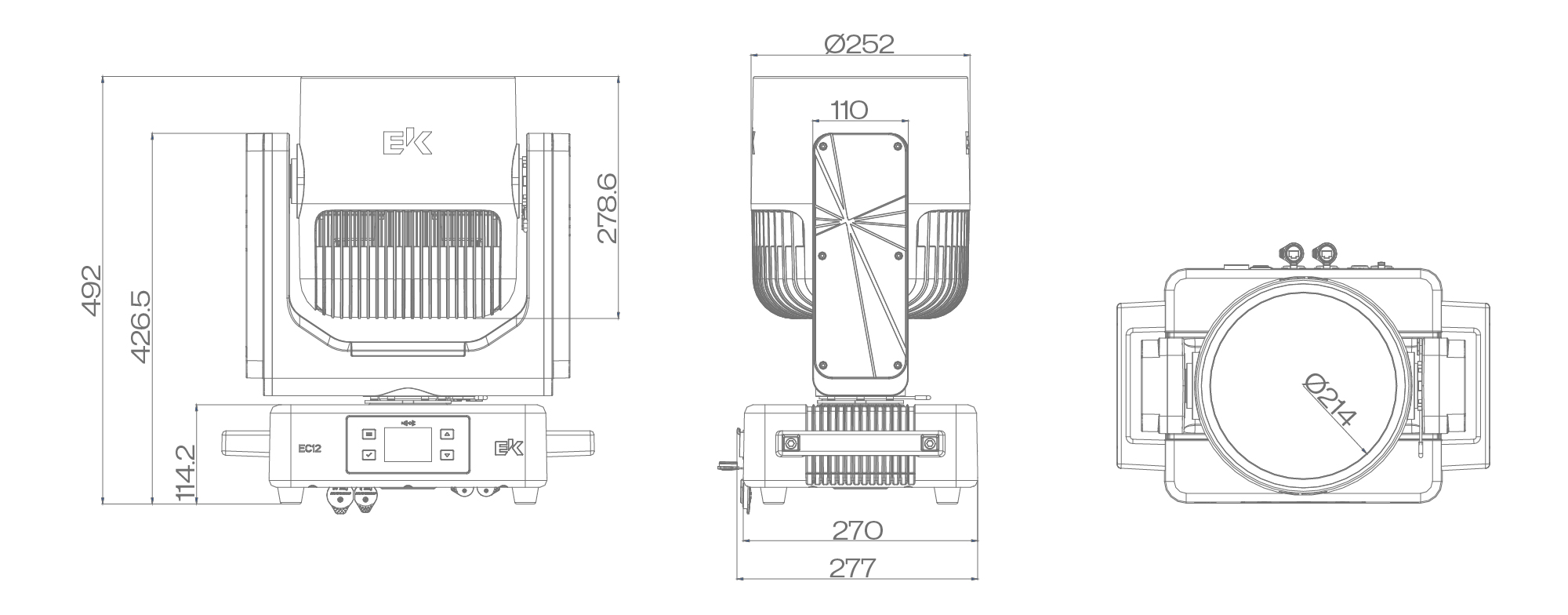

- Dimension
429 x 277 x 492mm
- Weight
20kg
- Cooling
Aluminum alloy heat sink with low noise fan
- IP Rating
IP66
- Housing
Magnesium alloy, matte black finish
- Installation
Sit-flat floor mounting, side hanging and flown mounting
PRODUCT EFFECTS
ACCESSORIES
- Slogan Template
Omega bracket, power cable
