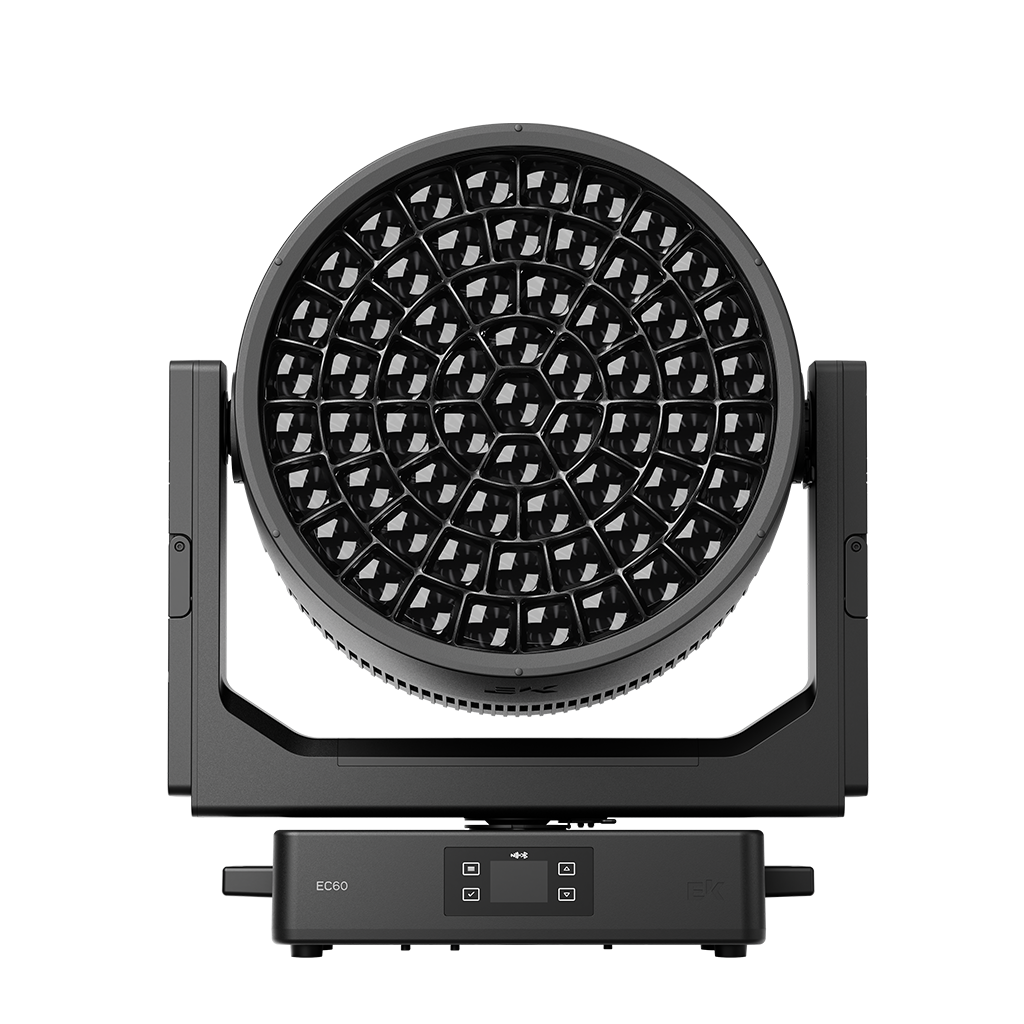

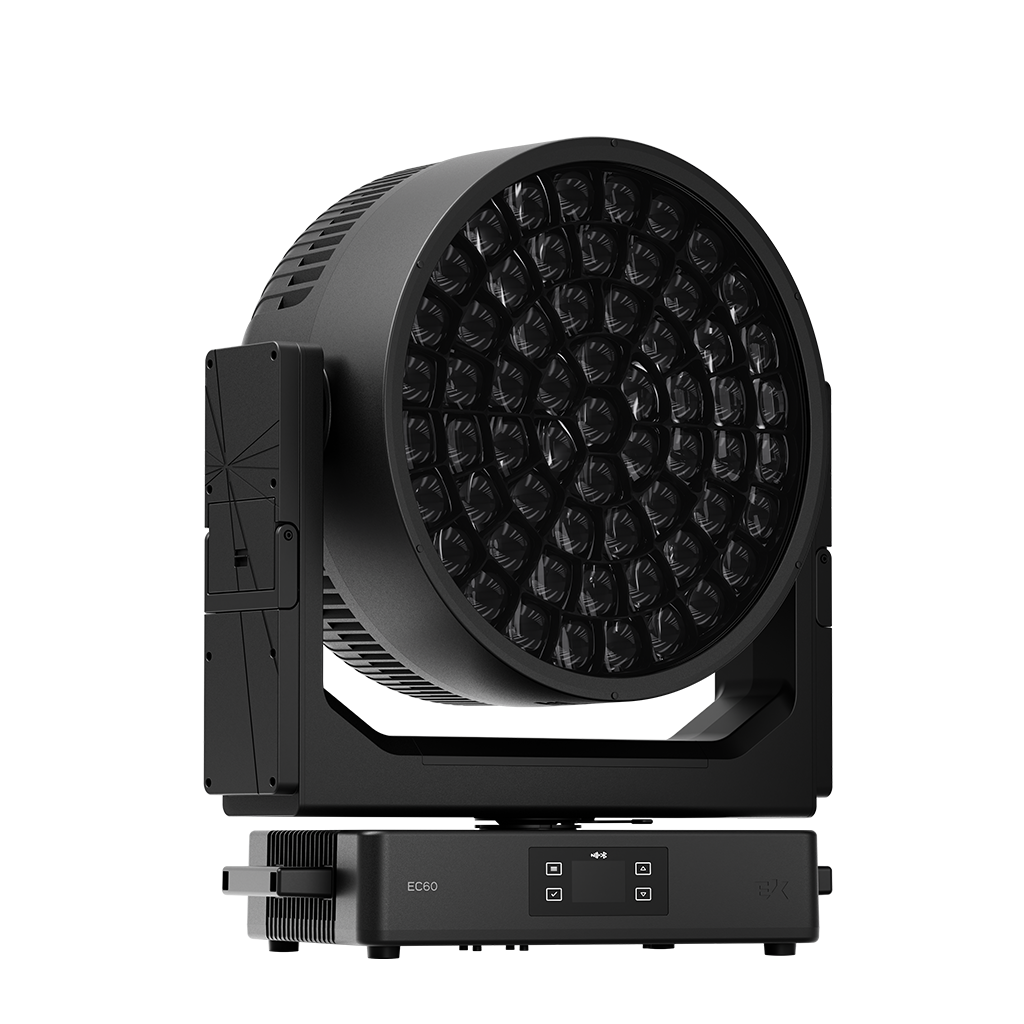

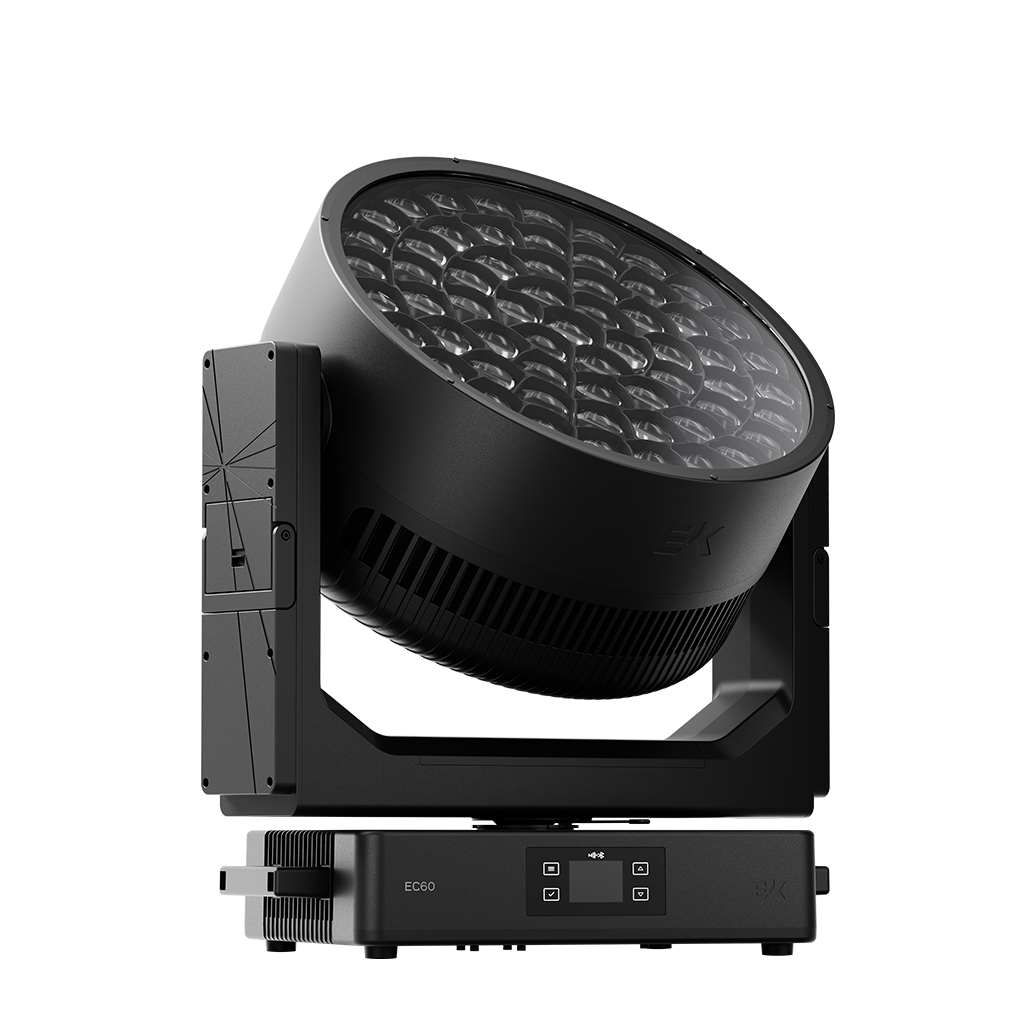

EC60

Epic power meets epic color

The power to transform the sky
At a staggering 51,000 lumens, EC60 dominates large-scale productions with unprecedented power. Its advanced RGB+WW system marries intense output with precise color control, offering both deeply saturated hues and high CRI white light. From stadium concerts to broadcast environments, EC60 sets a new standard in professional illumination.

61*50W RGBWW LED

LIGHT SOURCE

51,000Lm

LUMEN

2,800 – 10,000K

COLOR TEMPERATURE

3.8° – 50°

BEAM ANGLE

59.8 KG

WEIGHT

679 x 398 x 681mm

DIMENSION

Command the world’s largest stages

  • Complete spectrum: Saturated primary colors offer a wider range of color choices
  • Excellent color rendering: High CRI >93
  • Perfect 22-bit dimming
  • Flicker-free output suitable for any camera
  • 3.8° – 50° variable zoom range
  • Two pan / tilt speed modes: normal or fast
  • Weather-resistant IP66 tour-grade construction
  • DMX512/RDM/sACN/Artnet/Bluetooth/APP/NFC

TECHNICAL SPECS

PHOTOMETRICS
  • Light Source

61*50W RGBWW LED

  • Output

51,000 Lm

  • CRI

>93

  • Color Temperature

2800K – 10000K

  • LED Life

30,000 hours

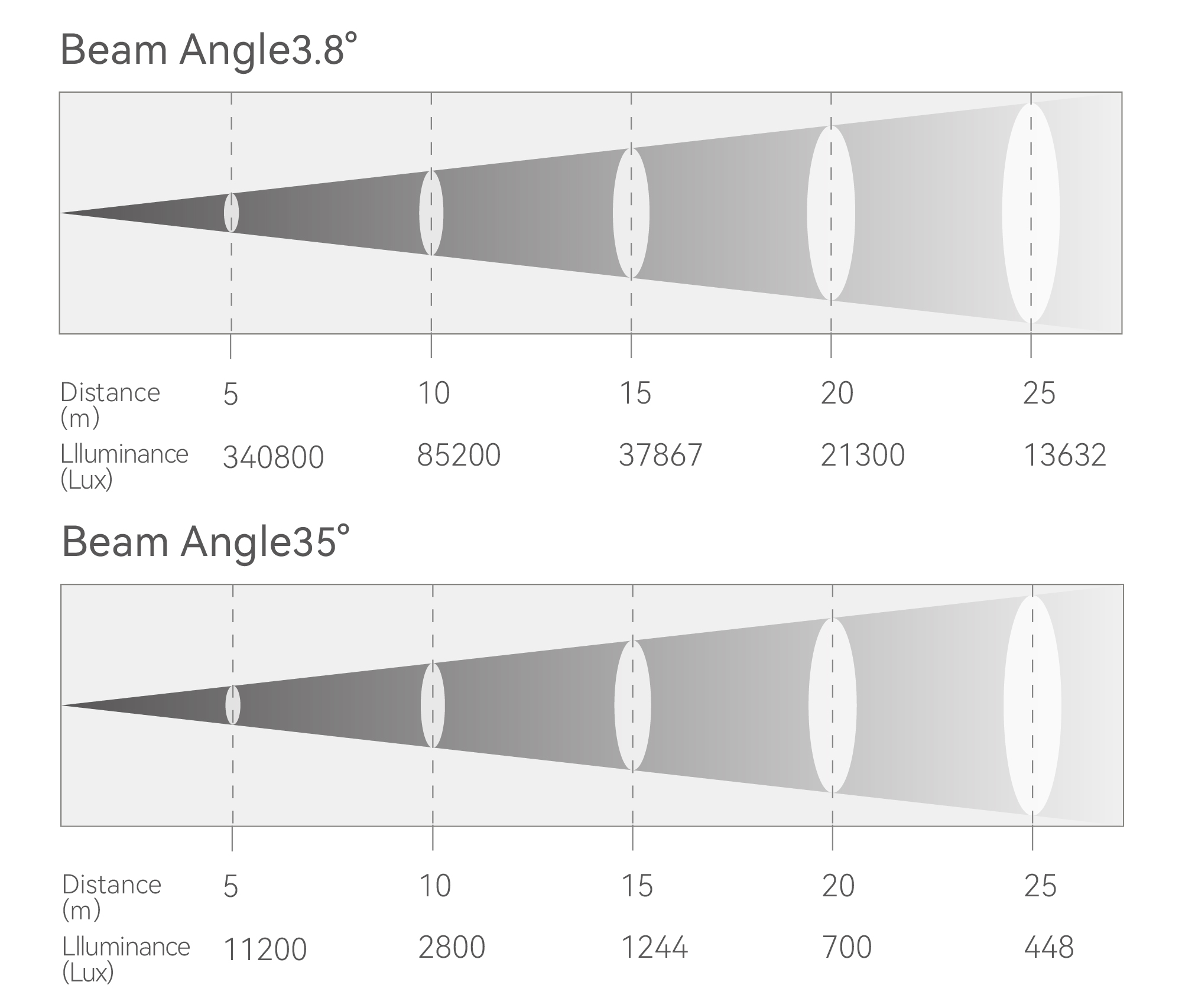

  • Beam Angle

3.8° – 50°

  • Pan

540°

  • Tilt

210°

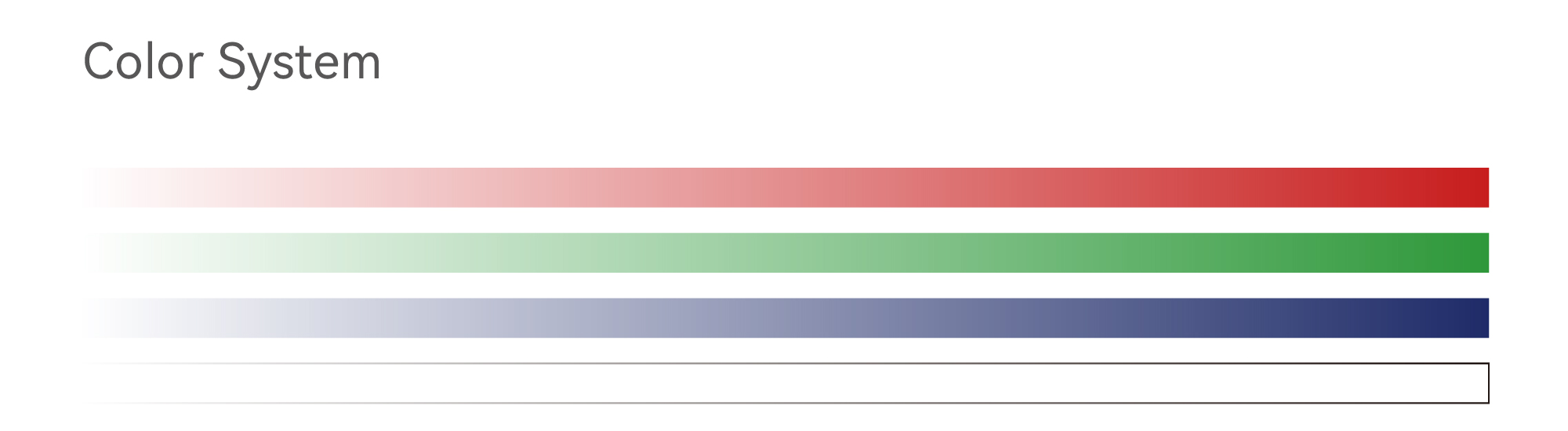

  • Color System

RGBWW

  • Strobe

1~30Hz

  • Dimming

0-100% Linear dimming, 4 dimming curves, 22bit resolution

  • Slogan Template

Slogan Template

  • Framing System

Single blade ±35°, rotatable 180°

  • Iris

NA

  • Frost

Frost glass

  • Prism

Bi-directional, combinable, 8-facet + 4-facet prism

  • Protocol

DMX512 / RDM / sACN / Artnet / Bluetooth / APP / NFC

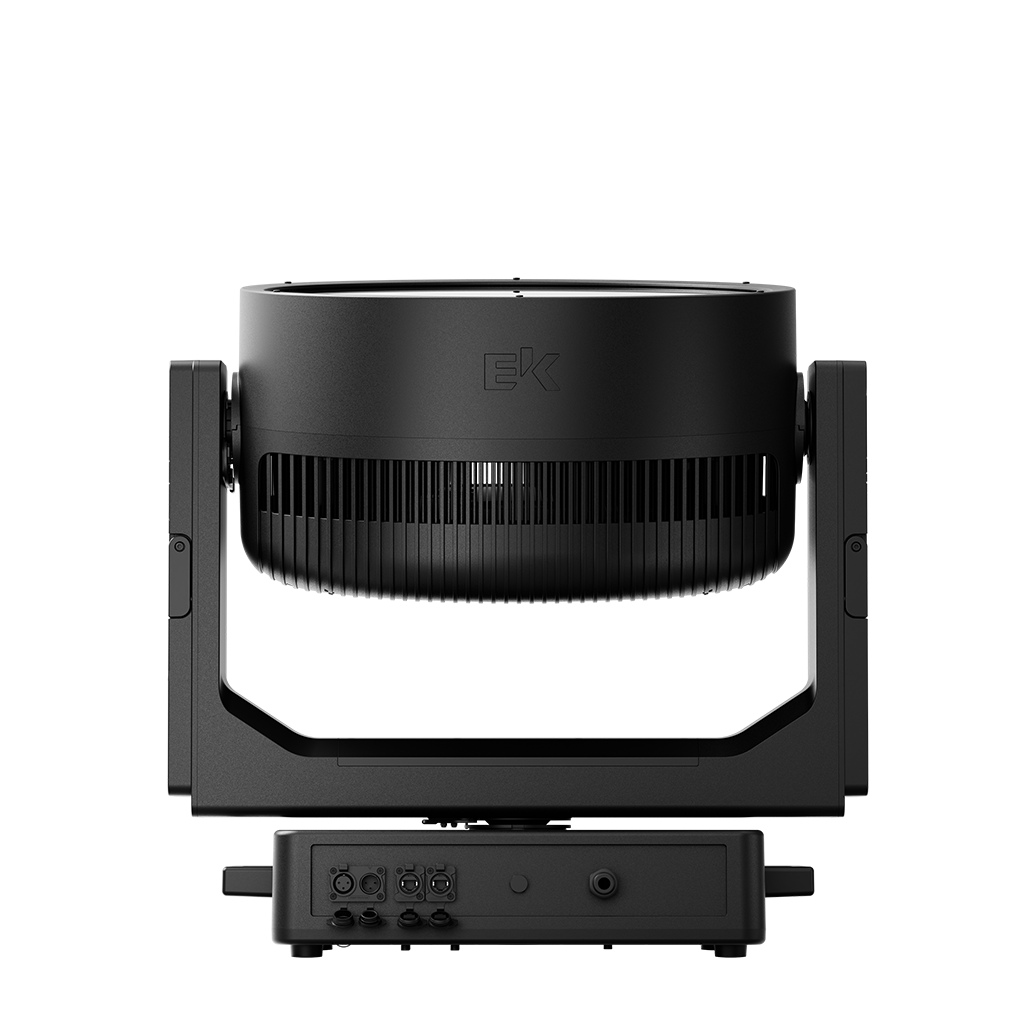

  • Data Connections

DMX In/Out

  • DMX Channel

16CH / 31CH / 34CH / 256CH / 278CH

  • Display

240RGB*320 2.8 inch TFT display

  • Frequency

600Hz / 1.2KHz / 2KHz / 4KHz / 6KHz / 25KHz

  • Built-in Programs

Yes

  • Pixel Control

Single control

  • Slogan Template

Slogan Template

  • Mains

100 – 240 V, 50 Hz

  • Power Connections

Direct 1.5m cable without power plug

  • Maximum Power Connections

Linking up to 1pcs only

  • Data Connections

Seetronic XLR 3p IN/OUT connectors

  • Maximum Data Connections

Linking up to 32pcs

  • Consumption

230V @ 3,400W

  • Power Factor

0.95/230V

  • Ambient

-10℃~45℃

  • Slogan Template

Slogan Template

  • Slogan Template

-20°C – 45°C

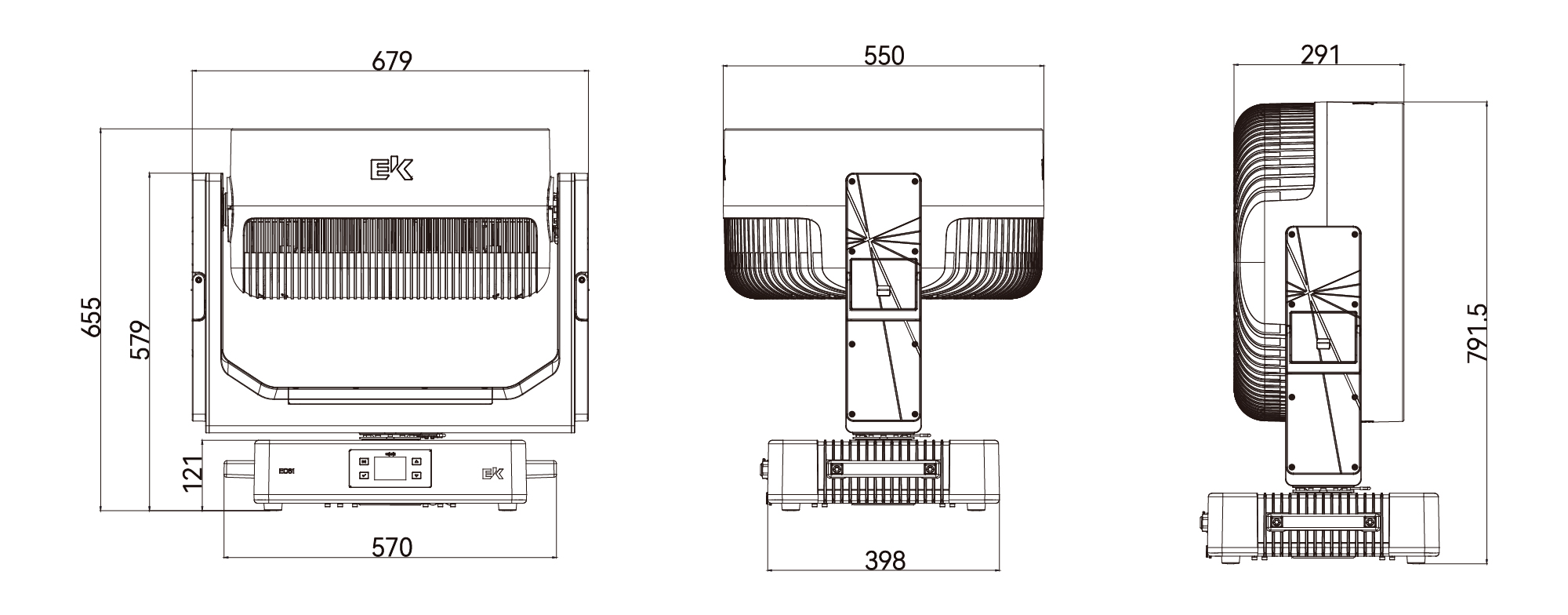

  • Dimension

679 x 398 x 681mm(Intergated-Foldable-Clamp)

  • Weight

59.8kg

  • IP Rating

IP66

  • Cooling

Aluminum alloy heat sink with fan

  • Housing

Magnesium alloy, matte black finish

  • Installation

Sit-flat floor mounting,side hanging and flown mounting

  • Standard

Omega bracket, power cable
