K SMART S
Frame with Precision;
project with Power
The brightest fixture in its class
A compact LED moving profile, the K Smart combines exceptional power with precision, delivering 20,300 lumens from its 600W LED engine. It features razor-sharp framing with perfect distortion control for imaging accuracy. With a comprehensive effects package including CMY color mixing, rotating gobos, animation wheel, and 4-facet prism, it creates rich, dynamic visual displays.
600W 6000K LED engine
LIGHT SOURCE
20,300
LUMEN
3200K- 6000K
COLOR TEMPERATURE
6°- 50°
ZOOM RANGE
24KG
WEIGHT
355 x 257 x 593 mm
DIMENSION
Exquisite color; endless possibilities
- Razor sharp framing and elegant gobo shaping
- Extremely even spot with flawless color consistency from centre to edge
- Linear CMY + color wheel + CTO for vibrant color mixing
High CRI≥90 (with CRI enhancement filter) - Animation wheel, dual frost
- Bi-directional 4-facet prism with variable speed
- 16-bit dimming with flawless SPWM control
- DMX and RDM control
TECHNICAL SPECS
PHOTOMETRICS
- Light Source
600W 6000K LED
- Output
20300lm
- CRI
Up t o 90 (with CRI enhancement filter)
- Color Temperature
3200K- 6400K
- LED Life
30,000 hours

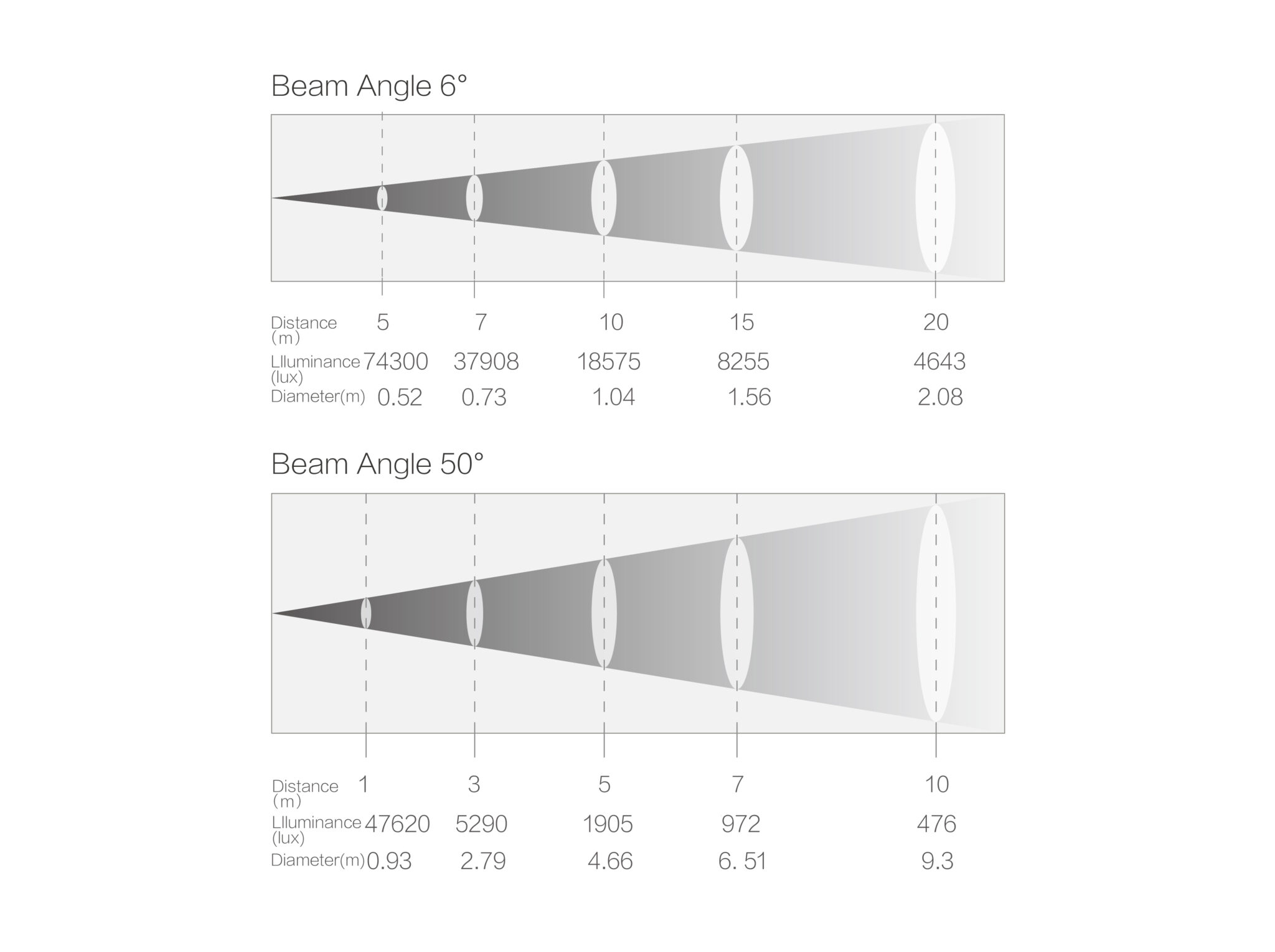

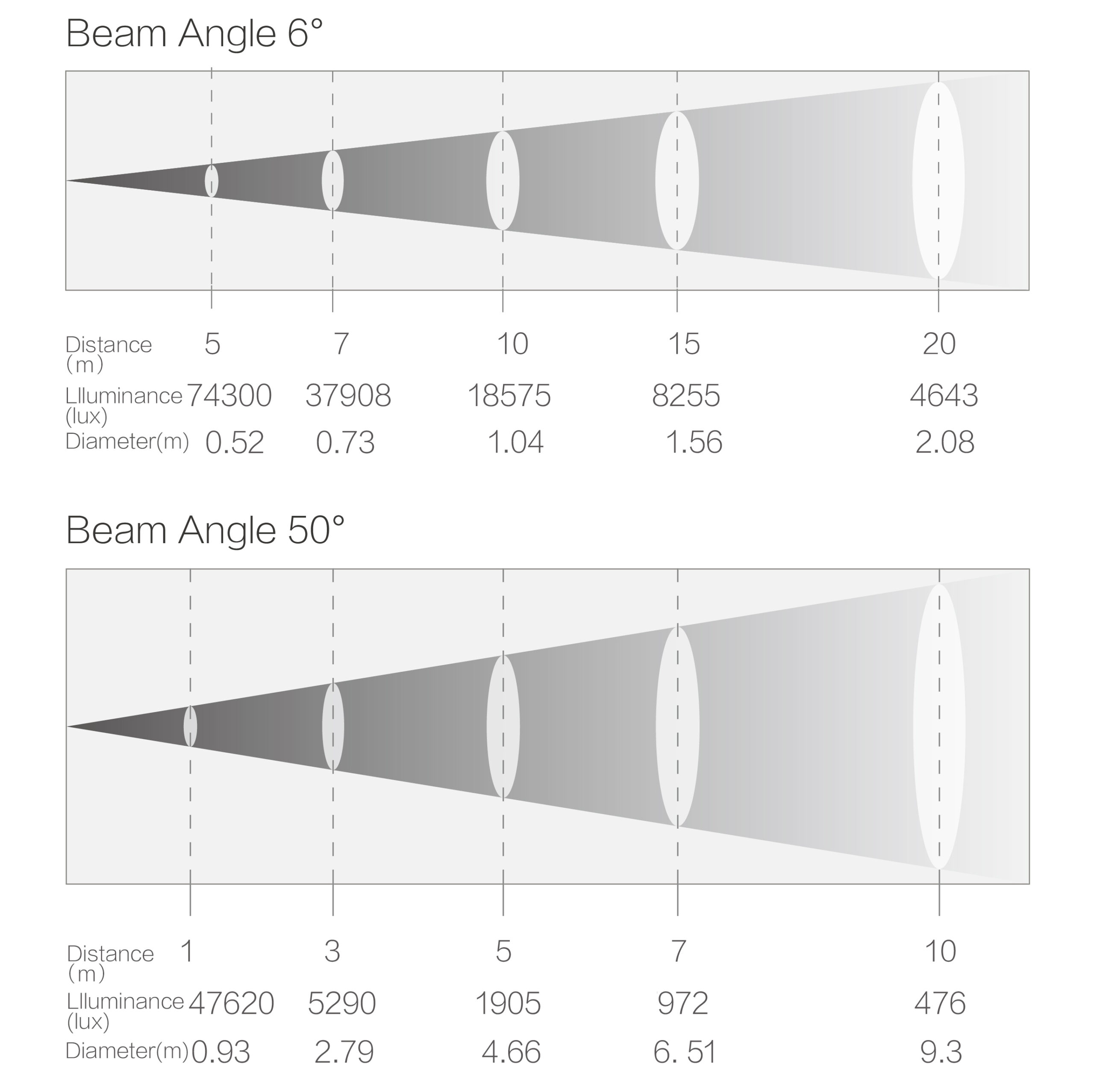

- Beam Angle
6°~50°
KEY FEATURES
- Pan
540° (16bit resolution)
- Tilt
270° (16bit resolution)
- Color System
CMY+CTO+7 Color Filters + Open
- Gobo System
Rotating gobo wheel (7+open)
fixed gobos + open(9+open)
- Animation
Bi-directional animation wheel with variable speed
- Frost
1°soft edge frost, 0–100% variable
- Strobe
0~30Hz
- Dimming
4 dimming curves，0～100% dimming
- Prism
Bi-directional 4-facet prism with variable speed
- Slogan Template
Slogan Template
- Framing System
Single blade ±35°, rotatable 180°
- Iris
NA
- Frost
Frost glass
- Prism
Bi-directional, combinable, 8-facet + 4-facet prism
CONTROL
- Protocol
DMX512/RDM
- DMX Channels
25CH
- Display
2.83 inches TFT display
- Slogan Template
Slogan Template
- Slogan Template
Slogan Template
- Slogan Template
Slogan Template
- Slogan Template
Slogan Template
POWER
- Mains
100 – 240V, 50/60 Hz

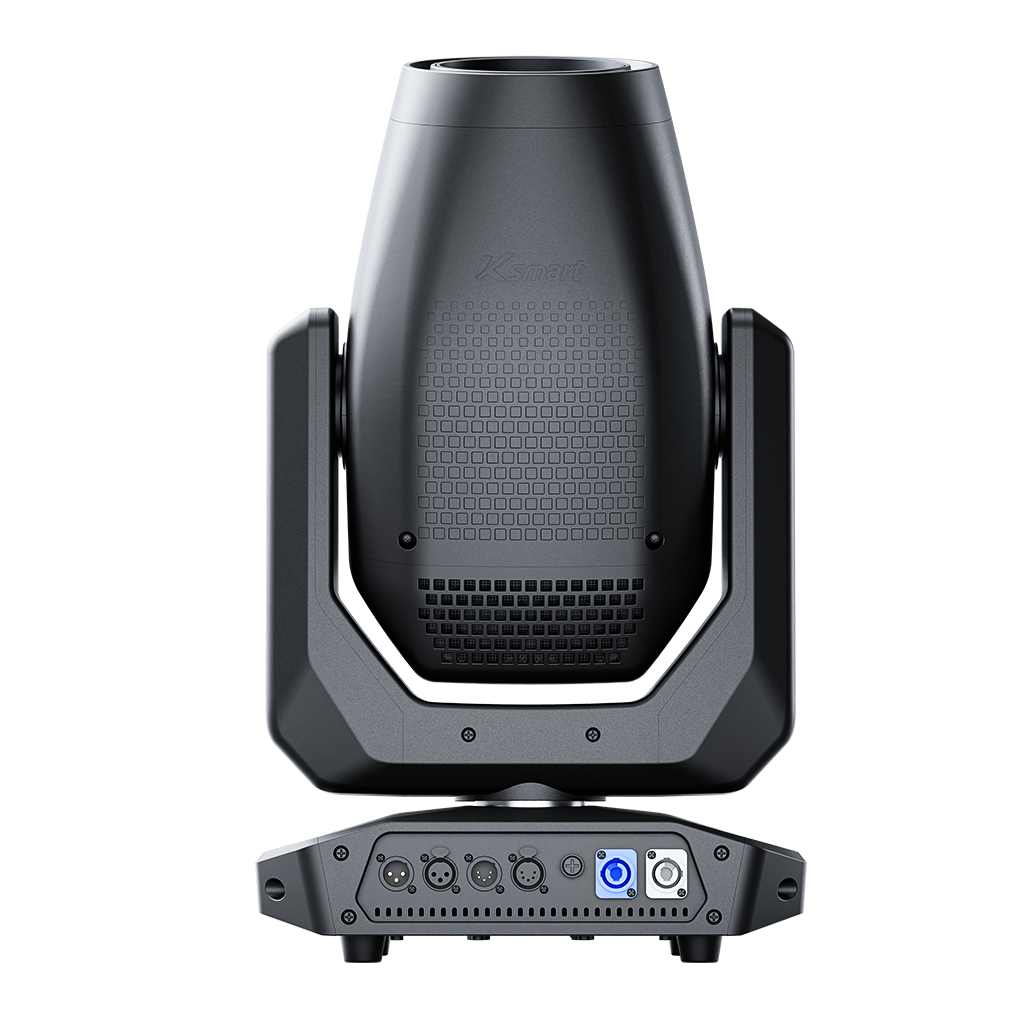

- Power Connections
PowerCon In/Out
- Data Connections
3pin+5pin DMX In/Out
- Maximum Data Connections
linking up to 25 pcs
- Consumption
760W/120V，740W/230V
- Power Factor
0.96/230V ，0.99/120V
- Ambient
-10°C – 45°C
- Slogan Template
Slogan Template
- Slogan Template
-20°C – 45°C

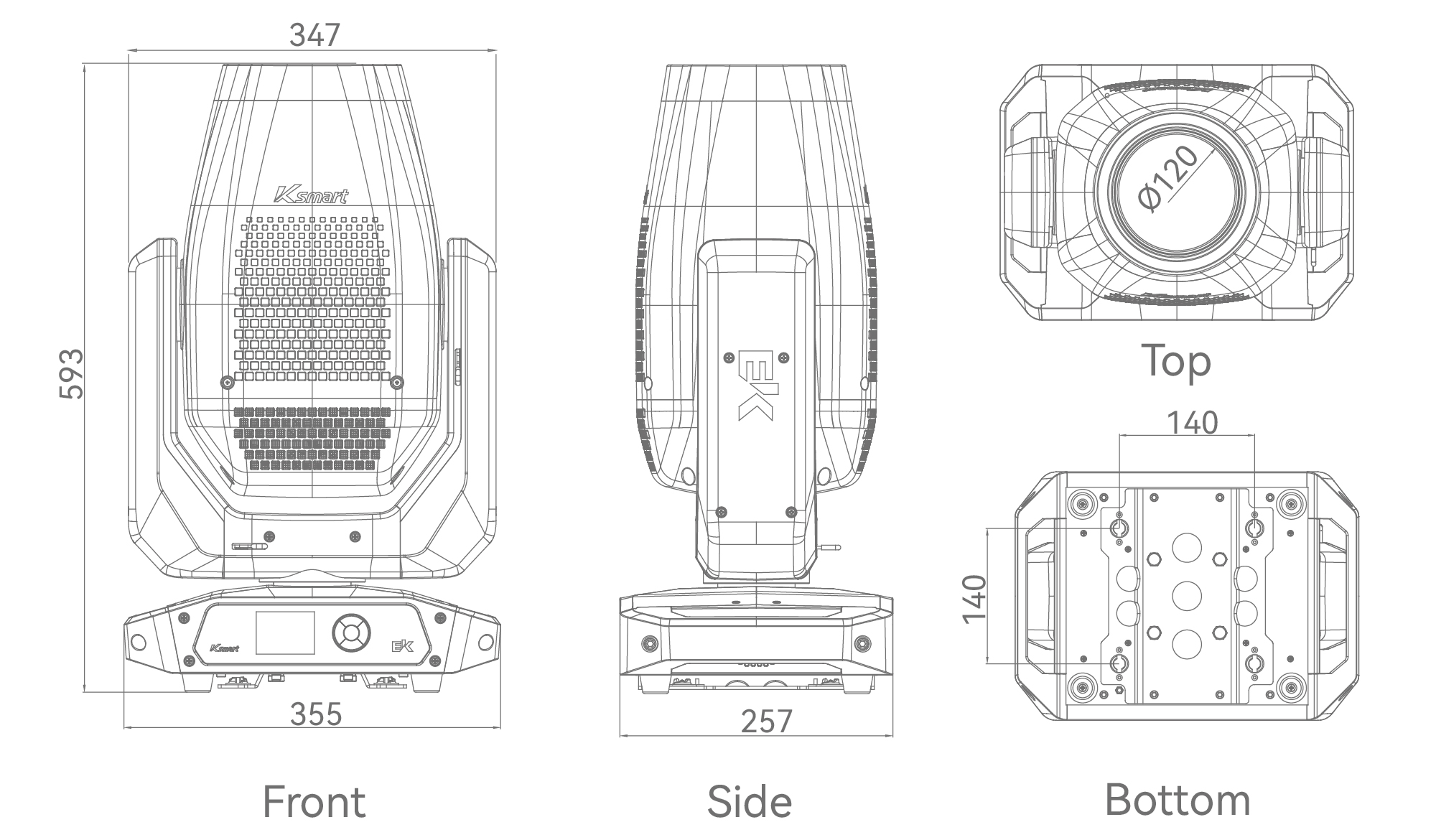

PHYSICAL

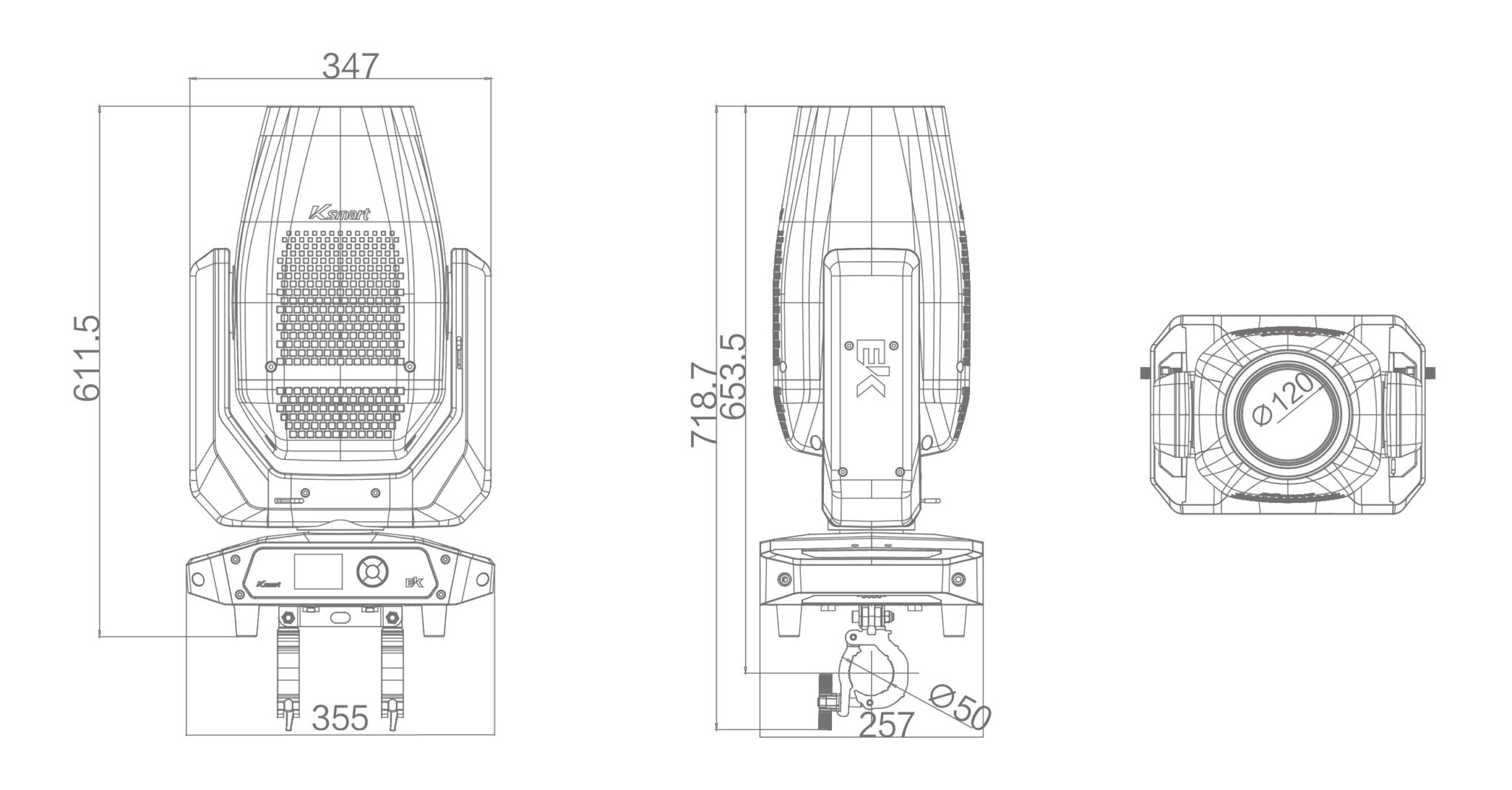

- Dimension
355 x 257 x 593 mm
- Weight
24kg
- Cooling
Heat pipe cooling system with low noise fan
- Cooling
Heat pipe cooling system with low noise fan
- Slogan Template
Slogan Template
- Slogan Template
Slogan Template

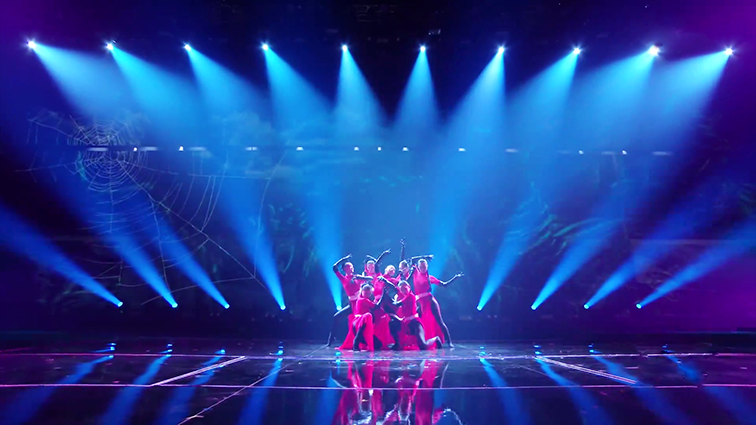

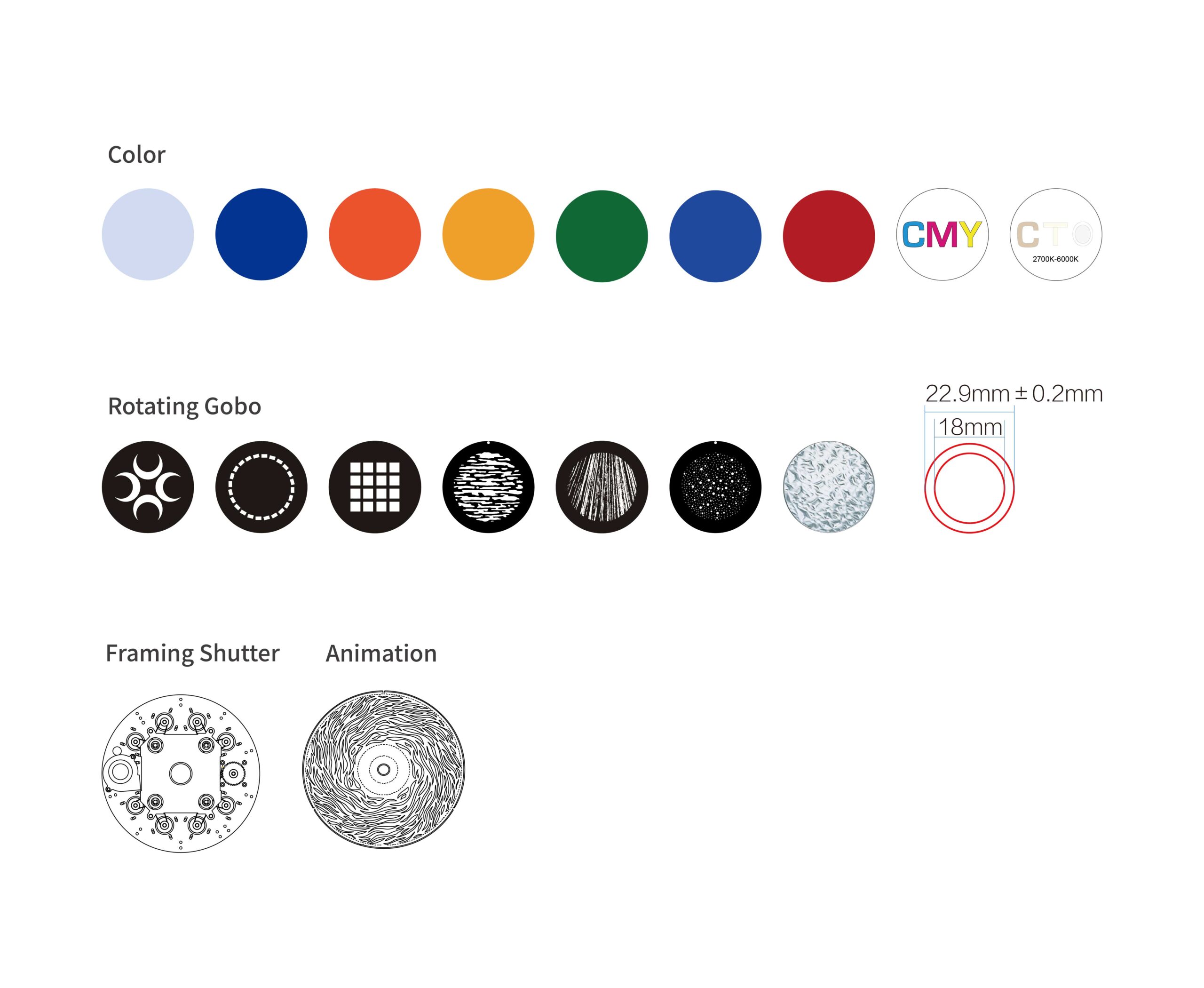

PRODUCT EFFECTS
ACCESSORIES
- Standard
Power Cable

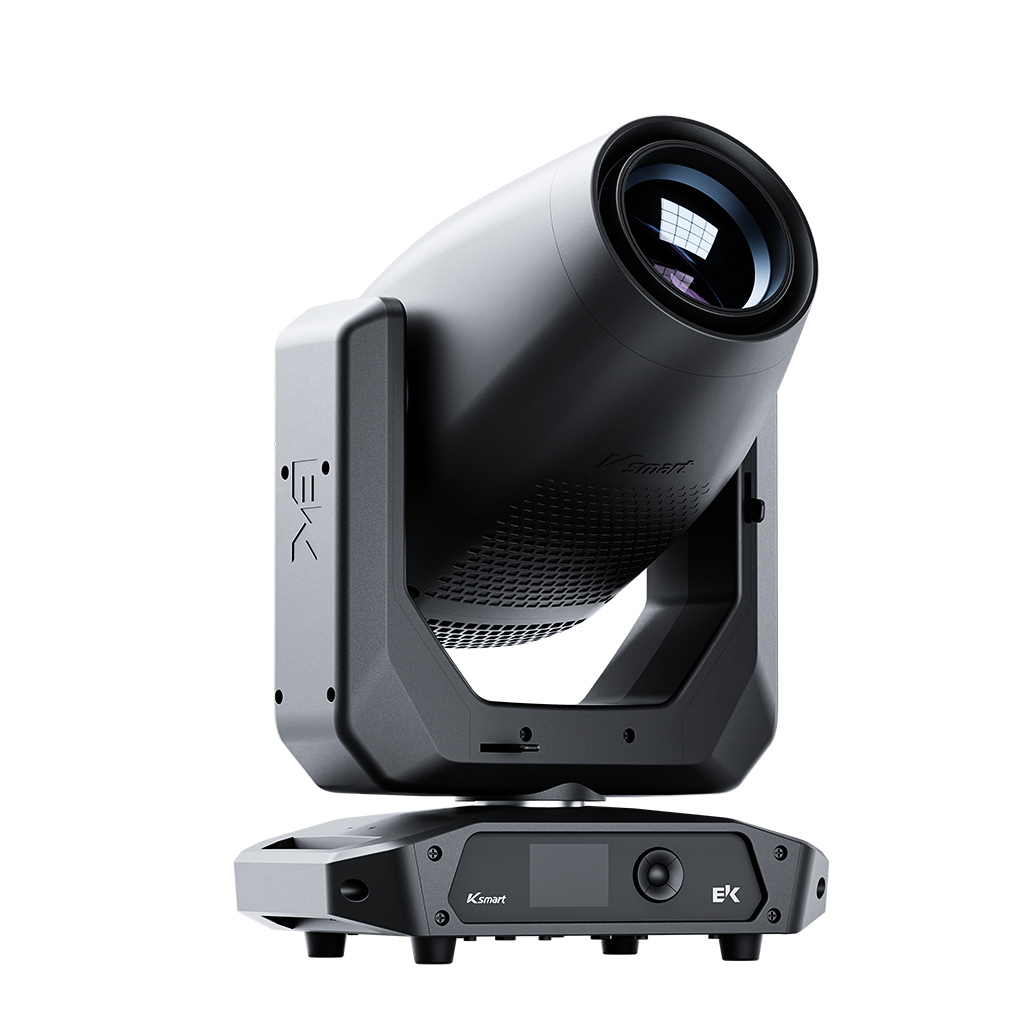

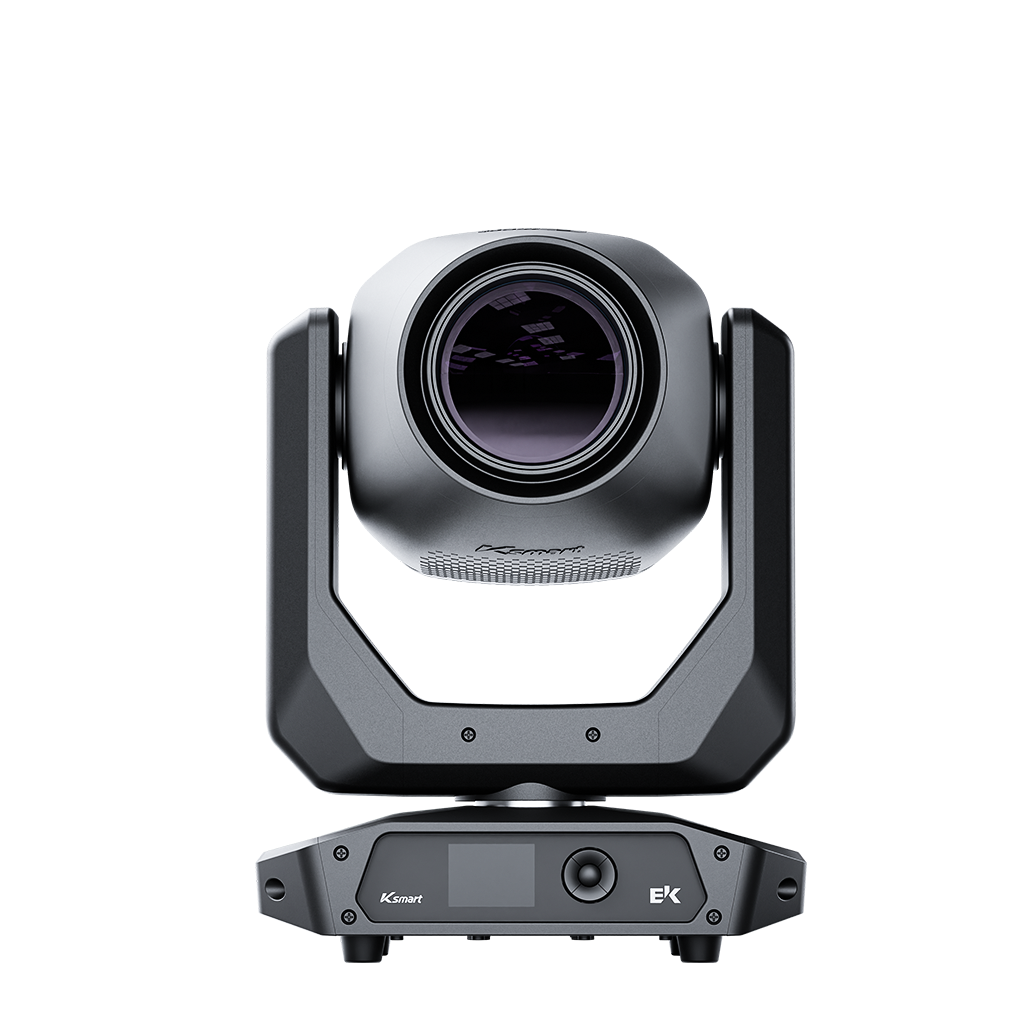

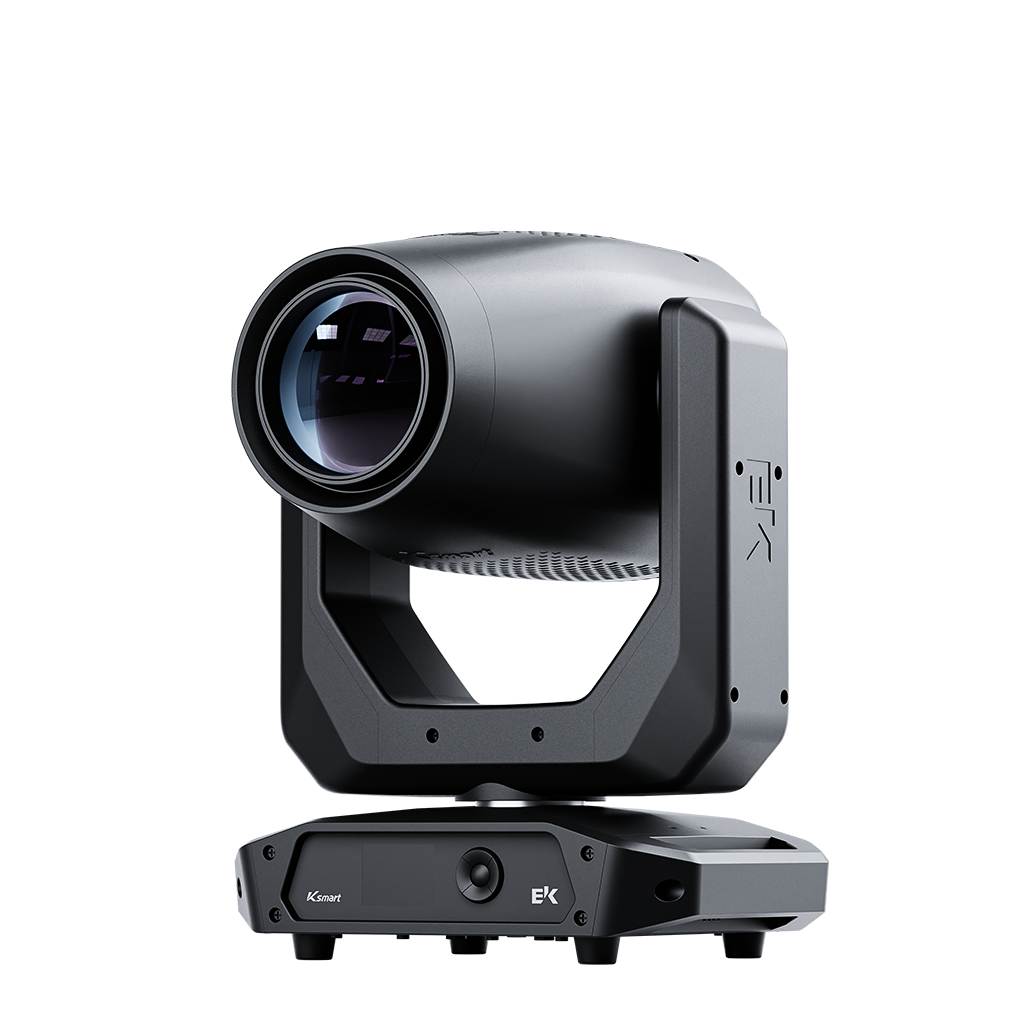

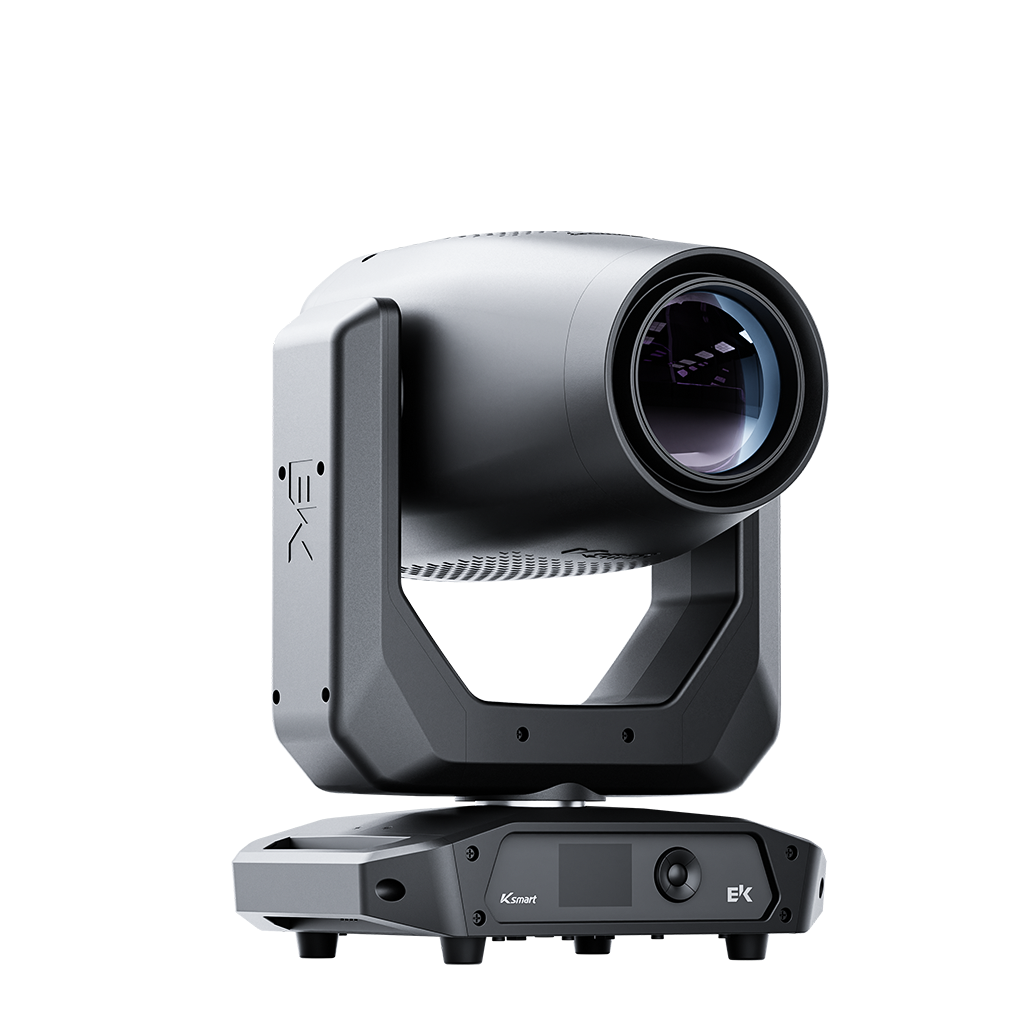

IMAGE GALLERY
